FRA2C-2-DC24V

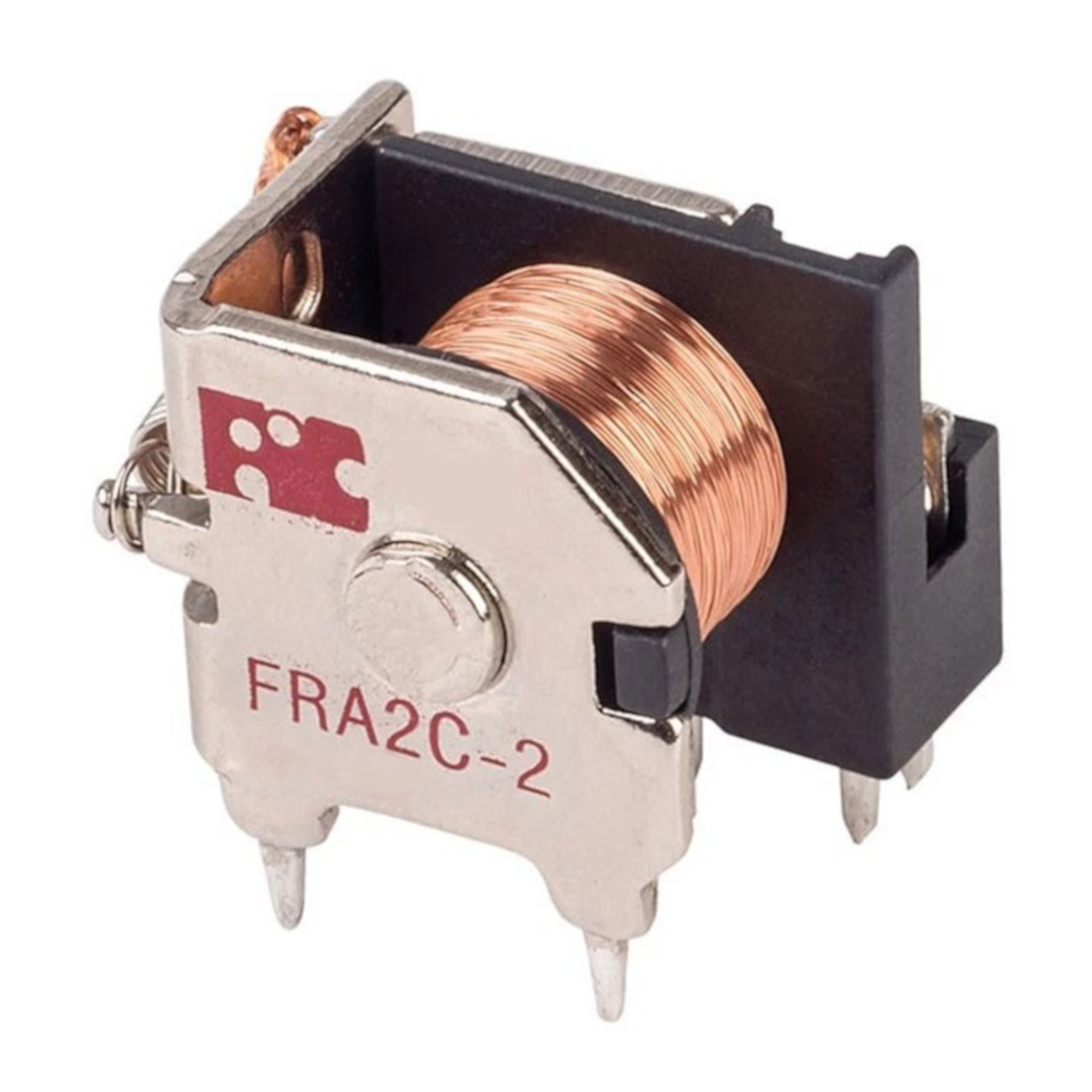

Forward Industrial Co. Automotive relay FRA2 SPDT 30A 24VDC 360Ohm 19mmx24mmx20mm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Next Stock Receipt
Week 43/2026
1.000 Pcs.
1.000 Pcs.
Planned delivery time
Ø 30 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- FRA2

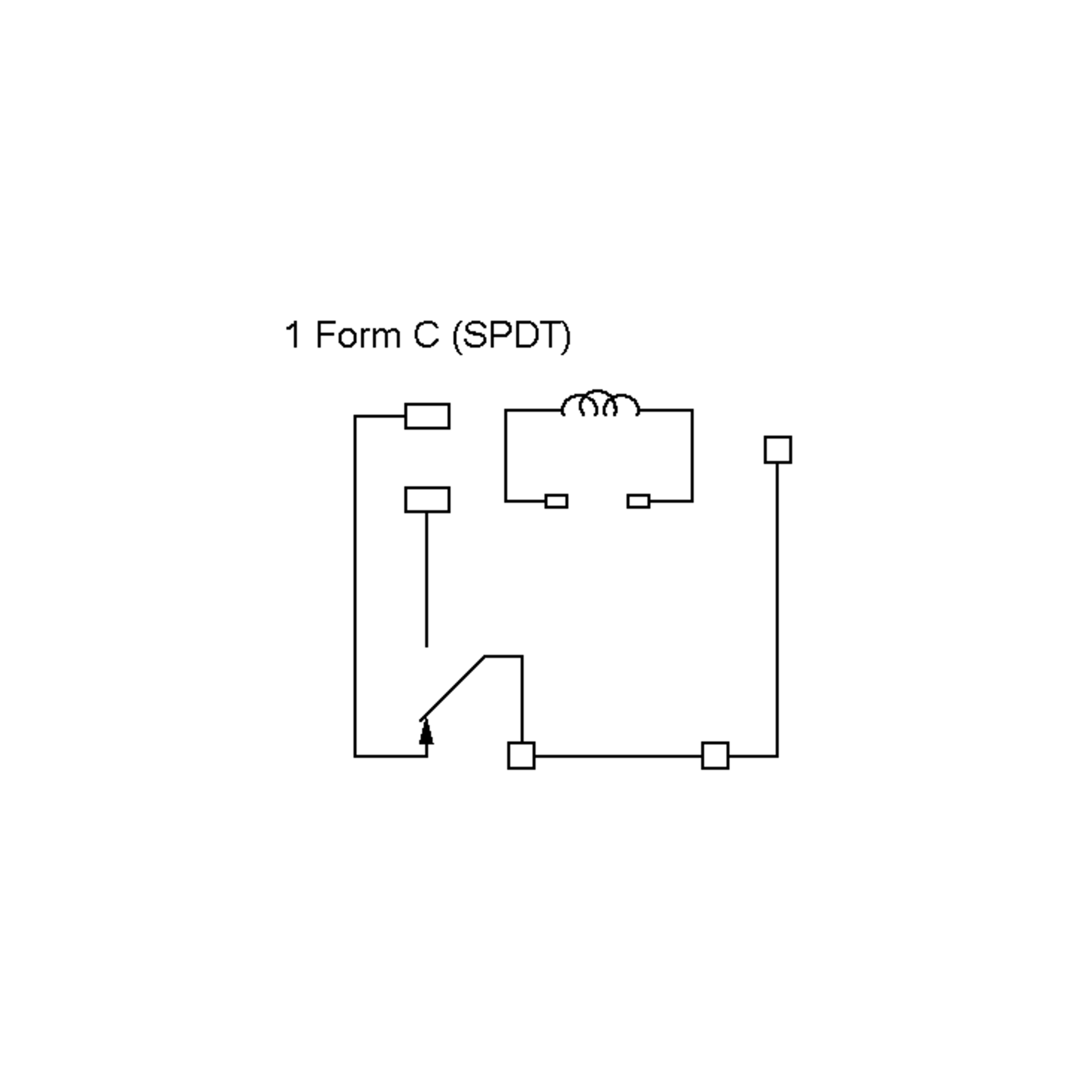

- contacts
- SPDT
- Contact: Switching Current (min/typ/max)
- 30 A
- Coil: Nominal Voltage DC
- 24 V DC
- Coil resistance
- 360 Ohm
- RoHS-Conform
Specifications
Open all

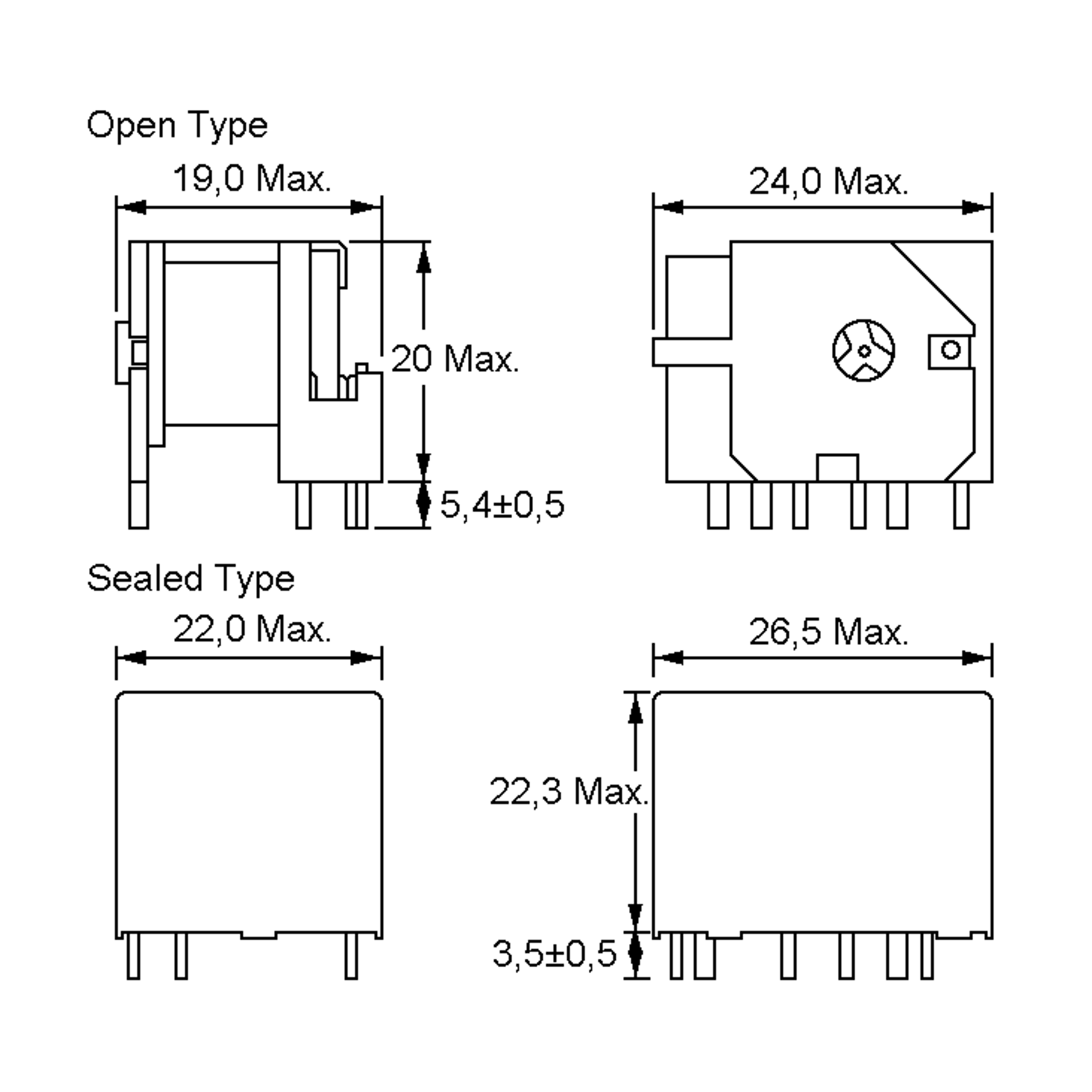

Dimensions and Weights
- Dimension: Length
- 19 mm
- Dimension: Width
- 24 mm
- Dimension: Height
- 20 mm
- Weight
- 18 g
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 105 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 30 A
- Contact: Switching Voltage, max. DC
- 75 V DC
- Contact: Switching Load (W)
- 630 W
- Contact resistance
- 30 mOhm
- Coil design
- monostable
- Coil resistance
- 360 Ohm
- Inductor power
- 1,600 mW
- Coil: Rated Current [mA]
- 66 mA
- Coil: Nominal Voltage DC
- 24 V DC
- Coil: Operating Voltage, max.
- 36 V
- Coil: Pick-up voltage
- 13.9 V
- Coil: Drop-out Voltage
- 2.4 V
- Test voltage open contacts
- 500 V AC
- Test voltage coil/contact
- 750 V AC
- Response time
- 5 ms
- Drop-out time
- 5 ms
- Insulation resistance
- 100 MOhm
- Vibration resistance
- 1,27 mm DA
- Impact resistance, functional
- 20 g
