WSC-3P

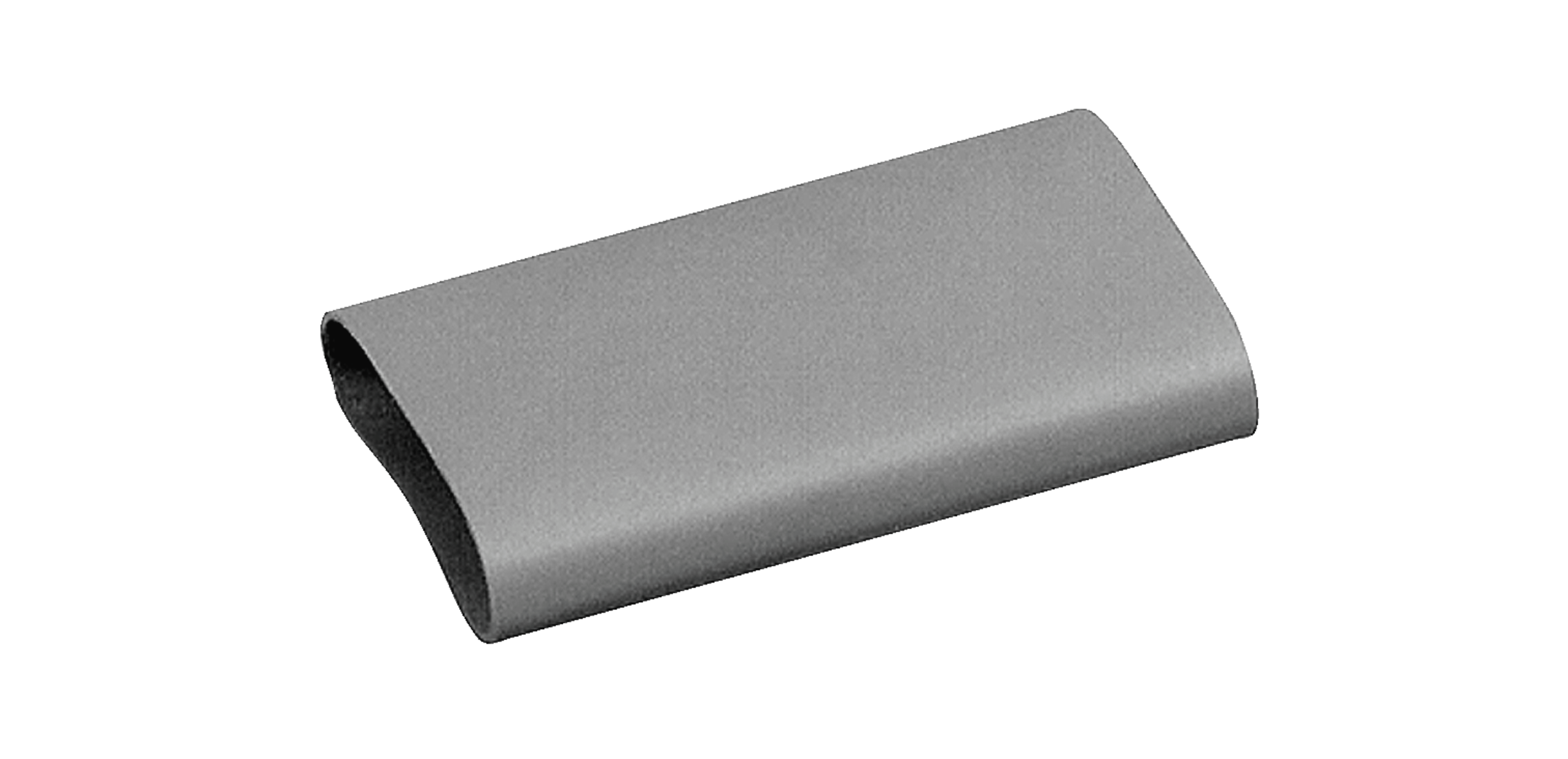

Fischer Elektronik Insulating tubes WSC Silicone 300µm 25mm -40°C 150°C gray UL 94 V-0
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
625 Pcs. in stock
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 25 or multiple of 25)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Insulating tubes
- Series
- WSC
- Dimension: Length
- 25 mm
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 150 °C
- Material
- Silicone
- Material thickness, max.
- 300 µm
- Colour
- gray
- Class of Inflammability
- UL 94 V-0
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 25 mm
- Material thickness, max.
- 300 µm
Operating conditions
- Thermal conductivity
- 1.2 W/m.K
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 150 °C
Technical features
- Thermal resistance
- 0.4 K/W
- Dielectric strength, min.
- 10 kV/mm
- Insulation resistance
- 2,9 x 10^15 Ohm/cm
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
