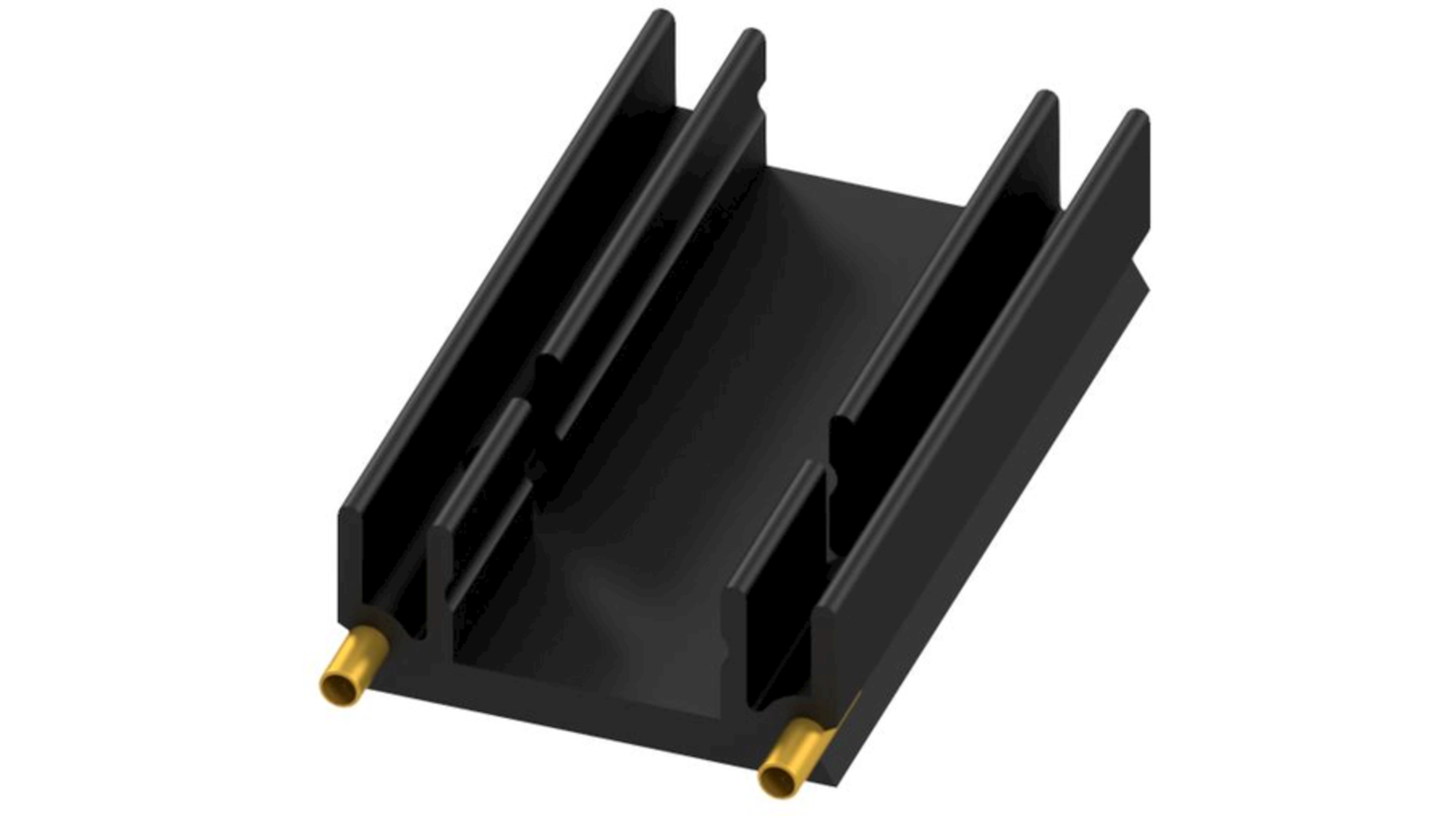

SK 145 50 STC TO 218
Fischer Elektronik Standard extrudes heatsinks SK 145 black Clip mounting 50mm 29mm
Manufacturer Part No.
SK 145 50 STC TO 218
Schukat Part No.
SK14550STC
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
15 Pcs. in stock
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Standard extrudes heatsinks
- Series
- SK 145
- Colour
- black
- Assembly Type
- Clip mounting
- Dimension: Length
- 50 mm
- Dimension: Width
- 29 mm
- Dimension: Height
- 12 mm
- Thermal resistance
- 10 K/W
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 50 mm
- Dimension: Width
- 29 mm
- Dimension: Height
- 12 mm
Technical Features
- Thermal resistance
- 10 K/W
