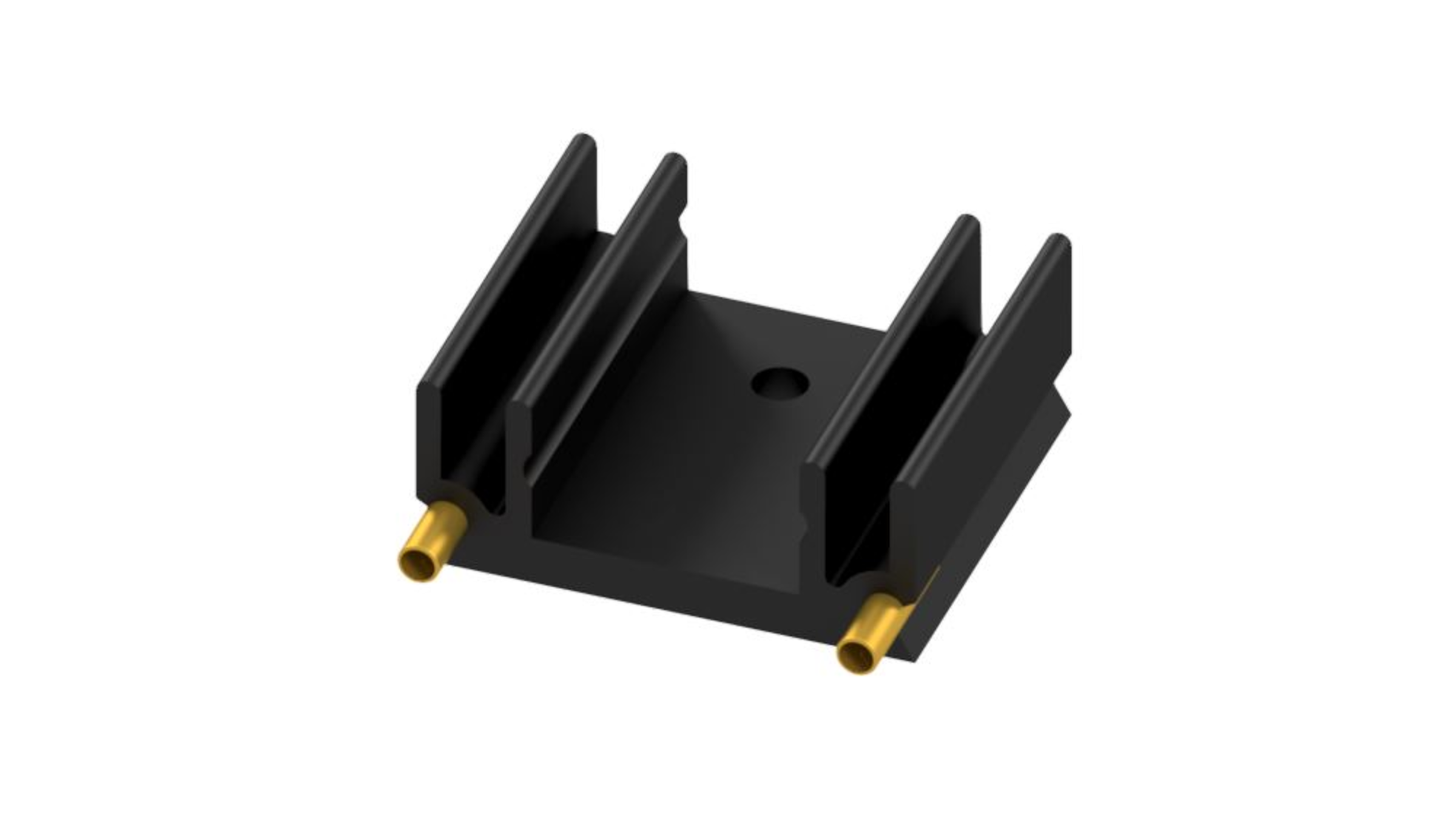

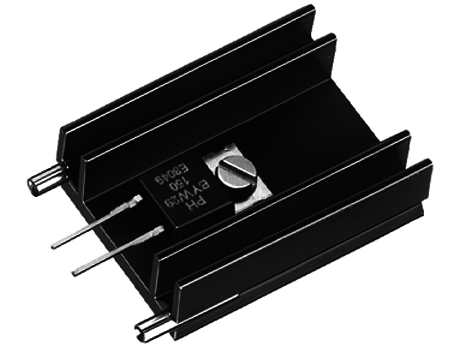

SK 145 25 STS TO 220
Fischer Elektronik Standard extrudes heatsinks SK 145 anodized black Screw mounting 25mm 29mm
NEW
Manufacturer Part No.
SK 145 25 STS TO 220
Schukat Part No.
SK14525STSTO220
Manufacturer
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
10 Pcs. in stock
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 30.04.2026
Article discontinued
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Standard extrudes heatsinks
- Series
- SK 145
- Colour
- black
- Assembly Type
- Screw mounting
- Dimension: Length
- 25 mm
- Dimension: Width
- 29 mm
- Dimension: Height
- 12 mm
- Thermal resistance
- 13.5 K/W
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 25 mm
- Dimension: Width
- 29 mm
- Dimension: Height
- 12 mm
Technical Features
- Thermal resistance
- 13.5 K/W
