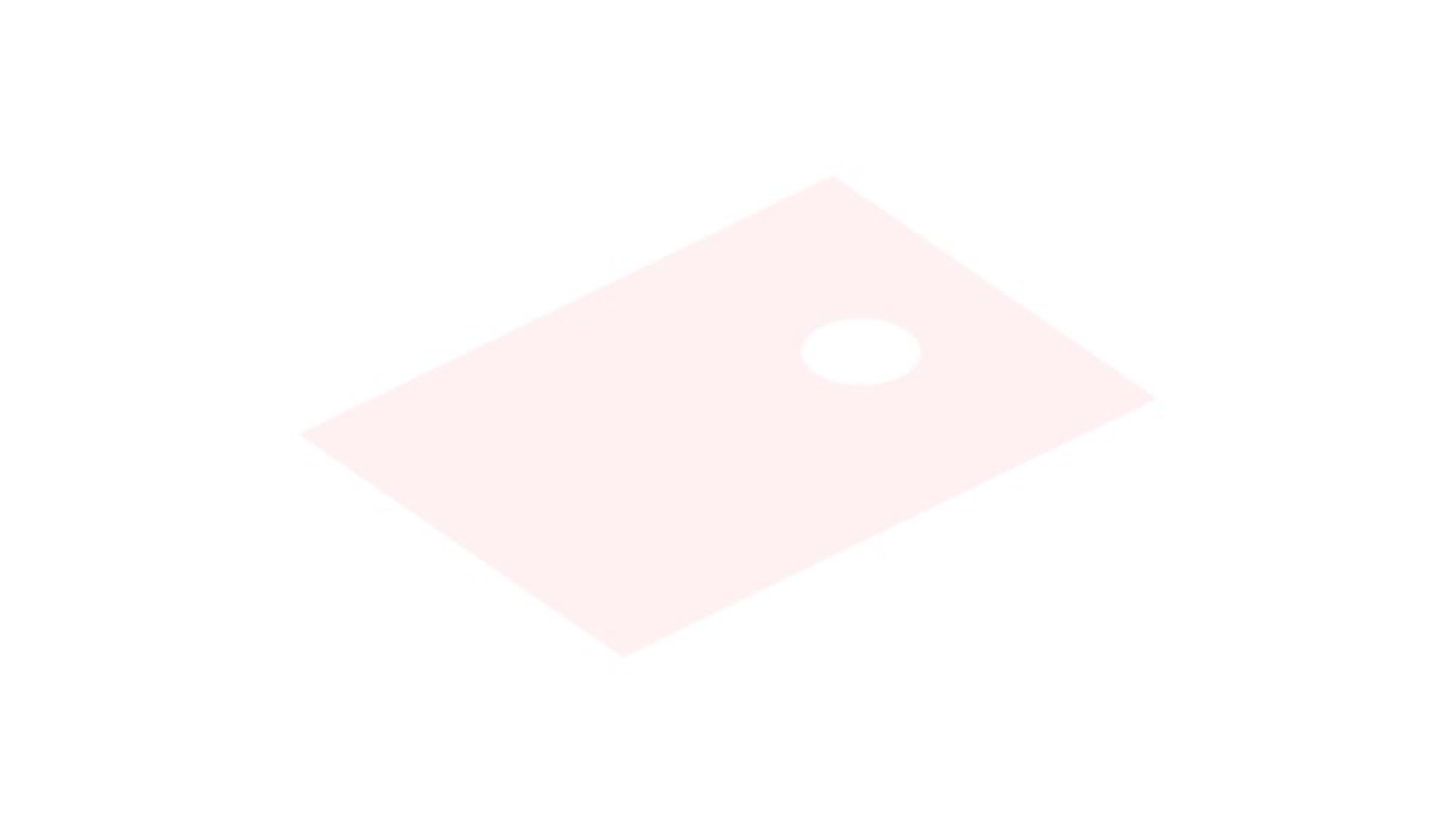

KAP 220 K
Fischer Elektronik Wafers KAP PA(polyamide) 77µm 18mm 13mm -40°C 150°C UL 94 V-0
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
50 Pcs. in stock
Planned delivery time
Ø 3 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 100 or multiple of 100)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Wafers
- Series
- KAP
- Dimension: Length
- 18 mm
- Dimension: Width
- 13 mm
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 150 °C
- Material
- PA (polyamide)
- Material thickness, max.
- 77 µm
- Class of Inflammability
- UL 94 V-0
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 18 mm
- Dimension: Width
- 13 mm
- Material thickness, max.
- 77 µm
Operating conditions
- Thermal conductivity
- 0.45 W/m.K
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 150 °C
Technical features
- Dielectric strength, min.
- 7.8 kV/mm
Technical Features
- Thermal resistance
- 0.15 K/W
Safety/Certifications
- Class of Inflammability
- UL 94 V-0
