99.80.3.000.00

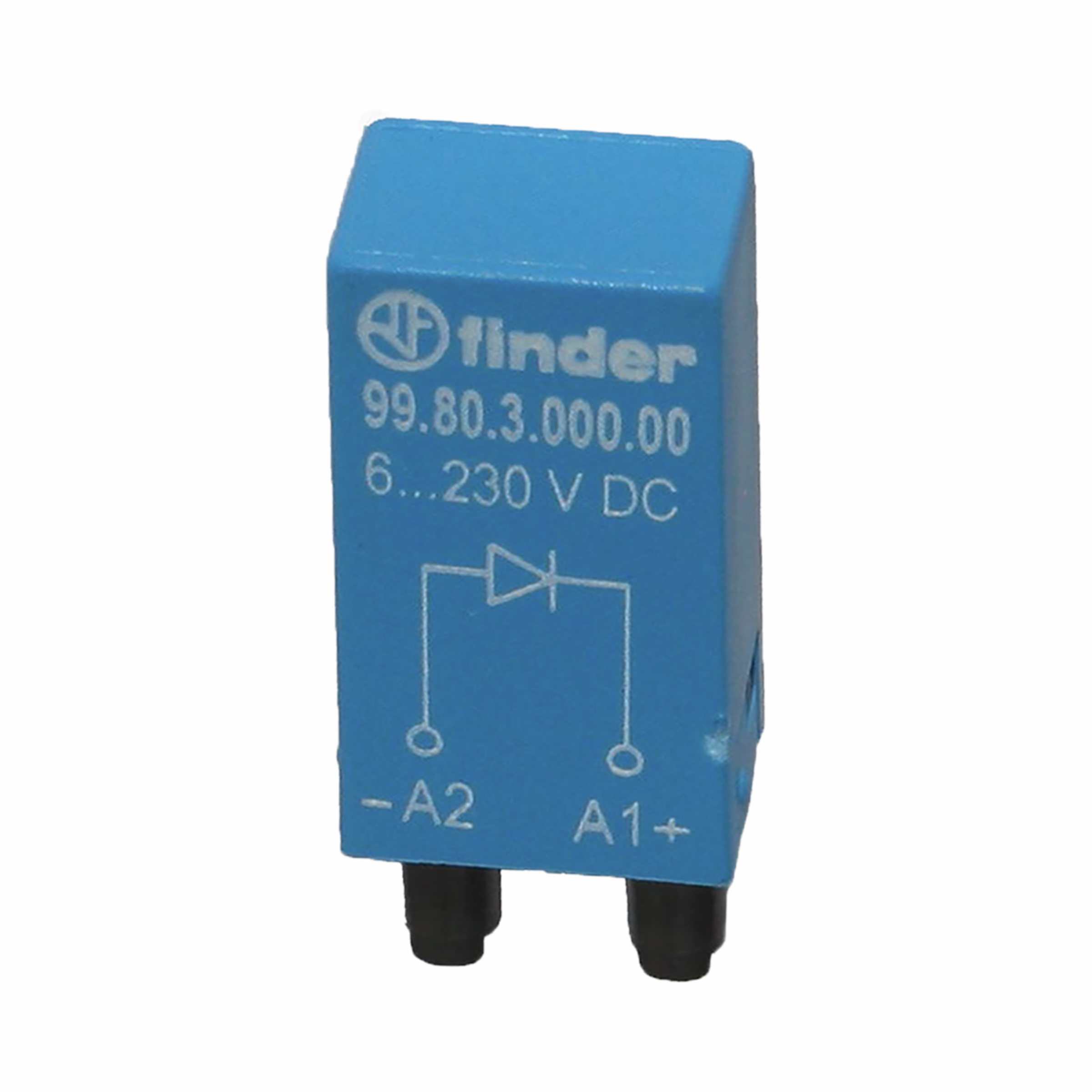

Finder Display module freewheeling diode 99.80 220VDC

FM998D
Manufacturer Part No.
99.80.3.000.00
Schukat Part No.
FM998D
Manufacturer
Finder
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

10 Pcs. in stock

Planned delivery time
Ø 9 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
• Here you will find suitable PCB relays.
Type
Display module freewheeling diode
Series
99.80
Termination Style
Plug connection
Cell size
Relay 40.31
Relay 40.52
Relay 40.61
Relay 41.52
Relay 41.61
Socket 95.83.3
Socket 95.85.3
Socket 95.95.3
Coil: Nominal Voltage max. DC
220 V DC
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Finder
Type
  • Display module freewheeling diode
Series
  • 99.80
Product group
  • E6485
Assembly Type
  • Socket mounting
Termination Style
  • Plug connection
Cell size
  • Relay 40.31
  • Relay 40.52
  • Relay 40.61
  • Relay 41.52
  • Relay 41.61
  • Socket 95.83.3
  • Socket 95.85.3
  • Socket 95.95.3
Material
  • Plastic
Colour
  • blue
Features

  • • Display and EMC suppression modules
    • With freewheeling diode, standard polarity (6...220V DC)
    • For sockets 95.95.3, 95.83.3, and 95.85.3 in conjunction with relays of the 40_ and 41_ series

Notice
  • Cross-references:
    • Here you will find suitable PCB relays.
Application note
  • The module with a freewheeling diode is only for use with DC voltage. The negative turn-off voltage peak of the relay coil is short-circuited by the freewheeling diode. The relay's release time is extended by a factor of approximately three. If this extension of the release time is not desired, a varistor or RC module should be selected.

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 85 °C

Technical Features

Coil: Nominal Voltage, min. DC
  • 6 V DC
Coil: Nominal Voltage max. DC
  • 220 V DC

Other Products

All Products of the Series
Loading...
99.80.0.024.98
Finder

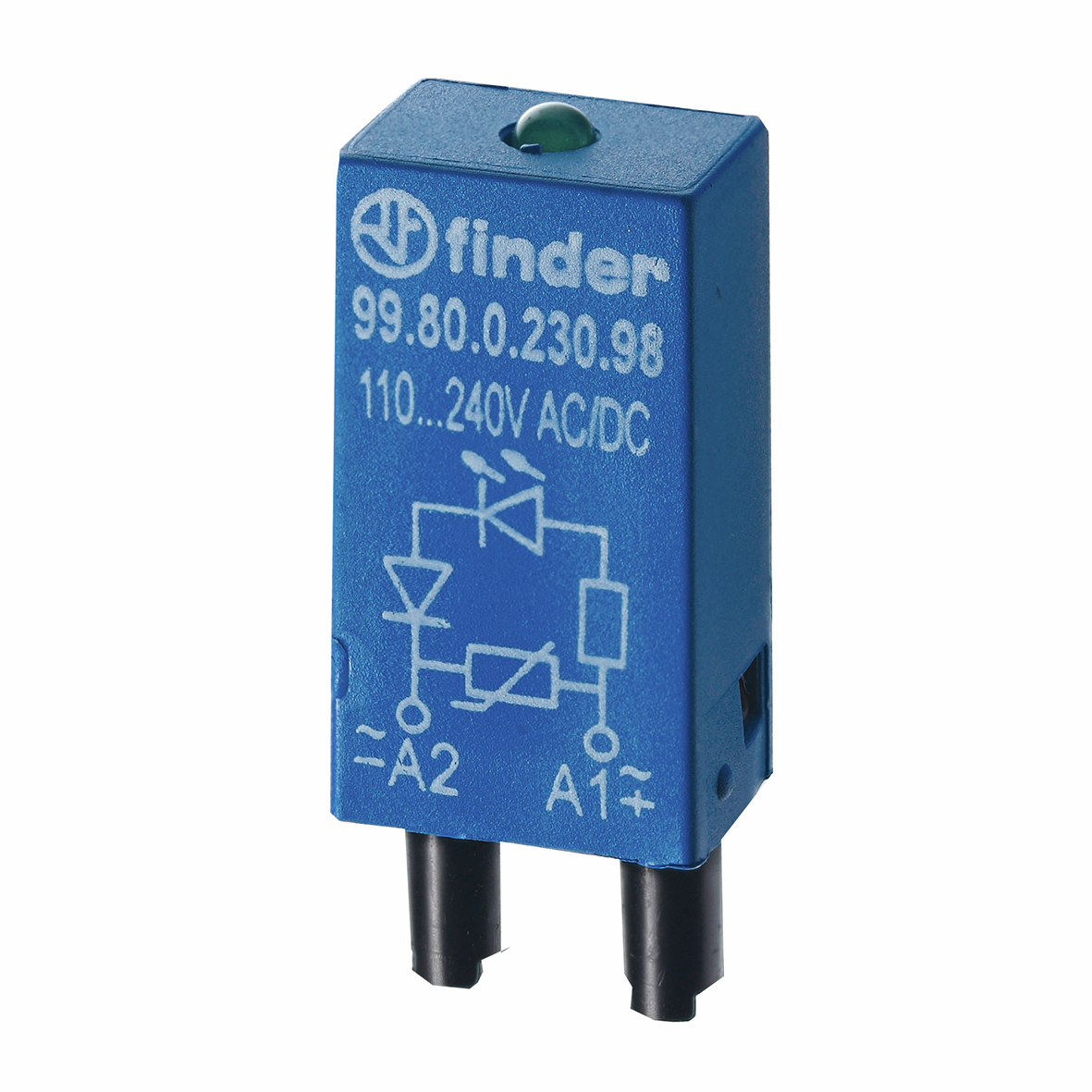

Display module LED with varistor 99.80 24VAC 24VDC
from €4.37
Loading...
99.80.0.230.98
Finder
Display module LED with varistor 99.80 230VAC 230VDC
from €4.37
Loading...
99.80.9.024.99
Finder

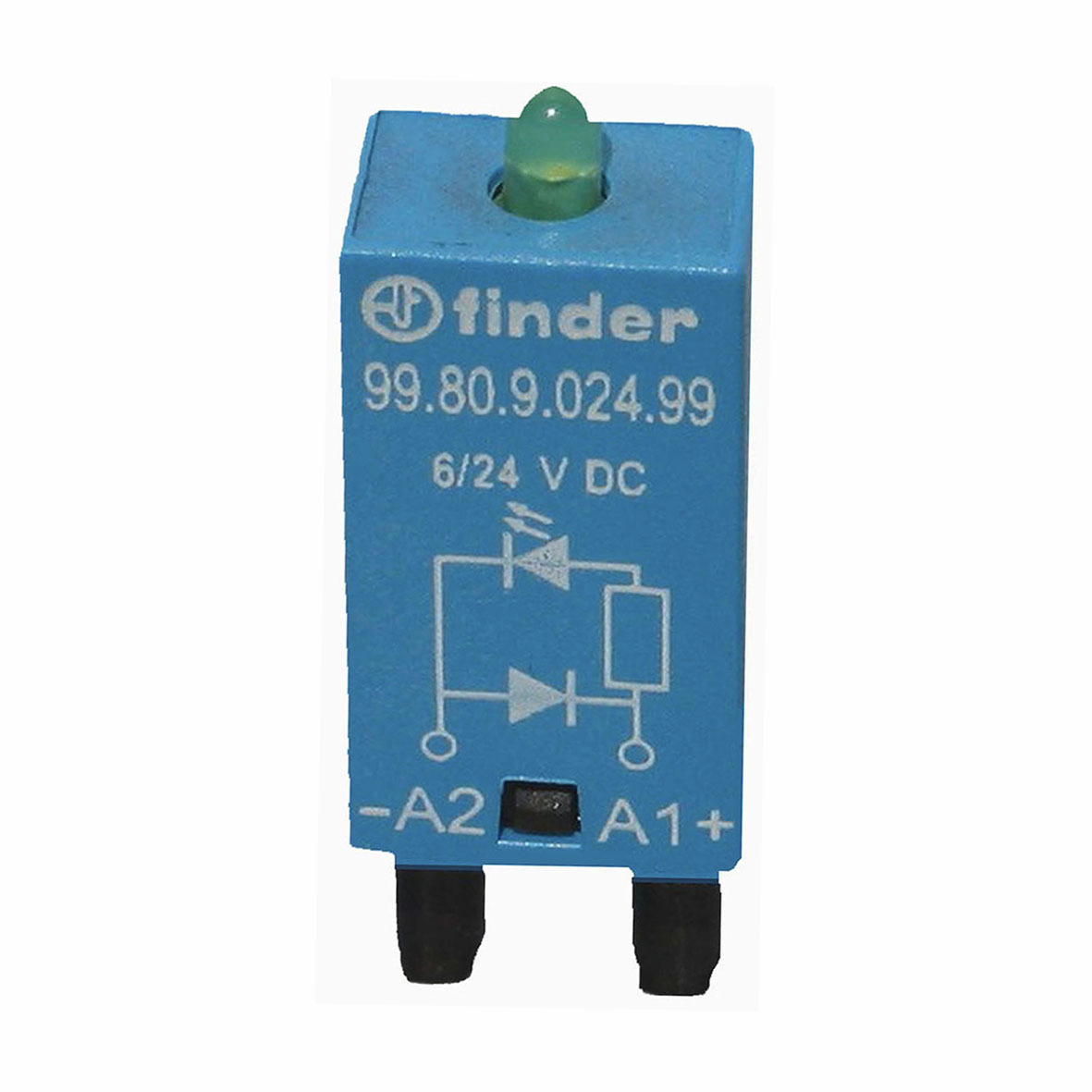

Display module LED with freewheeling diode 99.80 24VDC
