95.15.2

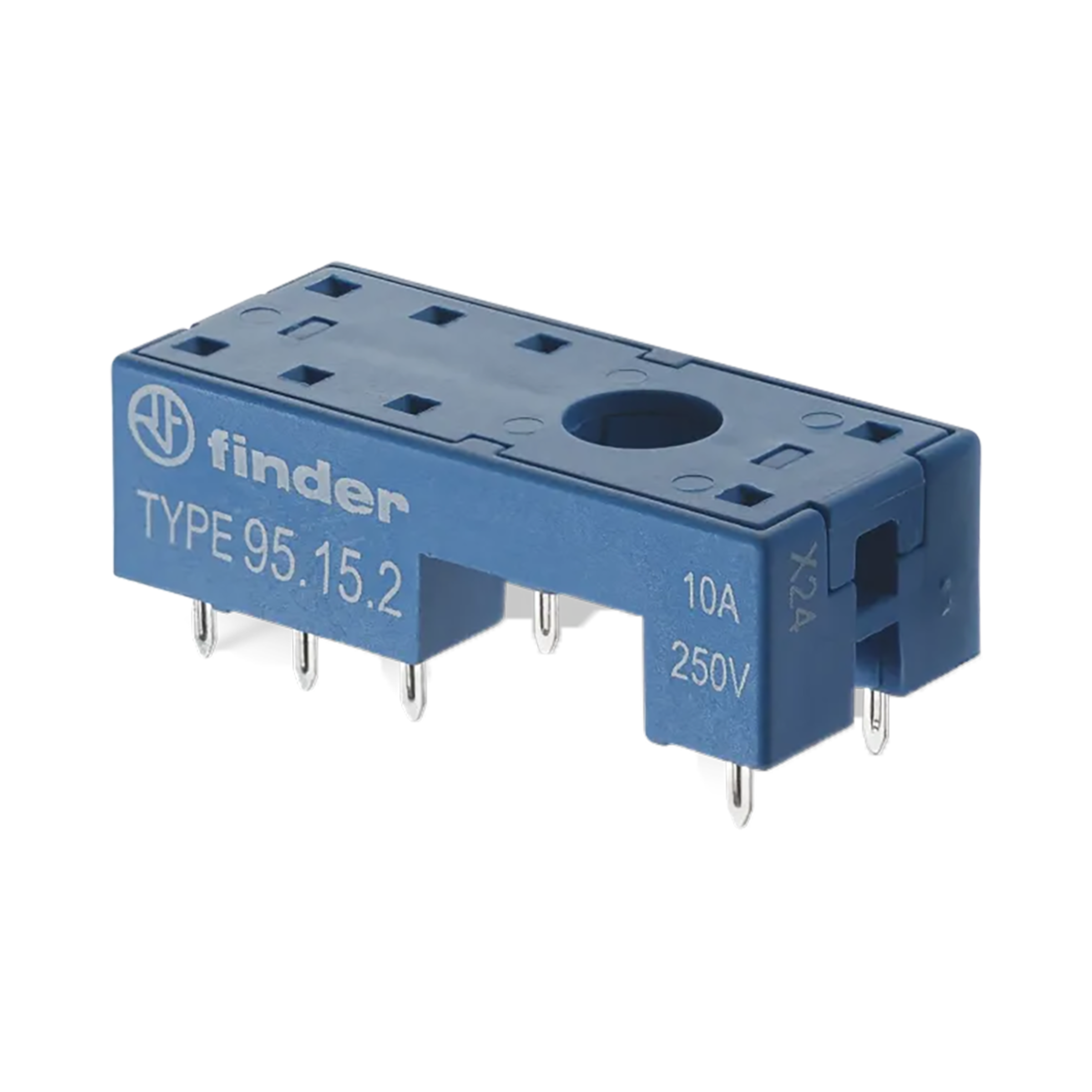

Finder PCB socket 95.15.2 10A 250VAC IP20
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
470 Pcs. in stock
Next Stock Receipt
Week 49/2024
250 Pcs.
250 Pcs.
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- PCB socket
- Cell size
- Holder 095.51
Relay 40.52
Relay 40.61
Relay 40.62
Relay 41.52
Relay 41.61
Relay G2R
Relay RP3
Relay RP3L
Relay RP4
Retaining clip 095.52.3 - Series
- 95.15.2
- Rated voltage AC
- 250 V AC
- Rated current
- 10 A
- Dielectric strength
- 6 kV
- Dimension: Length
- 30.3 mm
- Protection Class
- IP20
- Dimension: Width
- 13 mm
- Dimension: Height
- 9.2 mm
- RoHS-Conform
Specifications
Open all

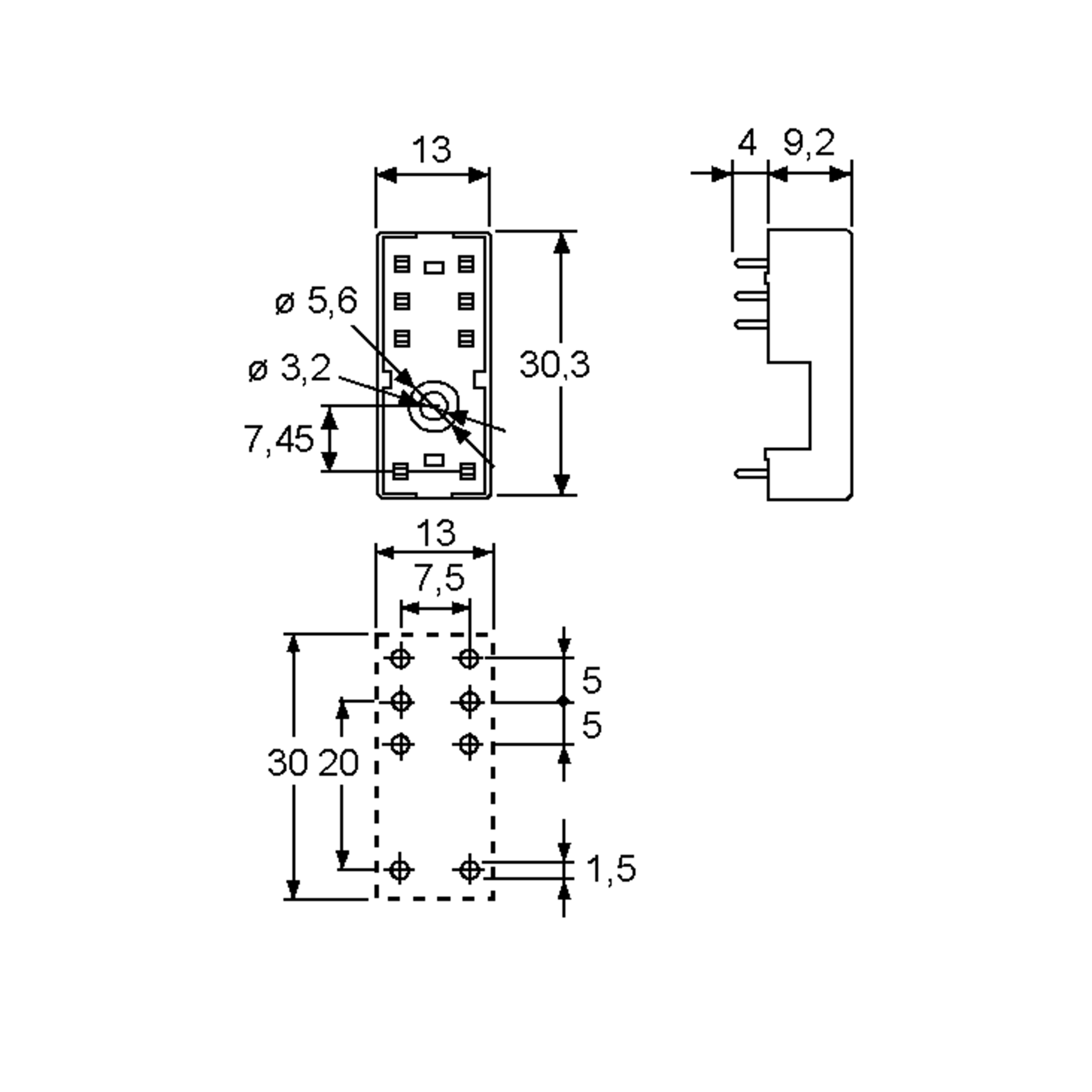

Dimensions and weights
- Dimension: Length
- 30.3 mm
- Dimension: Width
- 13 mm
- Dimension: Height
- 9.2 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 70 °C
Technical features
- Rated voltage AC
- 250 V AC
- Rated current
- 10 A
- Dielectric strength
- 6 kV
Safety/Certifications
- Approvals
- cCSA
- cULus
- Protection Class
- IP20
