94.P4

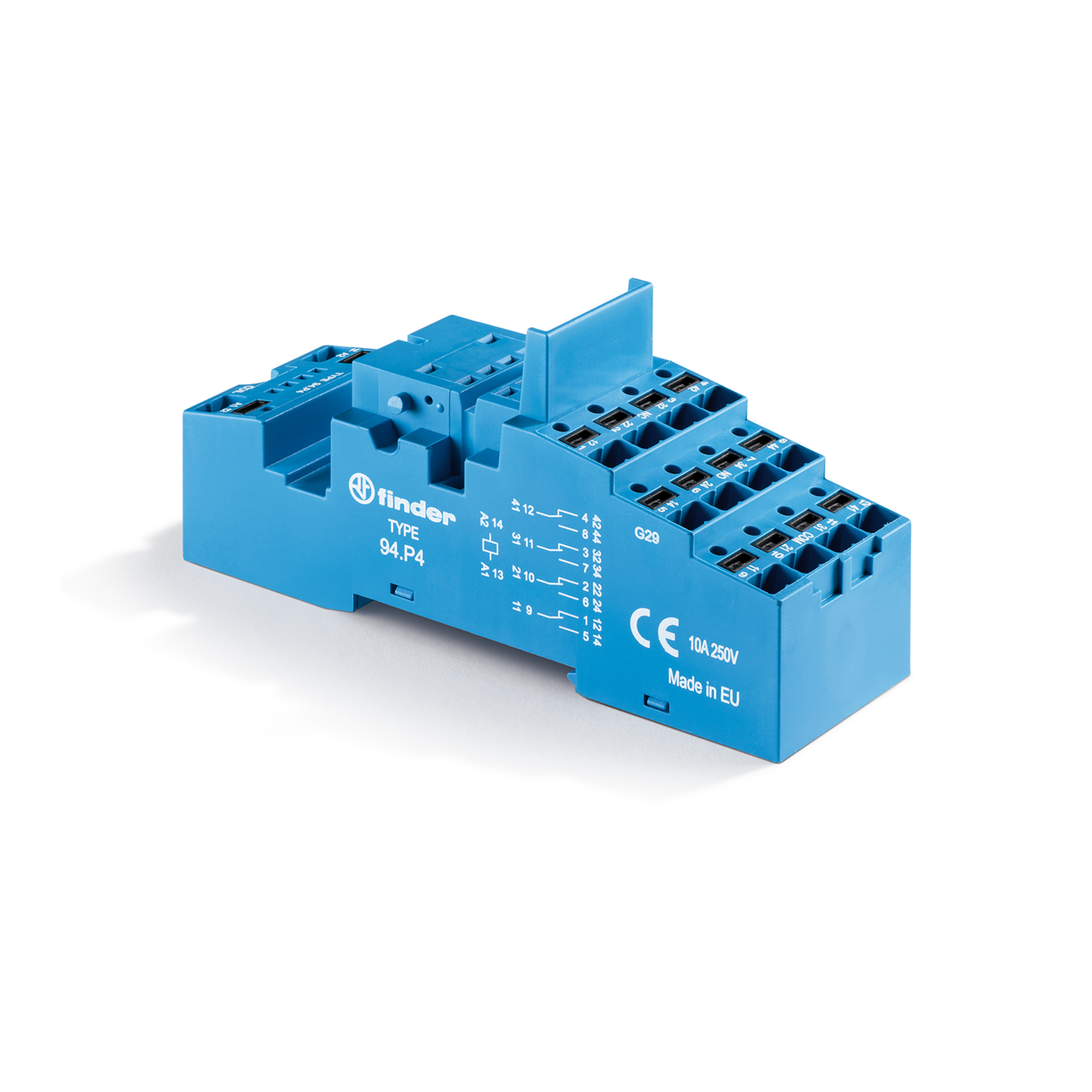

Finder DIN rail socket 94.P4 250VAC IP20
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 9 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relays. - Type
- DIN rail socket
- Series
- 94.P4
- Termination Style
- Push-in clamps
- Cell size
- Display modules 99.02
Relay 55.32
Relay 55.34
Retaining clip 094.71
Variclip 094.91.3 - Coil: Nominal Voltage AC
- 250 V AC
- Contact: Voltage Resistance
- 2 kV

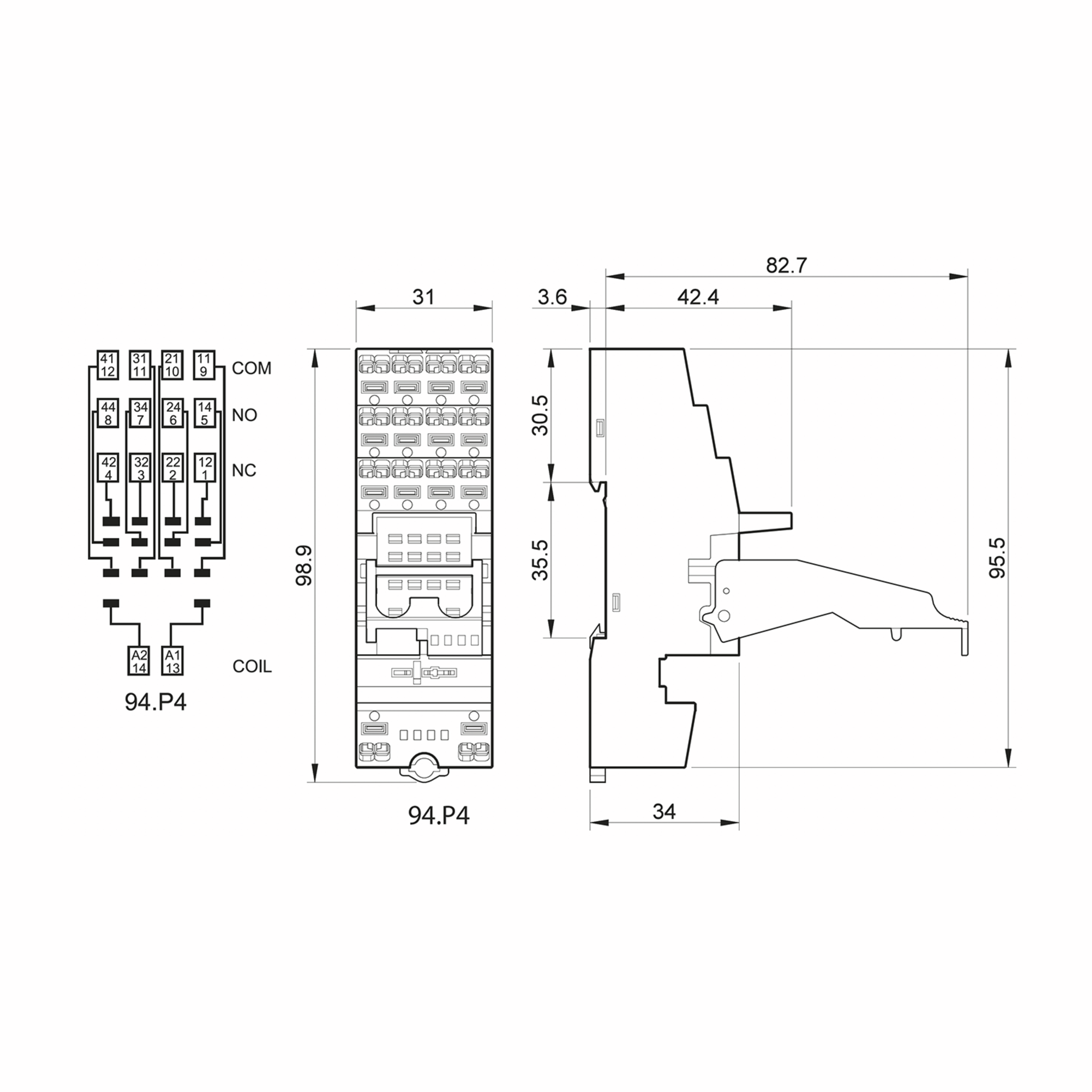

- Dimension: Length
- 95.5 mm
- Dimension: Width
- 31 mm
- Dimension: Height
- 82.7 mm
- Protection Class
- IP20
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 95.5 mm
- Dimension: Width
- 31 mm
- Dimension: Height
- 82.7 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 70 °C
Technical Features
- Contact: Voltage Resistance
- 2 kV
- Coil: Nominal Voltage AC
- 250 V AC
Safety/Certifications
- Approvals
- CE
- EAC
- UK CA
- cCSA
- cULus
- Protection Class
- IP20
