90.03.0

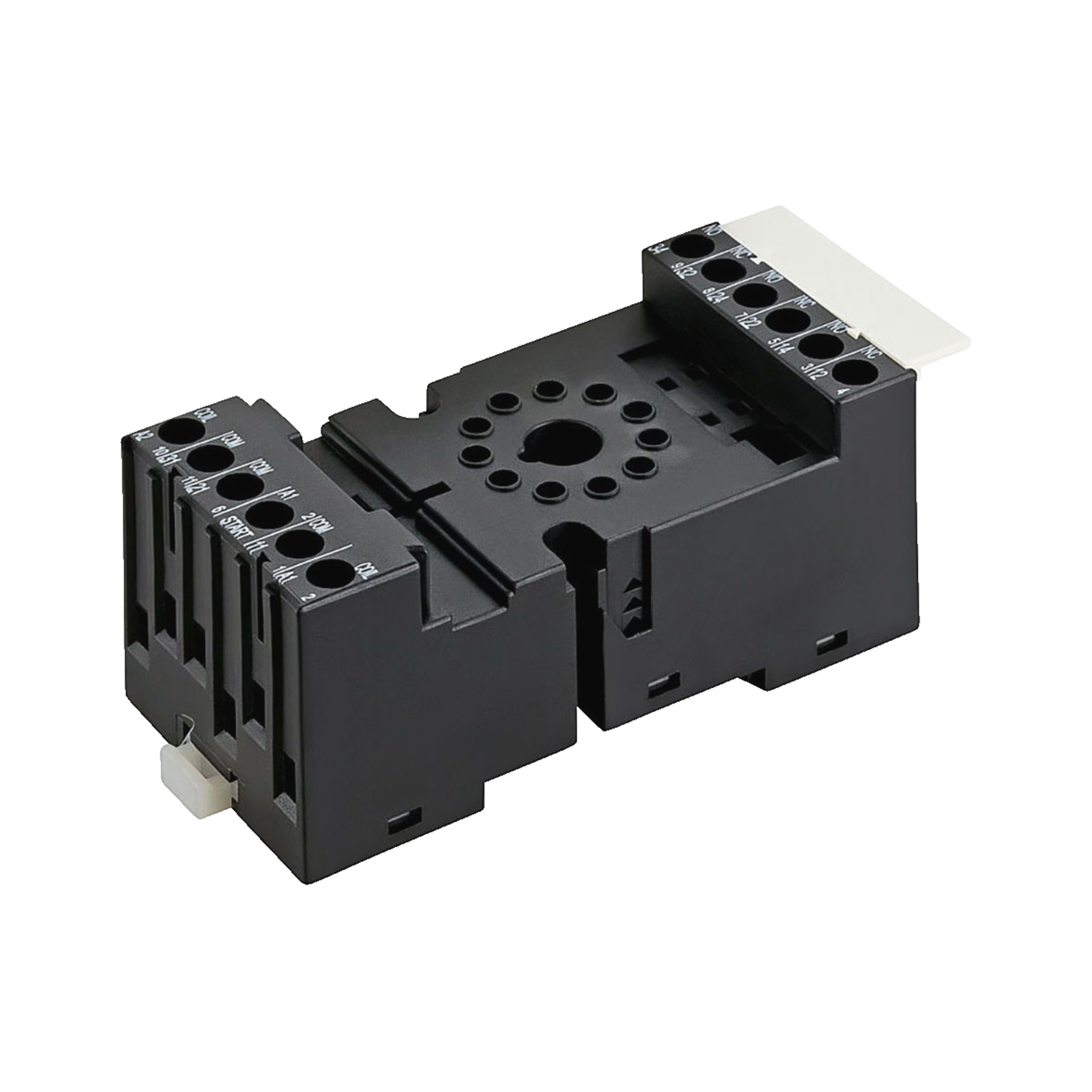

Finder DIN rail socket 90.03 IP20 black
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
10 Pcs. in stock
Planned delivery time
Ø 9 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable PCB relays. - Type
- DIN rail socket
- Series
- 90.03
- Termination Style
- Screw clamps
- Cell size
- Display modules 99.02
Relay 60.13
Retaining bracket 090.33 - Contact: Voltage Resistance
- 2 kV
- Dimension: Length
- 77.5 mm
- Dimension: Width
- 38 mm
- Dimension: Height
- 33.5 mm
- Protection Class
- IP20
- RoHS-Conform
Specifications
Open all

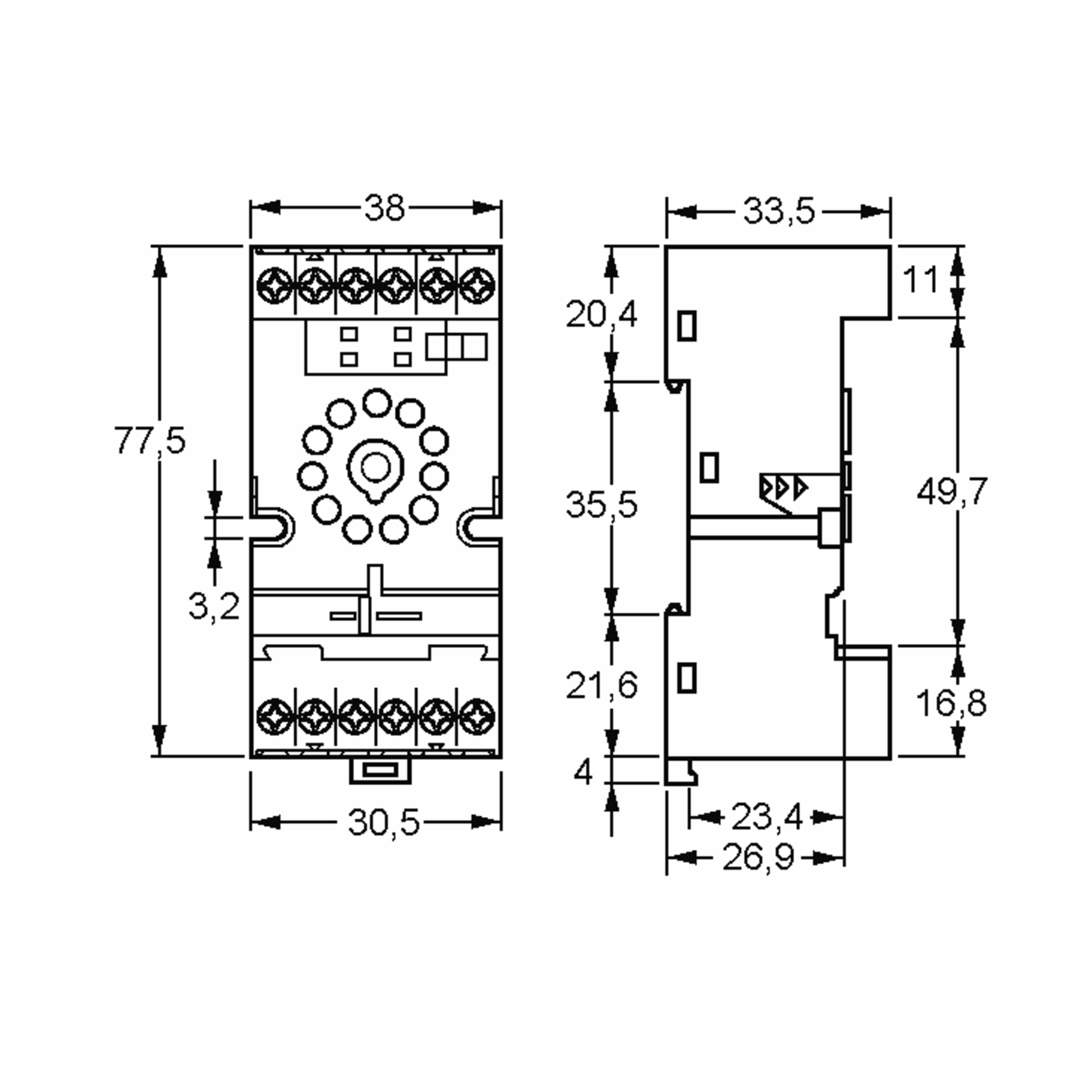

Dimensions and Weights
- Dimension: Length
- 77.5 mm
- Dimension: Width
- 38 mm
- Dimension: Height
- 33.5 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 70 °C
Technical Features
- Contact: Voltage Resistance
- 2 kV
Safety/Certifications
- Approvals
- CE
- EAC
- UK CA
- VDE
- cCSA
- cULus
- Protection Class
- IP20
