83.11.0.240.0000

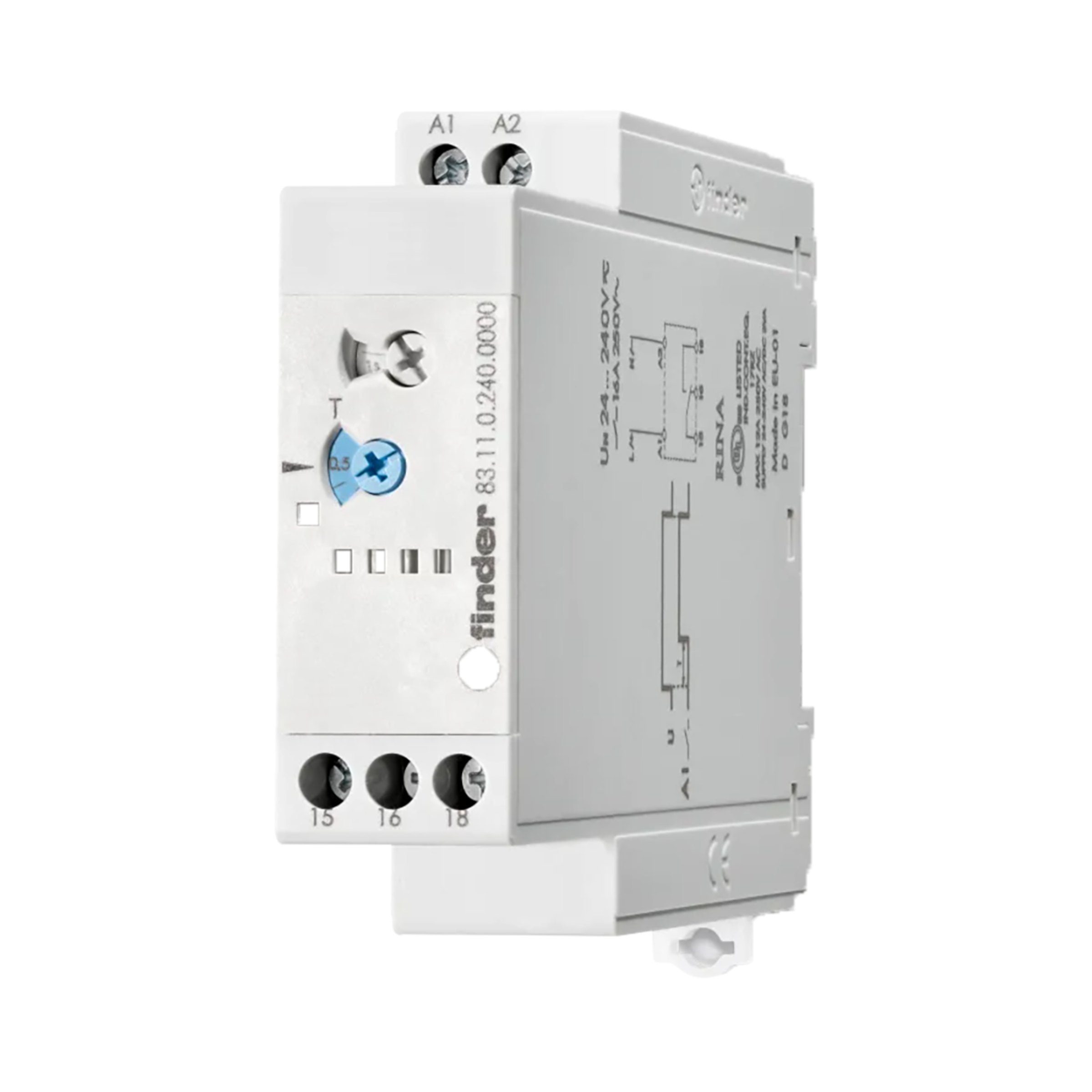

Finder Time relay, multifunction 83 DIN rail SPDT 16A 24VAC...240VAC 24VDC...240VDC IP20

Image similar
Manufacturer Part No.
83.11.0.240.0000
Schukat Part No.
FZR8311-240
Manufacturer
Finder
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1 Pcs. in stock

Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Series
83
Type
Time relay, multifunction
contacts
SPDT
Switching current
16 A
Rated voltage, min. AC
24 V AC
Rated current
16 A
Rated voltage, max. AC
240 V AC
Rated voltage, min. DC
24 V DC
Rated voltage, max. DC
240 V DC
Protection Class
IP20
Dimension: Length
100.3 mm
Dimension: Width
22.5 mm
Time functions
ON delay
Dimension: Height
86.2 mm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Finder
Type
  • Time relay, multifunction
Series
  • 83
Product group
  • E8117
contacts
  • SPDT
Contact material
  • AgNi
Assembly Type
  • DIN rail
Application

  • • For industrial requirements: control cabinets for electrical distribution
    • Automatic car washes
    • Packaging machines
    • Pump control
    • Industrial refrigerators
    • Fountains

Features

  • • Time relay with multifunction and multivoltage, 1 changeover contact, response delay
    • 8 time ranges: 0.05s...10 days
    • Multifunction: 8 sequence functions
    • Multivoltage (24...240)V AC/DC, automatic voltage adjustment through pulse width modulation (PWM)
    • High insulation between input and output
    • Handling and settings with the same tool: flat or Phillips screwdriver
    • For 35 mm mounting rail (EN 60715)
    • 22.5mm wide
    • Complies with EN 45545-2 + A1: 2016 (fire behavior of materials and components on rail vehicles), EN 61373 (vibration and shock, cat. 1, class B) and EN 50155 (cold, dry and damp heat, temperature class T1)

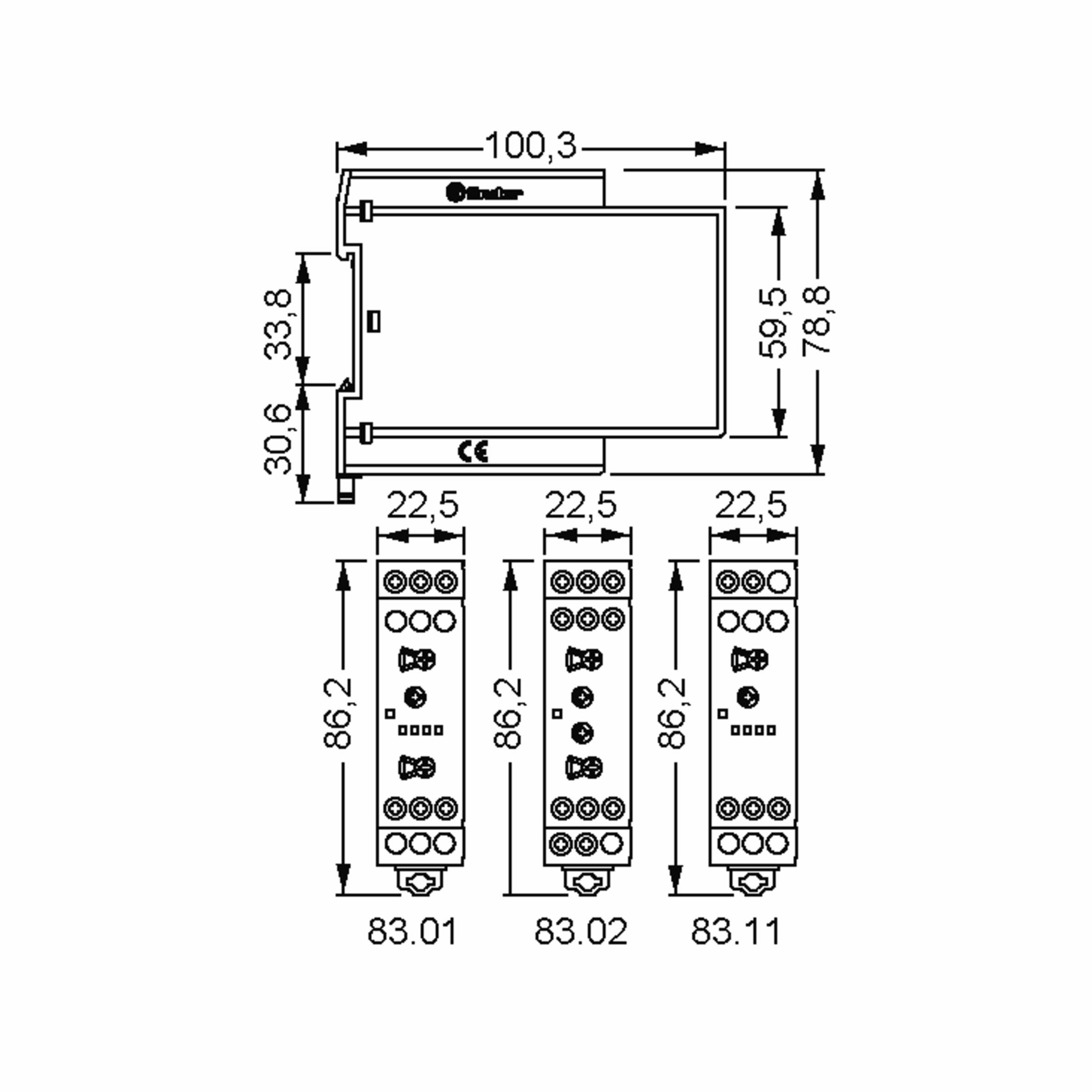

Dimensions and Weights

Dimension: Length
  • 100.3 mm
Dimension: Width
  • 22.5 mm
Dimension: Height
  • 86.2 mm

Operating conditions

Operating Temperature Min.
  • -20 °C
Operating Temperature Max.
  • 60 °C

Technical Features

Rated voltage, min. AC
  • 24 V AC
Rated voltage, max. AC
  • 240 V AC
Rated voltage, min. DC
  • 24 V DC
Rated voltage, max. DC
  • 240 V DC
Switching voltage, max. AC
  • 400 V AC
Test voltage open contacts
  • 1,000 V AC
Test voltage coil/contact
  • 4,000 V AC
Rated current
  • 16 A
Switching current
  • 16 A
Continuous current
  • 16 A
Inrush current
  • 30 A
Switching capacity (VA)
  • 4,000 VA
Recovery time
  • 200 ms
Time functions
  • ON delay

Safety/Certifications

Approvals
  • CE
  • EAC
  • RINA
  • cULus
Standards
  • EN 45545-2 + A1, EN 61373, EN 50155
Protection Class
  • IP20

Other Products

All Products of the Series

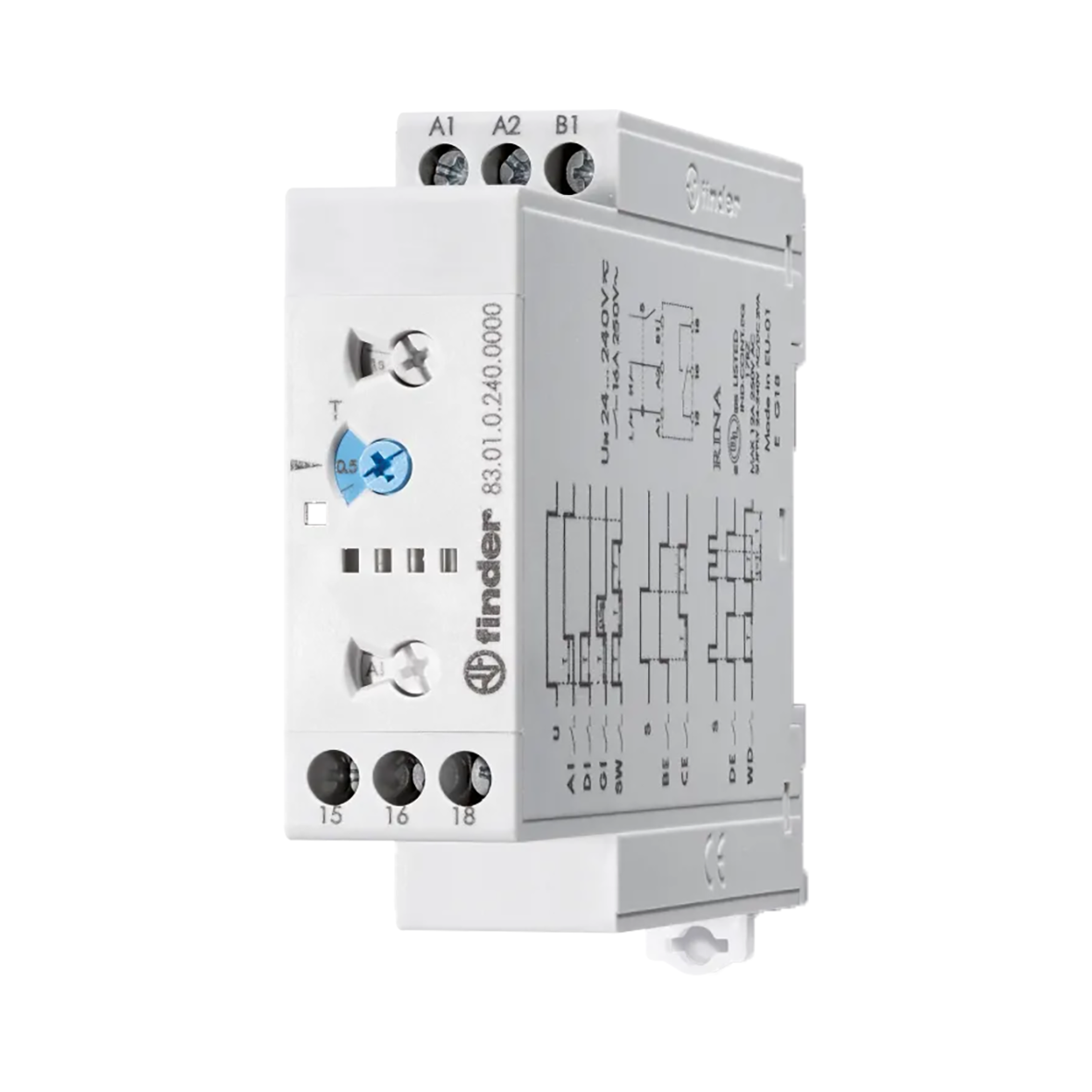

83.01.0.240.0000
Finder
Time relay, multifunction 83 DIN rail SPDT 16A 24VAC...240VAC 24VDC...240VDC IP20
from €81.43

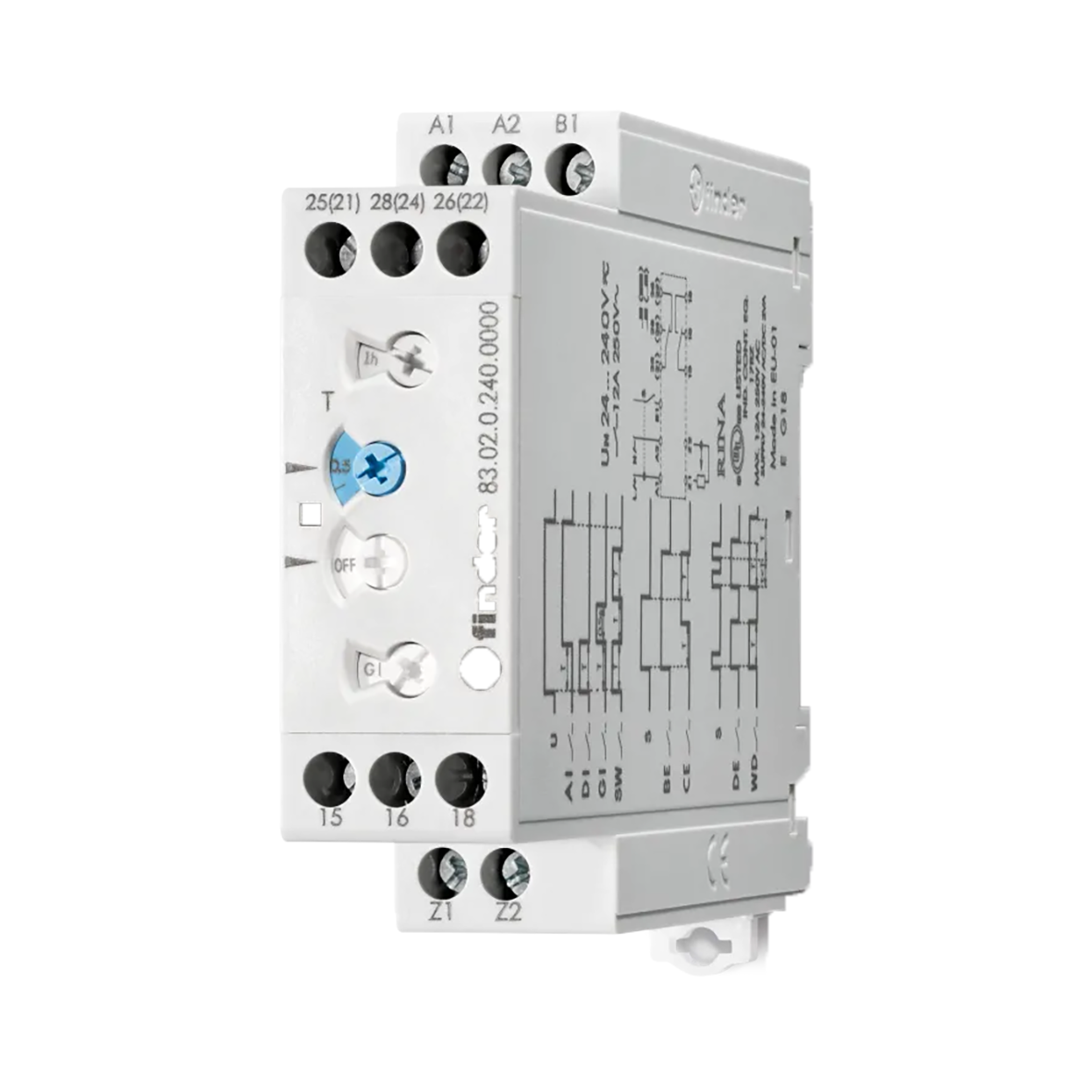

83.02.0.240.0000
