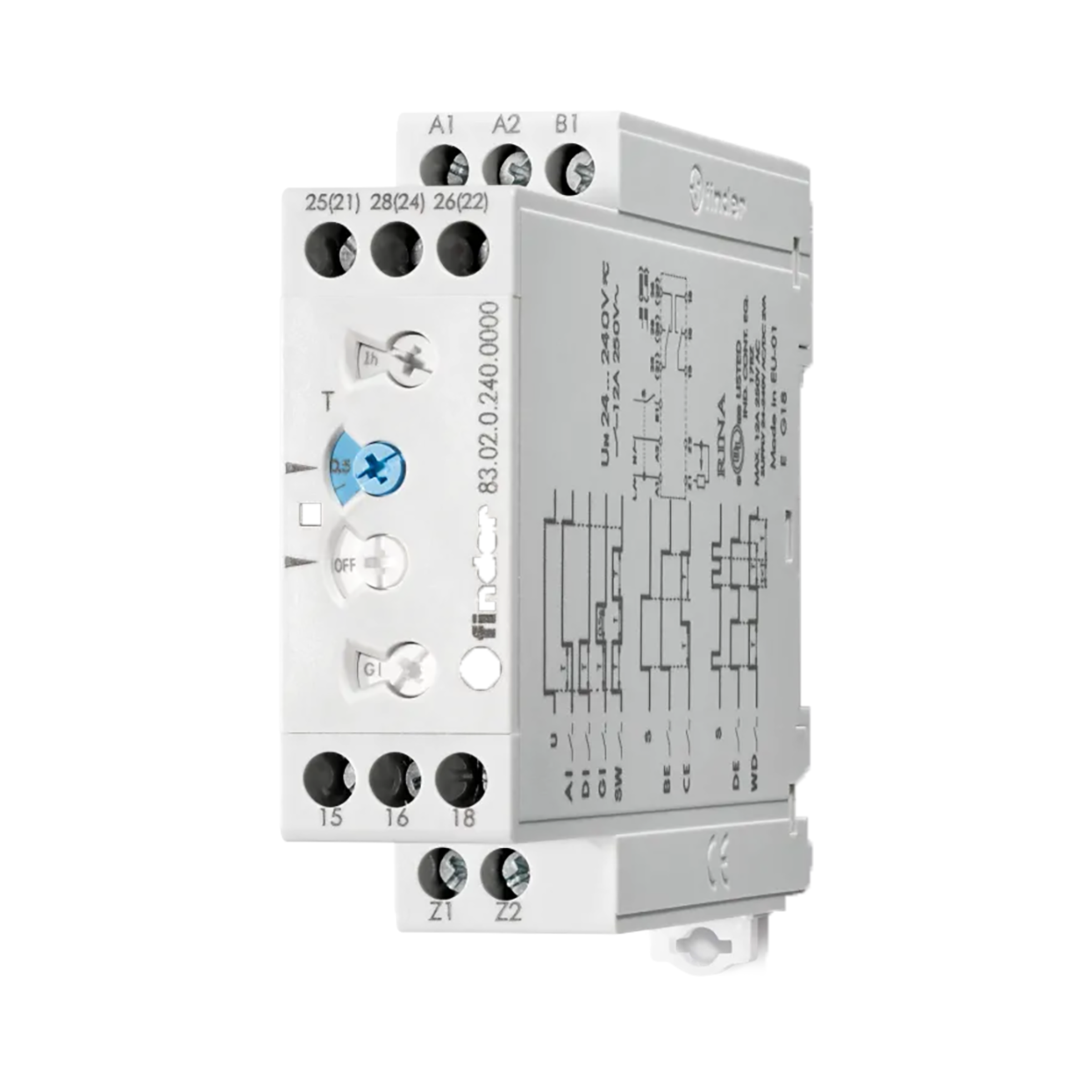

83.02.0.240.0000
Finder Time relay, multifunction 83 DIN rail DPDT 12A
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
4 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Time relay, multifunction
- Series
- 83
- Rated voltage, min. AC
- 24 V AC
- Rated current
- 12 A
- Rated voltage, max. AC
- 240 V AC
- Switching current
- 12 A
- Rated voltage, min. DC
- 24 V DC
- Rated voltage, max. DC
- 240 V DC
- contacts
- DPDT
- Dimension: Length
- 100.3 mm
- Protection Class
- IP20
- Dimension: Width
- 22.5 mm
- Time functions
- Fixed pulse (0,5s) delayed
Interval
Interval with control signal ON
OFF delay with control signal
ON and OFF delay with control signal
ON delay
Symmetrical recycler ON start
Watchdog - Dimension: Height
- 86.2 mm
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 100.3 mm
- Dimension: Width
- 22.5 mm
- Dimension: Height
- 86.2 mm
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 60 °C
Technical features
- Rated voltage, min. AC
- 24 V AC
- Rated voltage, max. AC
- 240 V AC
- Rated voltage, min. DC
- 24 V DC
- Rated voltage, max. DC
- 240 V DC
- Switching voltage, max. AC
- 400 V AC
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 4,000 V AC
- Rated current
- 12 A
- Switching current
- 12 A
- Continuous current
- 12 A
- Inrush current
- 30 A
- Switching capacity (VA)
- 3,000 VA
- Recovery time
- 200 ms
- Time functions
- Fixed pulse (0,5s) delayed
- Interval
- Interval with control signal ON
- OFF delay with control signal
- ON and OFF delay with control signal
- ON delay
- Symmetrical recycler ON start
- Watchdog
Safety/Certifications
- Approvals
- CE
- EAC
- RINA
- cULus
- Standards
- EN 45545-2 + A1, EN 61373, EN 50155
- Protection Class
- IP20
