80.21.0.240.0000

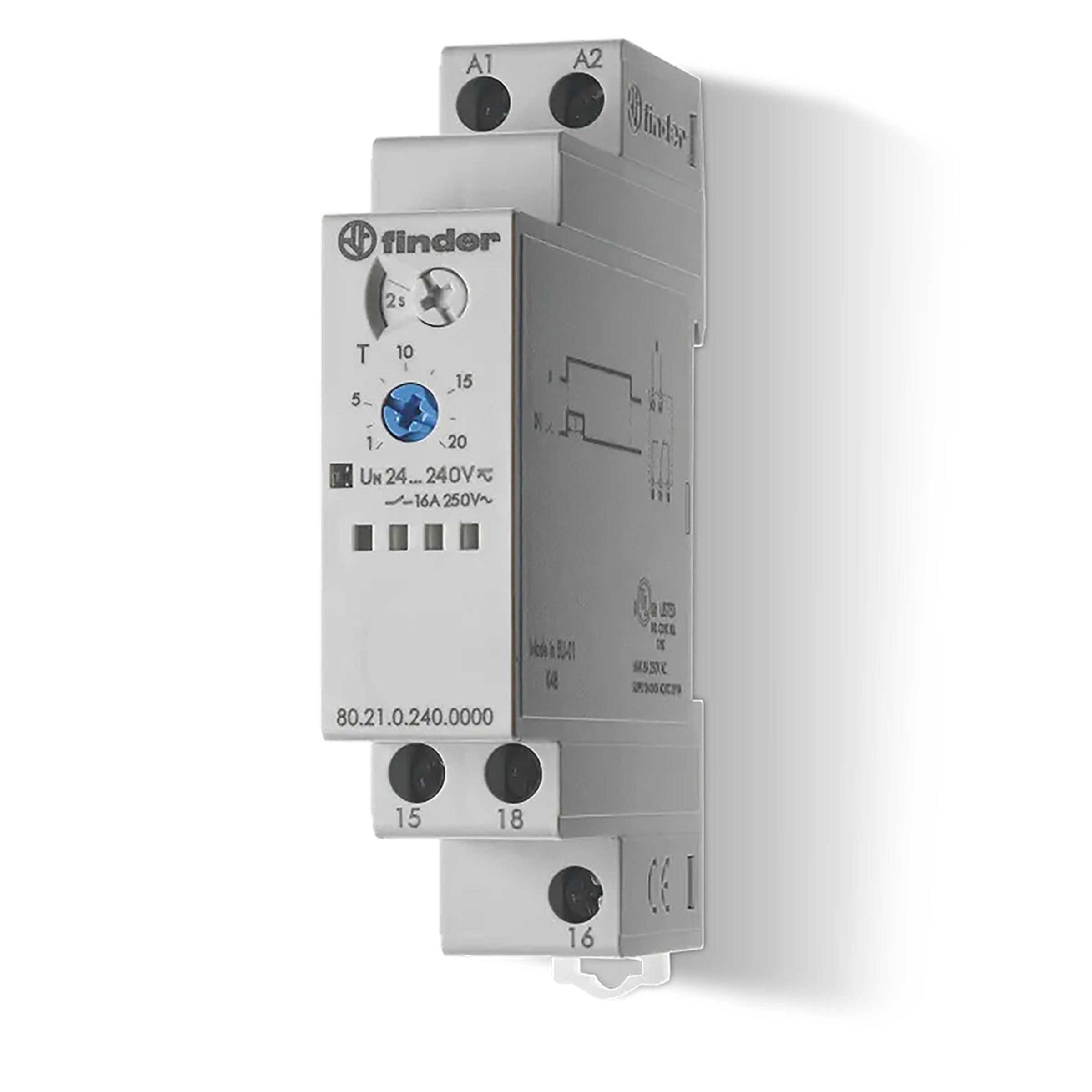

Finder Time relay, mono function 80 DIN rail SPDT 16A 24VAC...240VAC 24VDC...240VDC IP20
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1 Pcs. in stock
Planned delivery time
Ø 9 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Time relay, mono function
- Series
- 80
- Assembly Type
- DIN rail
- Termination Style
- Screw clamps
- contacts
- SPDT
- Contact: Switching Current (min/typ/max)
- 16 A
- Coil: Nominal Voltage, min. AC
- 24 V AC
- Coil: Nominal Voltage, max. AC
- 240 V AC
- Coil: Nominal Voltage, min. DC
- 24 V DC
- Coil: Nominal Voltage max. DC
- 240 V DC
- Time functions
- Fixed pulse (0,5s)
Interval
ON delay
Symmetrical flasher (Starting Pulse ON) - Protection Class
- IP20
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 84 mm
- Dimension: Width
- 17.5 mm
- Dimension: Height
- 68 mm
Operating conditions
- Operating Temperature Min.
- -20 °C
- Operating Temperature Max.
- 60 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 16 A
- Contact: Switching Voltage, max. AC
- 400 V AC
- Contact: Continuous Current
- 16 A
- Contact: Inrush current
- 30 A
- Contact: Switching Capacity (VA)
- 4,000 VA
- Contact: Switching Load (W)
- 0.5 W
- Replenishment time
- 100 ms
- Inductor power
- 1,000 mW
- Coil: Nominal Voltage, min. AC
- 24 V AC
- Coil: Nominal Voltage, max. AC
- 240 V AC
- Coil: Nominal Voltage, min. DC
- 24 V DC
- Coil: Nominal Voltage max. DC
- 240 V DC
- Coil: Operating Voltage, min.
- 16.8 V
- Coil: Operating Voltage, max.
- 265 V
- Test voltage open contacts
- 1,000 V AC
- Time functions
- Fixed pulse (0,5s)
- Interval
- ON delay
- Symmetrical flasher (Starting Pulse ON)
Safety/Certifications
- Approvals
- CE
- EAC
- RINA
- cULus
- Protection Class
- IP20
