7T.81.0.000.2303

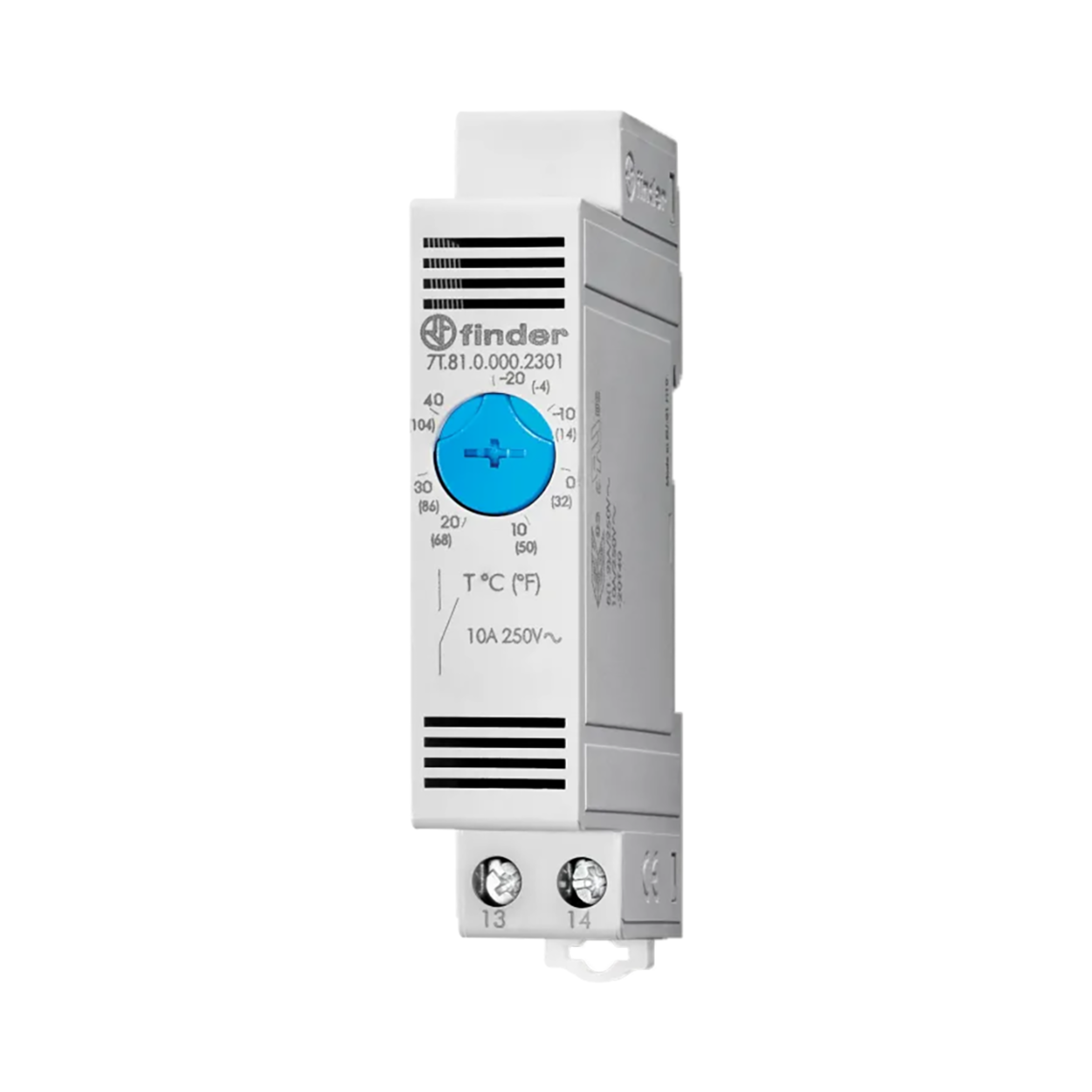

Finder Vari thermostat 7T.81 DIN rail SPST-NO 10A 250VAC
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
7 Pcs. in stock
Planned delivery time
Ø 15 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable level sensors and electrode holders. - Type
- Vari thermostat
- Series
- 7T.81
- Assembly Type
- DIN rail
- contacts
- SPST-NO
- Contact: Switching Current (min/typ/max)
- 10 A
- Coil: Nominal Voltage AC
- 250 V AC
- Protection Class
- IP20
- RoHS-Conform
Specifications
Open all

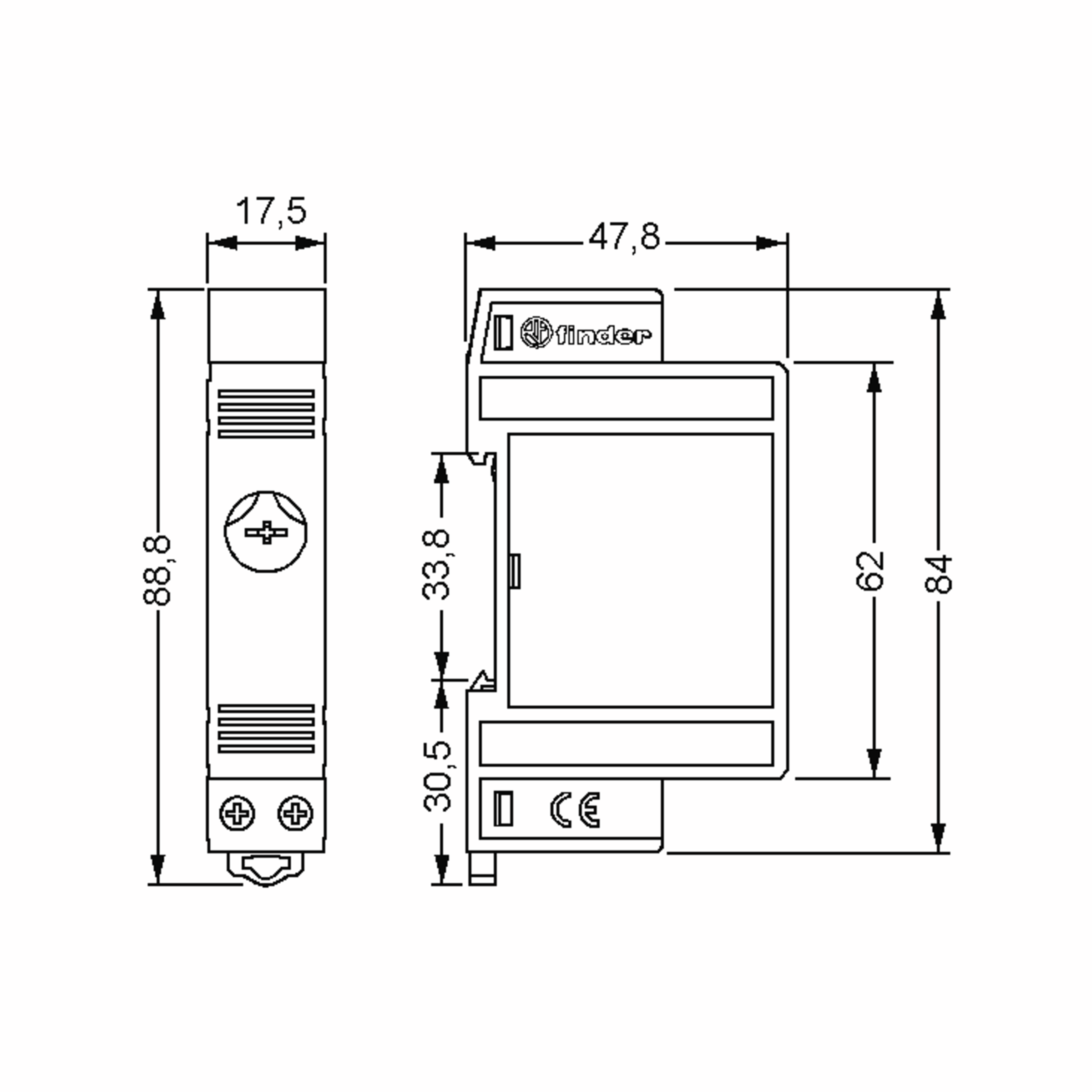

Dimensions and Weights
- Dimension: Length
- 47.8 mm
- Dimension: Width
- 17.5 mm
- Dimension: Height
- 88.8 mm
Operating conditions
- Operating Temperature Min.
- -45 °C
- Operating Temperature Max.
- 80 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 10 A
- Contact: Switching Voltage, max. AC
- 250 V AC
- Contact: Continuous Current
- 10 A
- Contact: Inrush current
- 20 A
- Contact: Switching Capacity (VA)
- 2,500 VA
- Contact: Switching Load (W)
- 0.5 W
- Inductor power
- 500 mW
- Coil: Nominal Voltage AC
- 250 V AC
- Test voltage open contacts
- 500 V AC
Safety/Certifications
- Approvals
- CE
- EAC
- ENEC03
- cULus
- Protection Class
- IP20
Documents
Bedienungsanleitung_7T.81.pdf
S7TDE.pdf
S7TDE.pdf
