7S.16.9.024.5420

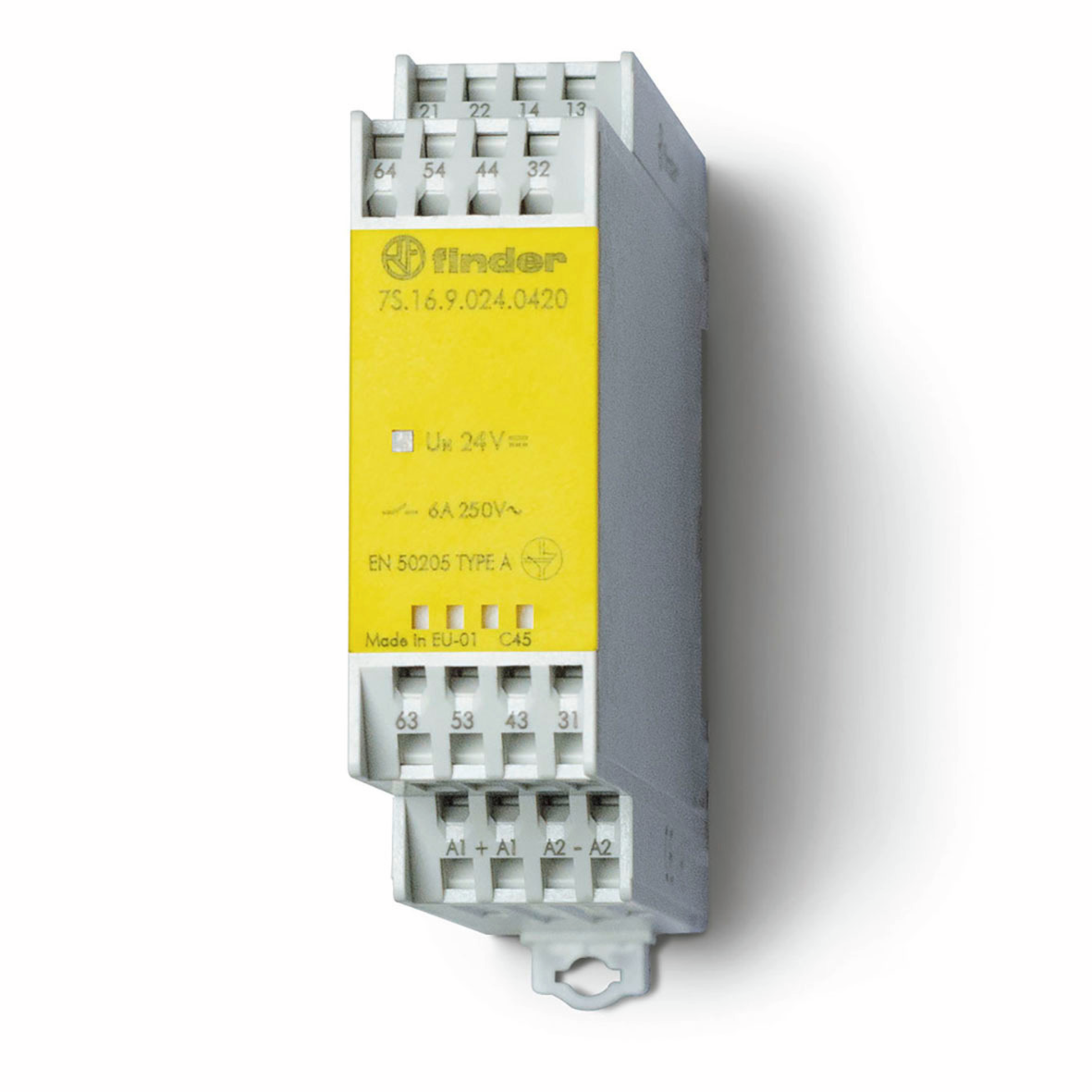

Finder Safety relay 7S DIN rail 4PDT-NO/DPDT-NC 6A 24VDC 78,8mmx22,5mmx100,3mm IP20

Image similar
Manufacturer Part No.
7S.16.9.024.5420
Schukat Part No.
7S.16.9.024.5420
Manufacturer
Finder
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

23 Pcs. in stock

Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Termination Style
Tension spring clamps
Series
7S
Type
Forced-guided relay
contacts
4PDT-NO/DPDT-NC
Switching current
6 A
Rated current
42,2 mA
Rated voltage DC
24 V DC
Dielectric strength
6 kV
Protection Class
IP20
Dimension: Length
78.8 mm
Dimension: Width
22.5 mm
Dimension: Height
100.3 mm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Finder
Type
  • Forced-guided relay
Series
  • 7S
Product group
  • E6821
contacts
  • 4PDT-NO/DPDT-NC
Contact material
  • AgSnO2/Au
Assembly Type
  • DIN rail
Termination Style
  • Tension spring clamps
Application

  • • Chemical and pertochemical industry
    • Lifting equipment and cranes
    • Wood processing machines
    • Escalators and moving walkways
    • Automatic storage systems
    • Elevators and lifts
    • Industrial robots
    • Automatic car washes

Features

  • • Relay modules with positively guided contacts according to EN 61810-3, type A
    • 6 contacts: 4 NO + 2 NC
    • Coil control, with input protection circuit
    • Basic component, suitable for safety applications that, if designed according to IEC/EN 62061 (IEC 61508), can achieve a safety integrity level of SIL 2
    • If the application is designed according to ISO/EN 13849, a performance level of PL "d" can be achieved
    • AC or DC coil control with input protection circuit
    • LED status display of the coil control
    • 22.5mm wide, with tension spring terminals
    • For 35 mm mounting rail (EN 60715)

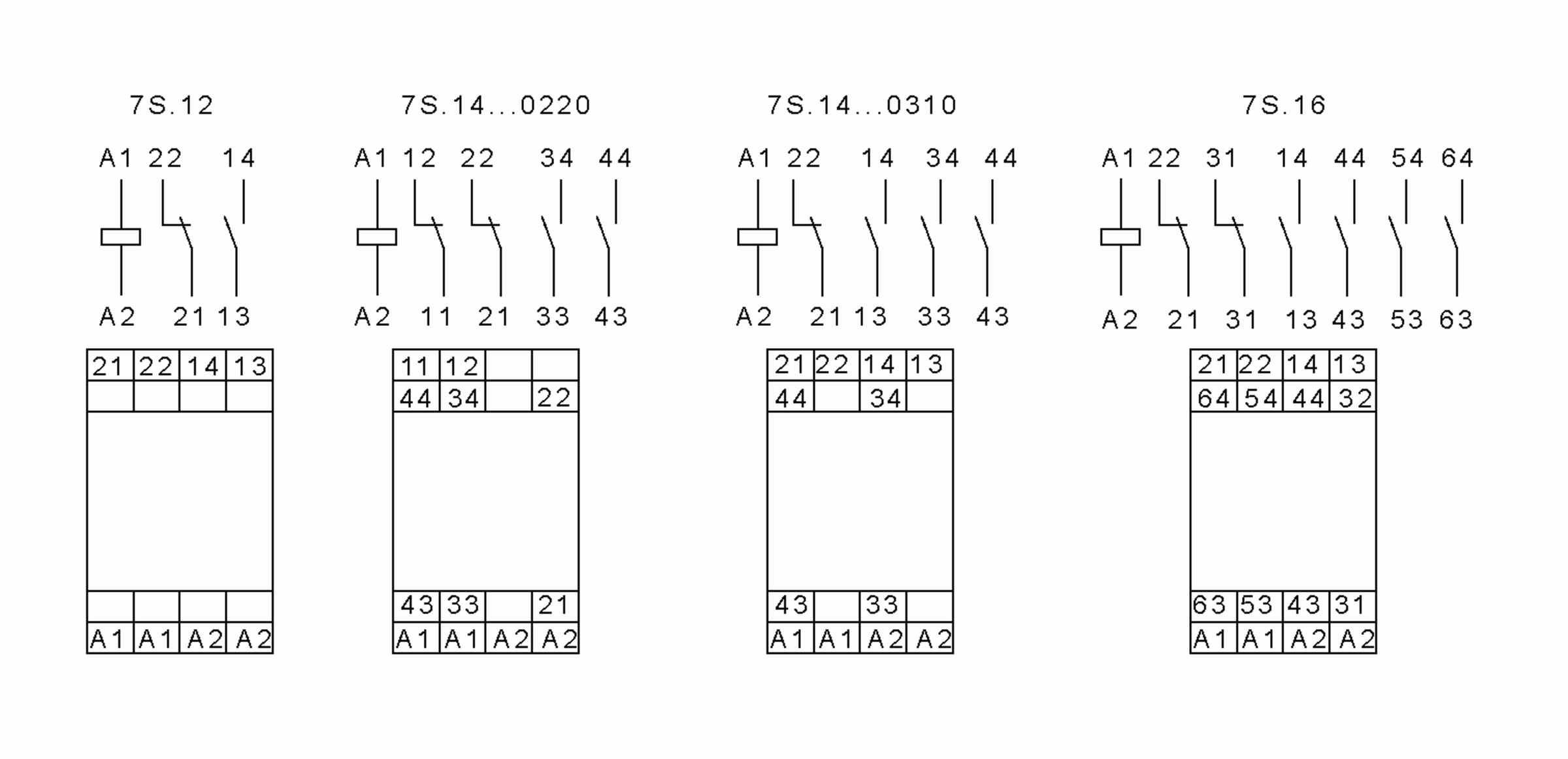

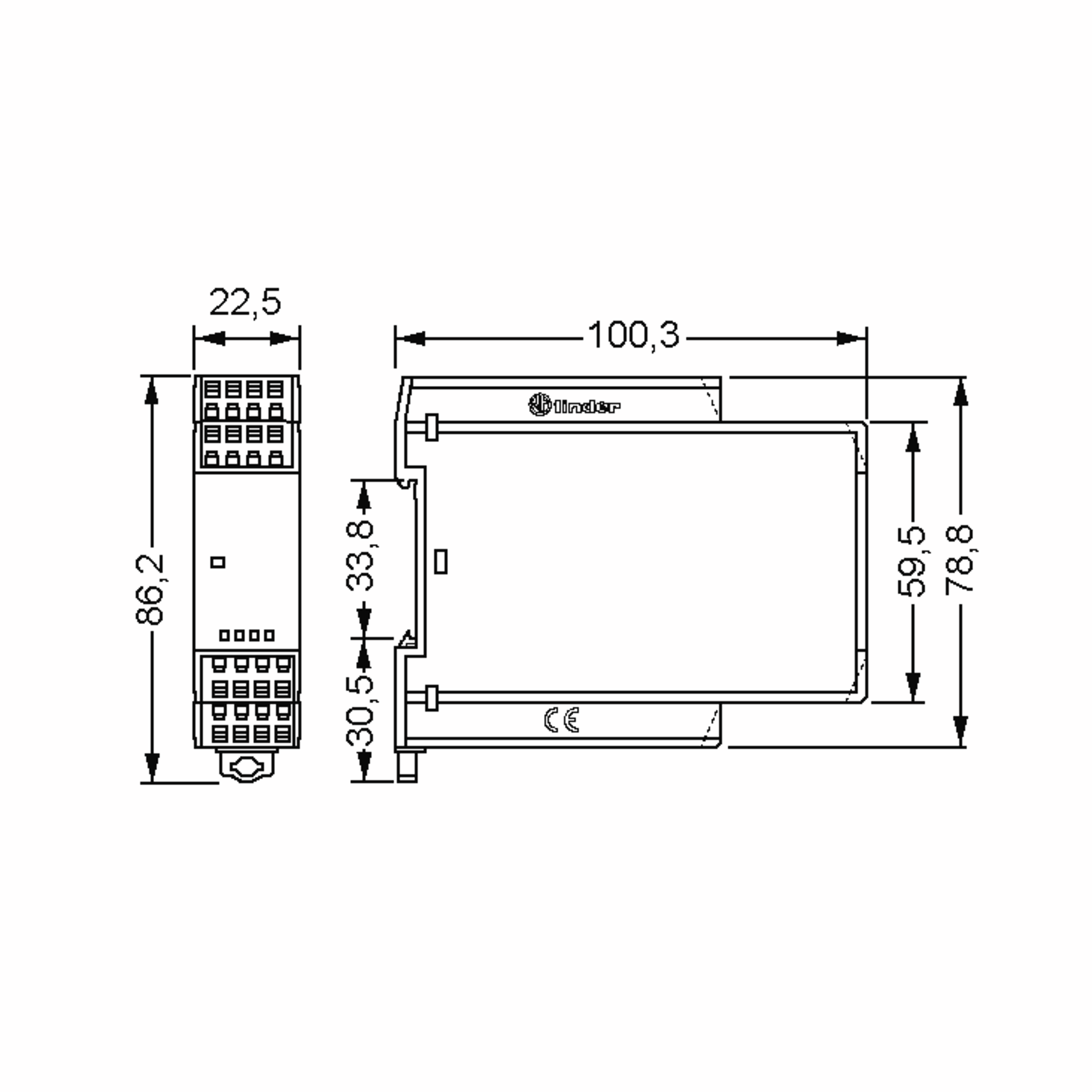

Dimensions and Weights

Dimension: Length
  • 78.8 mm
Dimension: Width
  • 22.5 mm
Dimension: Height
  • 100.3 mm

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 70 °C

Technical Features

Rated voltage DC
  • 24 V DC
Coil design
Response voltage
  • 16.8 V
Operating voltage, max.
  • 30 V
Test voltage open contacts
  • 1,500 V AC
Rated current
  • 42,2 mA
Switching current
  • 6 A
Continuous current
  • 6 A
Inrush current
  • 15 A
Dielectric strength
  • 6 kV
Rated power
  • 1,000 mW
Switching capacity (VA)
  • 1,500 VA
Response time
  • 12 ms
Drop-out time
  • 10 ms
Mechanical service life
  • 10 x 10^6 Operations
Service life, electrical
  • 100 x 10^3 Operations
Vibration resistance
  • NO/NC: 20 G / 6 G
Impact resistance, functional
  • NO/NC: 20 G / 5 G

Safety/Certifications

Approvals
  • CE
  • EAC
  • UK CA
  • cULus
Standards
  • EN 61810-3 (EN 50205), EC/EN 62061 (IEC 61508) , ISO/EN 13849
Protection Class
  • IP20
