7S.12.9.024.5110

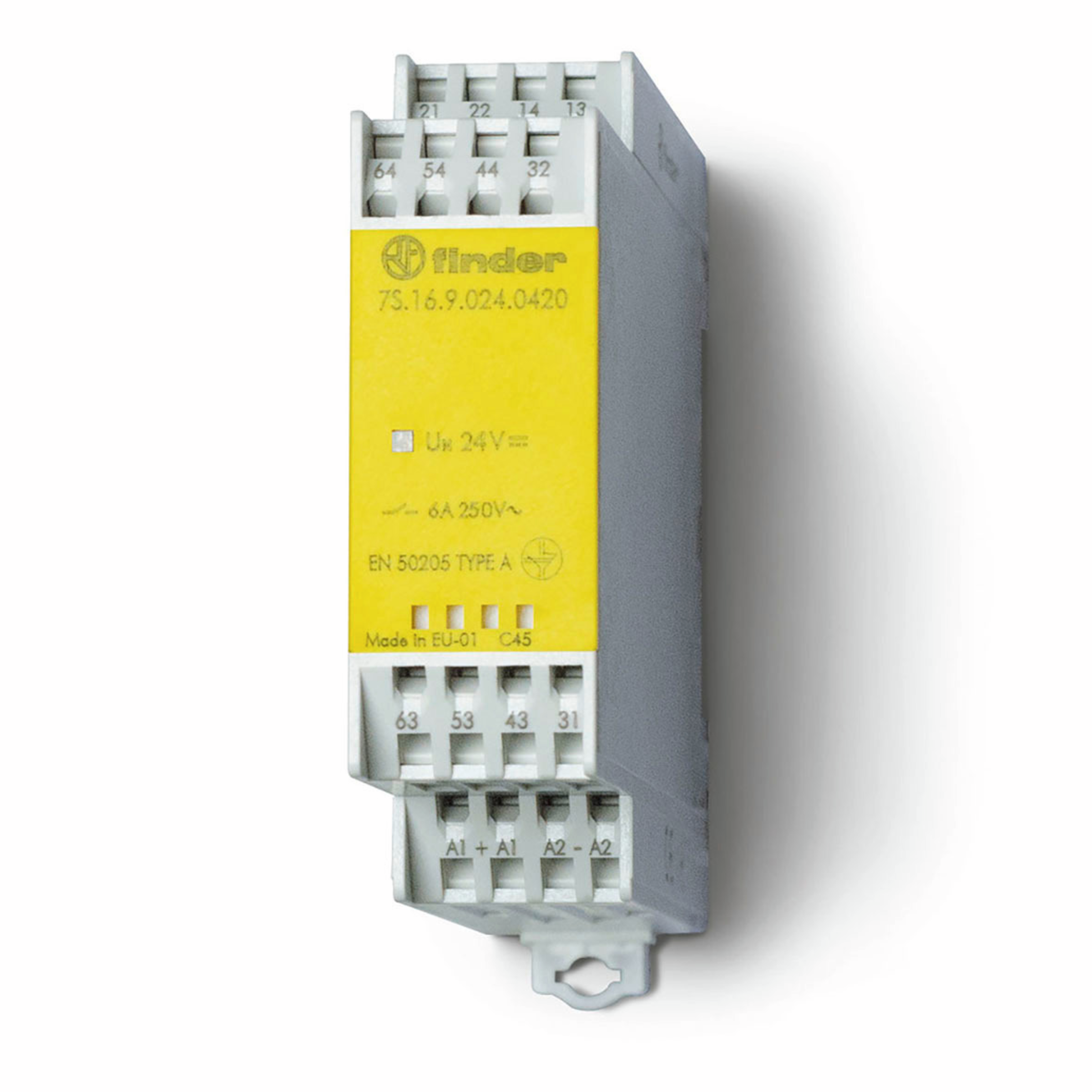

Finder Safety relay 7S DIN rail SPDT-NO/SPDT-NC 6A 24VDC 78,8mmx22,5mmx100,3mm IP20

7S.12.9.024.51107S.12.9.024.51107S.12.9.024.5110
Manufacturer Part No.
7S.12.9.024.5110
Schukat Part No.
7S.12.9.024.5110
Manufacturer
Finder
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

2 Pcs. in stock

Planned delivery time
Ø 9 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Series
7S
contacts
SPDT-NO/SPDT-NC
Contact: Switching Current (min/typ/max)
6 A
Coil: Nominal Voltage DC
24 V DC
Protection Class
IP20
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Finder
Type
  • Forced-guided relay
Series
  • 7S
Product group
  • E6821
contacts
  • SPDT-NO/SPDT-NC
Contact material
  • AgNi/Au
Assembly Type
  • DIN rail
Termination Style
  • Tension spring clamps
Application

  • • Chemical and pertochemical industry
    • Lifting equipment and cranes
    • Wood processing machines
    • Escalators and moving walkways
    • Automatic storage systems
    • Elevators and lifts
    • Industrial robots
    • Automatic car washes

Features

  • • Relay modules with positively guided contacts according to EN 61810-3, type A

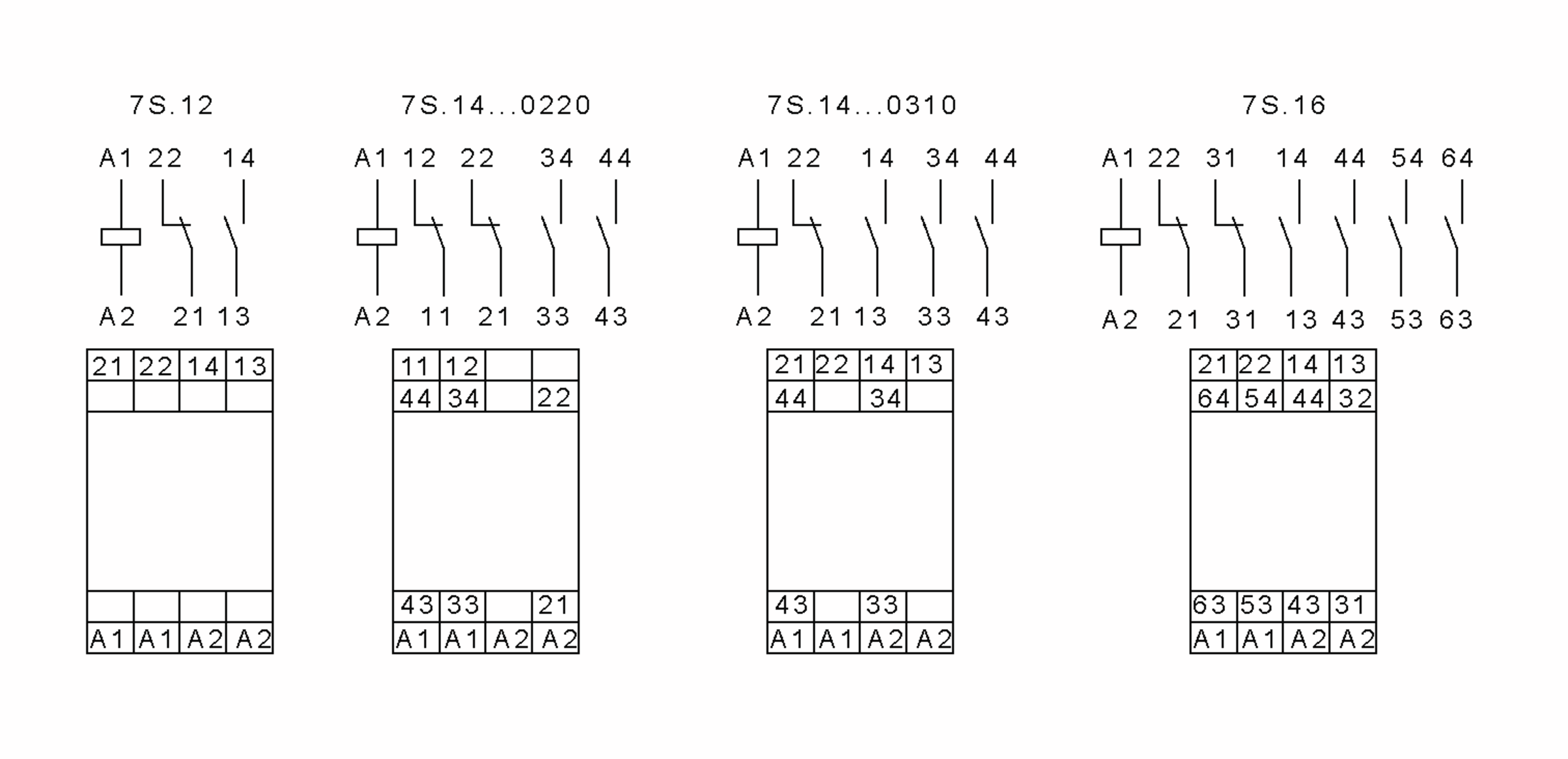

    • 2 contacts: 1 normally open + 1 normally closed
    • Coil control, with input protection circuit
    • Basic component, suitable for safety applications that, if designed according to IEC/EN 62061 (IEC 61508), can achieve a safety integrity level of SIL 2
    • If the application is designed according to ISO/EN 13849, a performance level of PL "d" can be achieved
    • AC or DC coil control with input protection circuit
    • LED status display of the coil control
    • 22.5mm wide, with tension spring terminals
    • For 35 mm mounting rail (EN 60715)

Application note
  • According to EN50205, only the use of 1 normally open contact - 1 normally closed contact is permitted for safety circuits.

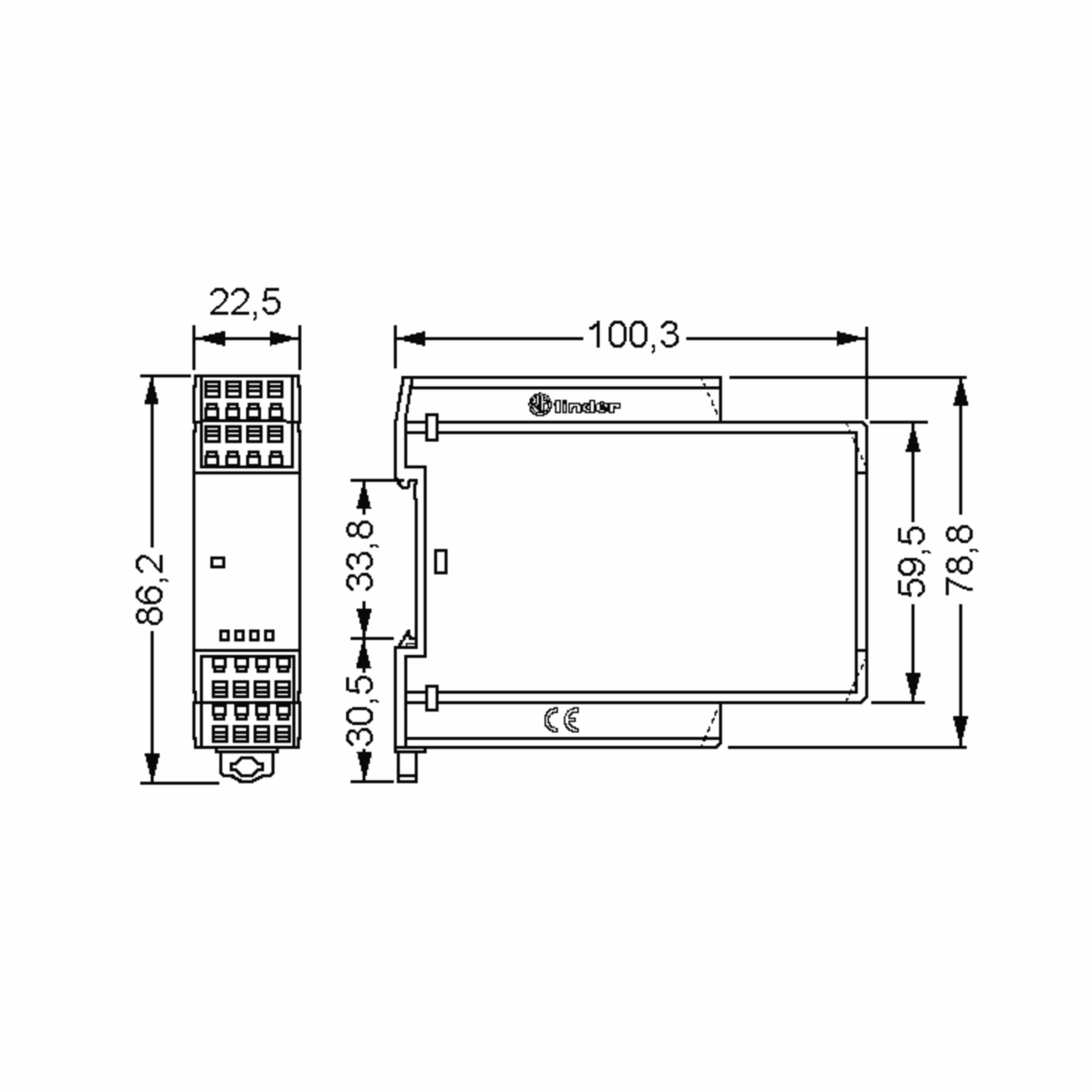

Dimensions and Weights

Dimension: Length
  • 78.8 mm
Dimension: Width
  • 22.5 mm
Dimension: Height
  • 100.3 mm

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 70 °C

Technical Features

Contact: Switching Current (min/typ/max)
  • 6 A
Contact: Continuous Current
  • 6 A
Contact: Inrush current
  • 15 A
Contact: Switching Capacity (VA)
  • 1,500 VA
Contact: Switching Load (W)
  • 0.6 W
Contact: Voltage Resistance
  • 6 kV
Coil design
  • monostable
Inductor power
  • 900 mW
Coil: Rated Current [mA]
  • 38.2 mA
Coil: Nominal Voltage DC
  • 24 V DC
Coil: Operating Voltage, max.
  • 30 V
Coil: Pick-up voltage
  • 16.8 V
Coil: Drop-out Voltage
  • 2.4 V
Test voltage contact/contact
  • 2,500 V AC
Test voltage open contacts
  • 1,500 V AC
Test voltage coil/contact
  • 4,000 V AC
Response time
  • 7 ms
Drop-out time
  • 11 ms
Mechanical service life
  • 10 x 10^6 Operations
Service life, electrical
  • 100 x 10^3 Operations
Vibration resistance
  • NO/NC: 10 g / 5 g
Impact resistance, functional
  • NO/NC: 20 g / 6 g

Safety/Certifications

Approvals
  • CE
  • EAC
  • UK CA
  • cULus
Standards
  • EN 61810-3 (EN 50205), EC/EN 62061 (IEC 61508) , ISO/EN 13849
Protection Class
  • IP20
