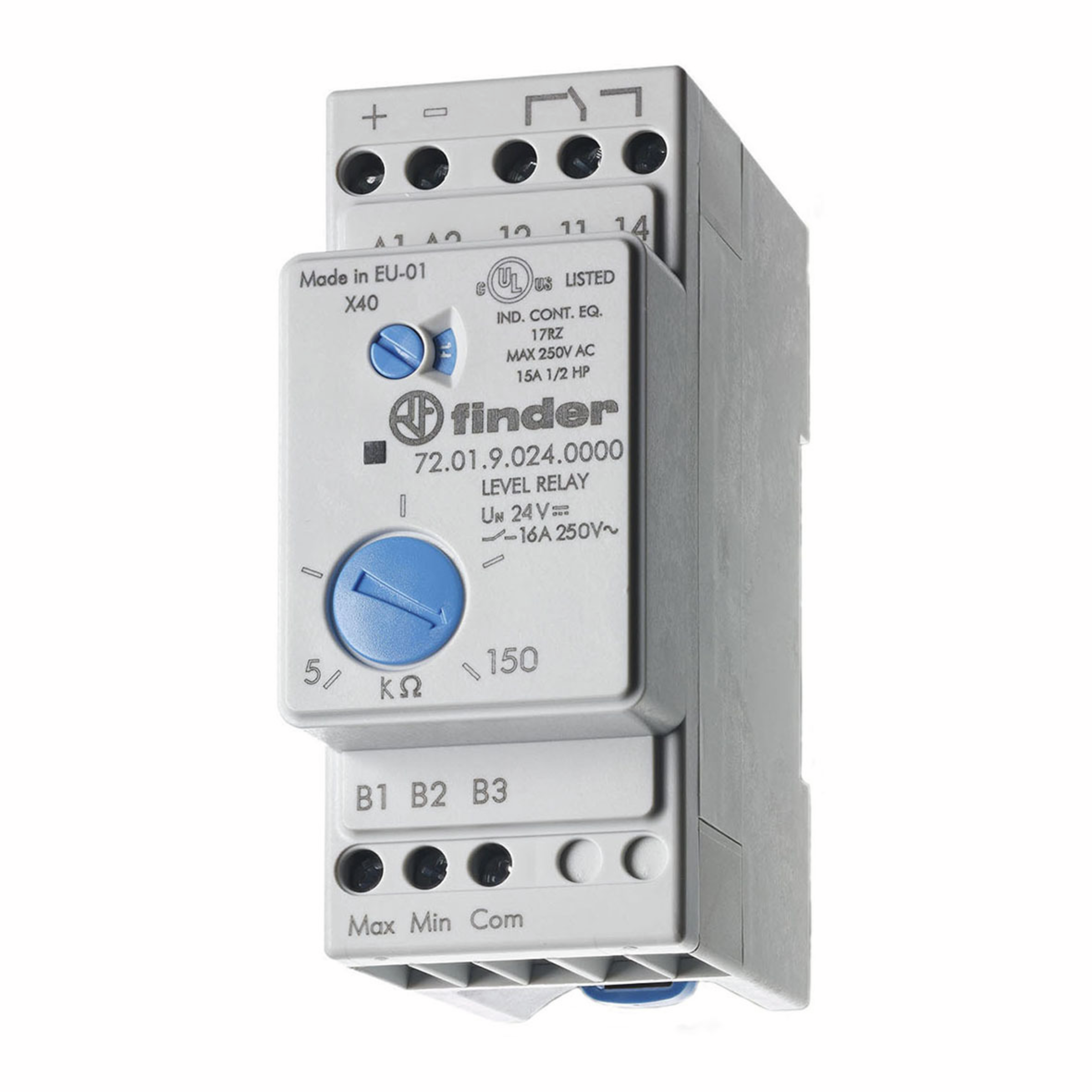

Finder Level control relays 72.01 DIN rail SPDT 16A 240VAC

72.01.8.240.000072.01.8.240.000072.01.8.240.0000
Manufacturer Part No.
72.01.8.240.0000
Schukat Part No.
72.01.8.240.0000
Manufacturer
Finder
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1 Pcs. in stock

Planned delivery time
Ø 15 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
• Here you will find suitable level sensors and electrode holders.
Type
Level control relays
Series
72.01
Assembly Type
DIN rail
contacts
SPDT
Contact: Switching Current (min/typ/max)
16 A
Coil: Nominal Voltage AC
240 V AC
Protection Class
IP20
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Finder
Type
  • Level control relays
Series
  • 72.01
Product group
  • E8514
contacts
  • SPDT
Contact material
  • AgNi
Assembly Type
  • DIN rail
Termination Style
  • Screw clamps
Application

  • • Pump control
    • Industrial washing machines
    • Swimming pools
    • Bottling plants
    • Control and monitoring in water treatment plants
    • Processing machines for liquid foods

Features

  • • Level monitoring relay for conductive liquids
    • Sensitivity adjustable (5...150) kOhm
    • Delay time (selectable) 0.5s or 7s

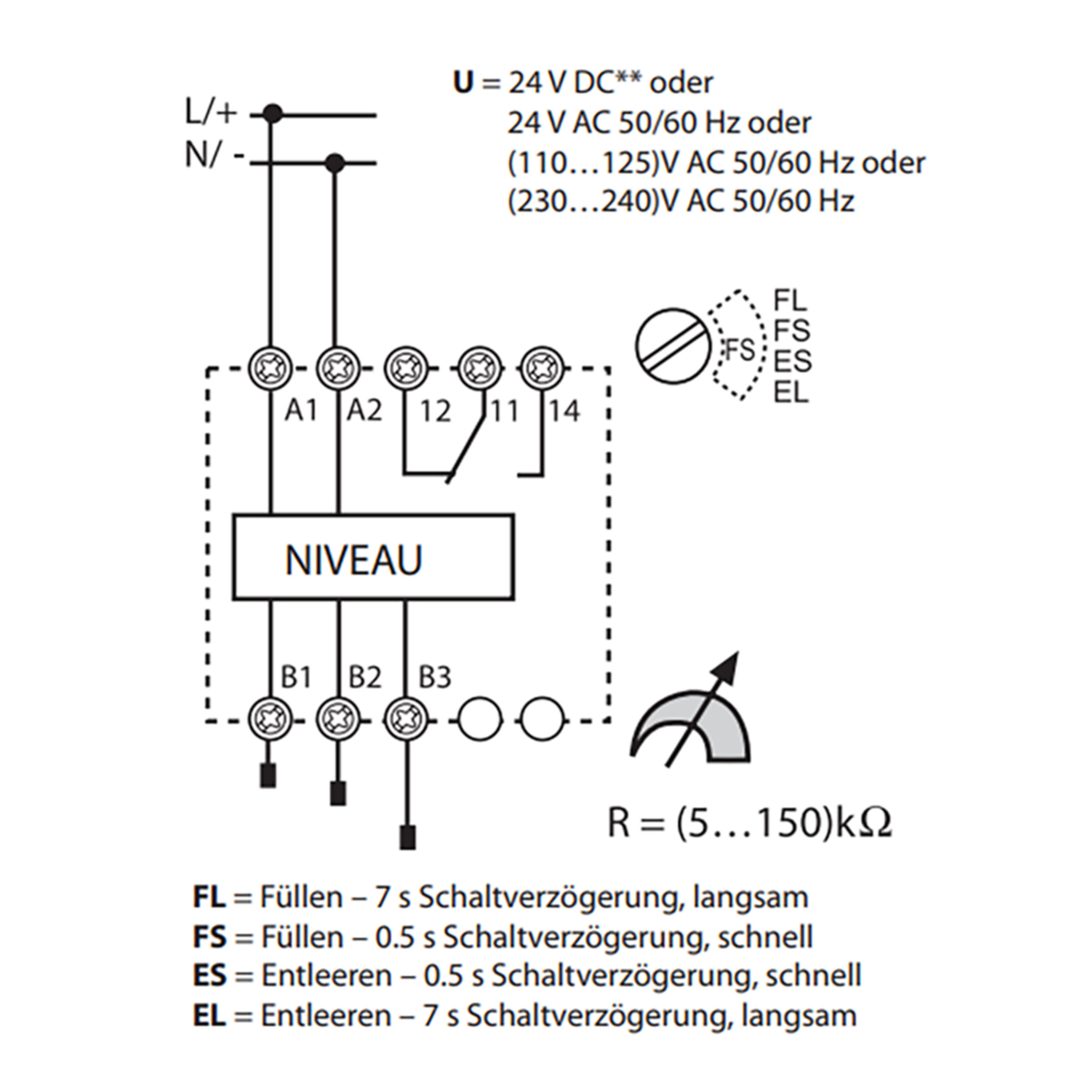

    • Function (filling or pumping) selectable via rotary switch on the front
    • Monitoring of a level or level range
    • LED status display
    • Isolation 6kV (1.2/50μs) between power supply and contacts, power supply and probes, contacts and probes
    • For mounting rail 35mm (EN 60715)
    • ​​​​​​​The required probes must be ordered in addition to the monitoring relays: Please scroll down to "Other items and accessories".

Application note
  • • Application notes for level monitoring relays of the 72.01 series can be found in the data sheet on page 14
Notice

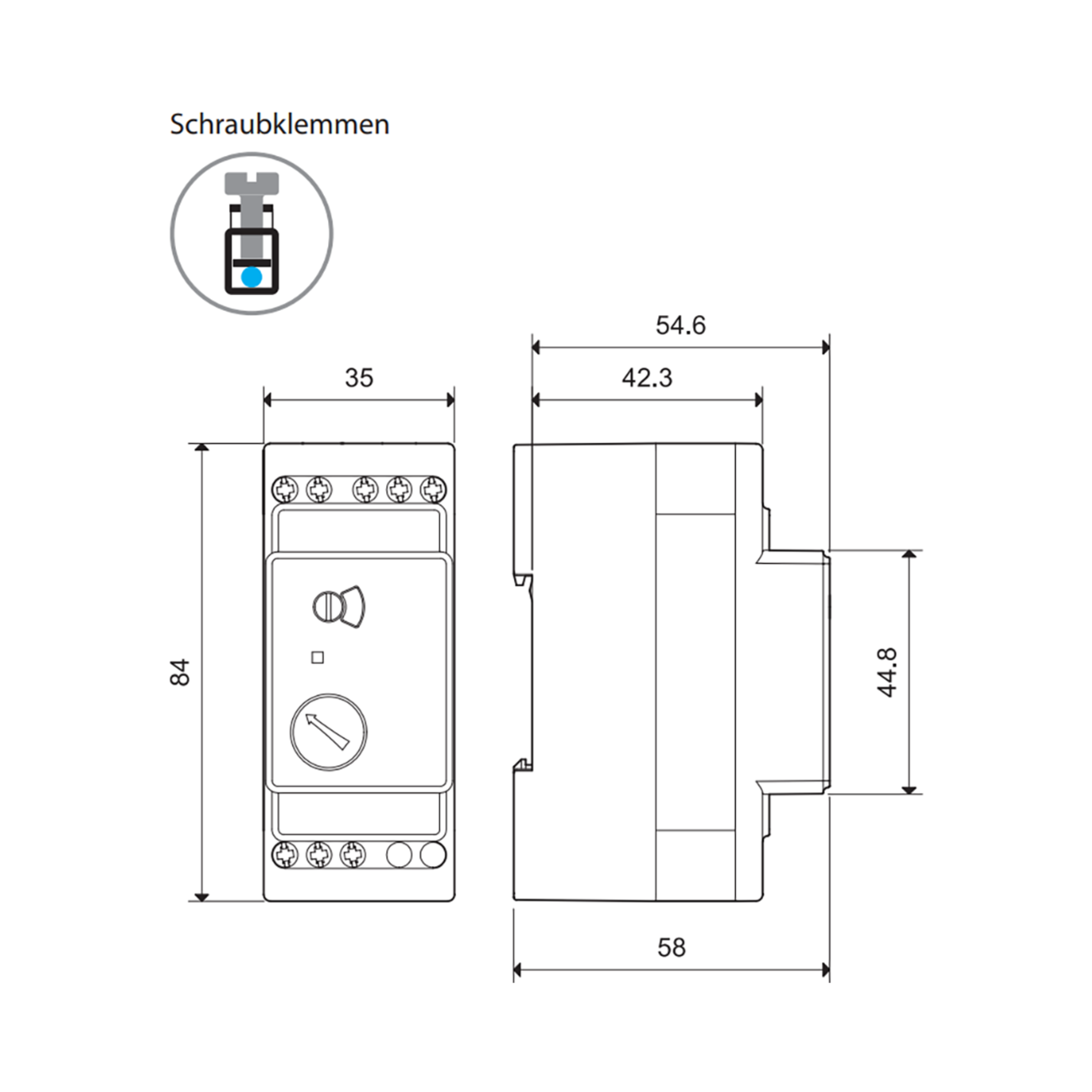

Dimensions and Weights
