55.34.9.012.0040

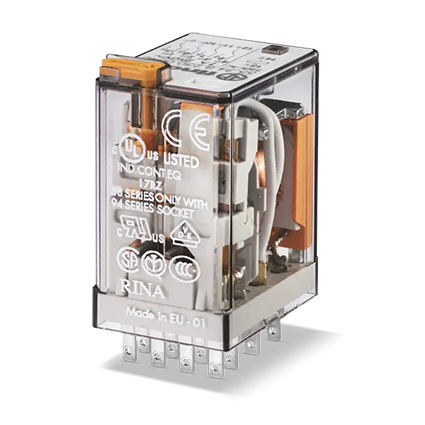

Finder Industrial relay 55.34 4PDT 7A 12VDC 140Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
40 Pcs. in stock
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Industrial relay
- Series
- 55.34
- Rated current
- 86 mA
- Rated voltage DC
- 12 V DC
- Switching current
- 7 A
- contacts
- 4PDT
- Coil resistance
- 140 Ohm
- Dimension: Length
- 27.7 mm
- Dimension: Width
- 20.7 mm
- Dimension: Height
- 37.2 mm
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 27.7 mm
- Dimension: Width
- 20.7 mm
- Dimension: Height
- 37.2 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated voltage DC
- 12 V DC
- Coil design
- Switching voltage, max. AC
- 250 V AC
- Response voltage
- 9.6 V
- Operating voltage, max.
- 13.2 V
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 4,000 V AC
- Rated current
- 86 mA
- Switching current
- 7 A
- Continuous current
- 7 A
- Inrush current
- 15 A
- Switching capacity (VA)
- 1,750 VA
- Coil resistance
- 140 Ohm
- Response time
- 9 ms
- Drop-out time
- 5 ms
- Mechanical service life
- 50 x 10^3 Operations
- Service life, electrical
- 200 x 10^3 Operations
- Vibration resistance
- NO/NC: 15 G / 15 G
- Impact resistance, functional
- 16 G
Safety/Certifications
- Approvals
- CCC
- CE
- EAC
- ENEC03
- RINA
- UK CA
- VDE
- cCSA
- cULus
- Protection class RT
- RTI
