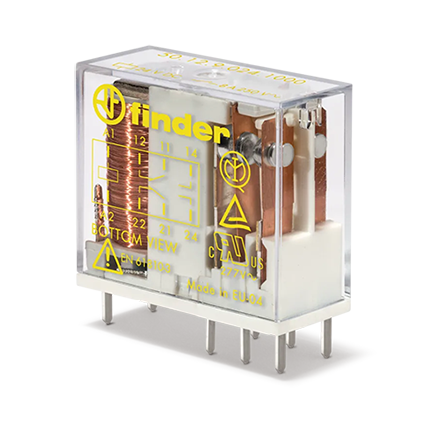

Finder Power relay 50.12 THT DPDT 8A 24VDC 820Ohm 29mmx12,4mmx25mm RTII

Image similar
NEW
Manufacturer Part No.
50.12.9.024.1000
Schukat Part No.
50.12.9.024.1000
Manufacturer
Finder
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Back Order
1 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Series
50.12
Type
Power relay
contacts
DPDT
Switching current
8 A
Rated current
29,3 mA
Rated voltage DC
24 V DC
Coil resistance
820 Ohm
Dielectric strength
6 kV
Protection class RT
RTII
Dimension: Length
29 mm
Dimension: Width
12.4 mm
Dimension: Height
25 mm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Finder
Type
  • Power relay
Series
  • 50.12
Product group
  • E6454
contacts
  • DPDT
Contact material
  • AgNi
Assembly Type
  • THT
Application

  • for lifting equipment and cranes, escalators, lifts and elevators, lifts for the disabled, medical and dental technology, automatic storage systems, hospital technology, wood processing machines

Features

  • • Print relay with positively guided contacts in accordance with EN 61810-3 (formerly EN 50205:2002), type B*
    • 2 changeover contacts, 8 A
    • for medium loads and higher DC contact load
    • When used as a switching relay, higher permissible DC contact load than with relays of a similar size
    • Separate arrangement of the adjacent contacts
    • 6kV (1.2/50 μs), 8 mm air and creepage distance between coil and contact
    • Cadmium-free contact material
    • Relay protection type: RT II (flux-tight)

    * According to EN 61810-3 (Type B), only one normally closed contact and one normally open contact 11-12 and 21-24 or 22-21 and 11-14 may be used as forcibly guided contacts.

Dimensions and Weights

Dimension: Length
  • 29 mm
Dimension: Width
  • 12.4 mm
Dimension: Height
  • 25 mm

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 70 °C

Technical Features

Rated voltage DC
  • 24 V DC
Coil design
Switching voltage, max. AC
  • 400 V AC
Response voltage
  • 18 V
Operating voltage, max.
  • 28.8 V
Test voltage open contacts
  • 1,500 V AC
Creepage distance
  • 8 mm
Rated current
  • 29,3 mA
Switching current
  • 8 A
Continuous current
  • 8 A
Inrush current
  • 15 A
Dielectric strength
  • 6 kV
Rated power
  • 700 mW
Coil resistance
  • 820 Ohm
Response time
  • 10 ms
Drop-out time
  • 4 ms
Mechanical service life
  • 10 x 10^6 Operations
Service life, electrical
  • 100 x 10^3 Operations
Vibration resistance
  • NO/NC: 20 G / 6 G
Impact resistance, functional
  • NO/NC: 20 G / 5 G

Safety/Certifications

Approvals
  • EAC
  • MOT
  • cCSA
  • cRUus
Standards
  • EN 61810-3 Typ B, EN 50205:2002
Protection class RT
  • RTII
