4C.02.9.024.0050

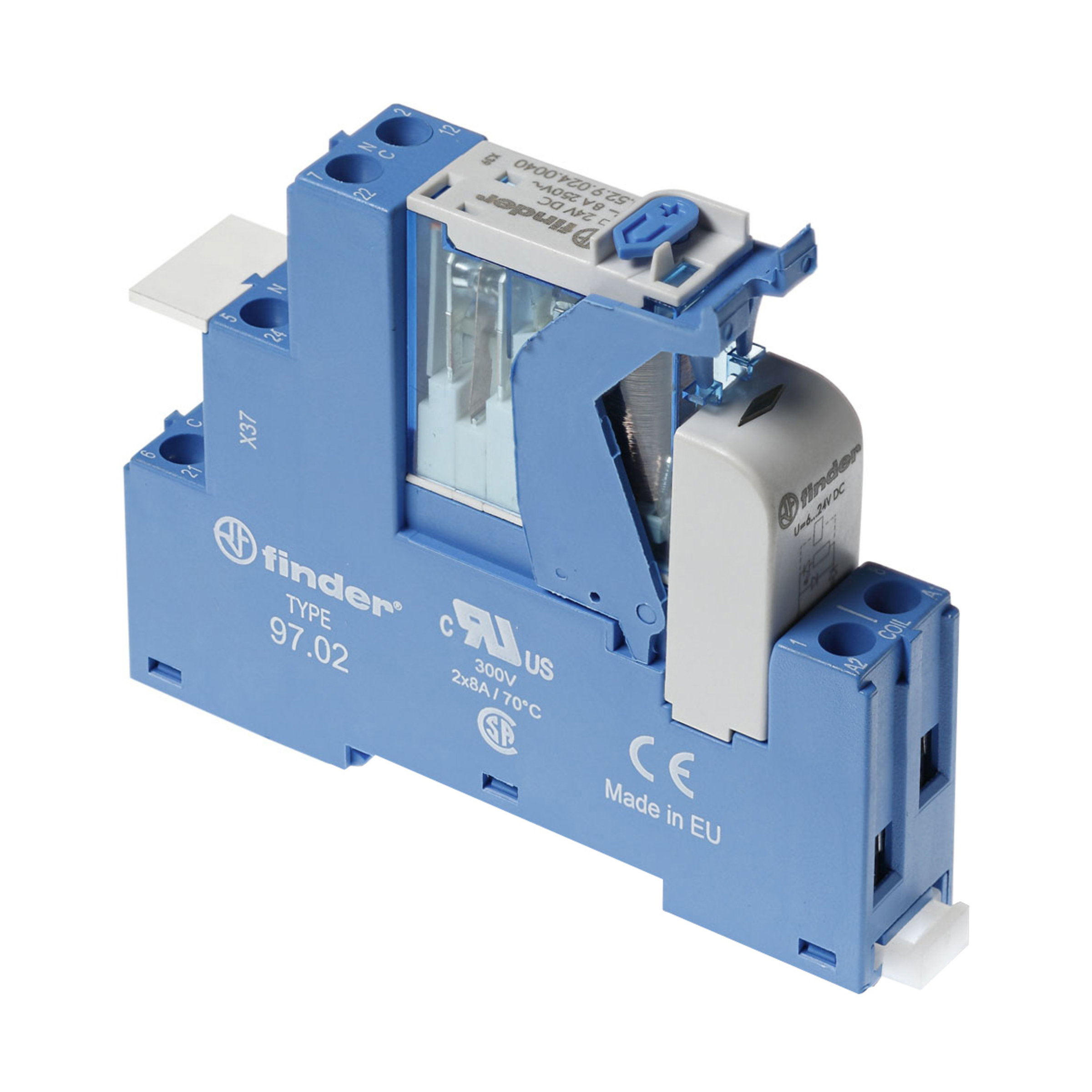

Finder Coupling relay 4C.02 DPDT 8A 24VDC 1.200Ohm 82,9mmx15,8mmx68,1mm IP20
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1 Pcs.
1 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Termination Style
- Screw clamps
- Series
- 4C.02
- Type
- Coupling relay
- contacts
- DPDT
- Switching current
- 8 A
- Rated current
- 20 mA
- Rated voltage DC
- 24 V DC
- Coil resistance
- 1,200 Ohm
- Dielectric strength
- 6 kV
- Protection Class
- IP20
- Dimension: Length
- 82.9 mm
- Dimension: Width
- 15.8 mm
- Dimension: Height
- 68.1 mm
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 82.9 mm
- Dimension: Width
- 15.8 mm
- Dimension: Height
- 68.1 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 70 °C
Technical Features
- Rated voltage DC
- 24 V DC
- Coil design
- Switching voltage, max. AC
- 440 V AC
- Response voltage
- 17.5 V
- Operating voltage, max.
- 26.4 V
- Test voltage open contacts
- 1,000 V AC
- Creepage distance
- 8 mm
- Rated current
- 20 mA
- Switching current
- 8 A
- Continuous current
- 8 A
- Inrush current
- 15 A
- Dielectric strength
- 6 kV
- Rated power
- 300 mW
- Switching capacity (VA)
- 2,000 VA
- Coil resistance
- 1,200 Ohm
- Drop-out time
- 10 ms
- Mechanical service life
- 10 x 10^6 Operations
- Service life, electrical
- 100 x 10^3 Operations
- Vibration resistance
- NO/NC: 20 G / 12 G
Safety/Certifications
- Approvals
- CE
- EAC
- UK CA
- VDE
- cCSA
- cULus
- Standards
- EN 61810-1, VDE 0435T 210
- Protection Class
- IP20
