48.P5.7.012.0050
Finder Coupling relay 48.P5 DPDT 8A 12VDC 95,5mmx15,8mmx75,3mm IP20
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
10 Pcs. in stock
Planned delivery time
Ø 9 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

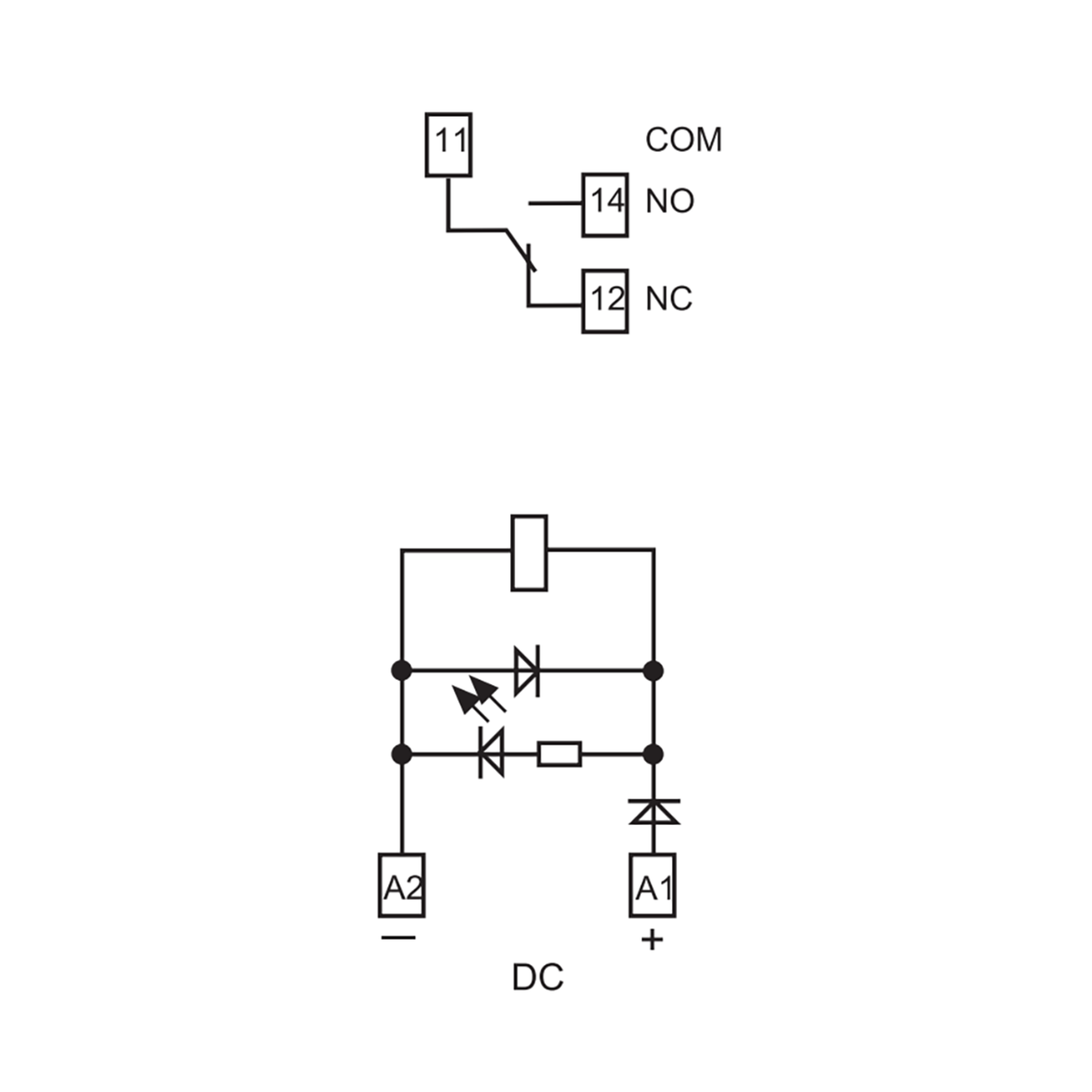

Fact Sheet
- Type
- Coupling relay
- Series
- 48.P5
- contacts
- DPDT
- Contact: Switching Current (min/typ/max)
- 8 A
- Coil: Nominal Voltage DC
- 12 V DC
- Protection Class
- IP20
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 95.5 mm
- Dimension: Width
- 15.8 mm
- Dimension: Height
- 75.3 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 70 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 8 A
- Contact: Switching Voltage, max. AC
- 400 V AC
- Contact: Continuous Current
- 8 A
- Contact: Inrush current
- 15 A
- Contact: Switching Capacity (VA)
- 2,000 VA
- Contact: Switching Load (W)
- 0.3 W
- Contact: Voltage Resistance
- 6 kV
- Creepage distance
- 8 mm
- Coil design
- monostable
- Inductor power
- 500 mW
- Coil: Rated Current [mA]
- 41 mA
- Coil: Nominal Voltage DC
- 12 V DC
- Coil: Operating Voltage, min.
- 8.8 V
- Coil: Operating Voltage, max.
- 18 V
- Test voltage open contacts
- 1,000 V AC
- Response time
- 12 ms
- Drop-out time
- 12 ms
- Mechanical service life
- 10 x 10^6 Operations
- Service life, electrical
- 100 x 10^3 Operations
- Vibration resistance
- NO/NC: 15 g / 3 g
Safety/Certifications
- Approvals
- CE
- EAC
- RINA
- UK CA
- VDE
- cCSA
- cULus
- Standards
- EN 61810-1, VDE 0435 T 210, EN 61000-4-5
- Protection Class
- IP20
