48.52.8.230.0060

Finder Coupling relay 48.52 DPDT 8A 230VAC

Image similar
NEW
Manufacturer Part No.
48.52.8.230.0060
Schukat Part No.
48.52.8.230.0060
Manufacturer
Finder
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Back Order
10 Pcs.
Planned delivery time
Ø 18 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available on order
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Termination Style
Screw clamps
Type
Coupling relay
Series
48.52
Rated voltage AC
230 V AC
Rated current
7 mA
Dielectric strength
6 kV
Switching current
8 A
contacts
DPDT
Dimension: Length
78.6 mm
Protection Class
IP20
Dimension: Width
15.8 mm
Dimension: Height
75.3 mm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Finder
Type
  • Coupling relay
Series
  • 48.52
Product group
  • E6663 Relay Interface Modules, Series 49
contacts
  • DPDT
Contact material
  • AgNi
Assembly Type
  • DIN rail
Termination Style
  • Screw clamps
Material
  • Plastic
Application

  • Control panels, automatic storage systems, medical and dental technology, shipyards and shipbuilding, elevators and elevators, control cabinets for electrical distribution systems, building automation, lifting equipment and cranes

Features

  • • Coupling relay with screw terminals
    • For 35mm mounting rail (EN 60715)
    • 230V AC coil with green LED and Varistor
    • 2 changeover contacts 8A
    • With LED display and EMC interference suppression module
    • Cadmium-free contact material
    • Width 15.8 mm
    • Overvoltage category: III
    • Relay protection class IP20

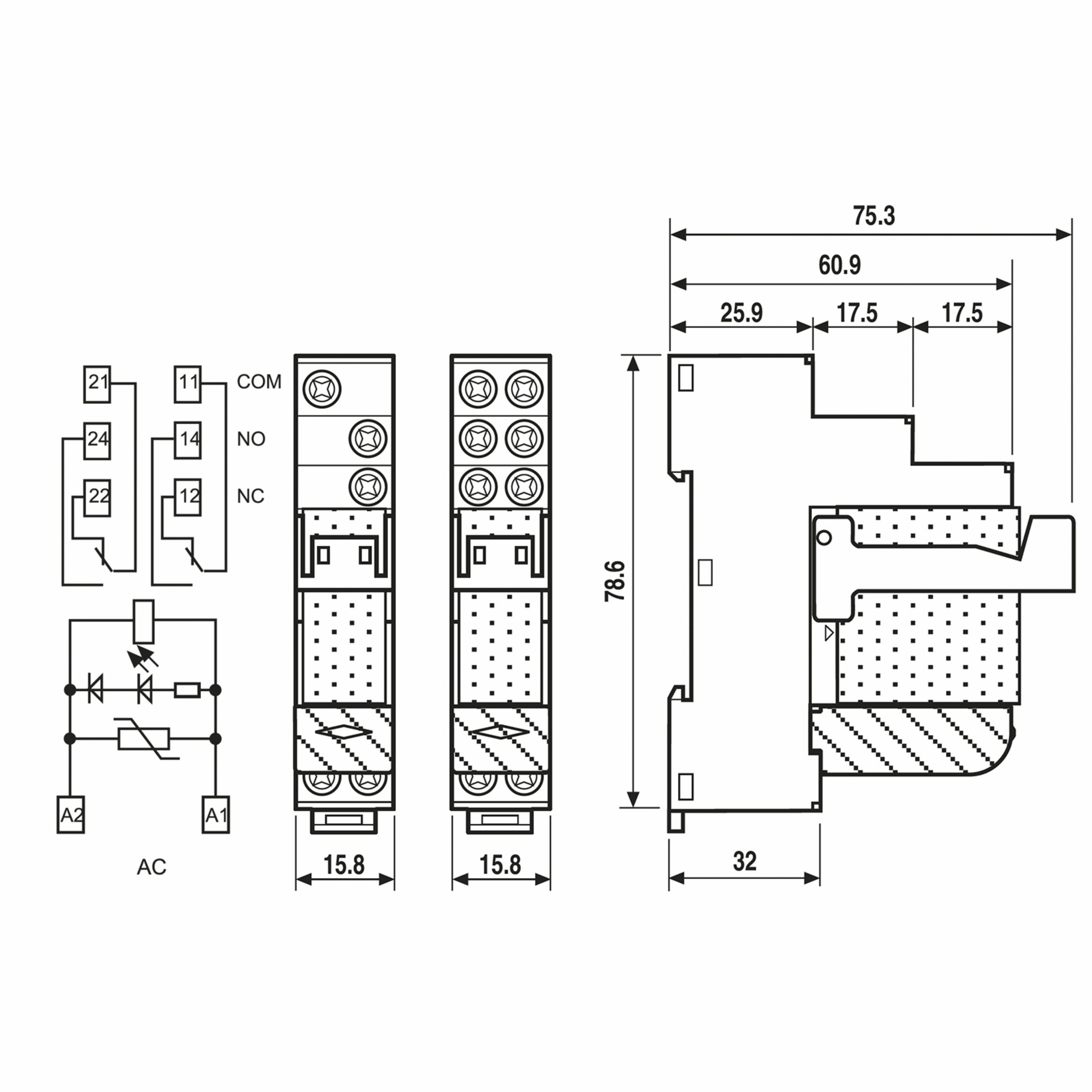

Dimensions and weights

Dimension: Length
  • 78.6 mm
Dimension: Width
  • 15.8 mm
Dimension: Height
  • 75.3 mm

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 70 °C

Technical features

Rated voltage AC
  • 230 V AC
Coil design
  • monostable
Switching voltage, max. AC
  • 400 V AC
Response voltage
  • 184 V
Operating voltage, max.
  • 253 V
Test voltage open contacts
  • 1,000 V AC
Test voltage coil/contact
  • 6,000 V AC
Creepage distance
  • 8 mm
Rated current
  • 7 mA
Switching current
  • 8 A
Dielectric strength
  • 6 kV
Response time
  • 7 ms
Drop-out time
  • 4 ms
Mechanical service life
  • 10^7 Operations
Service life, electrical
  • 10^5 Operations

Safety/Certifications

Approvals
  • CE
  • EAC
  • UK CA
  • VDE
  • cCSA
  • cULus
Protection Class
  • IP20
