48.31.7.012.0050

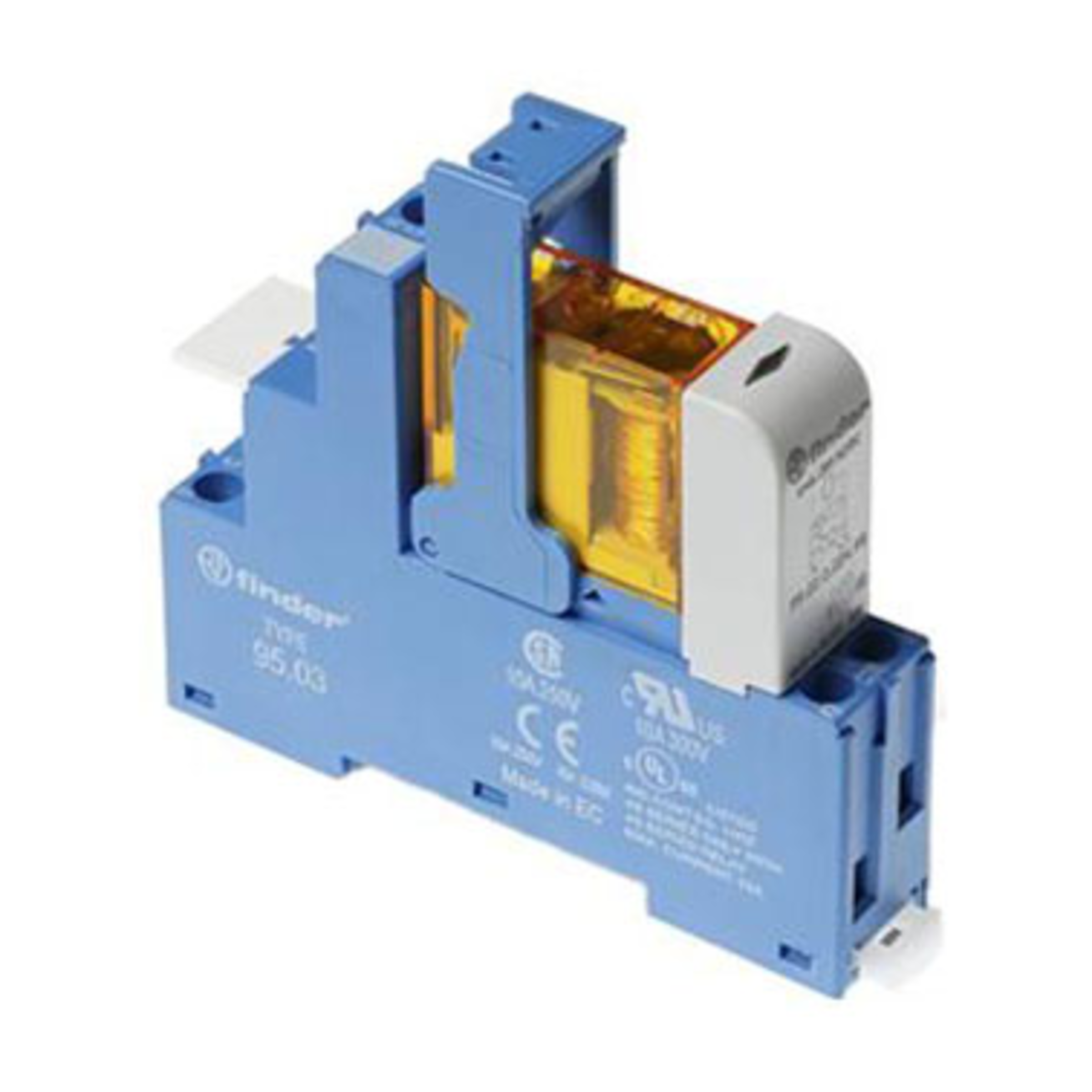

Finder Coupling relay 48.31 SPDT 10A 12VDC 78,5mmx15,8mmx75,3mm IP20

Image similar
NEW
Manufacturer Part No.
48.31.7.012.0050
Schukat Part No.
48.31.7.012.0050
Manufacturer
Finder
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Back Order
1 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 10 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Termination Style
Box clamps
Series
48.31
Type
Coupling relay
contacts
SPDT
Switching current
10 A
Rated current
41 mA
Rated voltage DC
12 V DC
Dielectric strength
6 kV
Protection Class
IP20
Dimension: Length
78.5 mm
Dimension: Width
15.8 mm
Dimension: Height
75.3 mm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Finder
Type
  • Coupling relay
Series
  • 48.31
Product group
  • E6663
contacts
  • SPDT
Contact material
  • AgNi
Assembly Type
  • DIN rail
Termination Style
  • Box clamps
Colour
  • blue
Application

  • • Control panels
    • Automatic storage systems
    • Medical and dental technology
    • Shipyards and shipbuilding
    • Elevators and lifts
    • Switchboards for electrical distribution
    • Building automation
    • Lifting equipment and cranes

Features

  • • Coupling relay, 1 changeover contact, 10A
    • with cage terminals
    • Coils for DC sensitive
    • with LED display and EMC suppression module
    • Width 15.8 mm
    • for 35mm mounting rail (EN 60715)
    • cadmium-free contact material
    • Overvoltage category: III
    • Relay protection class IP20

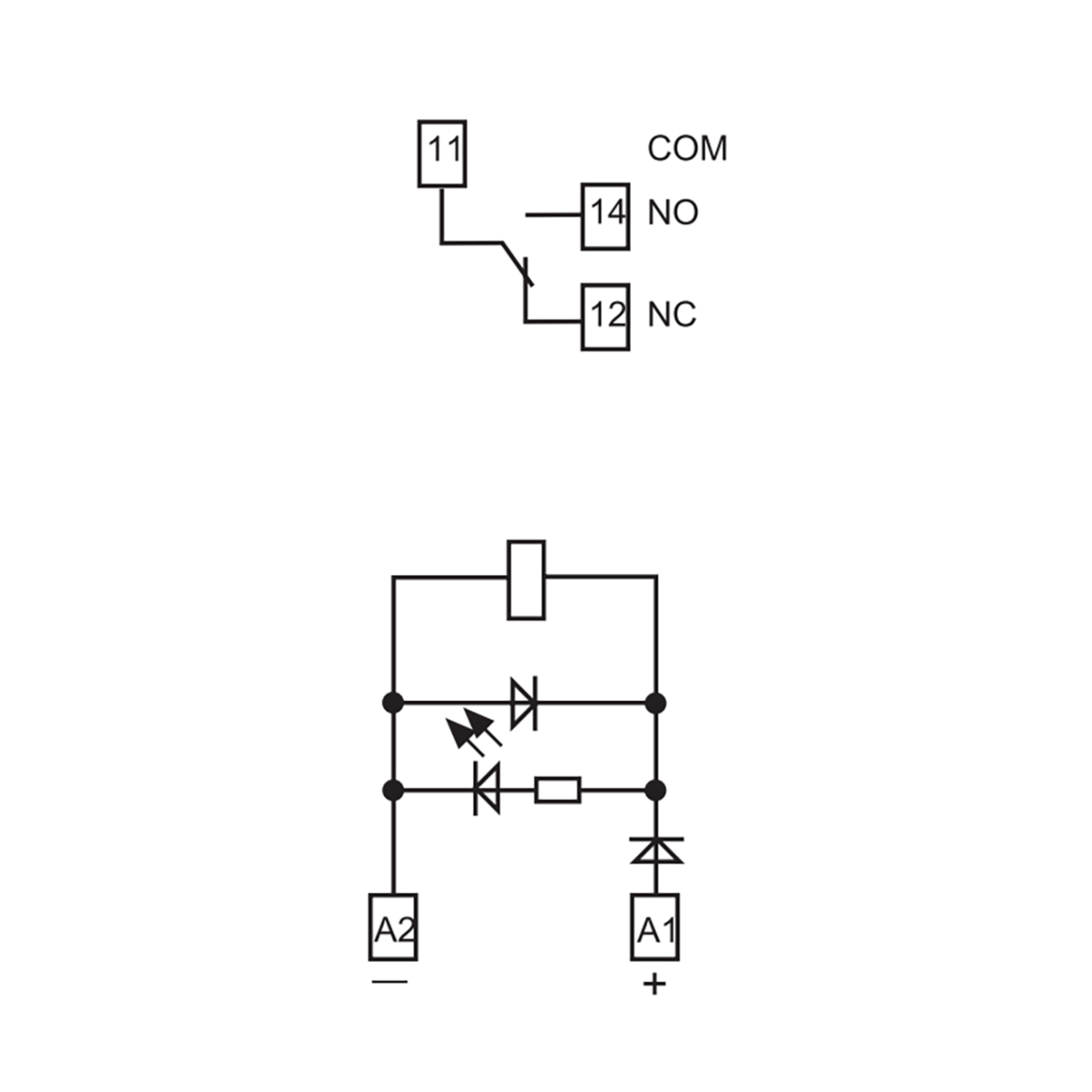

    • Standard for DC: green LED, reverse polarity protection diode, freewheeling diode

Notice
  • Components: Socket 95.03, Relay type 40.31, Module 99.02, Variclip 095.01

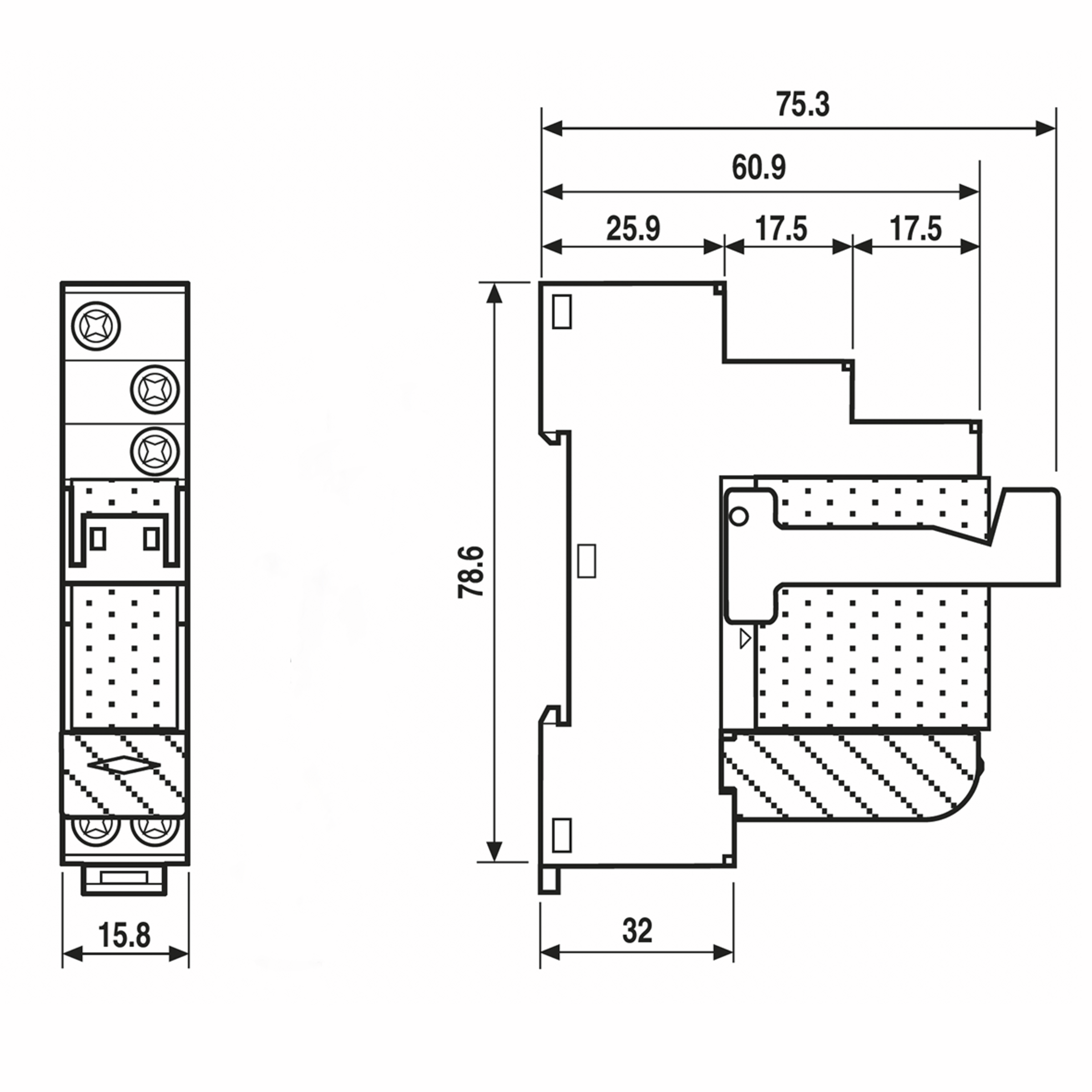

Dimensions and Weights

Dimension: Length
  • 78.5 mm
Dimension: Width
  • 15.8 mm
Dimension: Height
  • 75.3 mm

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 70 °C

Technical Features

Rated voltage DC
  • 12 V DC
Coil design
Switching voltage, max. AC
  • 400 V AC
Response voltage
  • 8.8 V
Operating voltage, max.
  • 18 V
Test voltage open contacts
  • 1,000 V AC
Creepage distance
  • 8 mm
Rated current
  • 41 mA
Switching current
  • 10 A
Continuous current
  • 10 A
Inrush current
  • 20 A
Dielectric strength
  • 6 kV
Rated power
  • 500 mW
Switching capacity (VA)
  • 2,500 VA
Response time
  • 12 ms
Drop-out time
  • 12 ms
Mechanical service life
  • 10 x 10^6 Operations
Service life, electrical
  • 200 x 10^3 Operations
Vibration resistance
  • NO/NC: 20 G / 5 G

Safety/Certifications

Approvals
  • CE
  • EAC
  • RINA
  • UK CA
  • VDE
  • cCSA
  • cULus
Standards
  • EN 61810-1, VDE 0435 T 210, EN 61000-4-5
Protection Class
  • IP20
