43.41.7.012.2000

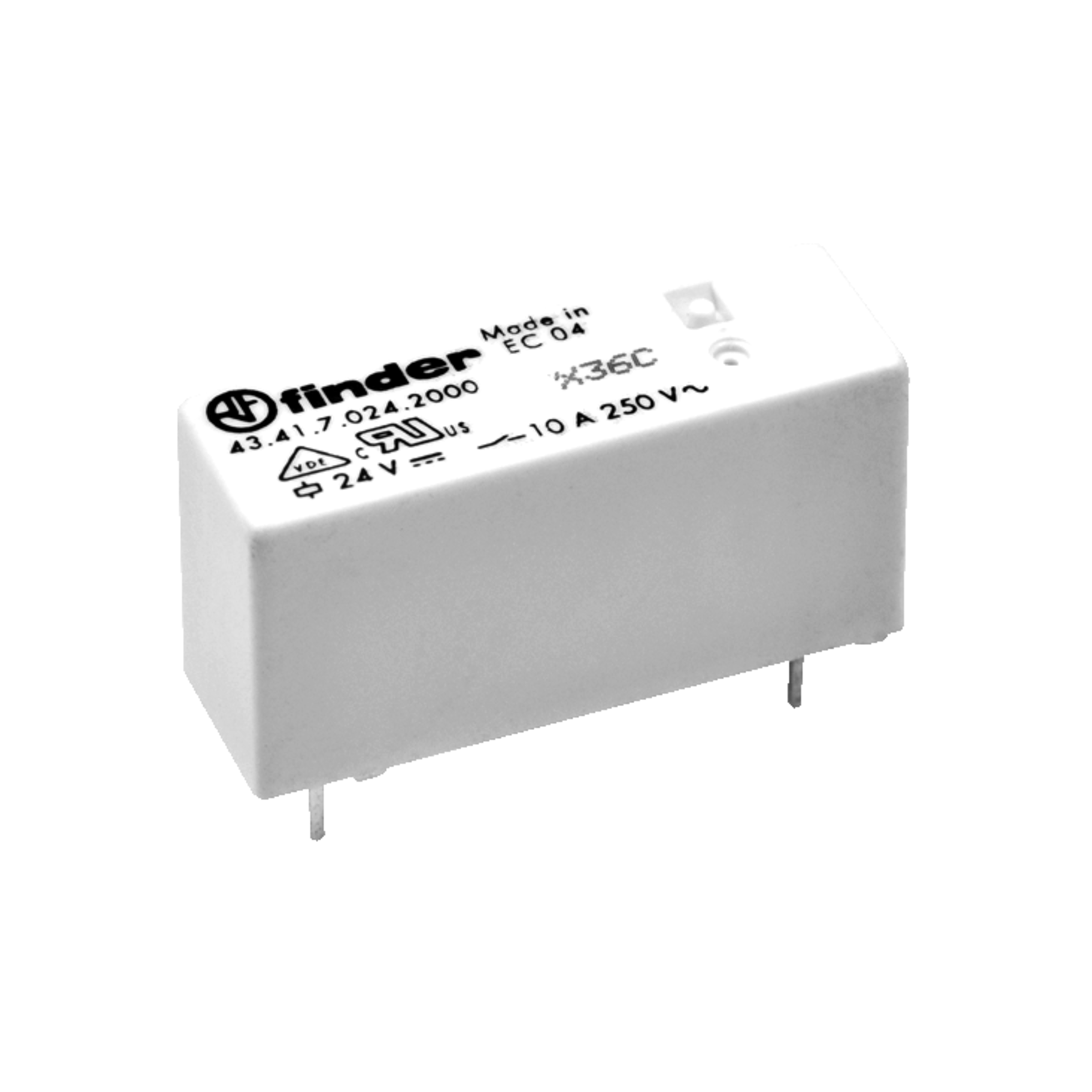

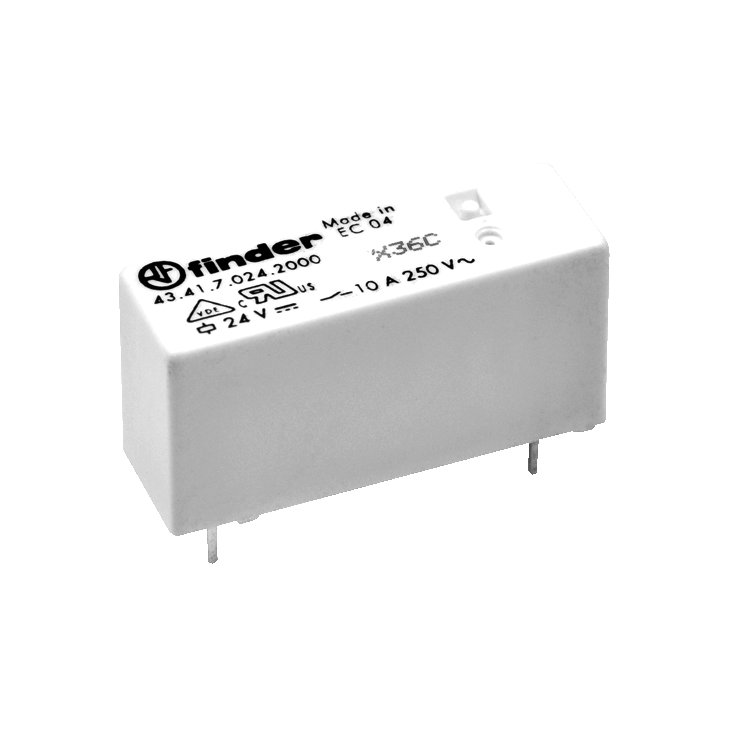

Finder PC relay 43.41 THT SPDT 10A 12VDC 580Ohm 30,2mmx10,2mmx15,4mm RTII
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Item no longer available!
Planned delivery time
--- Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
EOL 31.07.2023
Discontinued by manufacturer with replacement
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- 43.41
- contacts
- SPDT
- Contact: Switching Current (min/typ/max)
- 10 A
- Coil: Nominal Voltage DC
- 12 V DC
- Coil resistance
- 580 Ohm
- Protection class RT
- RTII
- RoHS-Conform
Specifications
Open all

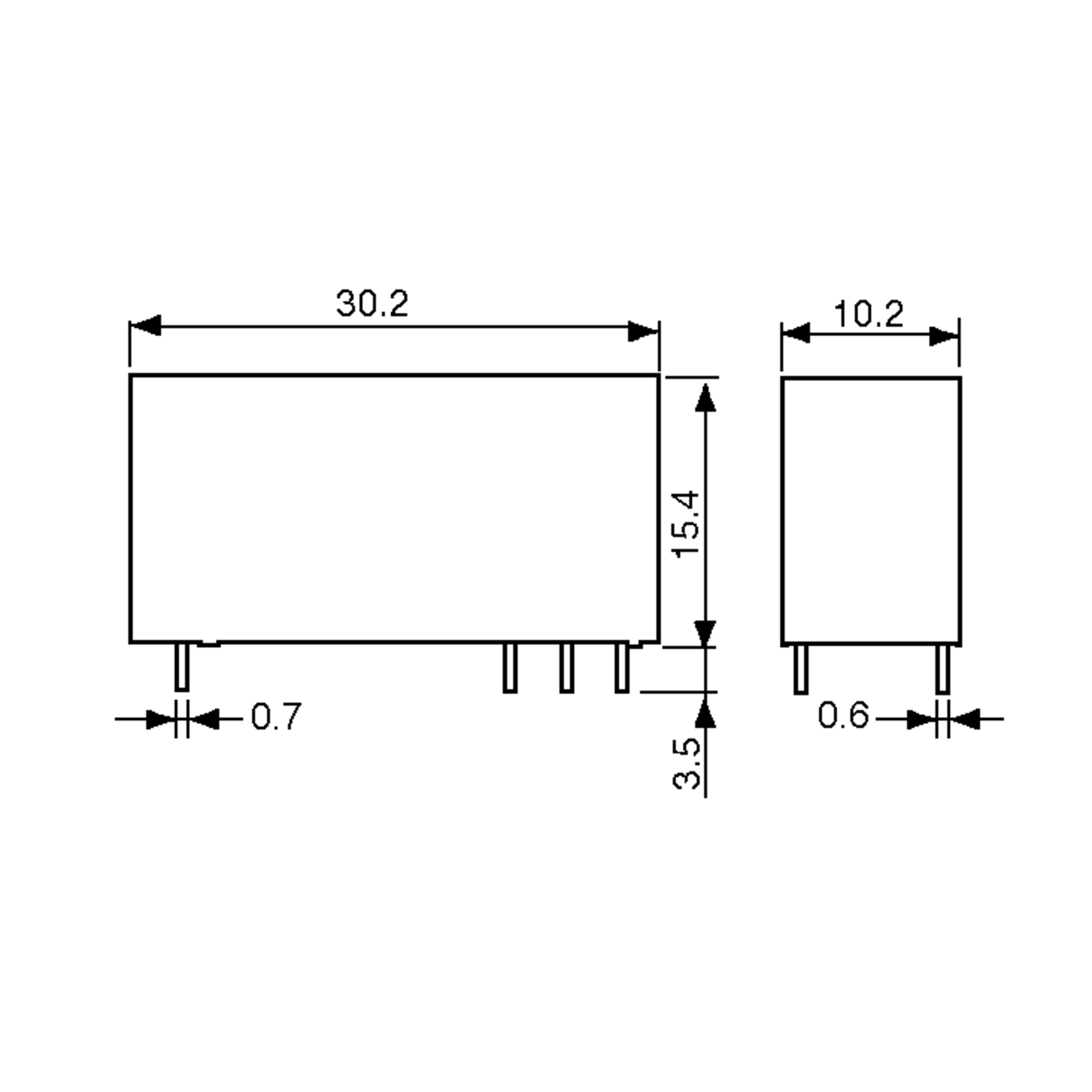

Dimensions and Weights
- Dimension: Length
- 30.2 mm
- Dimension: Width
- 10.2 mm
- Dimension: Height
- 15.4 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 10 A
- Contact: Switching Voltage, max. AC
- 400 V AC
- Contact: Continuous Current
- 10 A
- Contact: Inrush current
- 15 A
- Contact: Switching Capacity (VA)
- 2,500 VA
- Contact: Voltage Resistance
- 6 kV
- Creepage distance
- 10 mm
- Coil design
- monostable
- Coil resistance
- 580 Ohm
- Inductor power
- 250 mW
- Coil: Rated Current [mA]
- 20.7 mA
- Coil: Nominal Voltage DC
- 12 V DC
- Coil: Operating Voltage, min.
- 8.4 V
- Coil: Operating Voltage, max.
- 18 V
- Coil: Drop-out Voltage
- 0.6 V
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 6,000 V AC
- Response time
- 6 ms
- Drop-out time
- 4 ms
- Mechanical service life
- 10 x 10^6 operations
- Service life, electrical
- 100,000 operations
- Vibration resistance
- 15 g
- Impact resistance, functional
- 15 g
Safety/Certifications
- Standards
- EN 50178, EN 60204, EN 60335
- Protection class RT
- RTII
