41.52.9.024.0000

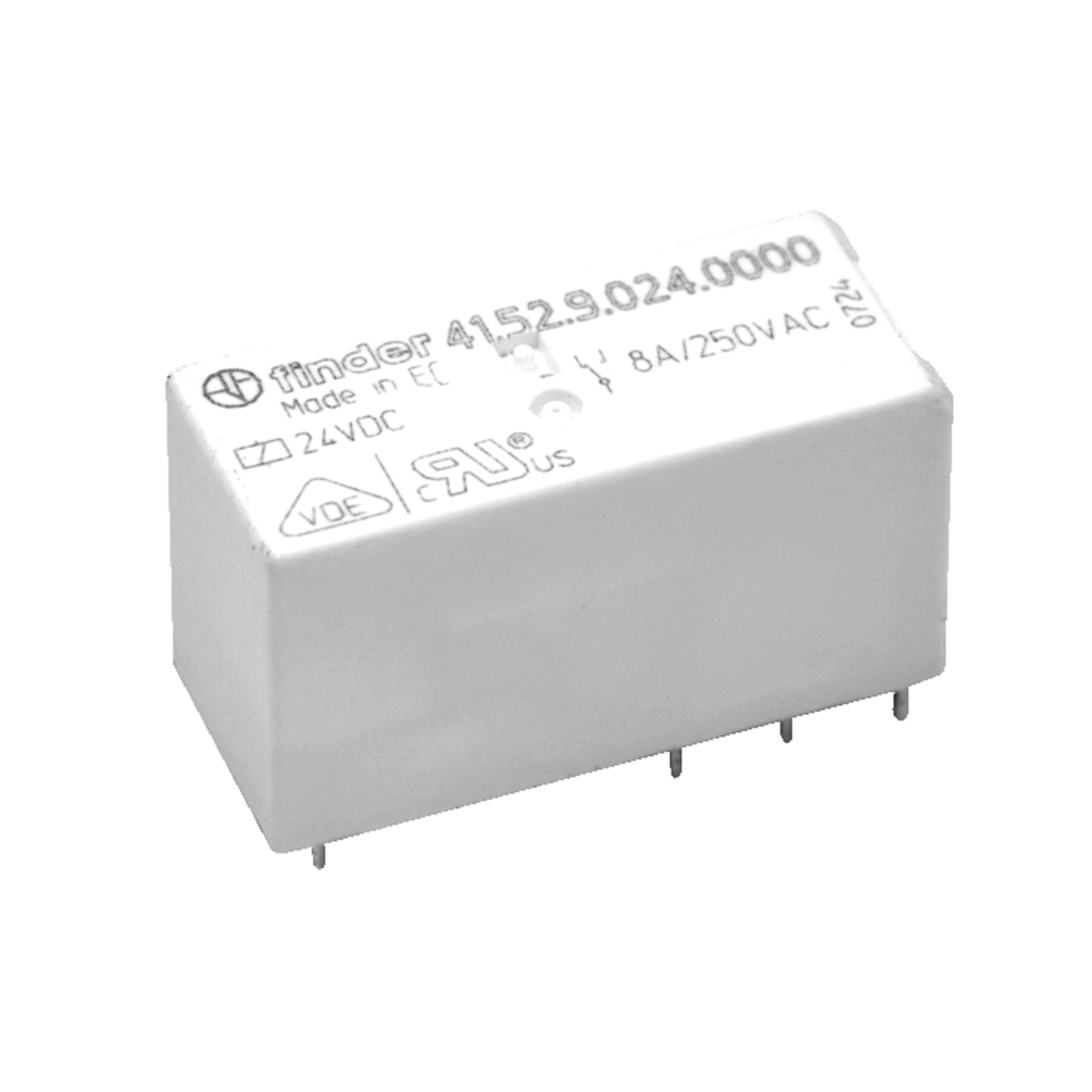

Finder Power relay 41.52 THT DPDT 8A 24VDC 1.440Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
250 Pcs. in stock
Next Stock Receipt
Week 49/2024
40 Pcs.
40 Pcs.
Planned delivery time
Ø 5 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Power relay
- Series
- 41.52
- Rated current
- 16,7 mA
- Rated voltage DC
- 24 V DC
- Switching current
- 8 A
- contacts
- DPDT
- Coil resistance
- 1,440 Ohm
- Dimension: Length
- 29 mm
- Dimension: Width
- 12.5 mm
- Dimension: Height
- 15.7 mm
- RoHS-Conform
Specifications
Open all

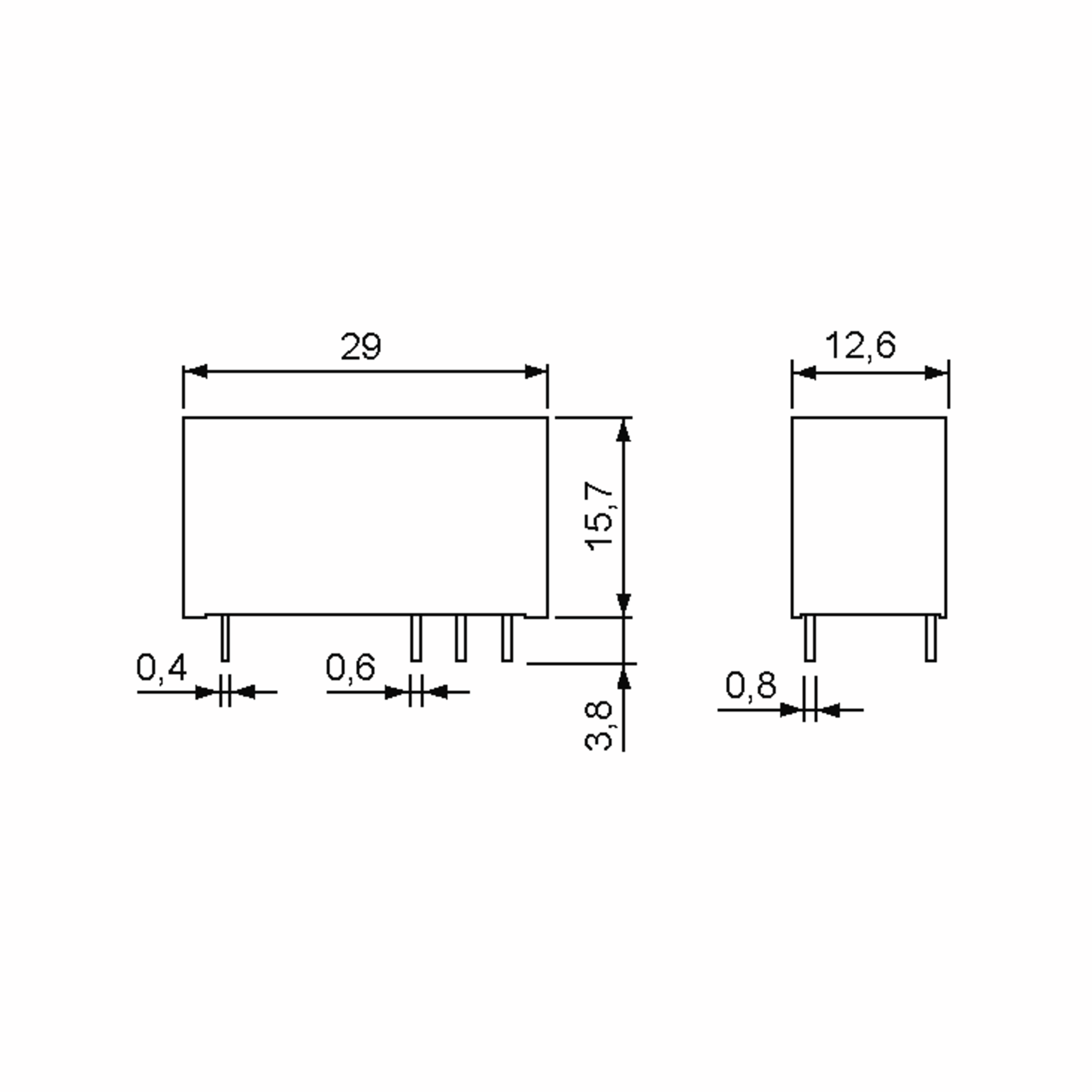

Dimensions and weights
- Dimension: Length
- 29 mm
- Dimension: Width
- 12.5 mm
- Dimension: Height
- 15.7 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated voltage DC
- 24 V DC
- Coil design
- Switching voltage, max. AC
- 400 V AC
- Response voltage
- 16.8 V
- Operating voltage, max.
- 36 V
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 4,000 V AC
- Creepage distance
- 8 mm
- Rated current
- 16,7 mA
- Switching current
- 8 A
- Continuous current
- 8 A
- Inrush current
- 15 A
- Rated power
- 300 mW
- Switching capacity (VA)
- 2,000 VA
- Coil resistance
- 1,440 Ohm
- Response time
- 8 ms
- Drop-out time
- 6 ms
- Impact resistance, functional
- 16 G
Safety/Certifications
- Approvals
- EAC
- ENEC03
- RINA
- VDE
- cULus
- Standards
- VDE 0106, EN 50178, EN 60204 , EN 60336
- Protection class RT
- RTII
