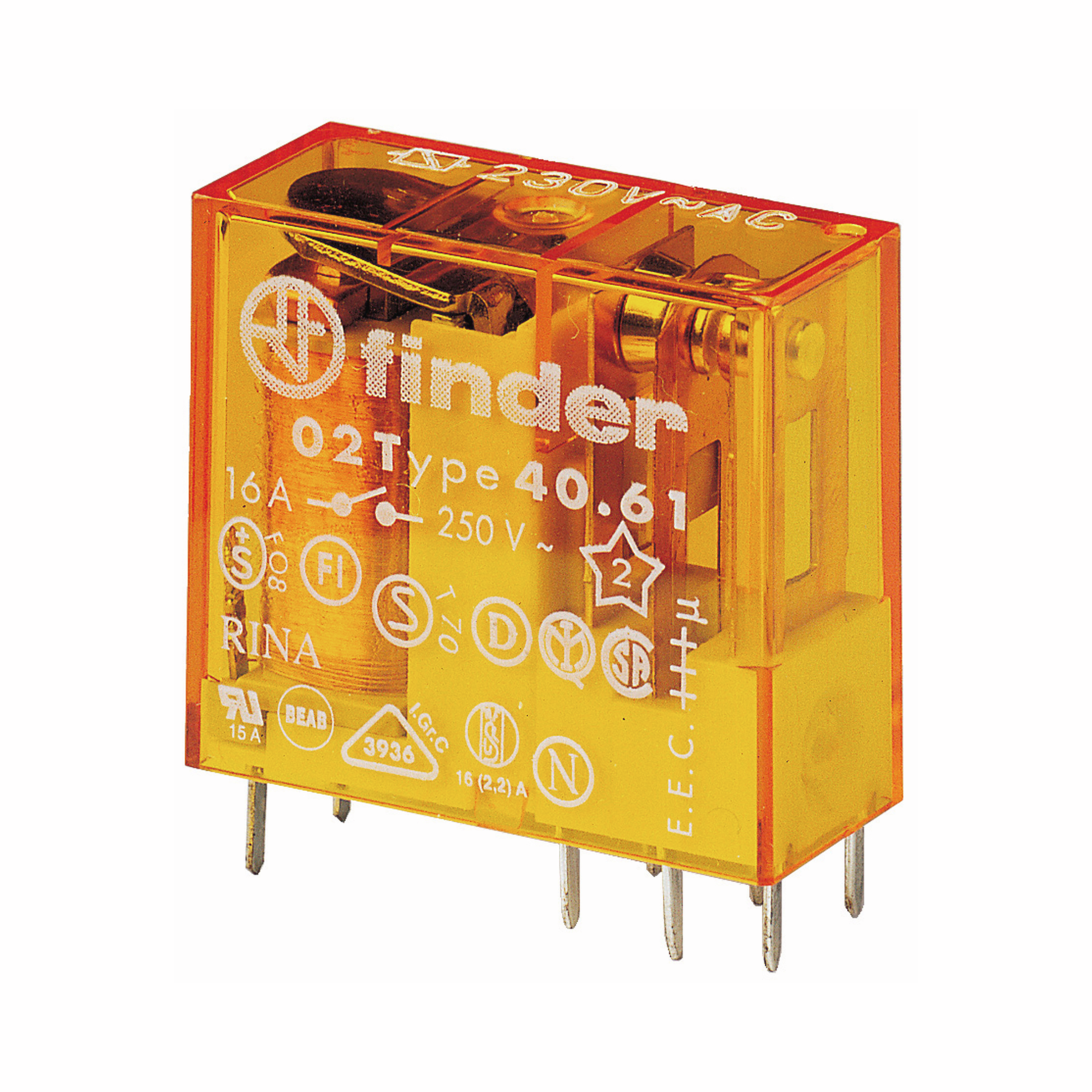

Finder PC relay 40.61 THT SPDT 16A 230VAC 28.000Ohm 29mmx12,4mmx25mm RTII

F4061-AC230AF4061-AC230AF4061-AC230AF4061-AC230A
TOP
Manufacturer Part No.
40.61.8.230.4000
Schukat Part No.
F4061-AC230A
Manufacturer
Finder
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

165 Pcs. in stock

Planned delivery time
Ø 9 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
• Here you will find suitable relay sockets and accessories.
Series
40.61
contacts
SPDT
Contact: Switching Current (min/typ/max)
16 A
Coil: Nominal Voltage AC
230 V AC
Coil resistance
28,000 Ohm
Protection class RT
RTII
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Finder
Type
  • PC relay
Series
  • 40.61
Product group
  • E6416
contacts
  • SPDT
Contact material
  • AgSnO2
Assembly Type
  • THT
Termination Style
  • Solder connection
Application

  • For medical and dental technology, control panels, control cabinets for electrical distribution, toys, door and gate openers, blind, roller shutter and window shutter drives, electronic assemblies, vending machines

Features

  • • 1 changeover contact, 16A
    • 5mm pitch, pin length of 5.2mm as plug-in relay
    • 6kV (1.2/50μs), 8mm clearance and creepage distance between coil and contact
    • Meets EN 60335-1, requirements for unattended household appliances (glow wire test)
    • Relay protection type RT II - flux-tight (standard)

Notice

Dimensions and Weights

Dimension: Length
  • 29 mm
Dimension: Width
  • 12.4 mm
Dimension: Height
  • 25 mm

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 85 °C

Technical Features

Contact: Switching Current (min/typ/max)
  • 16 A
Contact: Switching Voltage, max. AC
  • 400 V AC
Contact: Continuous Current
  • 16 A
Contact: Inrush current
  • 30 A
Contact: Switching Capacity (VA)
  • 1,000 VA
Contact: Switching Load (W)
  • 0.5 W
Contact: Voltage Resistance
  • 6 kV
Creepage distance
  • 8 mm
Coil design
  • monostable
Coil resistance
  • 28,000 Ohm
Coil: Rated Current [mA]
  • 5 mA
Coil: Nominal Voltage AC
  • 230 V AC
Coil: Operating Voltage, min.
  • 184 V
Coil: Operating Voltage, max.
  • 253 V
Coil: Pick-up voltage
  • 184 V
Coil: Drop-out Voltage
  • 46 V
Test voltage open contacts
  • 1,000 V AC
Response time
  • 7 ms
Drop-out time
  • 3 ms
Mechanical service life
  • 10 x 10^6 operations
Service life, electrical
  • 100,000 operations
Vibration resistance
  • NO/NC: 20 g / 5 g
Impact resistance, functional
  • NO/NC: 20 g / 13 g

Safety/Certifications

Approvals
  • CCC
  • EAC
  • ENEC03
  • RINA
  • VDE
  • cCSA
  • cULus
Standards
  • VDE 0106, EN 50178, EN 60204, EN 60335-1
Protection class RT
  • RTII
