40.52.8.012.0000

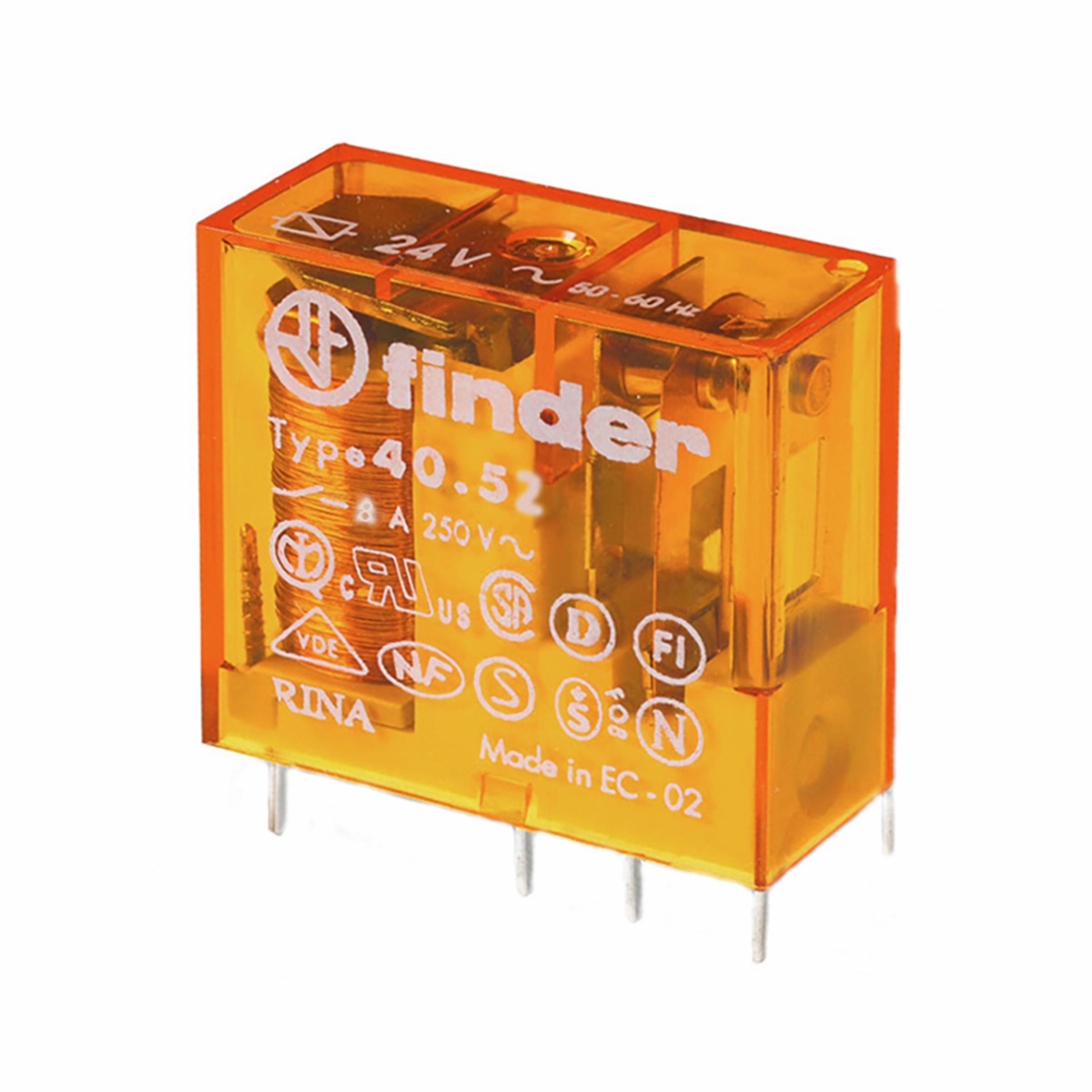

Finder Power relay 40.52 THT DPDT 8A 12VAC 80Ohm 29mmx12,4mmx25mm RTII

Image similar
NEW
Manufacturer Part No.
40.52.8.012.0000
Schukat Part No.
40.52.8.012.0000
Manufacturer
Finder
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Back Order
5 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Series
40.52
Type
Power relay
contacts
DPDT
Switching current
8 A
Rated voltage AC
12 V AC
Rated current
90 mA
Coil resistance
80 Ohm
Dielectric strength
6 kV
Protection class RT
RTII
Dimension: Length
29 mm
Dimension: Width
12.4 mm
Dimension: Height
25 mm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Finder
Type
  • Power relay
Series
  • 40.52
Product group
  • E6451
contacts
  • DPDT
Contact material
  • AgNi
Assembly Type
  • THT
Application

  • For medical and dental technology, control panels, control cabinets for electrical distribution, toys, door and gate openers, blind, roller shutter and window shutter drives, electronic assemblies, vending machines.

Features

  • • 2 changeover contacts, 8A
    • 5mm pitch, pin length of 5.2mm as plug-in relay
    • 6kV (1.2/50μs), 8mm clearance and creepage distance between coil and contact
    • Meets EN 60335-1, requirements for unattended household appliances (glow wire test)
    • Relay protection type RT II - flux-tight (standard)

Notice
  • Accessories can be found under "Other Products and Accessories" - please scroll down

Dimensions and Weights

Dimension: Length
  • 29 mm
Dimension: Width
  • 12.4 mm
Dimension: Height
  • 25 mm

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 85 °C

Technical Features

Rated voltage AC
  • 12 V AC
Coil design
Switching voltage, max. AC
  • 400 V AC
Response voltage
  • 9.6 V
Operating voltage, max.
  • 13.2 V
Test voltage open contacts
  • 1,000 V AC
Creepage distance
  • 8 mm
Rated current
  • 90 mA
Switching current
  • 8 A
Continuous current
  • 8 A
Inrush current
  • 15 A
Dielectric strength
  • 6 kV
Switching capacity (VA)
  • 2,000 VA
Coil resistance
  • 80 Ohm
Response time
  • 7 ms
Drop-out time
  • 3 ms
Vibration resistance
  • NO/NC: 15 G / 4 G
Impact resistance, functional
  • NO/NC: 20 G / 12 G

Safety/Certifications

Approvals
  • CCC
  • EAC
  • ENEC03
  • RINA
  • VDE
  • cCSA
  • cULus
Standards
  • VDE 0106, EN 50178, EN 60204, EN 60335
Protection class RT
  • RTII
