40.31.8.230.0000

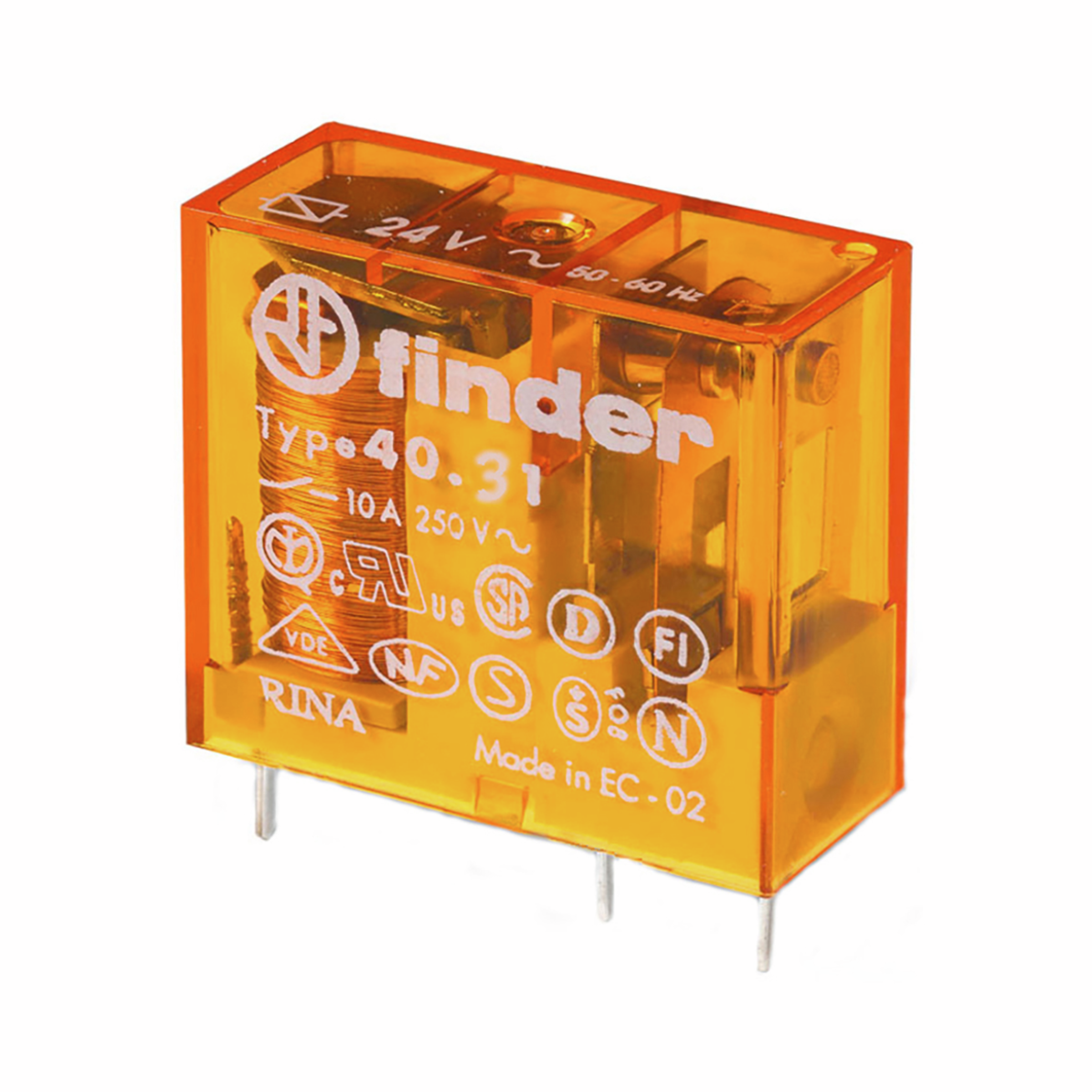

Finder PC relay 40.31 THT SPDT 10A 230VAC 28.000Ohm 29mmx12,4mmx25mm RTII
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
70 Pcs. in stock
Next Stock Receipt
Week 27/2026
100 Pcs.
100 Pcs.
Planned delivery time
Ø 9 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- 40.31
- contacts
- SPDT
- Contact: Switching Current (min/typ/max)
- 10 A
- Coil: Nominal Voltage AC
- 230 V AC
- Coil resistance
- 28,000 Ohm
- Protection class RT
- RTII
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 29 mm
- Dimension: Width
- 12.4 mm
- Dimension: Height
- 25 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 10 A
- Contact: Switching Voltage, max. AC
- 400 V AC
- Contact: Continuous Current
- 12 A
- Contact: Inrush current
- 20 A
- Contact: Switching Capacity (VA)
- 1,000 VA
- Creepage distance
- 8 mm
- Coil design
- monostable
- Coil resistance
- 28,000 Ohm
- Coil: Rated Current [mA]
- 5 mA
- Coil: Nominal Voltage AC
- 230 V AC
- Coil: Operating Voltage, min.
- 184 V
- Coil: Operating Voltage, max.
- 253 V
- Coil: Drop-out Voltage
- 46 V
- Test voltage open contacts
- 1,000 V AC
- Test voltage coil/contact
- 6,000 V AC
- Response time
- 7 ms
- Drop-out time
- 3 ms
- Mechanical service life
- 10 x 10^6 operations
- Service life, electrical
- 200,000 operations
- Vibration resistance
- NO/NC: 20 g / 5 g
- Impact resistance, functional
- NO/NC: 20 g / 13 g
Safety/Certifications
- Approvals
- CCC
- EAC
- ENEC03
- RINA
- VDE
- cCSA
- cULus
- Standards
- VDE 0106, EN 50178, EN 60204, EN 60335-1
- Protection class RT
- RTII
