34.51.7.005.4010

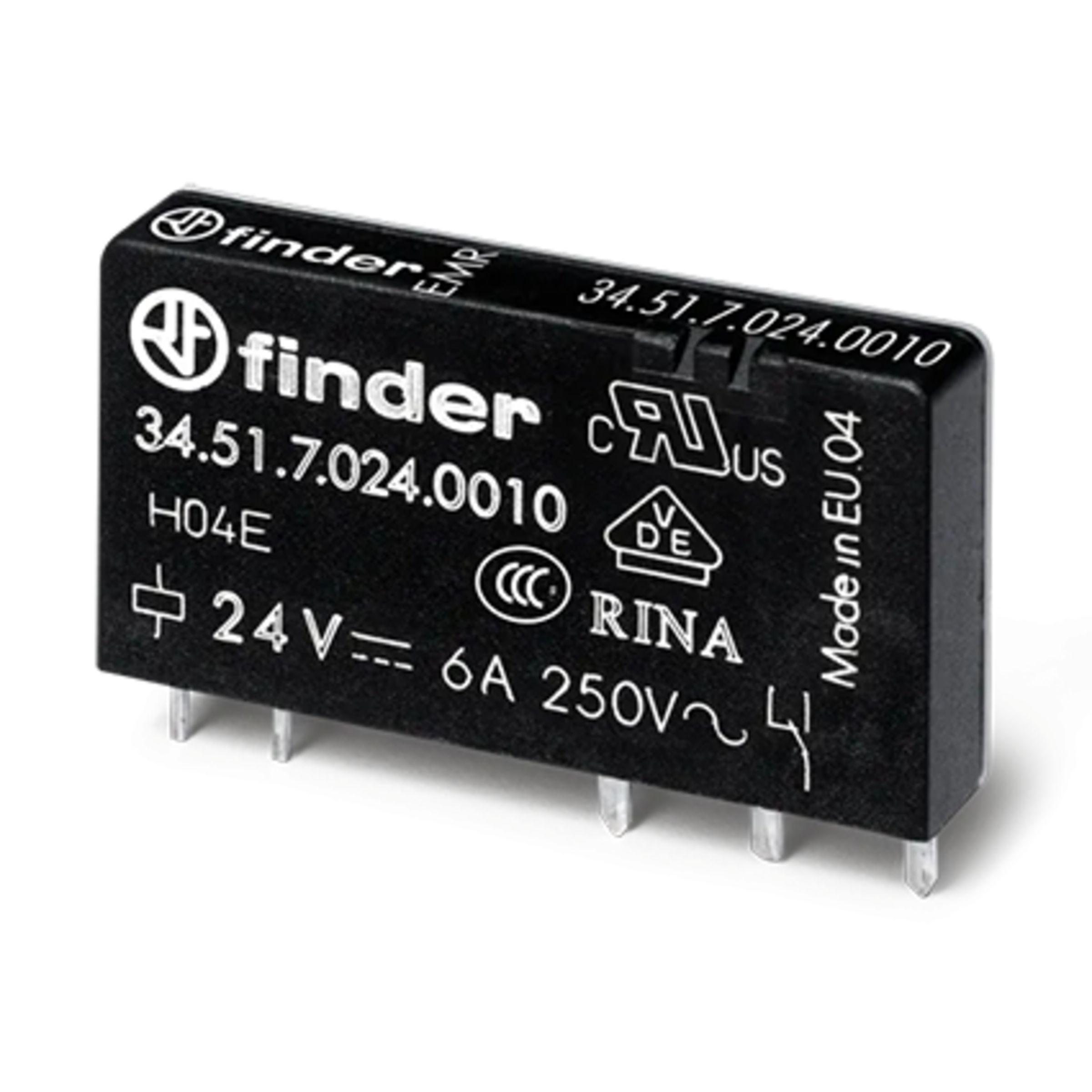

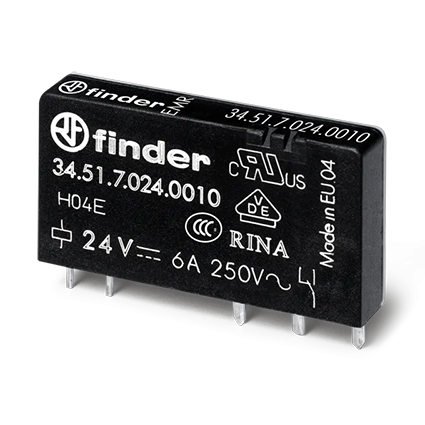

Finder PC relay 34.51 THT SPDT 10A 5VDC 130Ohm 28mmx5mmx15mm RTII
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
20 Pcs. in stock
Planned delivery time
Ø 9 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Series
- 34.51

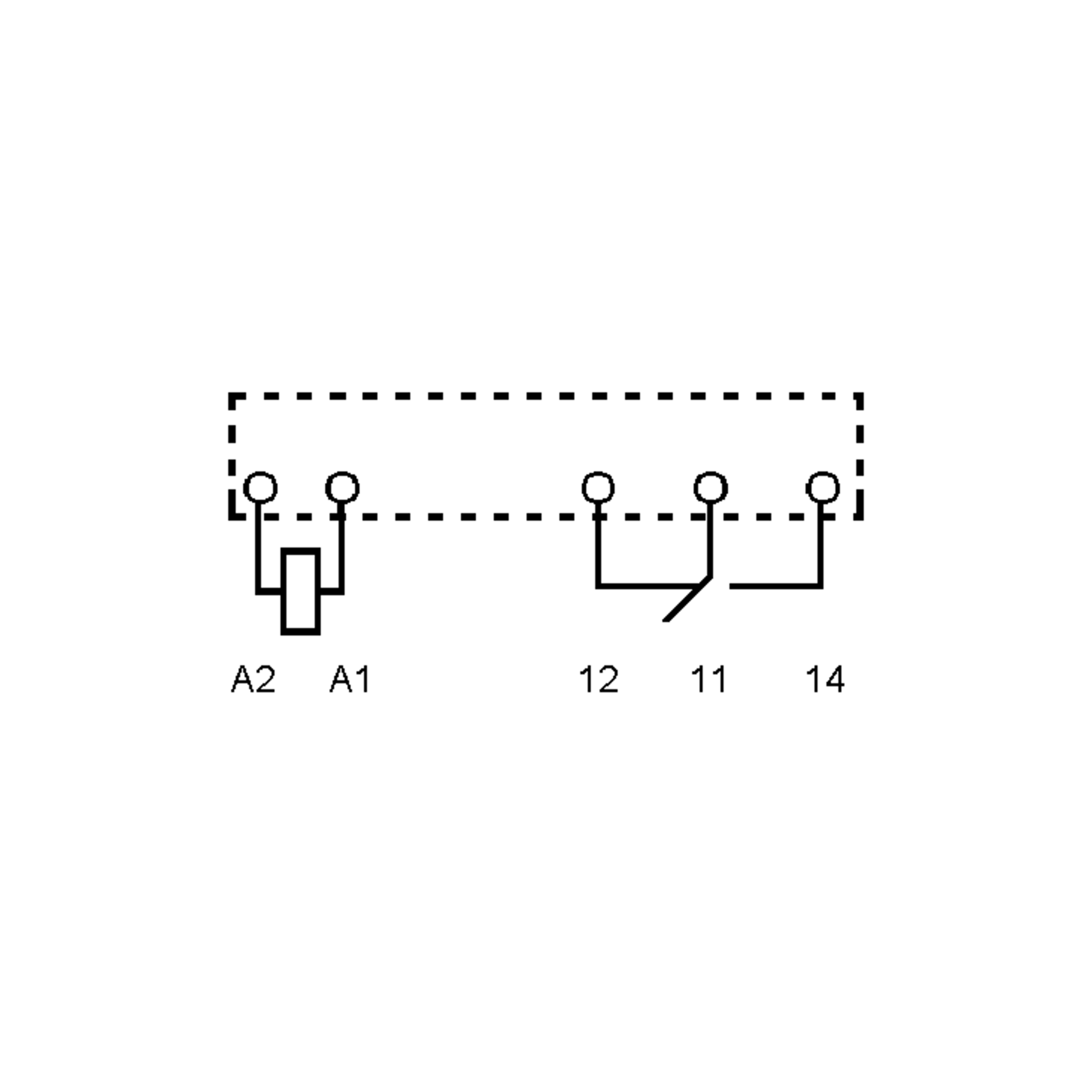

- contacts
- SPDT
- Contact: Switching Current (min/typ/max)
- 10 A
- Coil: Nominal Voltage DC
- 5 V DC
- Coil resistance
- 130 Ohm
- Protection class RT
- RTII
- RoHS-Conform
Specifications
Open all

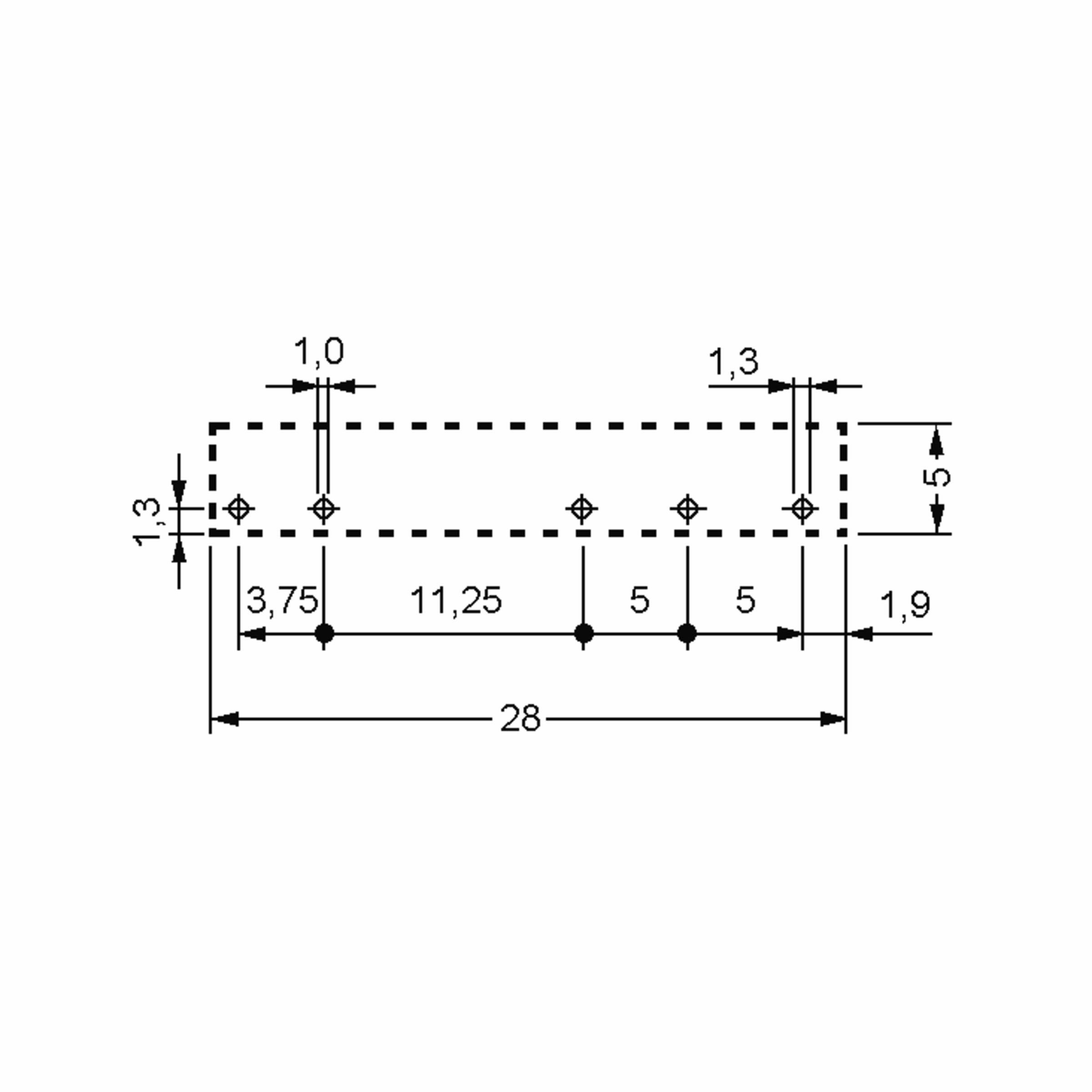

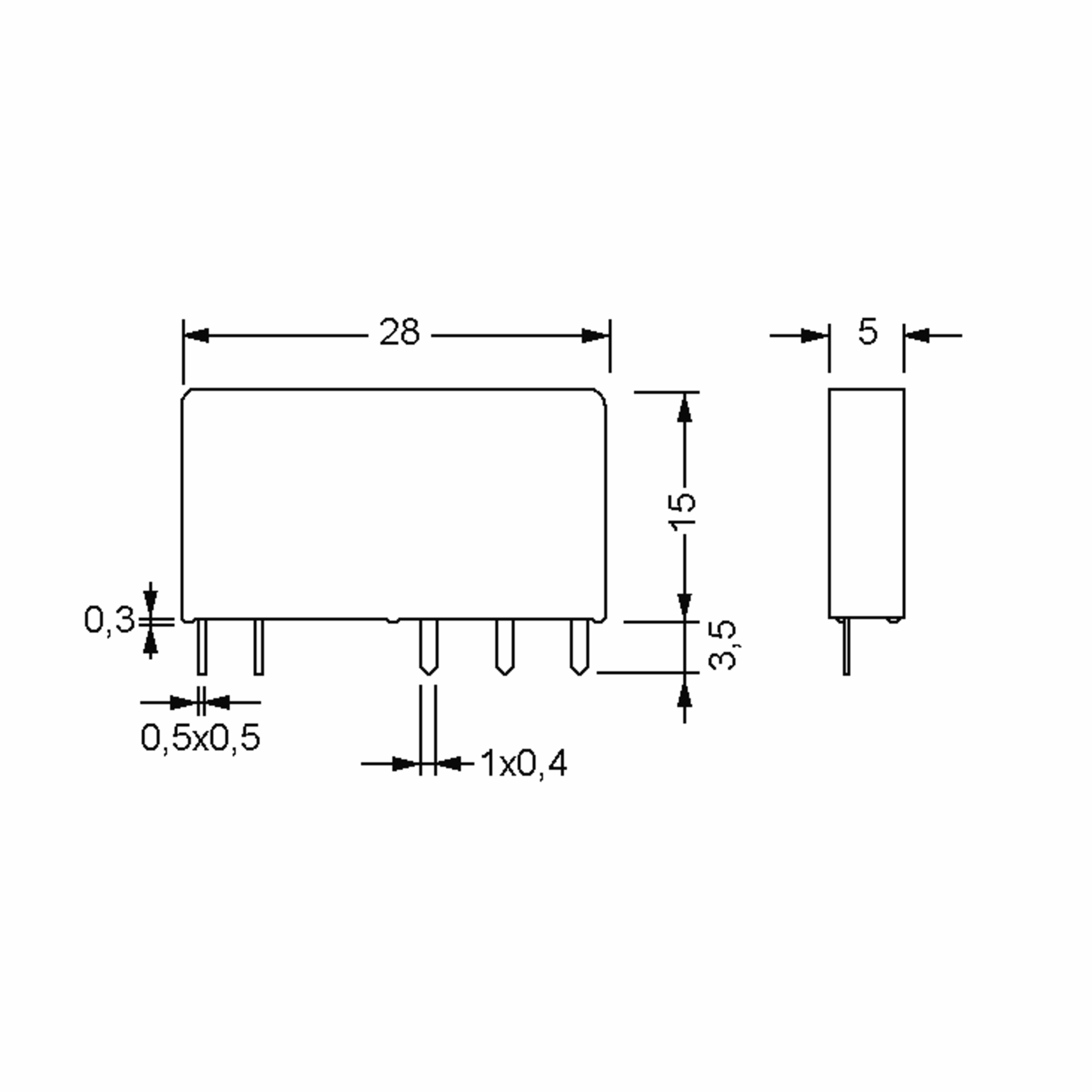

Dimensions and Weights
- Dimension: Length
- 28 mm
- Dimension: Width
- 5 mm
- Dimension: Height
- 15 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 10 A
- Contact: Switching Voltage, max. AC
- 400 V AC
- Contact: Switching Voltage, max. DC
- 250 V DC
- Contact: Continuous Current
- 6 A
- Contact: Inrush current
- 10 A
- Contact: Switching Capacity (VA)
- 1,500 VA
- Contact: Voltage Resistance
- 6 kV
- Creepage distance
- 8 mm
- Coil design
- monostable
- Coil resistance
- 130 Ohm
- Inductor power
- 170 mW
- Coil: Rated Current [mA]
- 38.4 mA
- Coil: Nominal Voltage DC
- 5 V DC
- Coil: Operating Voltage, min.
- 3.5 V
- Coil: Operating Voltage, max.
- 7.5 V
- Coil: Pick-up voltage
- 2 V
- Coil: Drop-out Voltage
- 0.25 V
- Test voltage open contacts
- 1,000 V AC
- Response time
- 5 ms
- Drop-out time
- 3 ms
- Mechanical service life
- 10 x 10^6 operations
- Service life, electrical
- 60 x 10^3 operations
Safety/Certifications
- Approvals
- CCC
- EAC
- RINA
- VDE
- cULus
- Standards
- EN 61810-1
- Protection class RT
- RTII
