30.22.7.012.0020

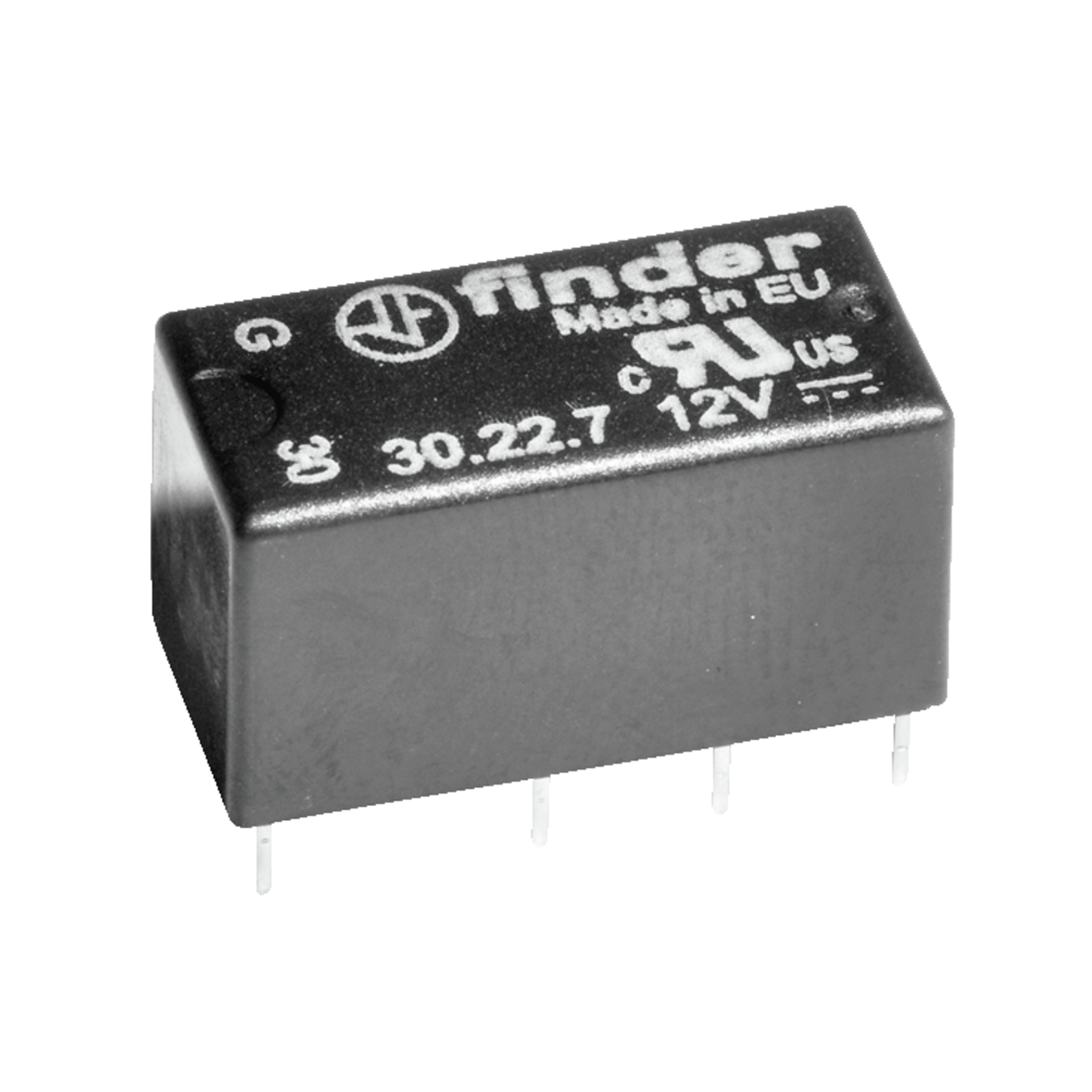

Finder Signal relay 30.22 THT DPDT 2A 12VDC 720Ohm
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
15 Pcs. in stock
Next Stock Receipt
Week 50/2024
200 Pcs.
200 Pcs.
Planned delivery time
Ø 8 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 20 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 5 or multiple of 5)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Signal relay
- Cell size
- Series
- 30.22
- Rated current
- 16 mA
- Rated voltage DC
- 12 V DC
- Switching current
- 2 A

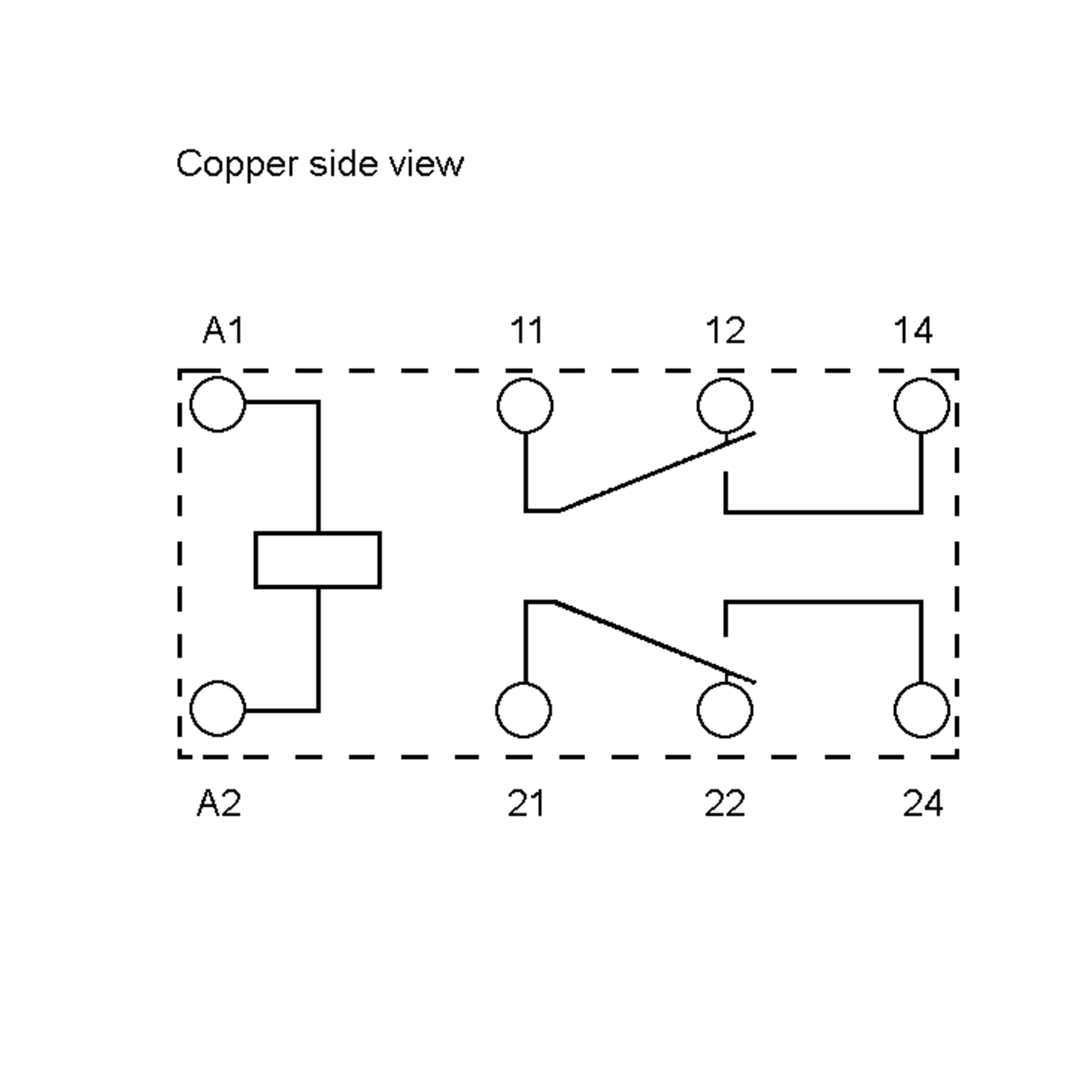

- contacts
- DPDT
- Coil resistance
- 720 Ohm
- Dimension: Length
- 20.2 mm
- Dimension: Width
- 10 mm
- Dimension: Height
- 10.9 mm
- RoHS-Conform
Specifications
Open all

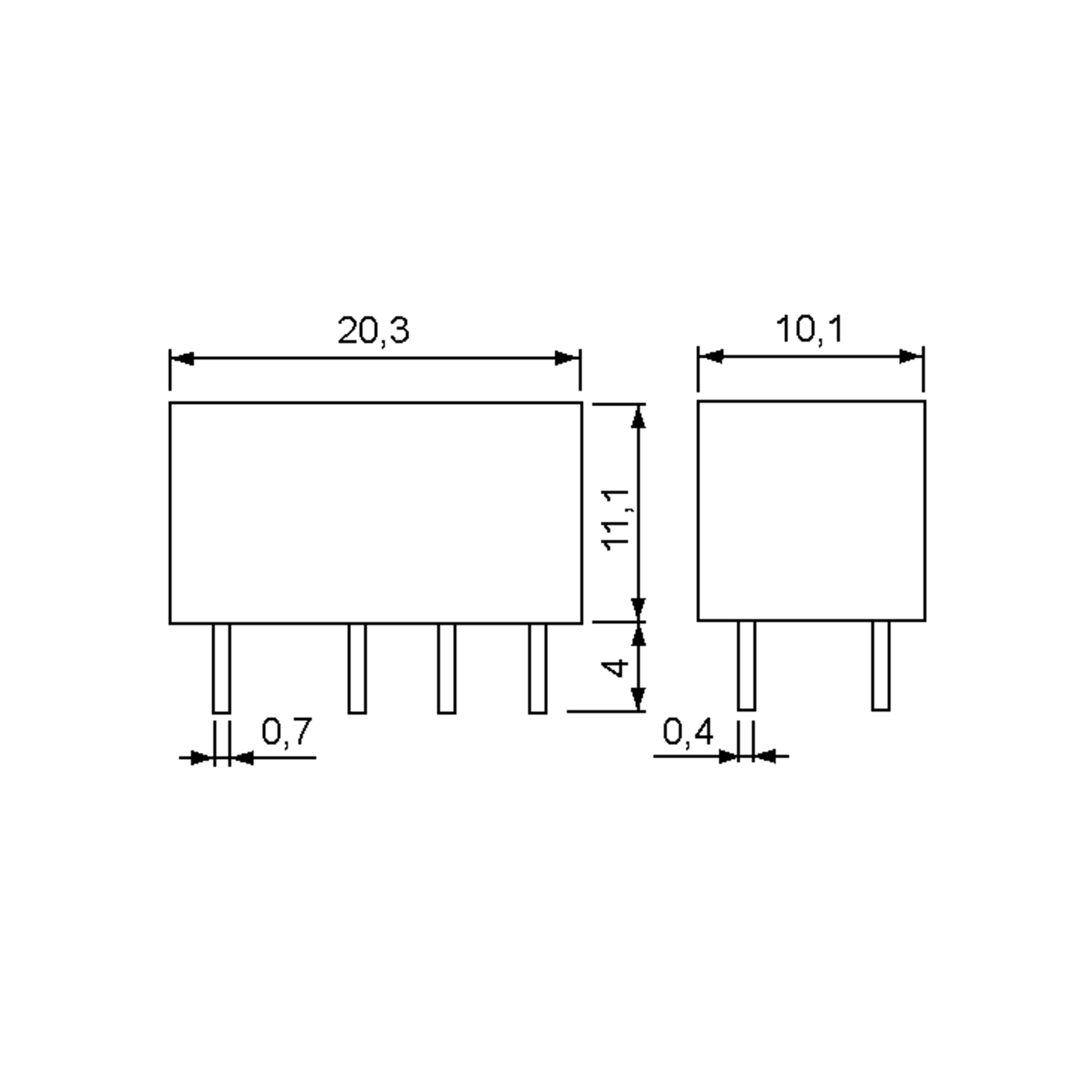

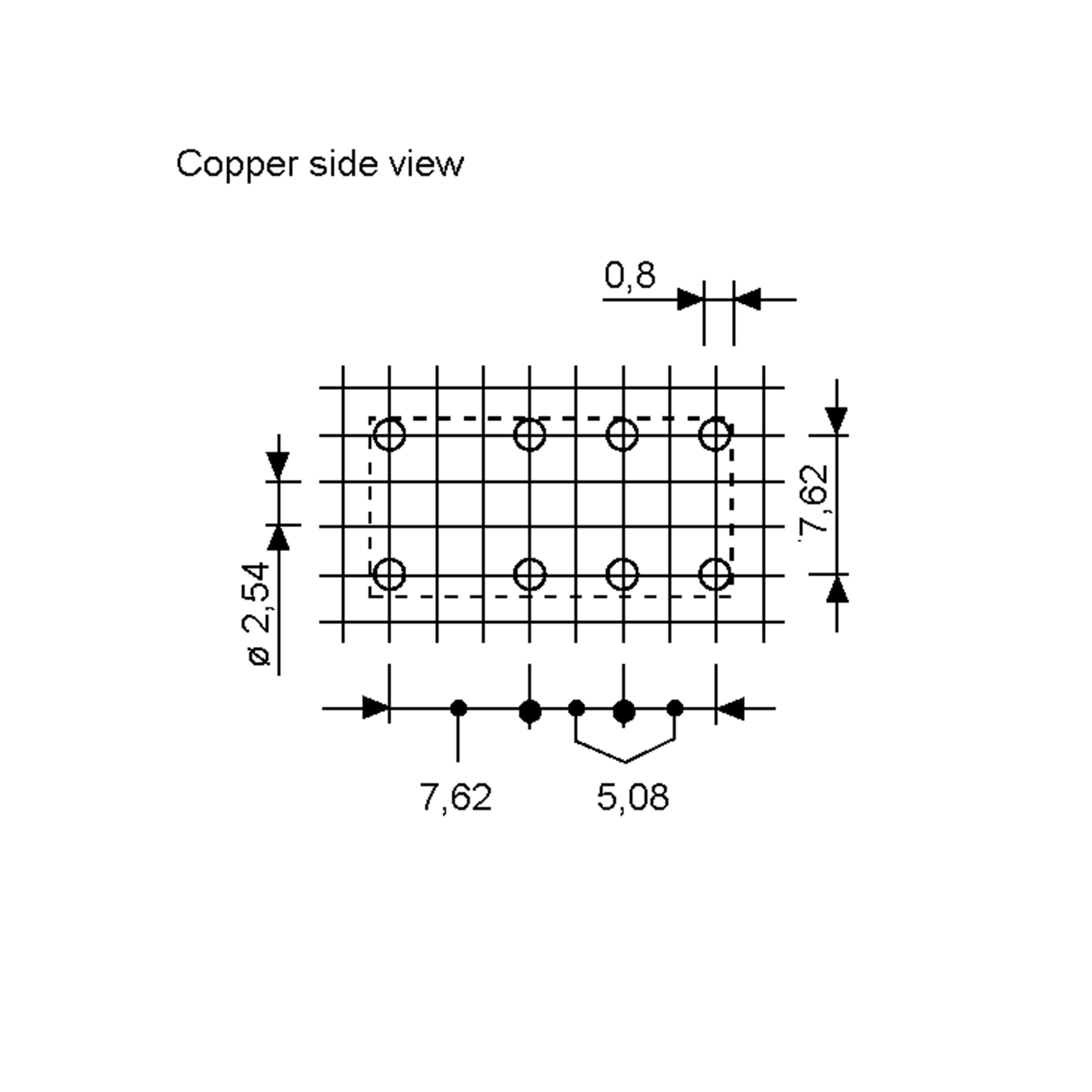

Dimensions and weights
- Dimension: Length
- 20.2 mm
- Dimension: Width
- 10 mm
- Dimension: Height
- 10.9 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
Technical features
- Rated voltage DC
- 12 V DC
- Coil design
- Switching voltage, max. AC
- 250 V AC
- Response voltage
- 8.4 V
- Test voltage contact/contact
- 1,500 V AC
- Test voltage open contacts
- 750 V AC
- Test voltage coil/contact
- 1,500 V AC
- Rated current
- 16 mA
- Switching current
- 2 A
- Continuous current
- 2 A
- Inrush current
- 3 A
- Rated power
- 200 mW
- Switching capacity (VA)
- 125 VA
- Coil resistance
- 720 Ohm
- Response time
- 6 ms
- Drop-out time
- 2 ms
- Vibration resistance
- 15 G
- Impact resistance, functional
- 16 G
Safety/Certifications
- Approvals
- EAC
- cCSA
- cULus
- Protection class RT
- RTIII
