22.64.0.230.4310

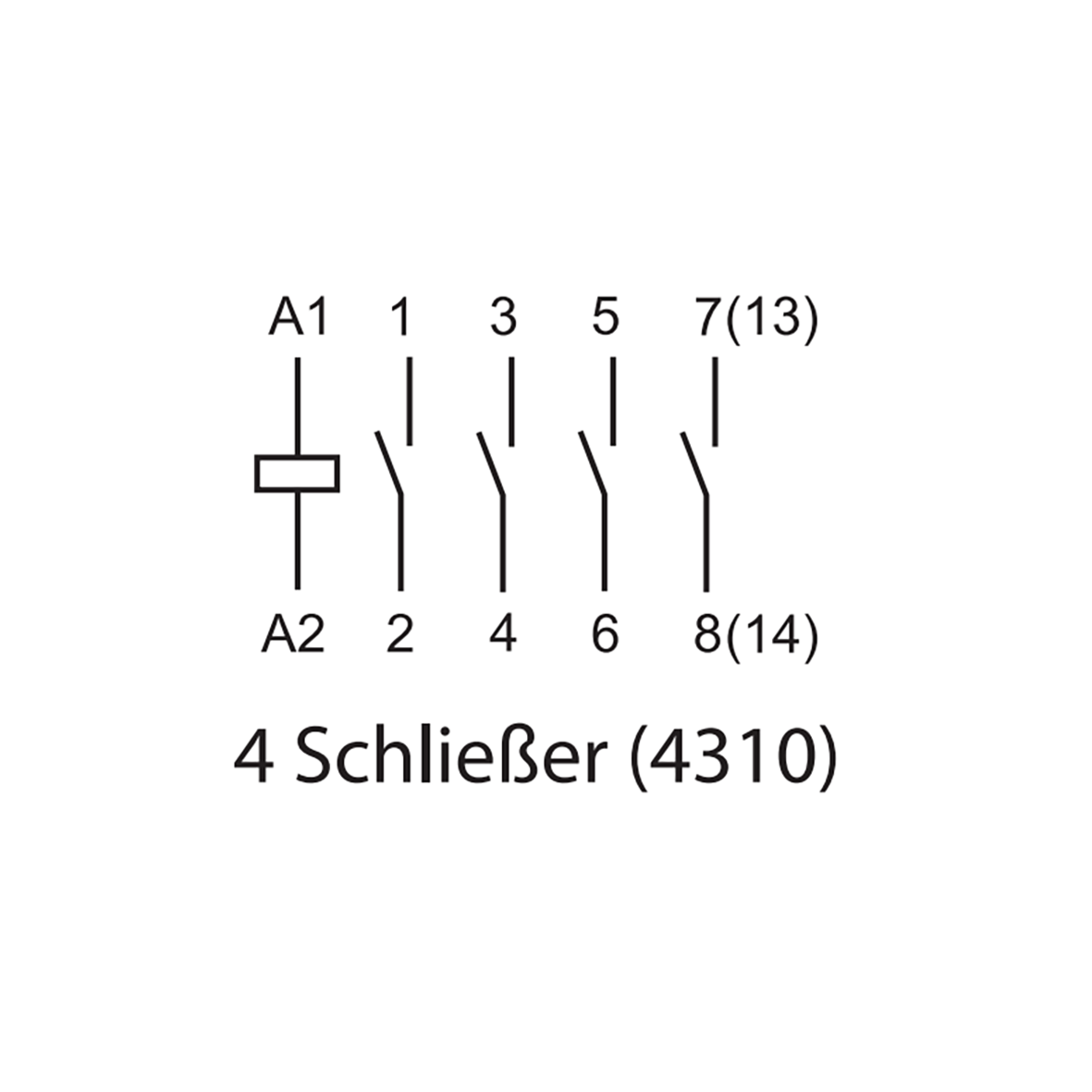

Finder Modular contactor 22.64 4PDT 63A 230VAC 220VDC 95,8mmx53,5mmx63,1mm IP20
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
2 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Modular contactor
- Series
- 22.64
- contacts
- 4PDT
- Contact: Switching Current (min/typ/max)
- 63 A
- Coil: Nominal Voltage AC
- 230 V AC
- Coil: Nominal Voltage DC
- 220 V DC
- Protection Class
- IP20
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 95.8 mm
- Dimension: Width
- 53.5 mm
- Dimension: Height
- 63.1 mm
Operating conditions
- Operating Temperature Min.
- -15 °C
- Operating Temperature Max.
- 55 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 63 A
- Contact: Switching Voltage, max. AC
- 480 V AC
- Contact: Continuous Current
- 63 A
- Contact: Inrush current
- 240 A
- Contact: Switching Capacity (VA)
- 40,000 VA
- Contact: Switching Load (W)
- 1 W
- Contact: Voltage Resistance
- 6 kV
- Coil design
- monostable
- Inductor power
- 6,000 mW
- Coil: Rated Current [mA]
- 26 mA
- Coil: Nominal Voltage AC
- 230 V AC
- Coil: Nominal Voltage DC
- 220 V DC
- Coil: Operating Voltage, min.
- 196 V
- Coil: Operating Voltage, max.
- 264 V
- Test voltage contact/contact
- 2,000 V AC
- Test voltage open contacts
- 2,000 V AC
- Test voltage coil/contact
- 2,000 V AC
- Response time
- 20 ms
- Drop-out time
- 45 ms
- Vibration resistance
- 3 g
- Impact resistance, functional
- 15 g
Safety/Certifications
- Approvals
- CE
- EAC
- UK CA
- cULus
- Standards
- EN 61095:2009
- Protection Class
- IP20
Documents
IB224464DE.pdf
