22.64.0.024.4710

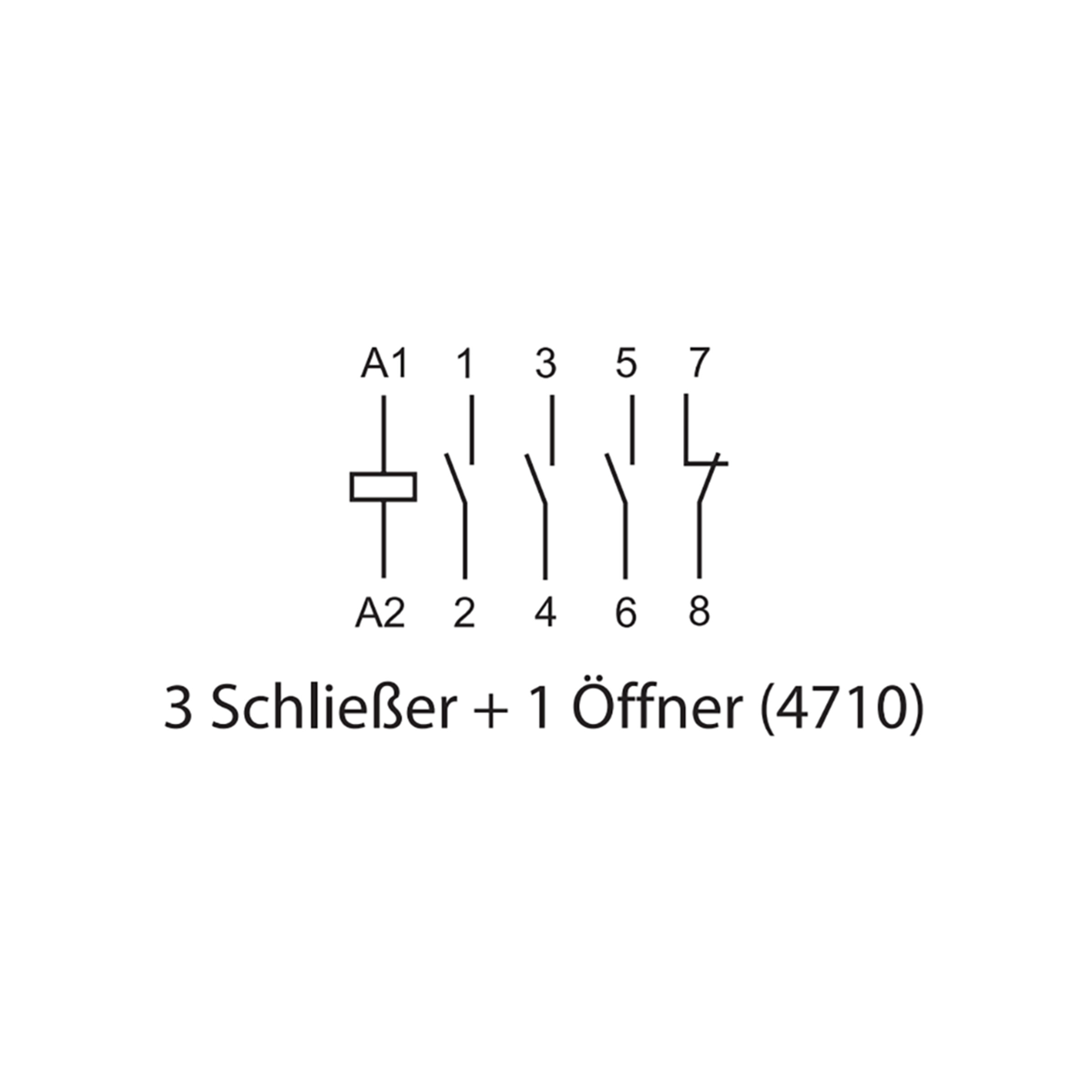

Finder Modular contactor 22.64 3PDT-NO/SPDT-NC 63A 24VAC 24VDC 95,8mmx53,5mmx63,1mm IP20
NEW
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
1 Pcs.
1 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Termination Style
- Box clamps
- Series
- 22.64
- Type
- Modular contactor
- contacts
- 3PDT-NO/SPDT-NC
- Switching current
- 63 A
- Rated voltage AC
- 24 V AC
- Rated current
- 83 mA
- Rated voltage DC
- 24 V DC
- Dielectric strength
- 6 kV
- Protection Class
- IP20
- Dimension: Length
- 95.8 mm
- Dimension: Width
- 53.5 mm
- Dimension: Height
- 63.1 mm
- RoHS-Conform
Specifications
Open all
Dimensions and Weights
- Dimension: Length
- 95.8 mm
- Dimension: Width
- 53.5 mm
- Dimension: Height
- 63.1 mm
Operating conditions
- Operating Temperature Min.
- -25 °C
- Operating Temperature Max.
- 55 °C
Technical Features
- Rated voltage AC
- 24 V AC
- Rated voltage DC
- 24 V DC
- Switching voltage, max. AC
- 480 V AC
- Response voltage
- 19.2 V
- Operating voltage, max.
- 26.4 V
- Test voltage contact/contact
- 2,000 V AC
- Test voltage open contacts
- 2,000 V AC
- Test voltage coil/contact
- 2,000 V AC
- Rated current
- 83 mA
- Switching current
- 63 A
- Continuous current
- 63 A
- Inrush current
- 240 A
- Dielectric strength
- 6 kV
- Rated power
- 1,000 mW
- Switching capacity (VA)
- 40,000 VA
- Response time
- 20 ms
- Drop-out time
- 45 ms
- Vibration resistance
- 3 G
- Impact resistance, functional
- 15 G
Safety/Certifications
- Approvals
- CE
- EAC
- UK CA
- cULus
- Standards
- EN 61095:2009
- Protection Class
- IP20
