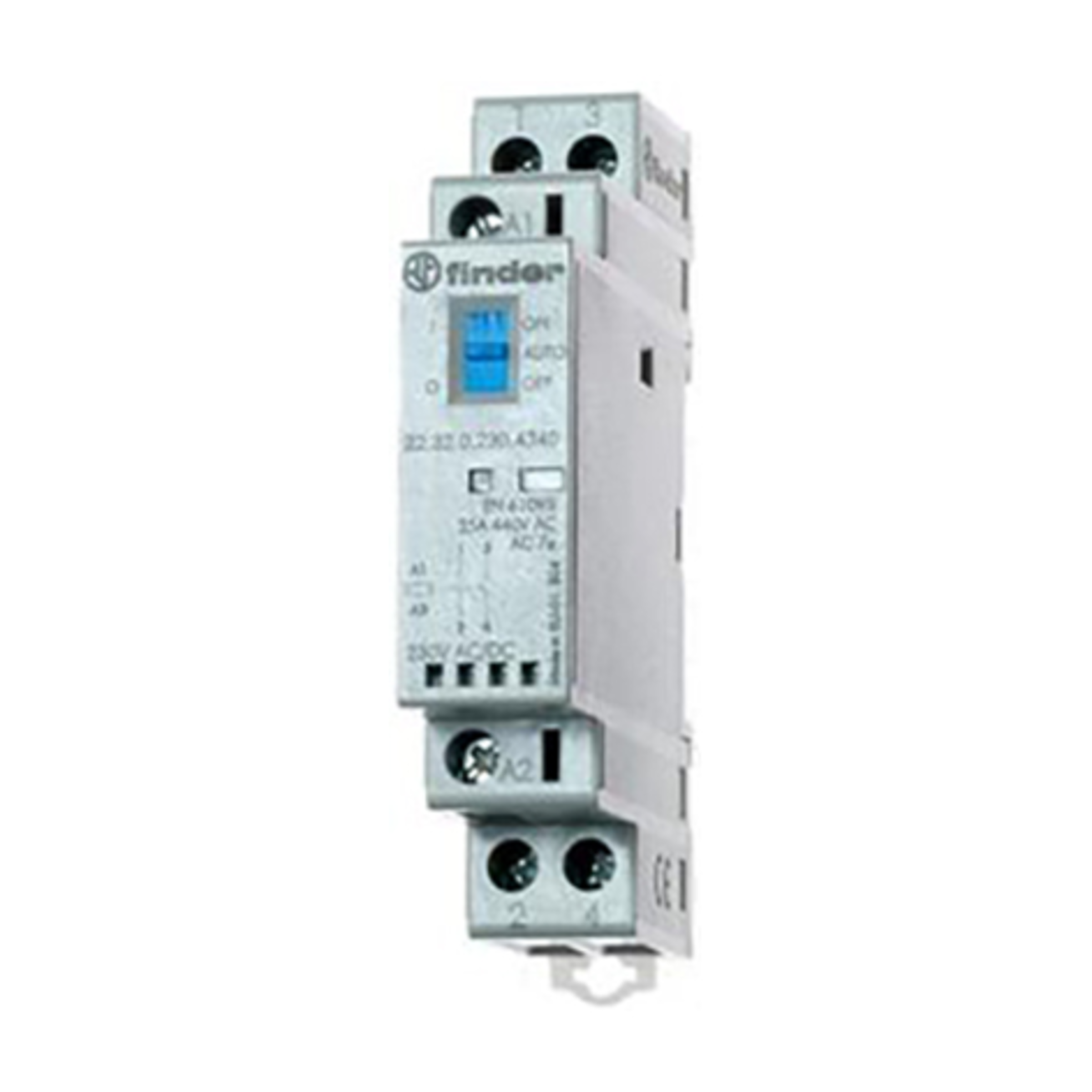

Finder Modular contactor 22.32 DPDT 25A 12VAC 12VDC 88,8mmx17,5mmx60,8mm IP20

Image similar
NEW
Manufacturer Part No.
22.32.0.012.4340
Schukat Part No.
22.32.0.012.4340
Manufacturer
Finder
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Back Order
1 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Termination Style
Box clamps
Series
22.32
Type
Modular contactor
contacts
DPDT
Switching current
25 A
Rated voltage AC
12 V AC
Rated current
165 mA
Rated voltage DC
12 V DC
Dielectric strength
6 kV
Protection Class
IP20

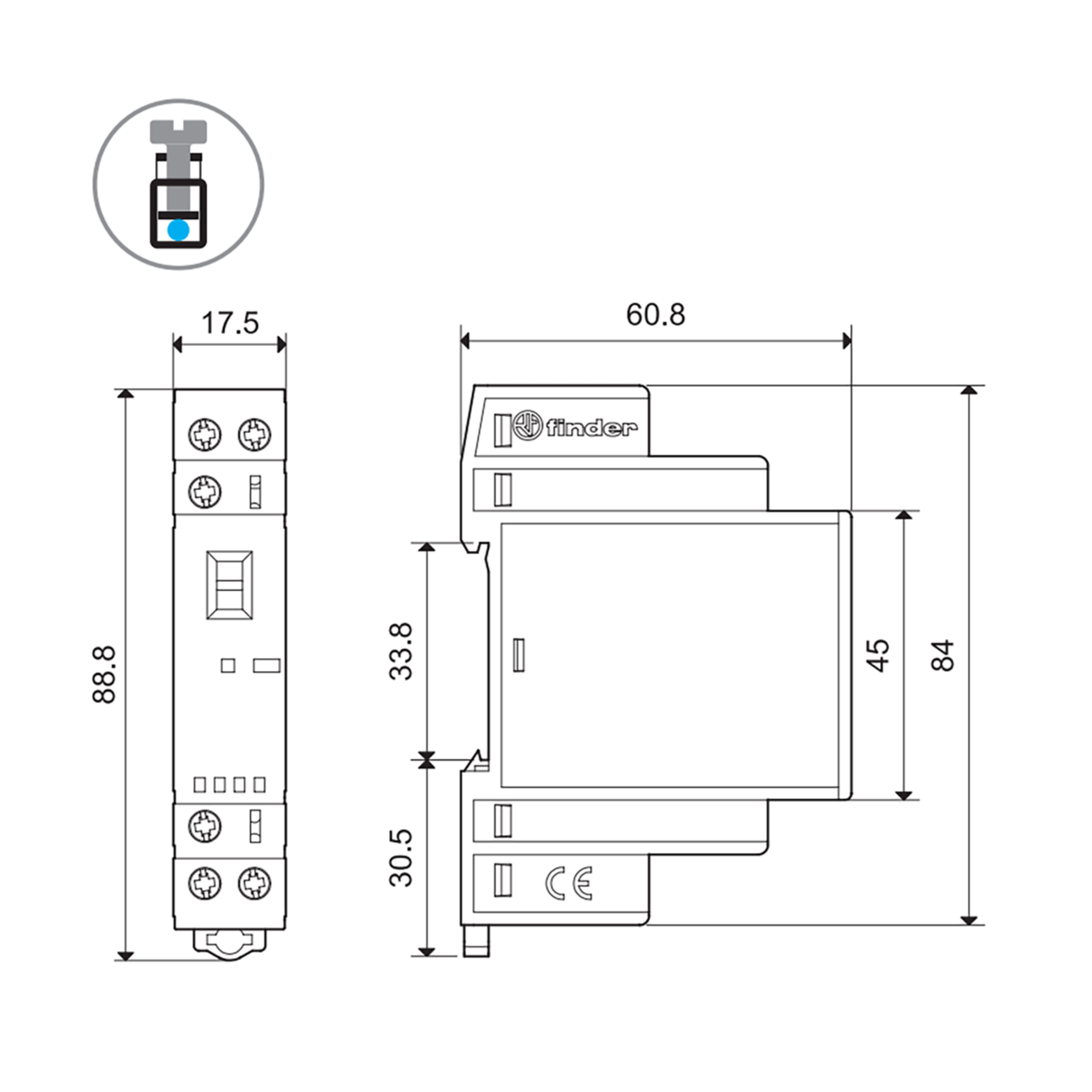

Dimension: Length
88.8 mm
Dimension: Width
17.5 mm
Dimension: Height
60.8 mm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Finder
Type
  • Modular contactor
Series
  • 22.32
Product group
  • E8118

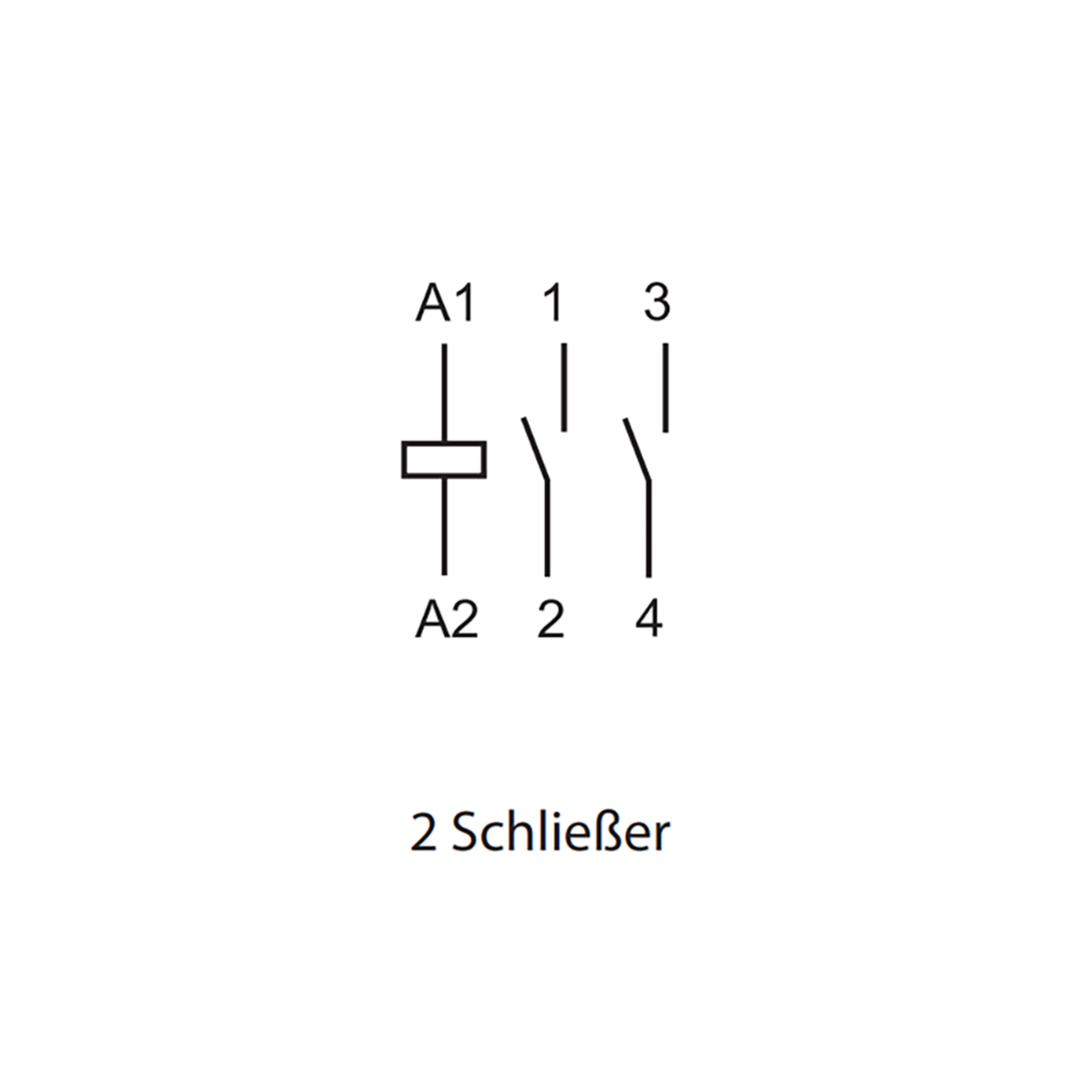

contacts
  • DPDT
Contact material
  • AgSnO2
Assembly Type
  • DIN rail
Termination Style
  • Box clamps
Application

  • • Switching high inrush currents up to 120A (5ms) on the switches (lamp loads)
    • Energy saving for hotel rooms
    • Street, park and parking lot lighting
    • Bathroom lighting control
    • Office lighting control
    • Pump control

Features

  • • Installation contactors with 2 contacts for 25A
    • Contact type: bridge contacts
    • Contact opening: normally open ≥ 3 mm, normally closed ≥ 1.5 mm
    • Via internal circuit for AC/DC control (hum-free)
    • Protective circuit at the input: varistor
    • Reinforced insulation between coil and contacts
    • Mechanical display and LED display (on-auto-off switch optional)
    • Comply with EN 61095: 2009-11
    • Comply with EN 45545-2 + A1: 2016 (fire behavior of materials and components on rail vehicles)
    • Overvoltage category III
    • Permissible contact load see data sheet
    • For 35 mm mounting rail (EN 60715)

Notice
  • It is recommended to maintain a mounting distance of 9mm between adjacent installation contactors or other electrical components if the ambient temperature is below 40°C or the coil is operated for a longer period of time or all contacts are loaded with a current of less than 20A.

Dimensions and Weights

Dimension: Length
  • 88.8 mm
Dimension: Width
  • 17.5 mm
Dimension: Height
  • 60.8 mm

Operating conditions

Operating Temperature Min.
  • -25 °C
Operating Temperature Max.
  • 50 °C

Technical Features

Rated voltage AC
  • 12 V AC
Rated voltage DC
  • 12 V DC
Switching voltage, max. AC
  • 440 V AC
Response voltage
  • 9.6 V
Operating voltage, max.
  • 13.2 V
Test voltage contact/contact
  • 2,500 V AC
Test voltage open contacts
  • 2,500 V AC
Test voltage coil/contact
  • 4,000 V AC
Rated current
  • 165 mA
Switching current
  • 25 A
Continuous current
  • 25 A
Inrush current
  • 120 A
Dielectric strength
  • 6 kV
Rated power
  • 1,000 mW
Switching capacity (VA)
  • 6,250 VA
Response time
  • 30 ms
Drop-out time
  • 20 ms
Mechanical service life
  • 2 x 10^6 Operations
Service life, electrical
  • 30 x 10^3 Operations
Vibration resistance
  • 4 G
Impact resistance, functional
  • 10 G

Safety/Certifications

Approvals
  • CE
  • EAC
  • RINA
  • UK CA
  • cULus
Standards
  • EN 45545-2 + A1: 2016, EN 61095: 2009-11
Protection Class
  • IP20
