22.21.8.230.4000

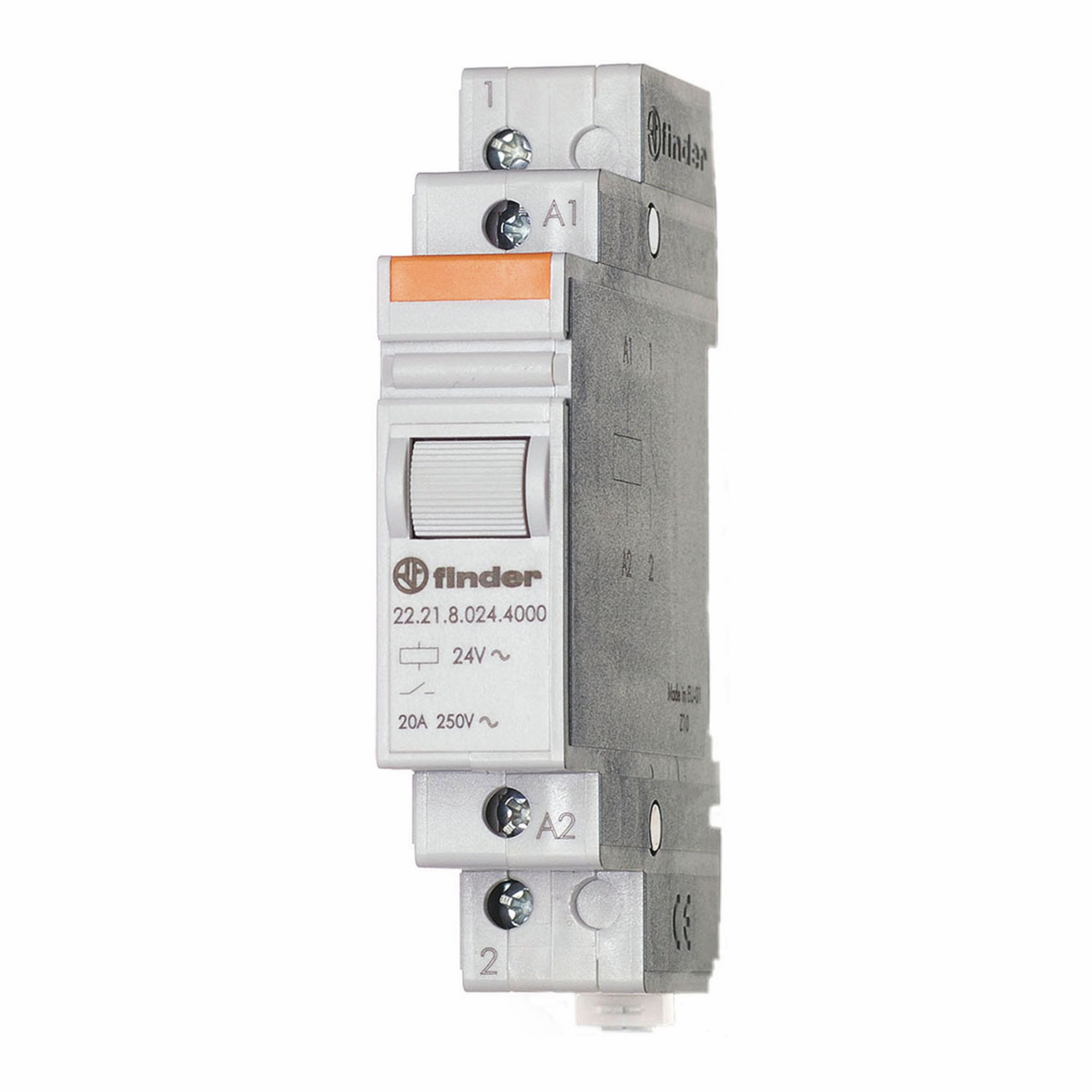

Finder Installation relay 22.21 SPDT 20A 230VAC 4.200Ohm 84mmx17,4mmx58,4mm IP20

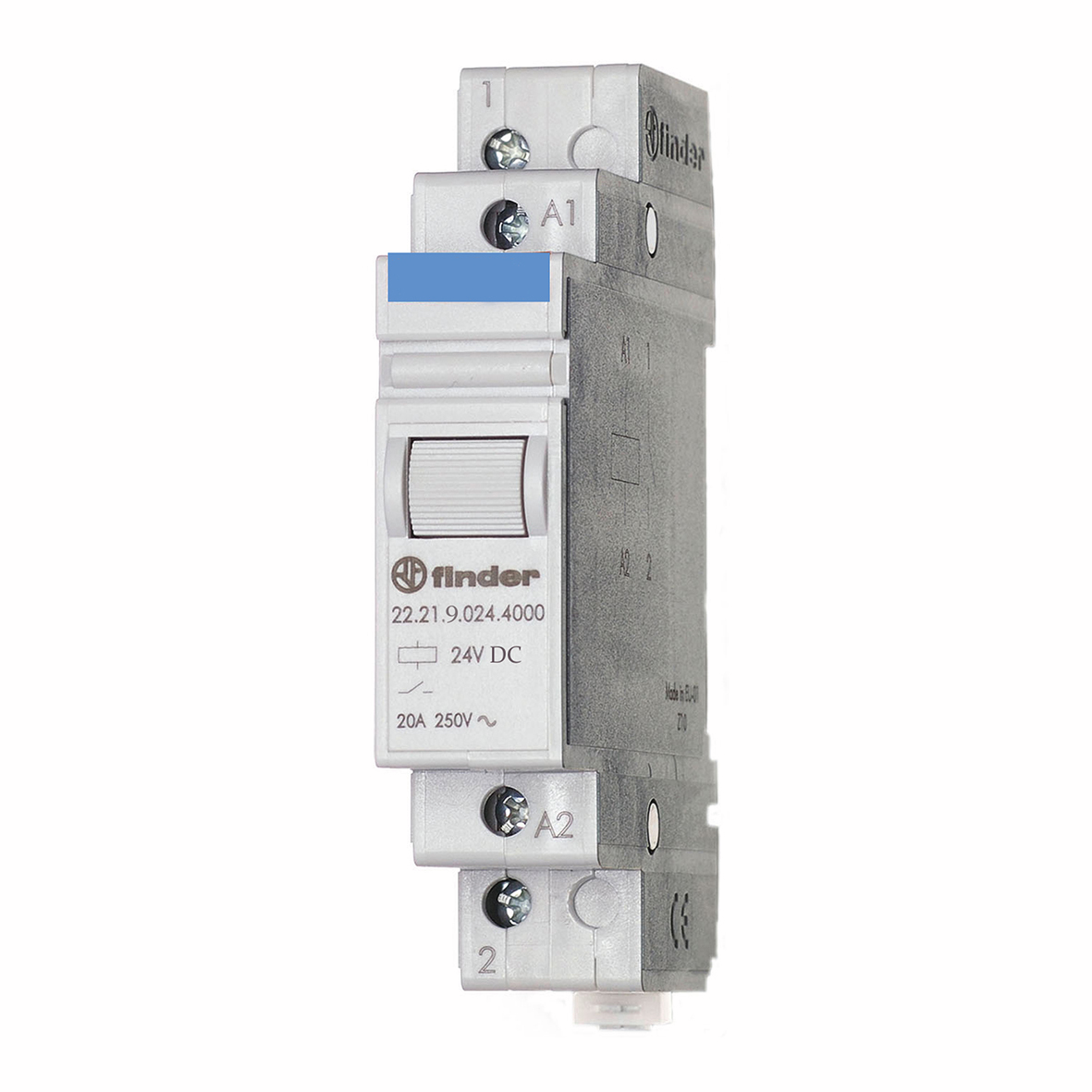

Image similar
NEW
Manufacturer Part No.
22.21.8.230.4000
Schukat Part No.
22.21.8.230.4000
Manufacturer
Finder
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

0 Pcs. in stock

Back Order
1 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Termination Style
Screw clamps
Series
22.21
Type
Installation relay
contacts
SPDT
Switching current
20 A
Rated voltage AC
230 V AC
Rated current
12,5 mA
Coil resistance
4,200 Ohm
Dielectric strength
4 kV
Protection Class
IP20
Dimension: Length
84 mm
Dimension: Width
17.4 mm
Dimension: Height
58.4 mm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Finder
Type
  • Installation relay
Series
  • 22.21
Product group
  • E8118
contacts
  • SPDT
Contact material
  • AgSnO2
Assembly Type
  • DIN rail
Termination Style
  • Screw clamps
Application

  • • Energy saving for hotel rooms
    • Street, park and parking lot lighting
    • Bathroom lighting control
    • Office lighting control
    • Pump control

Features

  • • Installation relay 20A, 1 NO contact
    • Test button
    • 17.4 mm wide
    • Cadmium-free contact material
    • For mounting rail 35mm (EN 60715)
    • Permissible contact load see data sheet

Notice
  • Application note on max. control duration: It is recommended to maintain a distance of 9 mm from the neighboring components for a switch-on time ≥ 20 min for better ventilation, or not to exceed 50% ED for a switch-on time of 10 min.

Dimensions and Weights

Dimension: Length
  • 84 mm
Dimension: Width
  • 17.4 mm
Dimension: Height
  • 58.4 mm

Operating conditions

Operating Temperature Min.
  • -40 °C
Operating Temperature Max.
  • 40 °C

Technical Features

Rated voltage AC
  • 230 V AC
Switching voltage, max. AC
  • 400 V AC
Response voltage
  • 196 V
Operating voltage, max.
  • 253 V
Test voltage contact/contact
  • 2,000 V AC
Test voltage open contacts
  • 2,000 V AC
Test voltage coil/contact
  • 3,500 V AC
Rated current
  • 12,5 mA
Switching current
  • 20 A
Continuous current
  • 20 A
Inrush current
  • 30 A
Dielectric strength
  • 4 kV
Rated power
  • 1,000 mW
Switching capacity (VA)
  • 5,000 VA
Coil resistance
  • 4,200 Ohm
Response time
  • 15 ms
Drop-out time
  • 8 ms
Mechanical service life
  • 500 x 10^3 Operations
Service life, electrical
  • 50 x 10^3 Operations

Safety/Certifications

Approvals
  • CE
  • EAC
  • UK CA
Protection Class
  • IP20
