20.22.9.012.4000

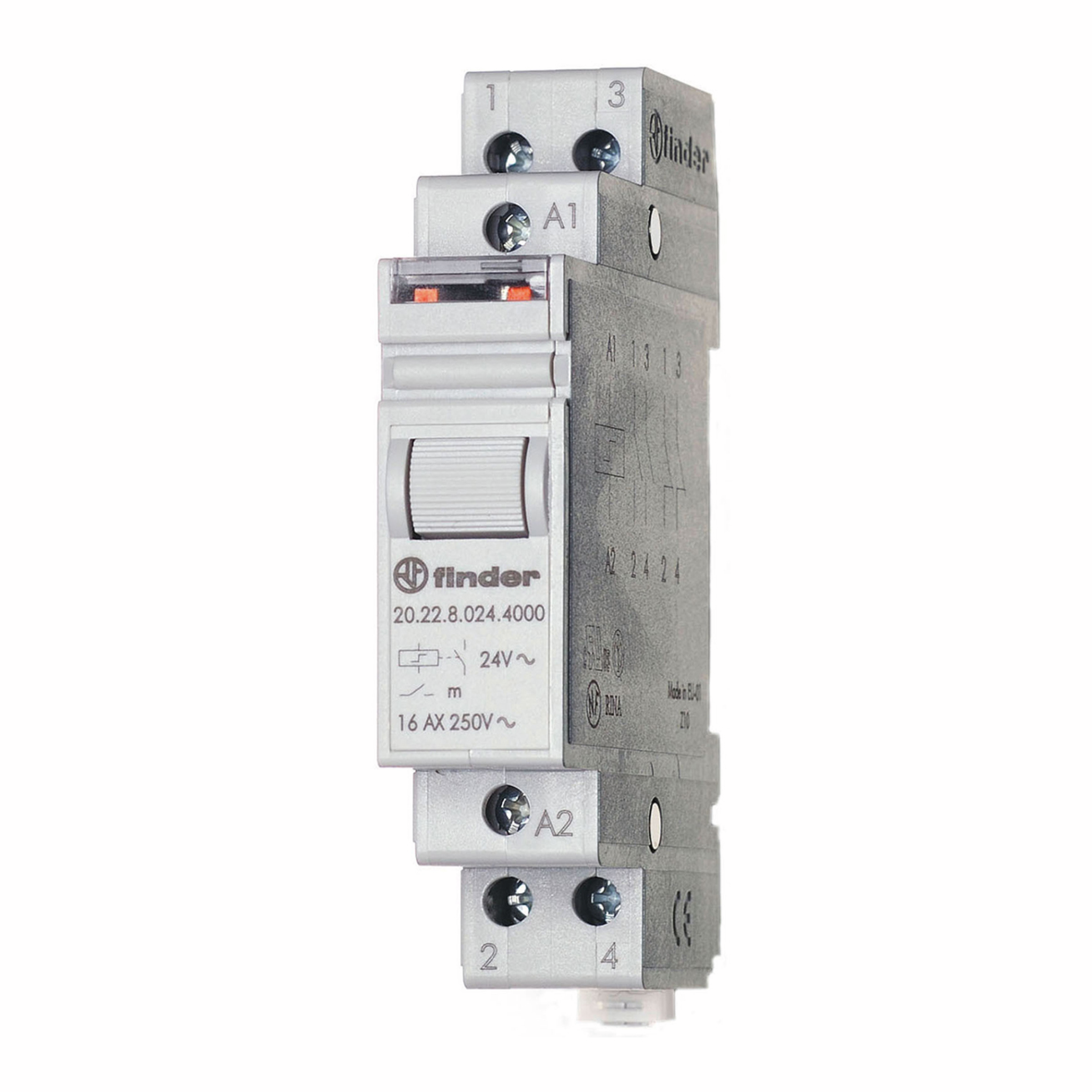

Finder Impulse relay 20.22 SPDT-NO 16A 12VDC 27Ohm 87,5mmx17,5mmx58,4mm IP20
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
31 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- Cross-references:
• Here you will find suitable relay sockets and accessories. - Type
- Impulse relay
- Series
- 20.22
- contacts
- SPDT-NO
- Contact: Switching Current (min/typ/max)
- 16 A
- Coil: Nominal Voltage DC
- 12 V DC
- Coil resistance
- 27 Ohm
- Protection Class
- IP20
- RoHS-Conform
Specifications
Open all

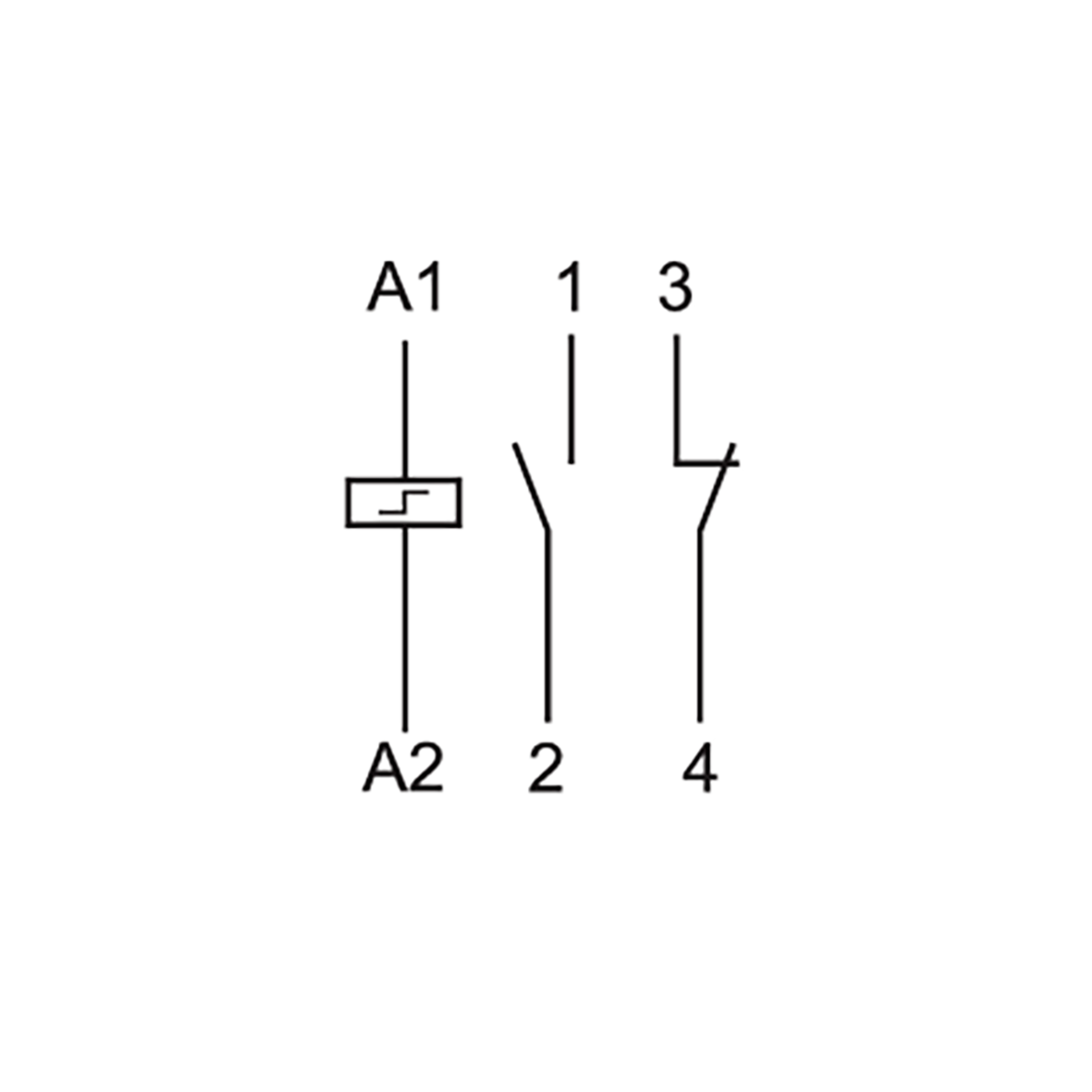

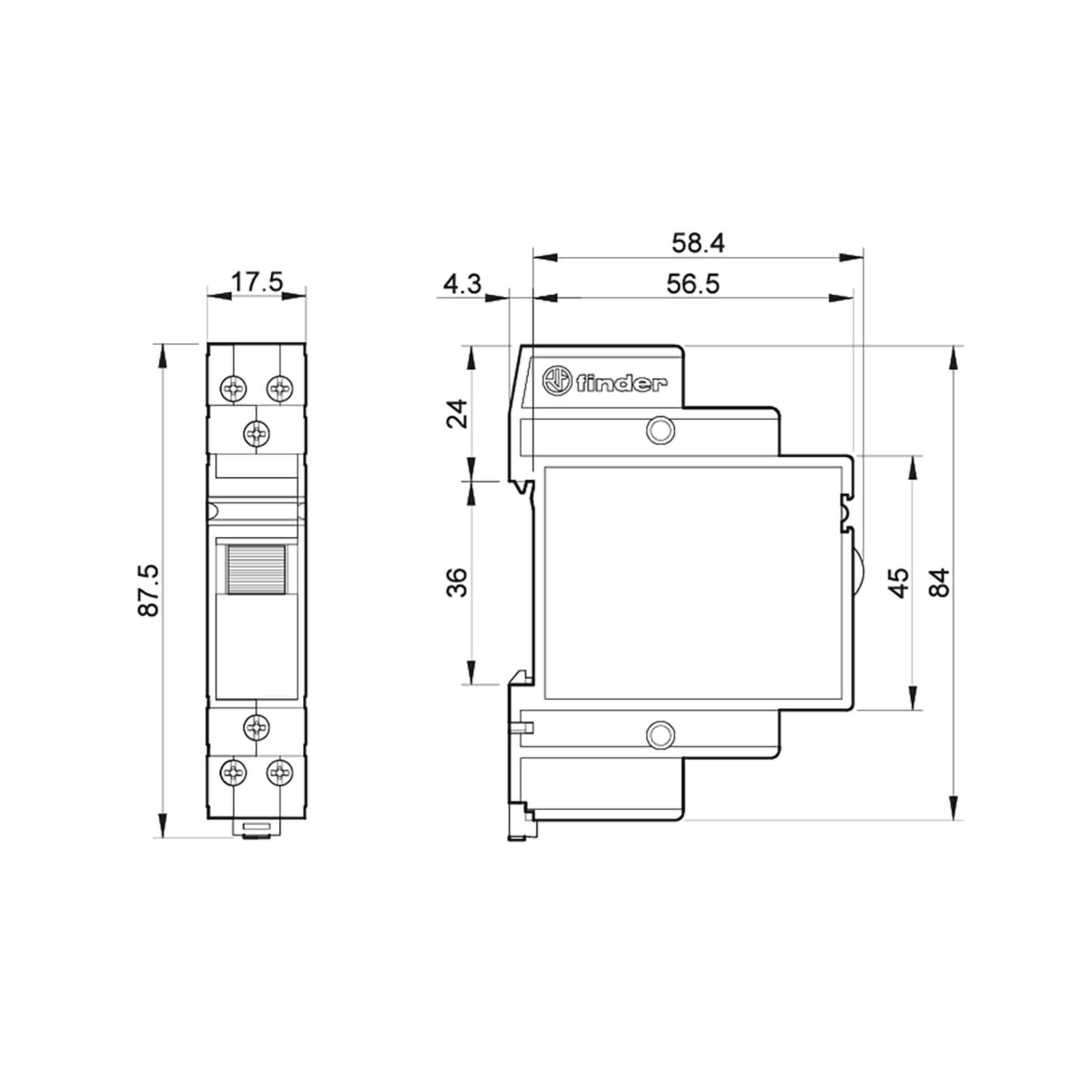

Dimensions and Weights
- Dimension: Length
- 87.5 mm
- Dimension: Width
- 17.5 mm
- Dimension: Height
- 58.4 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 40 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 16 A
- Contact: Switching Voltage, max. AC
- 400 V AC
- Contact: Continuous Current
- 16 A
- Contact: Inrush current
- 30 A
- Contact: Switching Capacity (VA)
- 4,000 VA
- Contact: Switching Load (W)
- 1 W
- Contact: Voltage Resistance
- 4 kV
- Coil design
- monostable
- Coil resistance
- 27 Ohm
- Inductor power
- 5,000 mW
- Coil: Rated Current [mA]
- 440 mA
- Coil: Nominal Voltage DC
- 12 V DC
- Coil: Operating Voltage, min.
- 10.8 V
- Coil: Operating Voltage, max.
- 13.2 V
- Test voltage contact/contact
- 2,000 V AC
- Test voltage open contacts
- 2,000 V AC
- Test voltage coil/contact
- 3,500 V AC
- Response time
- 10 ms
- Mechanical service life
- 300 x 10^3 Operations
- Service life, electrical
- 100 x 10^3 Operations
Safety/Certifications
- Approvals
- CE
- EAC
- RINA
- cULus
- Protection Class
- IP20
