13.31.8.012.4300

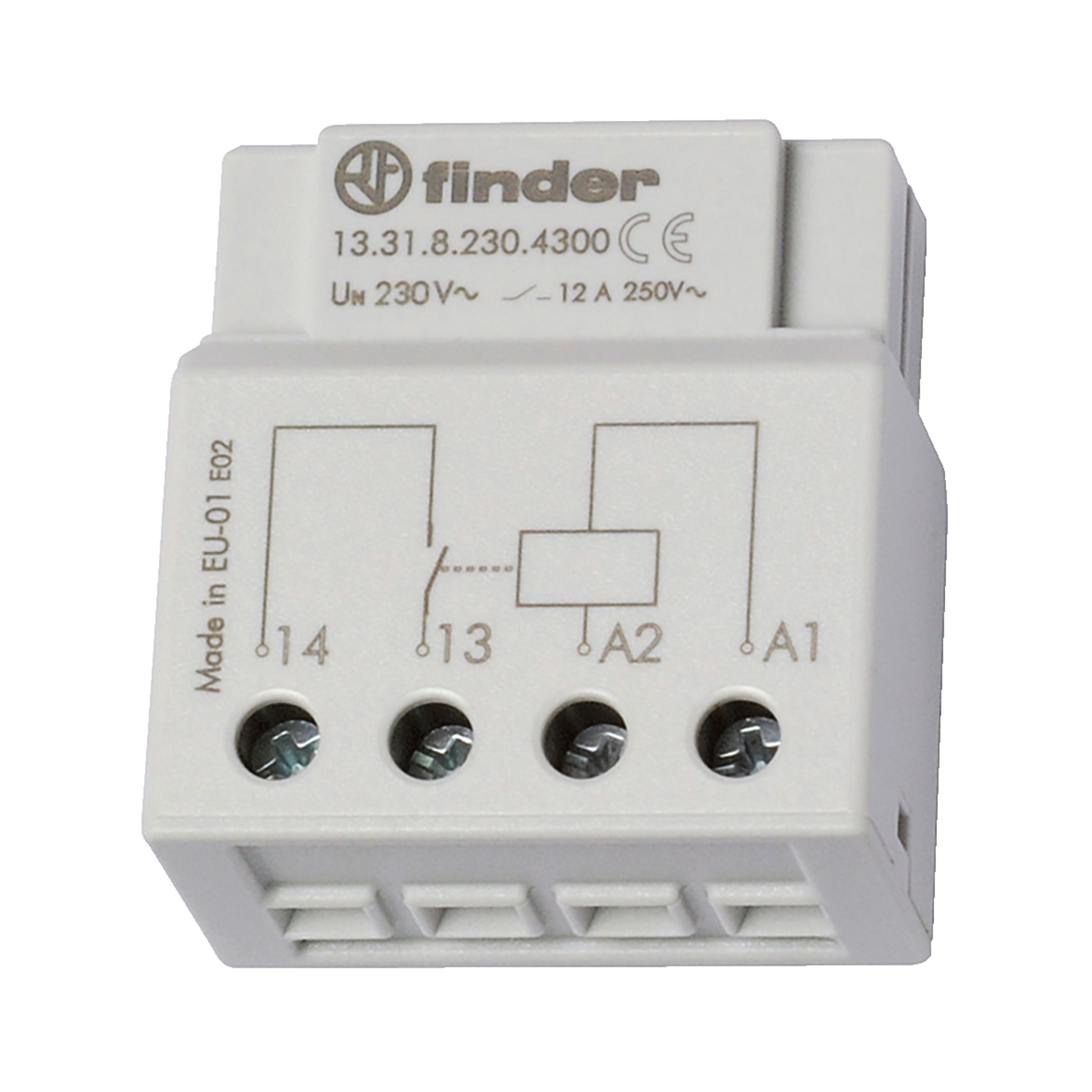

Finder Impulse relay 13.31 SPST-NO 12A 12VAC 37mmx22,7mmx39mm IP20
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Notice
- General:
• Here you will find suitable relay sockets and accessories. - Type
- Impulse relay
- Series
- 13.31
- contacts
- SPST-NO
- Contact: Switching Current (min/typ/max)
- 12 A
- Coil: Nominal Voltage AC
- 12 V AC
- Protection Class
- IP20
- RoHS-Conform
Specifications
Open all

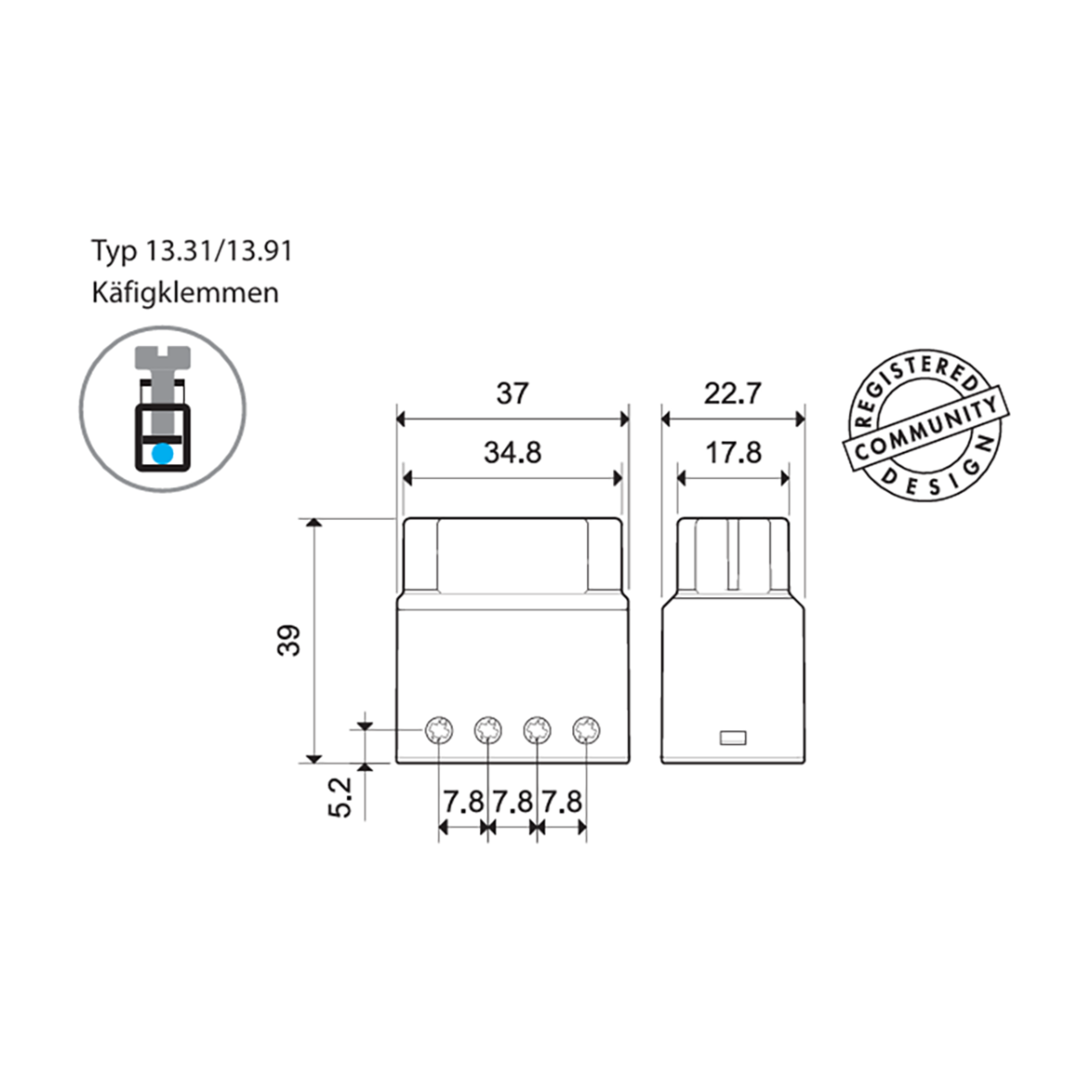

Dimensions and Weights
- Dimension: Length
- 37 mm
- Dimension: Width
- 22.7 mm
- Dimension: Height
- 39 mm
Operating conditions
- Operating Temperature Min.
- -10 °C
- Operating Temperature Max.
- 60 °C
Technical Features
- Contact: Switching Current (min/typ/max)
- 12 A
- Contact: Switching Voltage, max. AC
- 400 V AC
- Contact: Continuous Current
- 12 A
- Contact: Inrush current
- 20 A
- Contact: Switching Capacity (VA)
- 3,000 VA
- Contact: Switching Load (W)
- 1 W
- Coil design
- monostable
- Coil: Nominal Voltage AC
- 12 V AC
- Coil: Operating Voltage, min.
- 9.6 V
- Coil: Operating Voltage, max.
- 13.2 V
- Test voltage open contacts
- 1,000 V AC
- Response time
- 200 ms
Safety/Certifications
- Approvals
- CE
- EAC
- UK CA
- Protection Class
- IP20
