HomeProductsElectromechanicsRelaysTimer12.A212.A2.8.230.0000

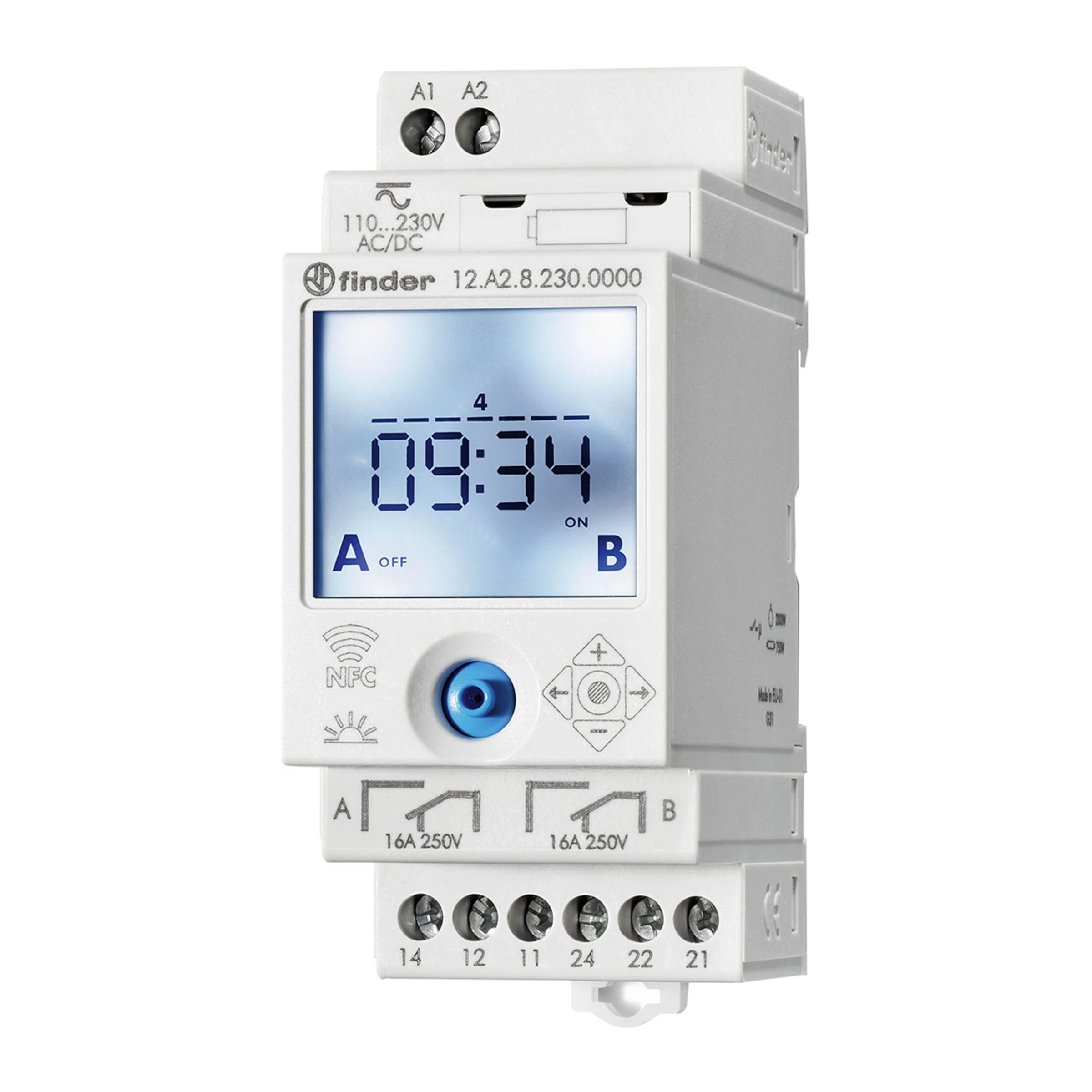

12.A2.8.230.0000

Finder Time switches 12.A2 DIN rail DPDT 16A 110VAC...230VAC 110VDC...230VDC IP20

12.A2.8.230.000012.A2.8.230.000012.A2.8.230.000012.A2.8.230.0000
Manufacturer Part No.
12.A2.8.230.0000
Schukat Part No.
12.A2.8.230.0000
Manufacturer
Finder
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1 Pcs. in stock

Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Type
Time switches
Series
12.A2
Assembly Type
DIN rail
Termination Style
Screw clamps

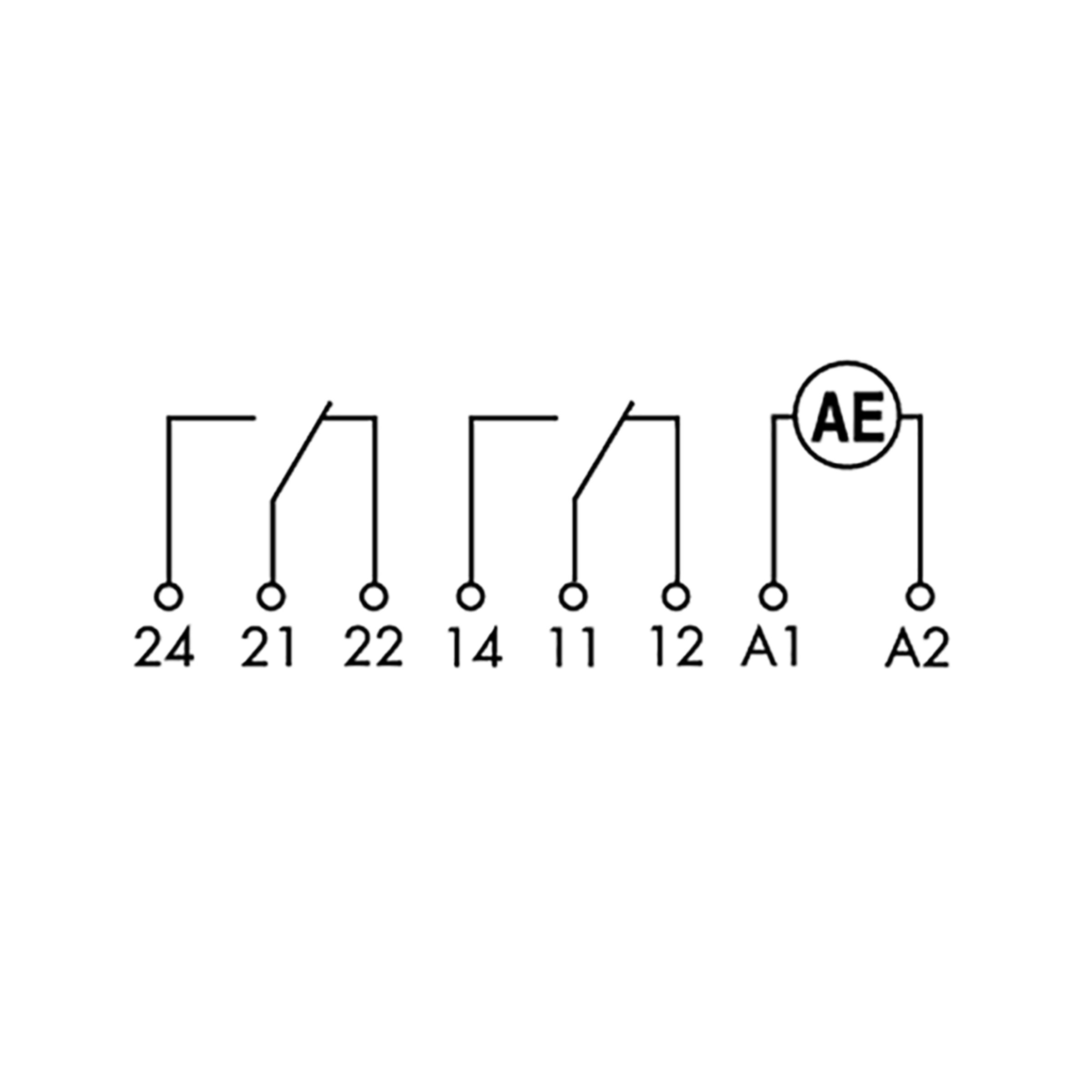

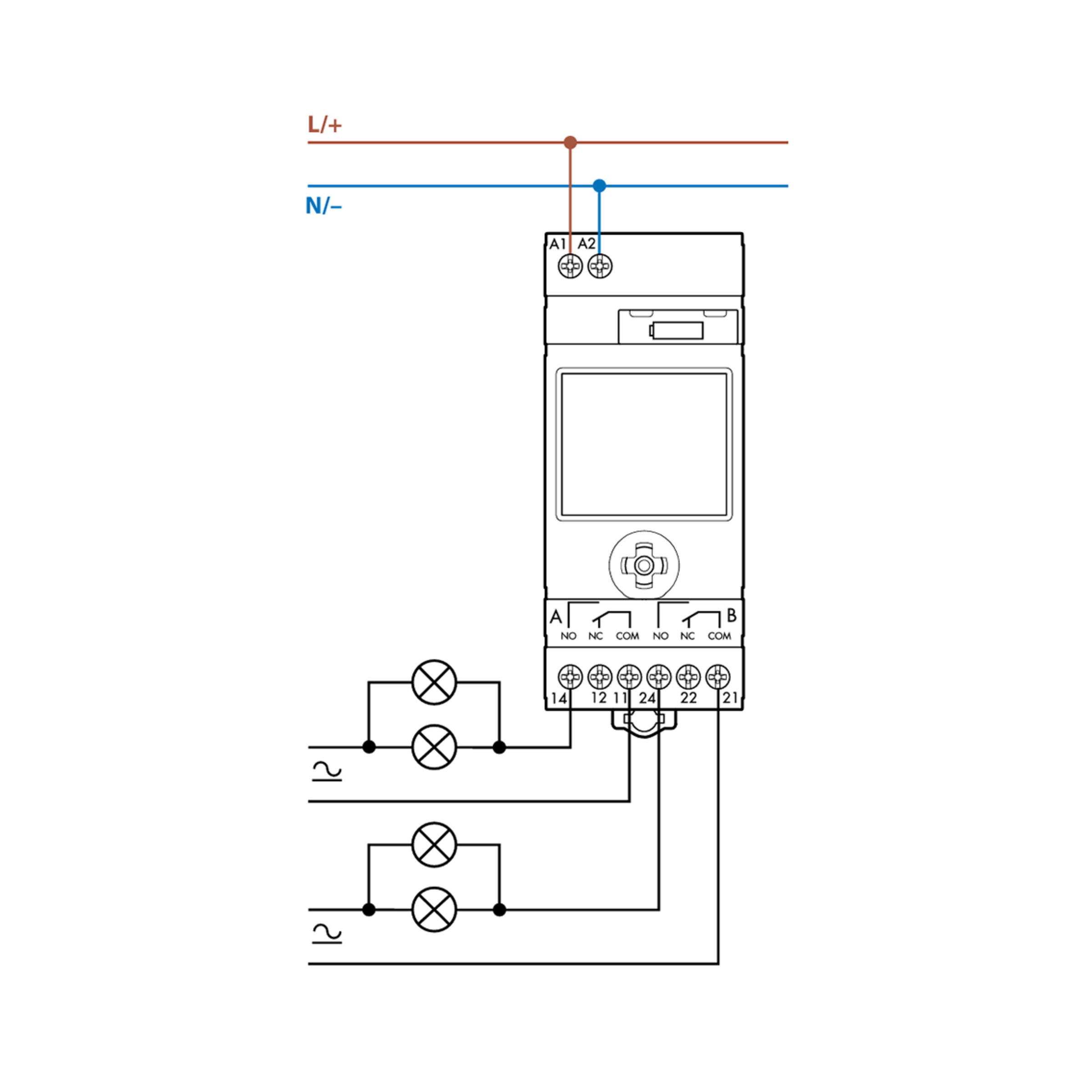

contacts
DPDT
Contact: Switching Current (min/typ/max)
16 A
Coil: Nominal Voltage, min. AC
110 V AC
Coil: Nominal Voltage, max. AC
230 V AC
Coil: Nominal Voltage, min. DC
110 V DC
Coil: Nominal Voltage max. DC
230 V DC
Protection Class
IP20
RoHS-Conform

Specifications

Close all

General

Manufacturer
  • Finder
Type
  • Time switches
Series
  • 12.A2
Product group
  • E8117
contacts
  • DPDT
Contact material
  • AgSnO2
Assembly Type
  • DIN rail
Termination Style
  • Screw clamps
Application

  • • Heating and cooling
    • Shop window lighting
    • Street, park and parking lot lighting
    • School bells

Features

  • • Astro 2-channel timer with weekly program
    • Contact type: 2 changeover contacts 16A
    • Programming in "Clasic" mode with the joystick or in "Smart" mode via an NFC-enabled smartphone
    • "Astro" time control: automated switching at sunrise and sunset using the date, time and location coordinates
    • Functions: "Astro" ON, "Astro" OFF ON switching, OFF switching pulse: 1s…59 min
    • Location coordinates easily adjustable for most European countries using the postcode
    • Summer/winter time: Europe, Australia, Brazil
    • automated switching of the Astro ON and Astro OFF times with selectable time offset to sunrise and sunset by +/-90 minutes (in 1 minute increments)
    • 50 memory locations for switching times
    • shortest switching time: 1 minute
    • Accuracy: 1s/day
    • LCD display for Set-up, programming and status
    • Programming lock by assigning a 4-digit PIN
    • Backlight
    • Internal battery (CR2032, 3V, 230mAh) for set-up and programming in the event of a power failure, easily replaceable from the front
    • Battery life 6 years (power reserve 100h)
    • Power-save mode*
    • Safe separation between power supply and contacts
    • Width 35mm
    • For 35 mm mounting rail (EN 60715)
    • Cadmium-free contact material
    • Permissible contact load see data sheet

Application note
  • * When the power supply is not connected, the timer switches to power save mode. The display is turned off while the current time continues to run to ensure a long life of the built-in backup battery.

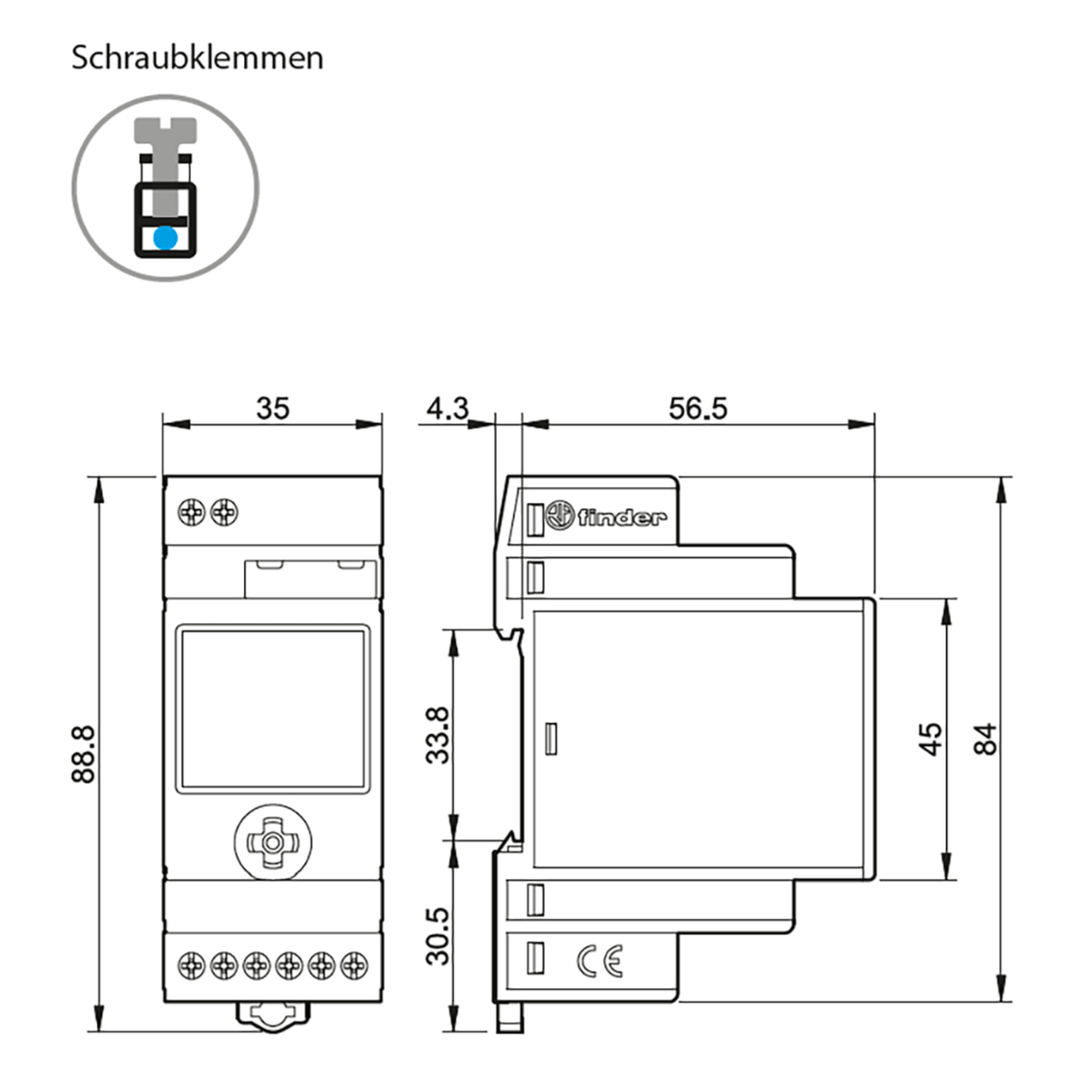

Dimensions and Weights

Dimension: Length
  • 84 mm
Dimension: Width
  • 35 mm
Dimension: Height
  • 60.8 mm

Operating conditions

Operating Temperature Min.
  • -20 °C
Operating Temperature Max.
  • 50 °C

Technical Features

Contact: Switching Current (min/typ/max)
  • 16 A
Contact: Switching Voltage, max. AC
  • 400 V AC
Contact: Continuous Current
  • 16 A
Contact: Inrush current
  • 30 A
Contact: Switching Capacity (VA)
  • 4,000 VA
Contact: Switching Load (W)
  • 1 W
Contact: Voltage Resistance
  • 6 kV
Creepage distance
  • 9 mm
Inductor power
  • 900 mW
Coil: Nominal Voltage, min. AC
  • 110 V AC
Coil: Nominal Voltage, max. AC
  • 230 V AC
Coil: Nominal Voltage, min. DC
  • 110 V DC
Coil: Nominal Voltage max. DC
  • 230 V DC
Test voltage open contacts
  • 1,000 V AC
Service life, electrical
  • 100 x 10^3 Operations

Safety/Certifications

Approvals
  • CE
  • EAC
  • UK CA
  • cULus
Standards
  • EN 61000-4-2 /_-3 /_-4 /_-5 /_-6 /_-11, EN 55014
Protection Class
  • IP20

Documents

Bedienungsanleitung_IB12A1_A2_DE.pdf
Download (pdf, 1.713 KB)
