072.51

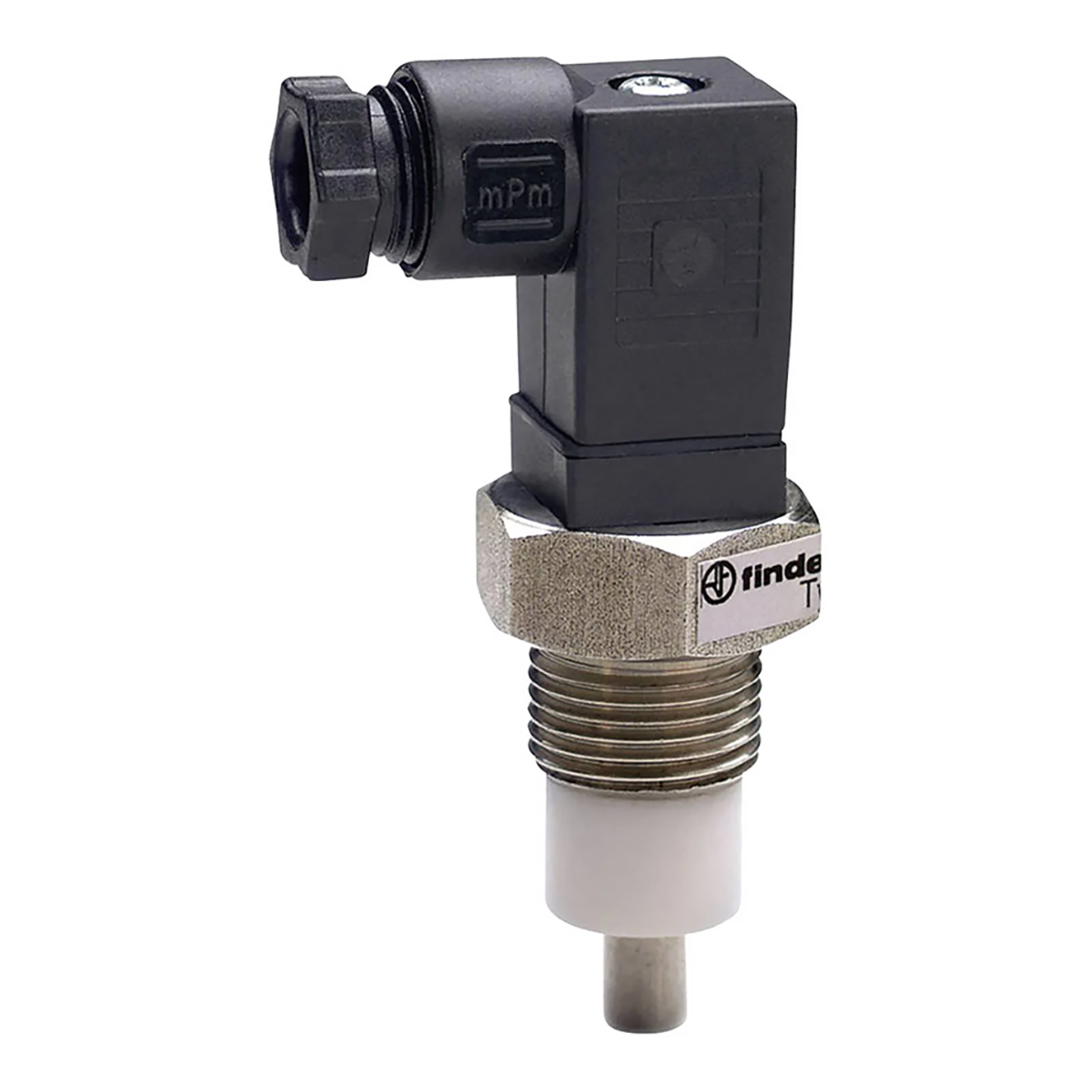

Finder Electrode holder for level sensor 072.51

072.51072.51
Manufacturer Part No.
072.51
Schukat Part No.
072.51
Manufacturer
Finder
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1 Pcs. in stock

Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
• You can find suitable PCB relays here.
Type
Electrode holder for level sensor
Series
072.51
Cell size
Level control relays 72.01
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Finder
Type
  • Electrode holder for level sensor
Series
  • 072.51
Product group
  • E8514
Assembly Type
  • Screw Mount
Cell size
  • Level control relays 72.01
Application

  • • Can be used for tanks under pressure up to 12 bar.

Features

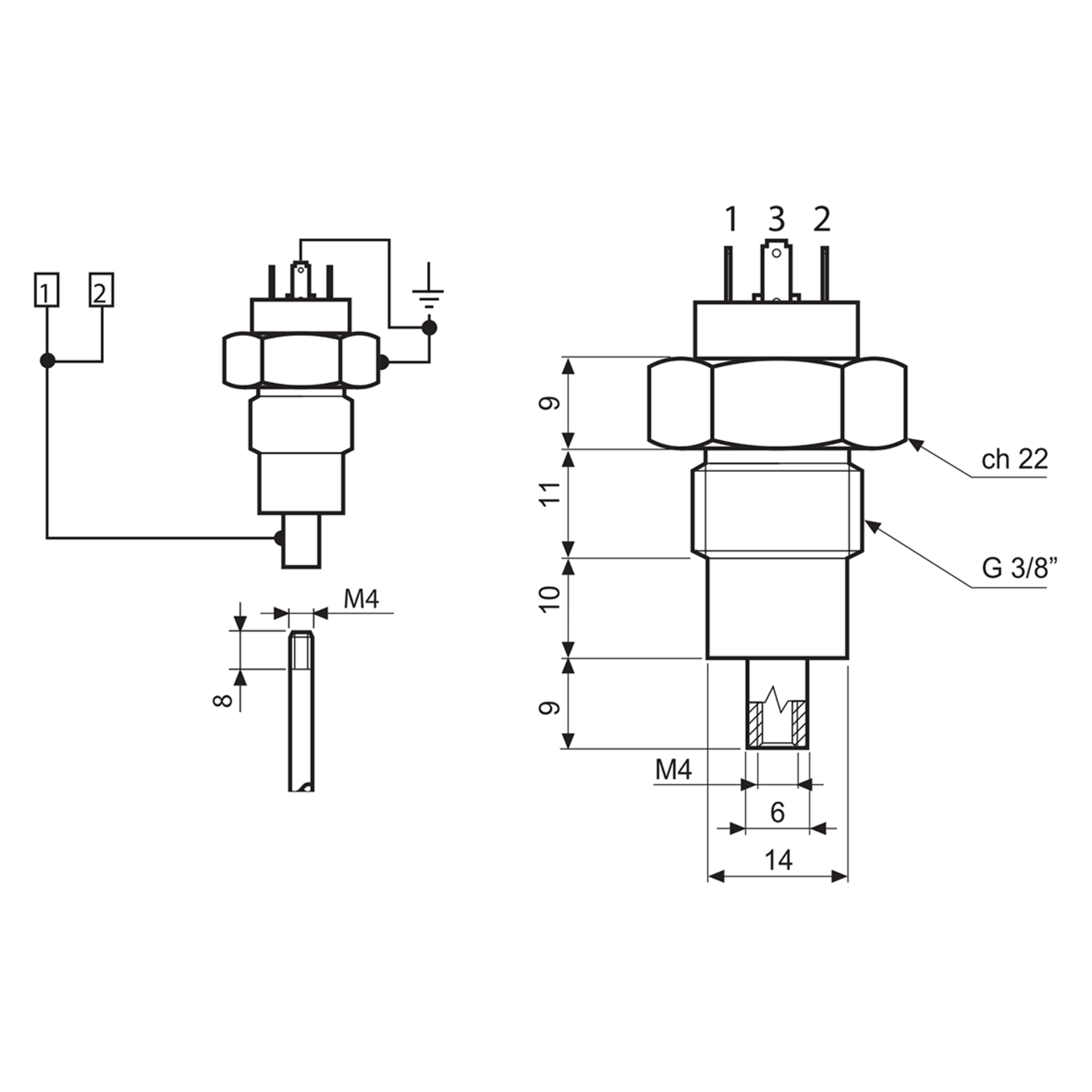

  • • Electrode holder with 3/8-inch internal thread
    • For holding an electrode with M4 external thread.
    • With 3-pin angle plug for connecting the ground and the electrode
    • Electrode material: stainless steel (AISI 316L)
    • Max. liquid temperature: +100°C
    • Max. pressure load: 2 bar
    • Max. external cable diameter: 6mm

Notice
  • Cross-references:
    • You can find suitable PCB relays here.
Application note
  • Two terminals are connected to the electrode and one terminal is connected to the mounting thread. In a conductive tank, a three-probe application requires two electrode holders because the tank acts as a third probe, which is connected to terminal B3 via the ground terminal.
