072.11

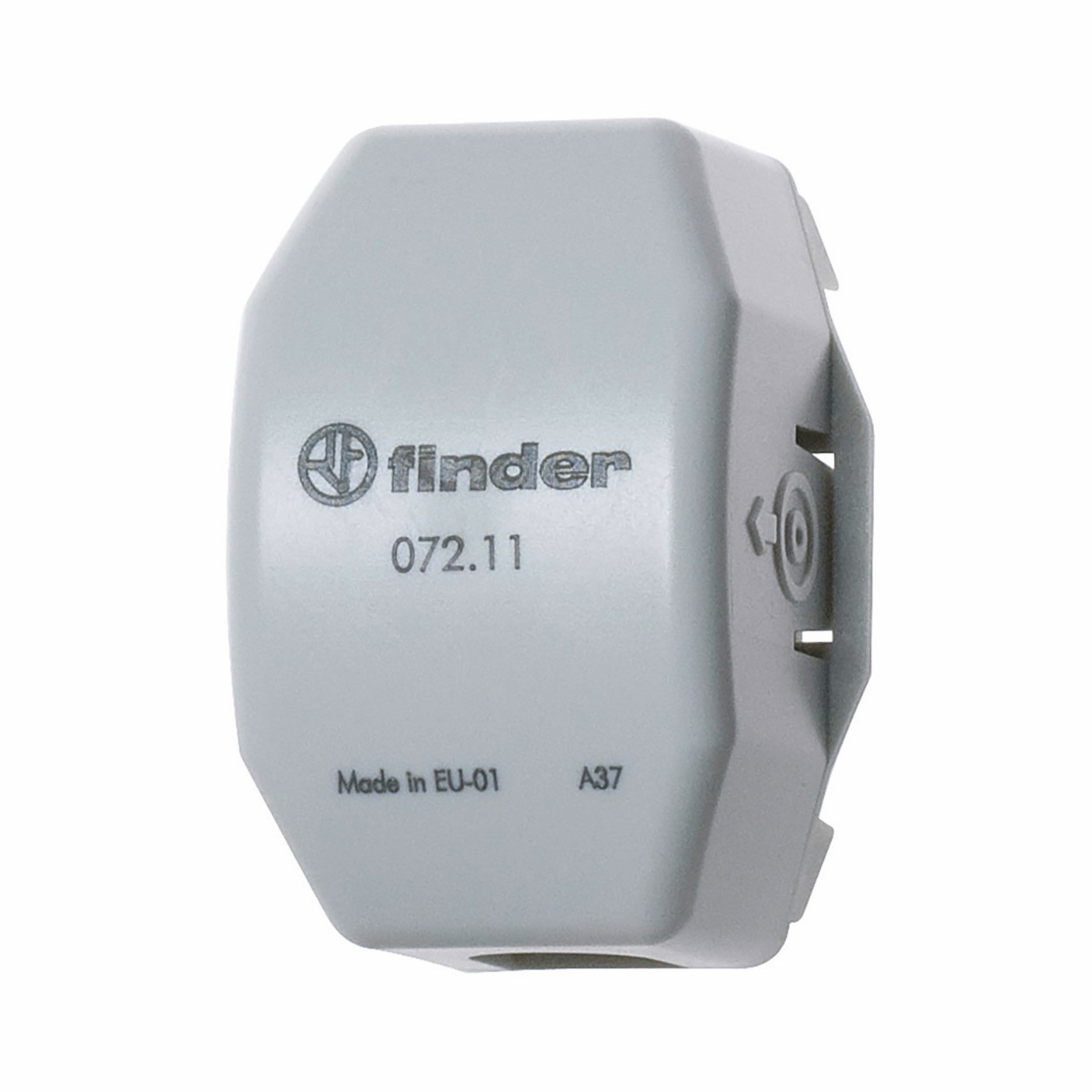

Finder Level floor sensor 072.11

072.11072.11
Manufacturer Part No.
072.11
Schukat Part No.
072.11
Manufacturer
Finder
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1 Pcs. in stock

Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
• You can find suitable PCB relays here.
Type
Level floor sensor
Series
072.11
Cell size
Level control relays 72.01
Dimension: Length
44 mm
Dimension: Width
32 mm
Dimension: Height
26.5 mm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Finder
Type
  • Level floor sensor
Series
  • 072.11
Product group
  • E8514
Assembly Type
  • Screw Mount
Cell size
  • Level control relays 72.01
Application

  • • For detecting condensate under oil.

Features

  • • Soil probe for conductive liquids
    • Max. liquid temperature: 100°C
    • Housing made of polycarbonate (EN 60335-1 compliant)
    • For screwing to the ground using M5 screws (max. torque 0.8Nm)
    • Electrodes made of stainless steel (AISI 301)
    • Distance between probe and mounting surface: 1mm
    • Connection cable Ø max. 10mm
    • Max. length of cable between probe and relay: 200m

Notice
  • Cross-references:
    • You can find suitable PCB relays here.
Application note
  • When used for flood warning, the sensor must be connected to B1-B3 of the level monitoring relay 72.01.8.240.0000 and the function E or ES must be selected. For condensate or leakage monitoring, the sensor must be connected to B1-B3 of type 72.01.8.024.0002 (24VAC) and the function ES must be selected.

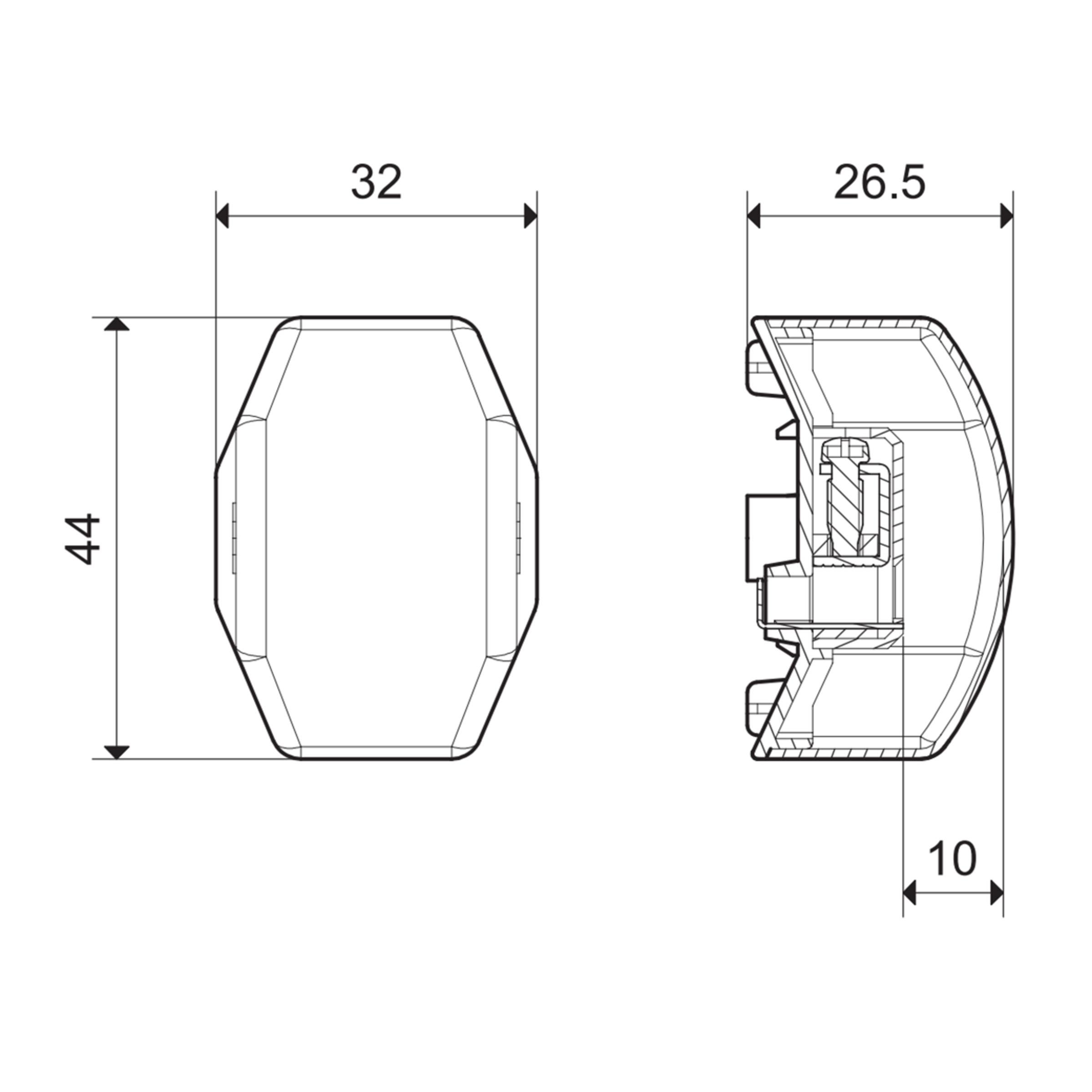

Dimensions and Weights

Dimension: Length
  • 44 mm
Dimension: Width
  • 32 mm
Dimension: Height
  • 26.5 mm

Documents

IB07211DE.pdf
Download (pdf, 297 KB)
