072.01.06

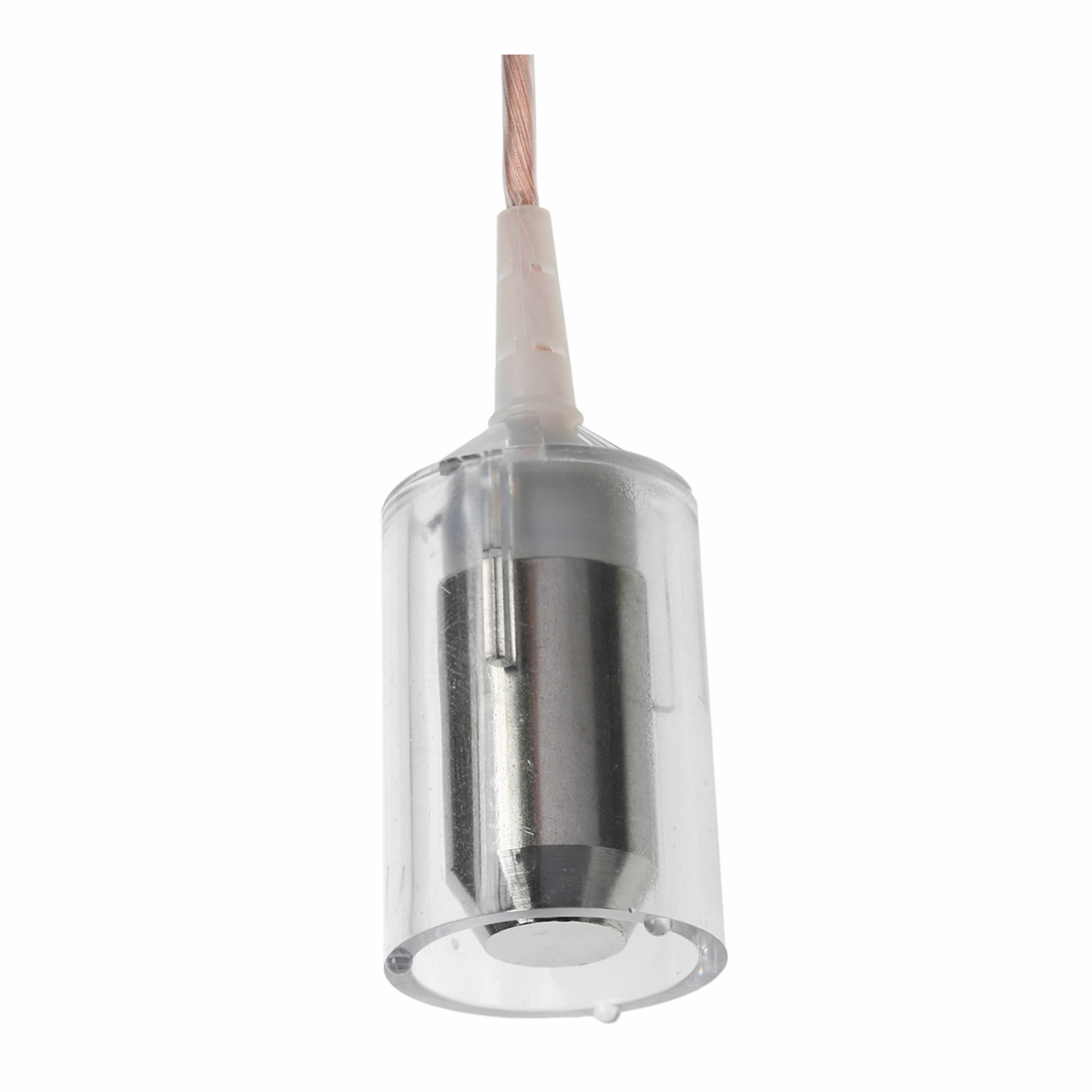

Finder Level sensor 072.01.06

072.01.06072.01.06
Manufacturer Part No.
072.01.06
Schukat Part No.
072.01.06
Manufacturer
Finder
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.

1 Pcs. in stock

Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between: • Active (green) • NRND = Not Recommended for New Designs (yellow) • LTB = Last Time Buy (yellow) • EOL = End of Life (red)
Active
Available (from stock)
Replacement / Follow-up View entire series
Data Sheet
Open PDF
ECAD Model
Downloads

Prices

Manufacturer bundle 1 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.

Quantity and Options

(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.

Fact Sheet

Notice
Cross-references:
• You can find suitable PCB relays here.
Type
Level sensor
Series
072.01.06
Termination Style
Connection cable
Cell size
Level control relays 72.01
Dimension: Length
58 mm
Dimension: Width
23 mm
Dimension: Height
23 mm
RoHS-Conform

Specifications

Open all

General

Manufacturer
  • Finder
Type
  • Level sensor
Series
  • 072.01.06
Product group
  • E8514
Assembly Type
  • Cable mounting
Termination Style
  • Connection cable
Cell size
  • Level control relays 72.01
Application

  • • For level monitoring in tanks, well shafts, etc. at normal ambient pressure.

Features

  • • Sensor electrode for level monitoring at normal ambient pressure
    • For conductive liquids
    • Max. liquid temperature: +100°C
    • Electrodes made of stainless steel (ASI 316L)
    • Cable length 6m
    • Made of food-safe materials in accordance with European Directive 2002/72 and cod. FDA title 21 part 177

Notice
  • Cross-references:
    • You can find suitable PCB relays here.
Application note
  • Application example: Detecting low liquid levels. If the electrode 072.01 is placed (attached) on the bottom of a conductive container and the container is connected to connection B3 of the level monitoring relay, a "water sump" under a non-conductive liquid of approx. 3mm height can be detected.

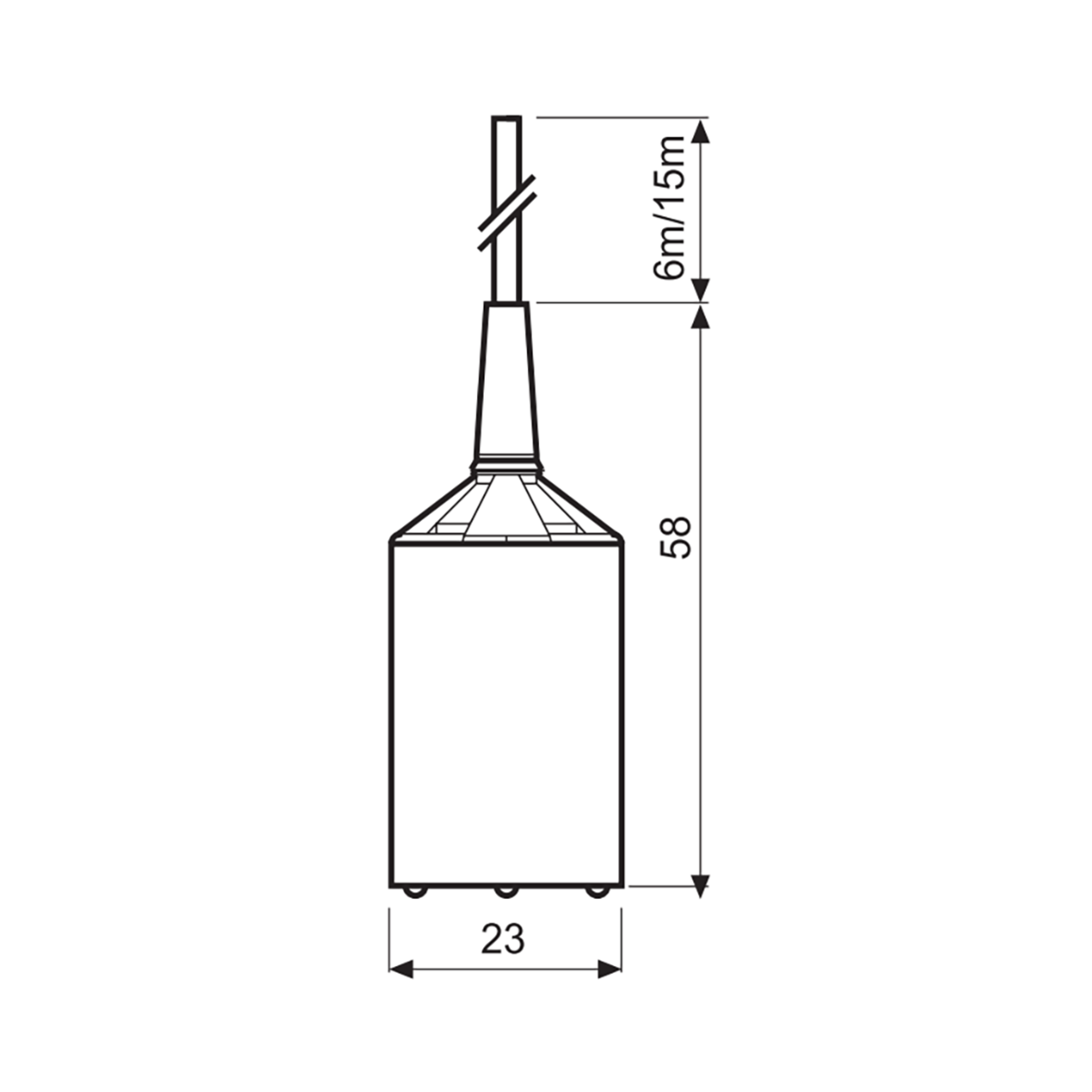

Dimensions and Weights

Dimension: Length
  • 58 mm
Dimension: Width
  • 23 mm
Dimension: Height
  • 23 mm
