Results (43)
Not discontinued
In stock
RoHS compliant
Datasheet
New
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Dimension: Length | Dimension: Width | Operating Temperature Min. | Operating Temperature Max. | Material | Material thickness, max. | Thermal resistance | Insulation resistance | Thermal conductivity | Colour | Class of Inflammability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
26 | Manufacturers Part No. KU-CG30-0H-ST-6-631-L(SIS30-TO218) Kunze Insulators KU-CG30 Silicone 300µm 20mm 22mm -60°C 200°C pink UL 94 V-0 | Customer Part No. Customer Project No. | 5.420 Pcs. Planned Delivery Time Ø 31 Weeks | (at least 90 or mul. of 90) | Kunze | Insulators | 20.0 mm | 22.0 mm | -60.0 °C | 200.0 °C | Silicone | 300.0 µm | 0.45 K/W | 2,9 x 10^15 Ohm/cm | 1.9 W/m.K | pink | UL 94 V-0 | ||||||
27 | Manufacturers Part No. WK220(WK220) Fischer Elektronik Thermally Conductive Foil WK_ Silicone 200µm 18mm 13mm -40°C 150°C green UL 94 V-0 | Customer Part No. Customer Project No. | 450 Pcs. Planned Delivery Time Ø 8 Weeks | (at least 25 or mul. of 25) | Fischer Elektronik | Thermally Conductive Foil | 18.0 mm | 13.0 mm | -40.0 °C | 150.0 °C | Silicone | 200.0 µm | 0.45 K/W | 5,7 x 10^15 Ohm/cm | 0.9 W/m.K | green | UL 94 V-0 | ||||||
28 | Manufacturers Part No. WK247(WK247) Fischer Elektronik Thermally Conductive Foil WK_ Silicone 200µm 21mm 17mm -40°C 150°C green UL 94 V-0 | Customer Part No. Customer Project No. | 200 Pcs. Planned Delivery Time Ø 8 Weeks | (at least 25 or mul. of 25) | Fischer Elektronik | Thermally Conductive Foil | 21.0 mm | 17.0 mm | -40.0 °C | 150.0 °C | Silicone | 200.0 µm | 0.45 K/W | 5,7 x 10^15 Ohm/cm | 0.9 W/m.K | green | UL 94 V-0 | ||||||
29 | Manufacturers Part No. KU-CG30-0H-ST-6-623-L(SIS30-TO220) Kunze Insulators KU-CG30 Silicone 300µm 18mm 13mm -60°C 200°C pink UL 94 V-0 | Customer Part No. Customer Project No. | 43.100 Pcs. Planned Delivery Time Ø 31 Weeks | (at least 100 or mul. of 100) | Kunze | Insulators | 18.0 mm | 13.0 mm | -60.0 °C | 200.0 °C | Silicone | 300.0 µm | 0.45 K/W | 2,9 x 10^15 Ohm/cm | 1.9 W/m.K | pink | UL 94 V-0 | ||||||
30 | Manufacturers Part No. WK3(WK3) Fischer Elektronik Thermally Conductive Foil WK_ Silicone 200µm 42mm 29mm -40°C 150°C green UL 94 V-0 | Customer Part No. Customer Project No. | 50 Pcs. Planned Delivery Time Ø 8 Weeks | (at least 25 or mul. of 25) | Fischer Elektronik | Thermally Conductive Foil | 42.0 mm | 29.0 mm | -40.0 °C | 150.0 °C | Silicone | 200.0 µm | 0.45 K/W | 5,7 x 10^15 Ohm/cm | 0.9 W/m.K | green | UL 94 V-0 | ||||||
31 | Manufacturers Part No. KU-CG30-0H-ST-6-619-L(SIS30-TO3) Kunze Insulators KU-CG30 Silicone 300µm 42mm 29mm -60°C 200°C pink UL 94 V-0 | Customer Part No. Customer Project No. | 700 Pcs. Planned Delivery Time Ø 31 Weeks | (at least 100 or mul. of 100) | Kunze | Insulators | 42.0 mm | 29.0 mm | -60.0 °C | 200.0 °C | Silicone | 300.0 µm | 0.45 K/W | 2,9 x 10^15 Ohm/cm | 1.9 W/m.K | pink | UL 94 V-0 | ||||||
32 | Manufacturers Part No. WK3P(WK3P) Fischer Elektronik Thermally Conductive Foil WK_ Silicone 200µm 24mm 20mm -40°C 150°C green UL 94 V-0 | Customer Part No. Customer Project No. | 645 Pcs. Planned Delivery Time Ø 8 Weeks | (at least 25 or mul. of 25) | Fischer Elektronik | Thermally Conductive Foil | 24.0 mm | 20.0 mm | -40.0 °C | 150.0 °C | Silicone | 200.0 µm | 0.45 K/W | 5,7 x 10^15 Ohm/cm | 0.9 W/m.K | green | UL 94 V-0 | ||||||
33 | Manufacturers Part No. KU-CG30-0H-ST-6-624-L(SIS30-TOP3) Kunze Insulators KU-CG30 Silicone 300µm 24mm 21mm -60°C 200°C pink UL 94 V-0 | Customer Part No. Customer Project No. | 8.696 Pcs. Planned Delivery Time Ø 31 Weeks | (at least 100 or mul. of 10) | Kunze | Insulators | 24.0 mm | 21.0 mm | -60.0 °C | 200.0 °C | Silicone | 300.0 µm | 0.45 K/W | 2,9 x 10^15 Ohm/cm | 1.9 W/m.K | pink | UL 94 V-0 | ||||||
34 | Customer Part No. Customer Project No. | 100 Pcs. Planned Delivery Time Ø 12 Weeks | (at least 100 or mul. of 100) | Assmann WSW | Wafers | 41.5 mm | 28.2 mm | Mica | 50.0 µm | transparent | |||||||||||||
35 | Manufacturers Part No. IB12(IN126SW) Fischer Elektronik Insulating Washers IB_ PA(polyamide) -40°C 200°C black UL 94 V-0 | Customer Part No. Customer Project No. | 8.100 Pcs. Planned Delivery Time Ø 8 Weeks | (at least 100 or mul. of 100) | Fischer Elektronik | Insulating Washers | -40.0 °C | 200.0 °C | PA (polyamide) | black | UL 94 V-0 | ||||||||||||

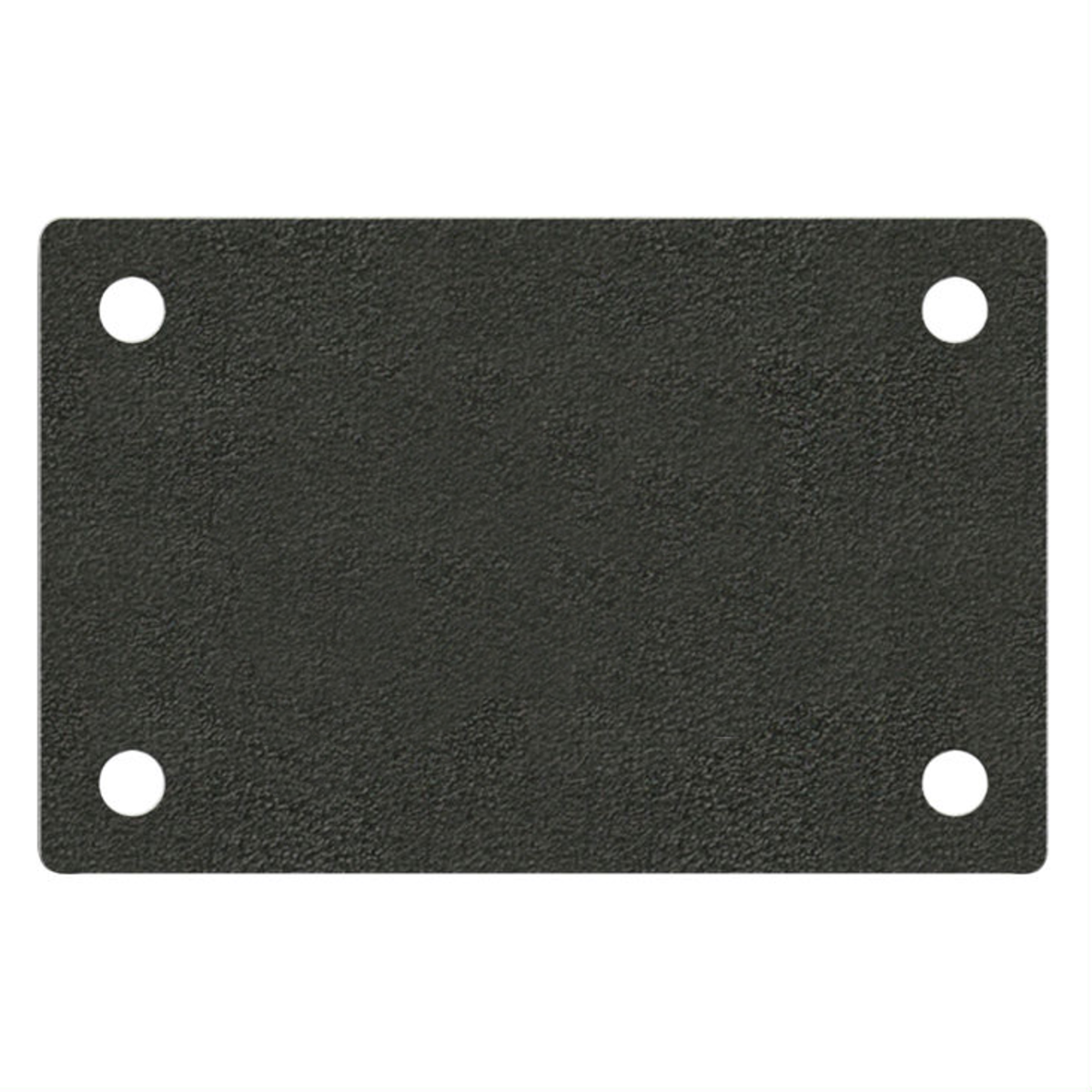

36 | Manufacturers Part No. EYGS0507ZLML(EYGS0507ZLML) Panasonic Pyrolytic graphite sheets EYGS Graphite 200µm 45,3mm 66mm -55°C 400°C gray | Customer Part No. Customer Project No. | 30 Pcs. Planned Delivery Time Ø 13 Weeks | (at least 1 or mul. of 1) | Panasonic | Pyrolytic graphite sheets | 45.3 mm | 66.0 mm | -55.0 °C | 400.0 °C | Graphite | 200.0 µm | 0.2 K/W | 400.0 W/m.K | gray | ||||||||
37 | Manufacturers Part No. IB11(IN100SW) Fischer Elektronik Insulating Washers IB_ PA(polyamide) -40°C 200°C black UL 94 V-0 | Customer Part No. Customer Project No. | 2.100 Pcs. Planned Delivery Time Ø 8 Weeks | (at least 100 or mul. of 100) | Fischer Elektronik | Insulating Washers | -40.0 °C | 200.0 °C | PA (polyamide) | black | UL 94 V-0 | ||||||||||||
38 | Manufacturers Part No. EYGS0918ZLX2(EYGS0918ZLX2) Panasonic Pyrolytic graphite sheets EYGS Graphite 200µm 90mm 180mm -55°C 400°C gray | Customer Part No. Customer Project No. | 17 Pcs. Planned Delivery Time Ø 13 Weeks | (at least 1 or mul. of 1) | Panasonic | Pyrolytic graphite sheets | 90.0 mm | 180.0 mm | -55.0 °C | 400.0 °C | Graphite | 200.0 µm | 0.2 K/W | 400.0 W/m.K | gray | ||||||||
39 | Manufacturers Part No. WLFT404 14X14(WLFT40414X14) Fischer Elektronik Thermally Conductive Foil WLFT 404 PA(polyamide) 127µm 14mm 14mm -30°C 125°C beige UL 94 V-0 | Customer Part No. Customer Project No. | 120 Pcs. | (at least 1 or mul. of 1) | Fischer Elektronik | Thermally Conductive Foil | 14.0 mm | 14.0 mm | -30.0 °C | 125.0 °C | PA (polyamide) | 127.0 µm | 3700.0 K/W | 3 x 10^14 Ohm/cm | 0.4 W/m.K | beige | UL 94 V-0 | ||||||
40 | Manufacturers Part No. WLFT404 24X27(WLFT40424X27) Fischer Elektronik Thermally Conductive Foil WLFT 404 PA(polyamide) 127µm 24mm 27mm -30°C 125°C beige UL 94 V-0 | Customer Part No. Customer Project No. | 50 Pcs. Planned Delivery Time Ø 8 Weeks | (at least 1 or mul. of 1) | Fischer Elektronik | Thermally Conductive Foil | 24.0 mm | 27.0 mm | -30.0 °C | 125.0 °C | PA (polyamide) | 127.0 µm | 3700.0 K/W | 3 x 10^14 Ohm/cm | 0.4 W/m.K | beige | UL 94 V-0 | ||||||
41 | Manufacturers Part No. EYGS0609ZLSK(EYGS0609ZLSK) Panasonic Pyrolytic graphite sheets EYGS Graphite 200µm 61,5mm 91mm -55°C 400°C gray | Customer Part No. Customer Project No. | 15 Pcs. Planned Delivery Time Ø 13 Weeks | (at least 1 or mul. of 1) | Panasonic | Pyrolytic graphite sheets | 61.5 mm | 91.0 mm | -55.0 °C | 400.0 °C | Graphite | 200.0 µm | 0.2 K/W | 400.0 W/m.K | gray | ||||||||
42 | Manufacturers Part No. EYGS0909ZLX2(EYGS0909ZLX2) Panasonic Pyrolytic graphite sheets EYGS Graphite 200µm 90mm 90mm -55°C 400°C gray | Customer Part No. Customer Project No. | 19 Pcs. Planned Delivery Time Ø 13 Weeks | (at least 1 or mul. of 1) | Panasonic | Pyrolytic graphite sheets | 90.0 mm | 90.0 mm | -55.0 °C | 400.0 °C | Graphite | 200.0 µm | 0.2 K/W | 400.0 W/m.K | gray | ||||||||
43 | Manufacturers Part No. EYGS1818ZLX2(EYGS1818ZLX2) Panasonic Pyrolytic graphite sheets EYGS Graphite 200µm 180mm 180mm -55°C 400°C gray | Customer Part No. Customer Project No. | 11 Pcs. Planned Delivery Time Ø 13 Weeks | (at least 1 or mul. of 1) | Panasonic | Pyrolytic graphite sheets | 180.0 mm | 180.0 mm | -55.0 °C | 400.0 °C | Graphite | 200.0 µm | 0.2 K/W | 400.0 W/m.K | gray |
