Results (43)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Dimension: Length | Dimension: Width | Operating Temperature Min. | Operating Temperature Max. | Material | Material thickness, max. | Thermal resistance | Insulation resistance | Thermal conductivity | Colour | Class of Inflammability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

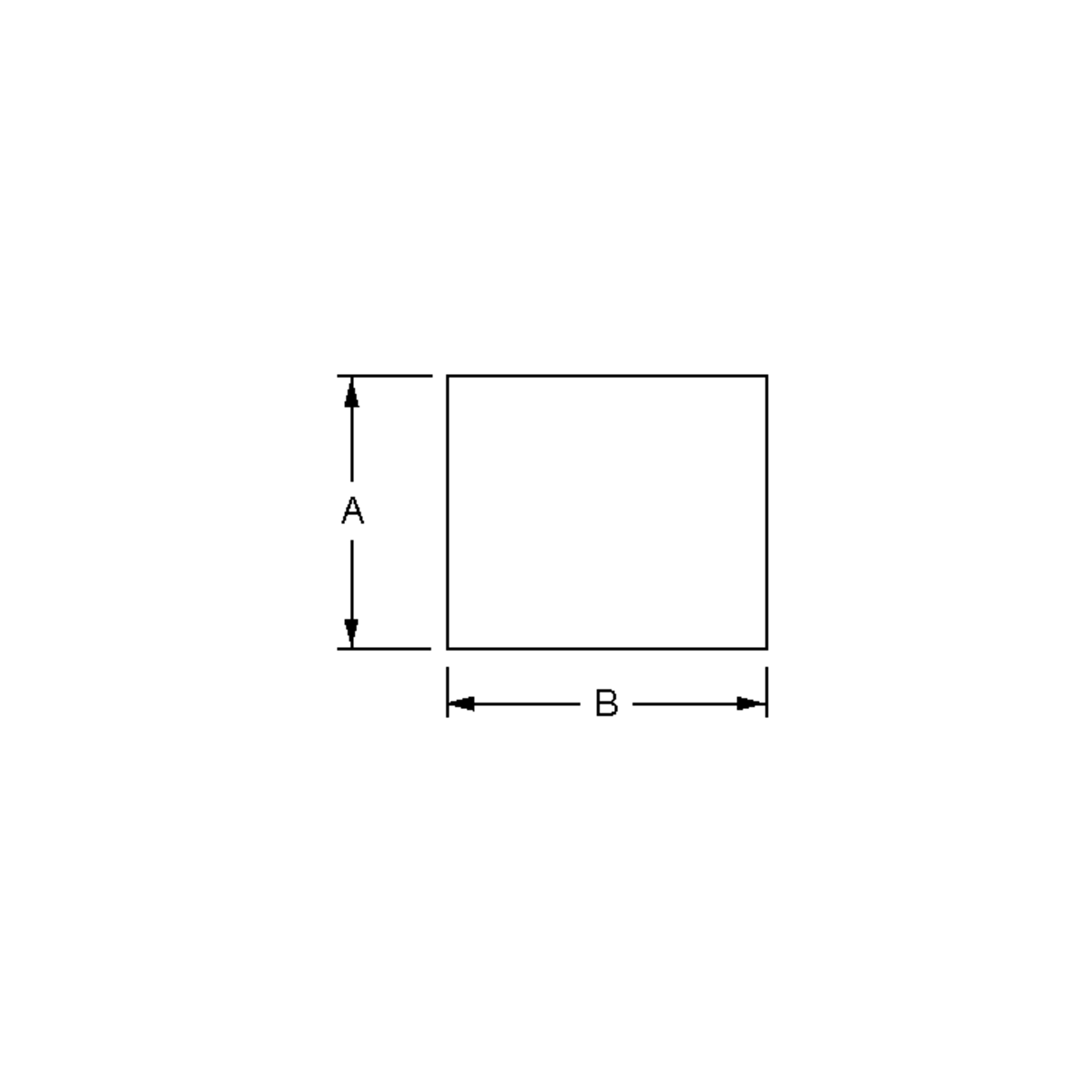

01 | Manufacturers Part No. WLFT404 35X35(WLFT40435X35) Fischer Elektronik Thermally Conductive Foil WLFT 404 PA(polyamide) 127µm 35mm 35mm -30°C 125°C beige UL 94 V-0 | Customer Part No. Customer Project No. | 25 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 1 or mul. of 1) | Fischer Elektronik | Thermally Conductive Foil | 35.0 mm | 35.0 mm | -30.0 °C | 125.0 °C | PA (polyamide) | 127.0 µm | 3700.0 K/W | 3 x 10^14 Ohm/cm | 0.4 W/m.K | beige | UL 94 V-0 | ||||||
02 | Manufacturers Part No. WLFT404 31X34(WLFT40431X34) Fischer Elektronik Thermally Conductive Foil WLFT 404 PA(polyamide) 127µm 31mm 34mm -30°C 125°C beige UL 94 V-0 | Customer Part No. Customer Project No. | 30 Pcs. Planned Delivery Time Ø 14 Weeks Available (from stock) | (at least 1 or mul. of 1) | Fischer Elektronik | Thermally Conductive Foil | 31.0 mm | 34.0 mm | -30.0 °C | 125.0 °C | PA (polyamide) | 127.0 µm | 3700.0 K/W | 3 x 10^14 Ohm/cm | 0.4 W/m.K | beige | UL 94 V-0 | ||||||

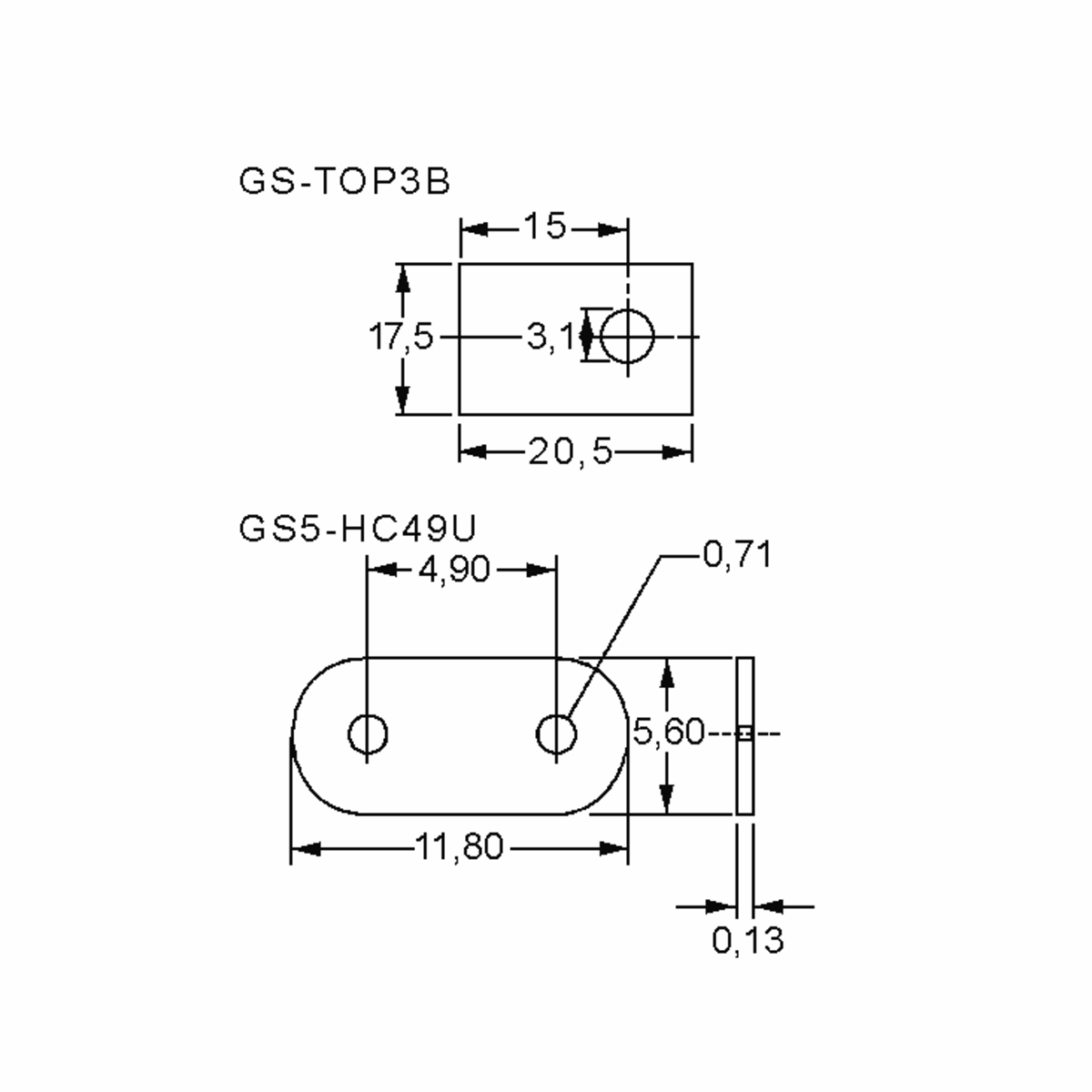

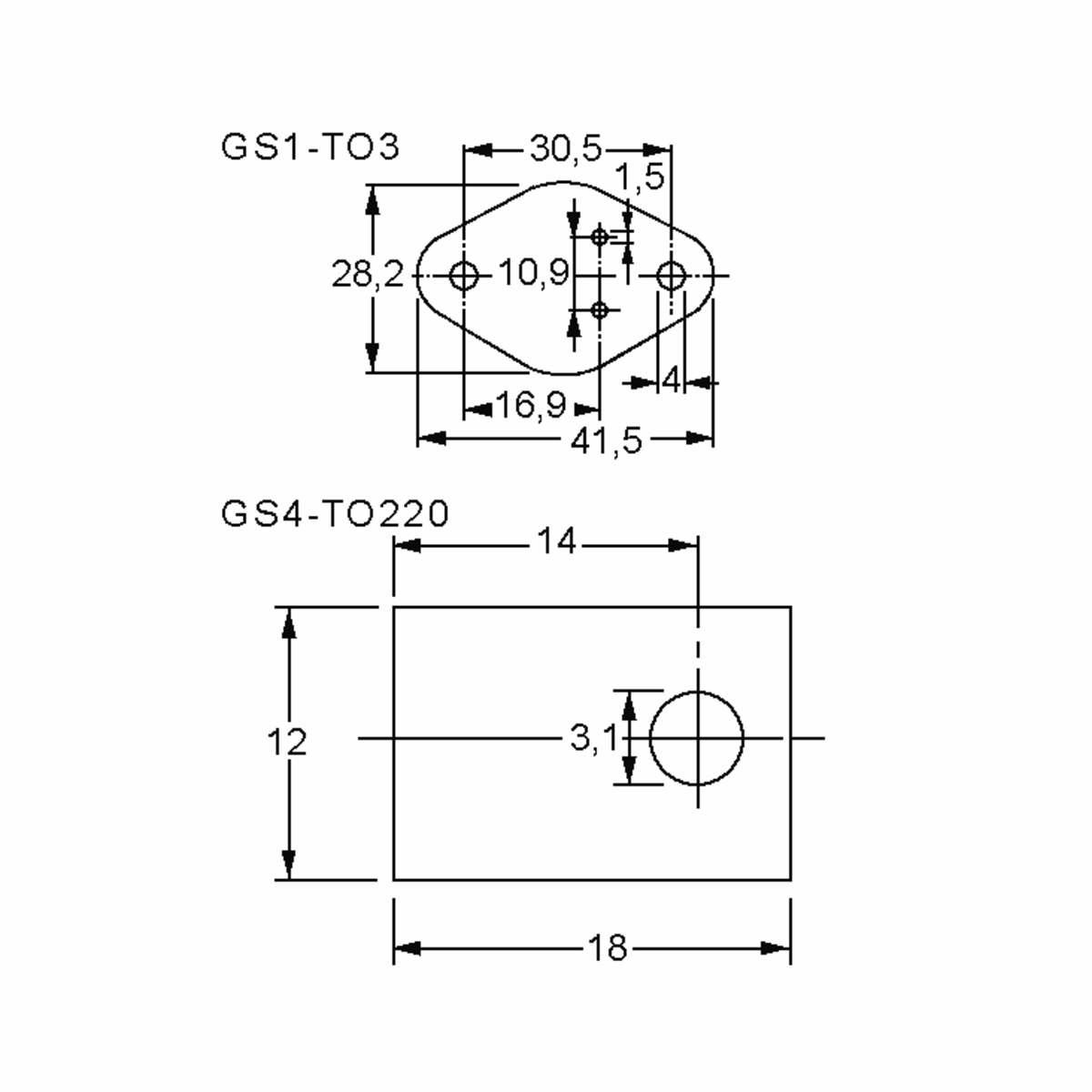

03 | Customer Part No. Customer Project No. | 19.400 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 100 or mul. of 100) | Assmann WSW | Wafers | 18.0 mm | 12.0 mm | Mica | 50.0 µm | transparent | |||||||||||||

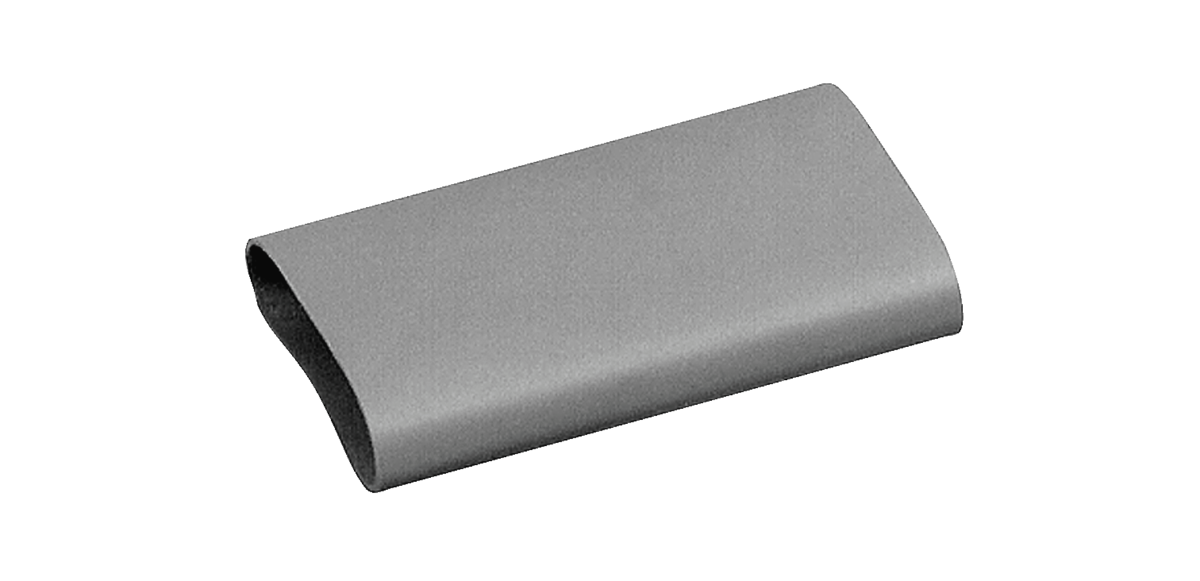

04 | Manufacturers Part No. WSC 220(WSC220) Fischer Elektronik Insulating tubes WSC Silicone 300µm 25mm -40°C 150°C gray UL 94 V-0 | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 25 or mul. of 25) | Fischer Elektronik | Insulating tubes | 25.0 mm | -40.0 °C | 150.0 °C | Silicone | 300.0 µm | 0.4 K/W | 2,9 x 10^15 Ohm/cm | 1.2 W/m.K | gray | UL 94 V-0 | |||||||
05 | Manufacturers Part No. WSC-3P(WSC3P) Fischer Elektronik Insulating tubes WSC Silicone 300µm 25mm -40°C 150°C gray UL 94 V-0 | Customer Part No. Customer Project No. | 625 Pcs. Planned Delivery Time Ø 12 Weeks Available (from stock) | (at least 25 or mul. of 25) | Fischer Elektronik | Insulating tubes | 25.0 mm | -40.0 °C | 150.0 °C | Silicone | 300.0 µm | 0.4 K/W | 2,9 x 10^15 Ohm/cm | 1.2 W/m.K | gray | UL 94 V-0 | |||||||

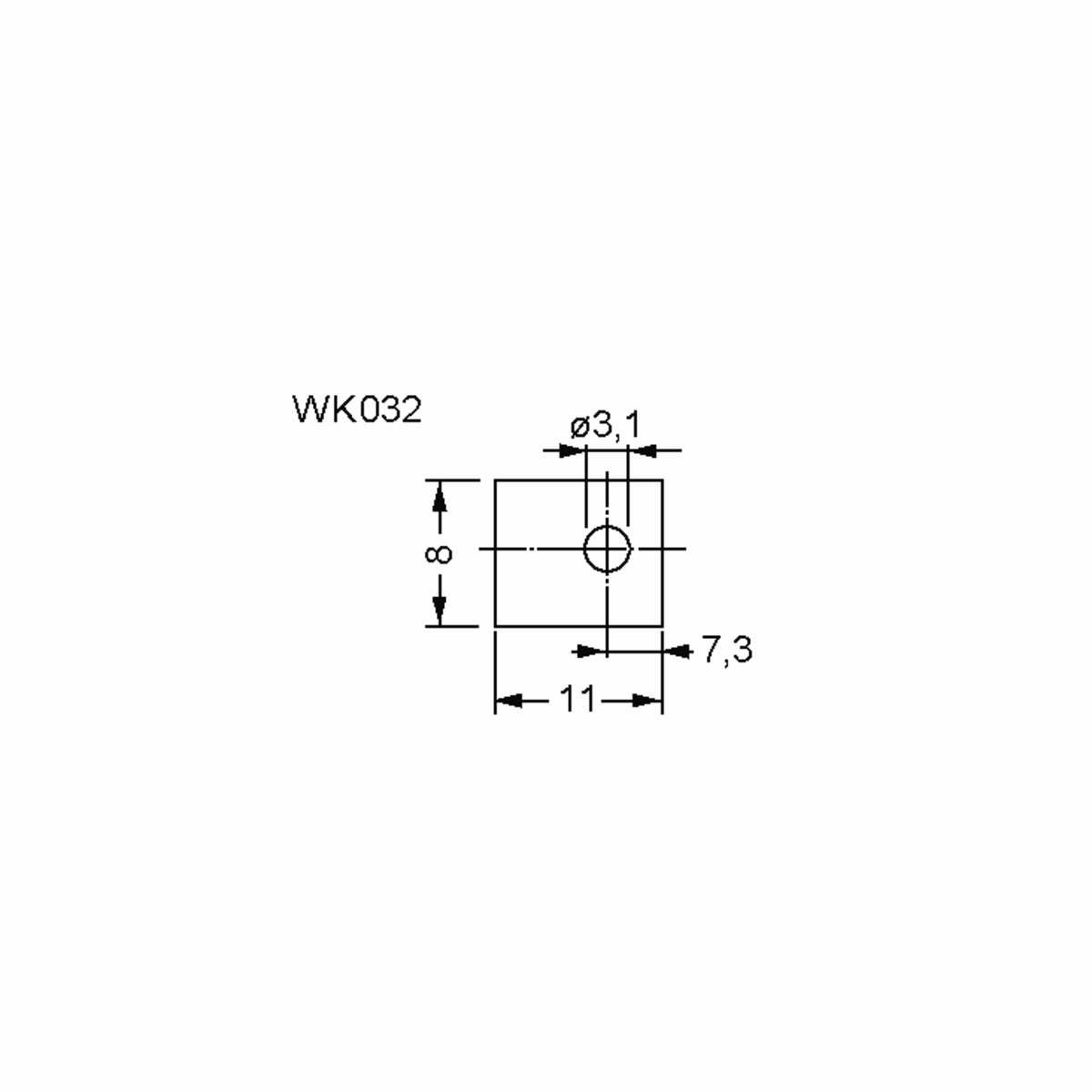

06 | Manufacturers Part No. WK032(WK032) Fischer Elektronik Thermally Conductive Foil WK_ Silicone 200µm 11mm 8mm -40°C 150°C green UL 94 V-0 | Customer Part No. Customer Project No. | 200 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 25 or mul. of 25) | Fischer Elektronik | Thermally Conductive Foil | 11.0 mm | 8.0 mm | -40.0 °C | 150.0 °C | Silicone | 200.0 µm | 0.45 K/W | 5,7 x 10^15 Ohm/cm | 0.9 W/m.K | green | UL 94 V-0 | ||||||

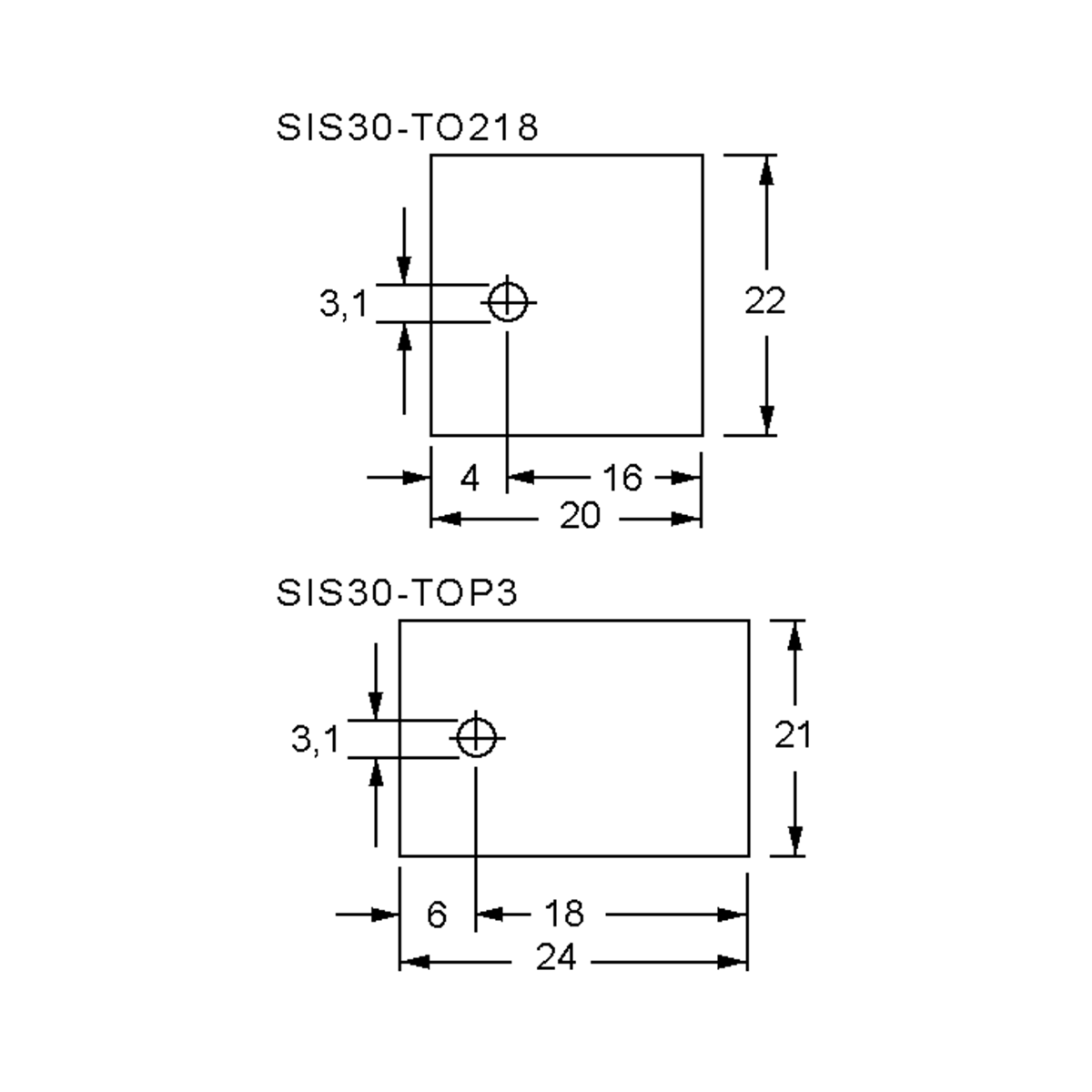

07 | Manufacturers Part No. KU-CG30-0H-ST-6-631-L(SIS30-TO218) Kunze Insulators KU-CG30 Silicone 300µm 20mm 22mm -60°C 200°C pink UL 94 V-0 | Customer Part No. Customer Project No. | 5.030 Pcs. Planned Delivery Time Ø 31 Weeks Available (from stock) | (at least 90 or mul. of 90) | Kunze | Insulators | 20.0 mm | 22.0 mm | -60.0 °C | 200.0 °C | Silicone | 300.0 µm | 0.45 K/W | 2,9 x 10^15 Ohm/cm | 1.9 W/m.K | pink | UL 94 V-0 | ||||||

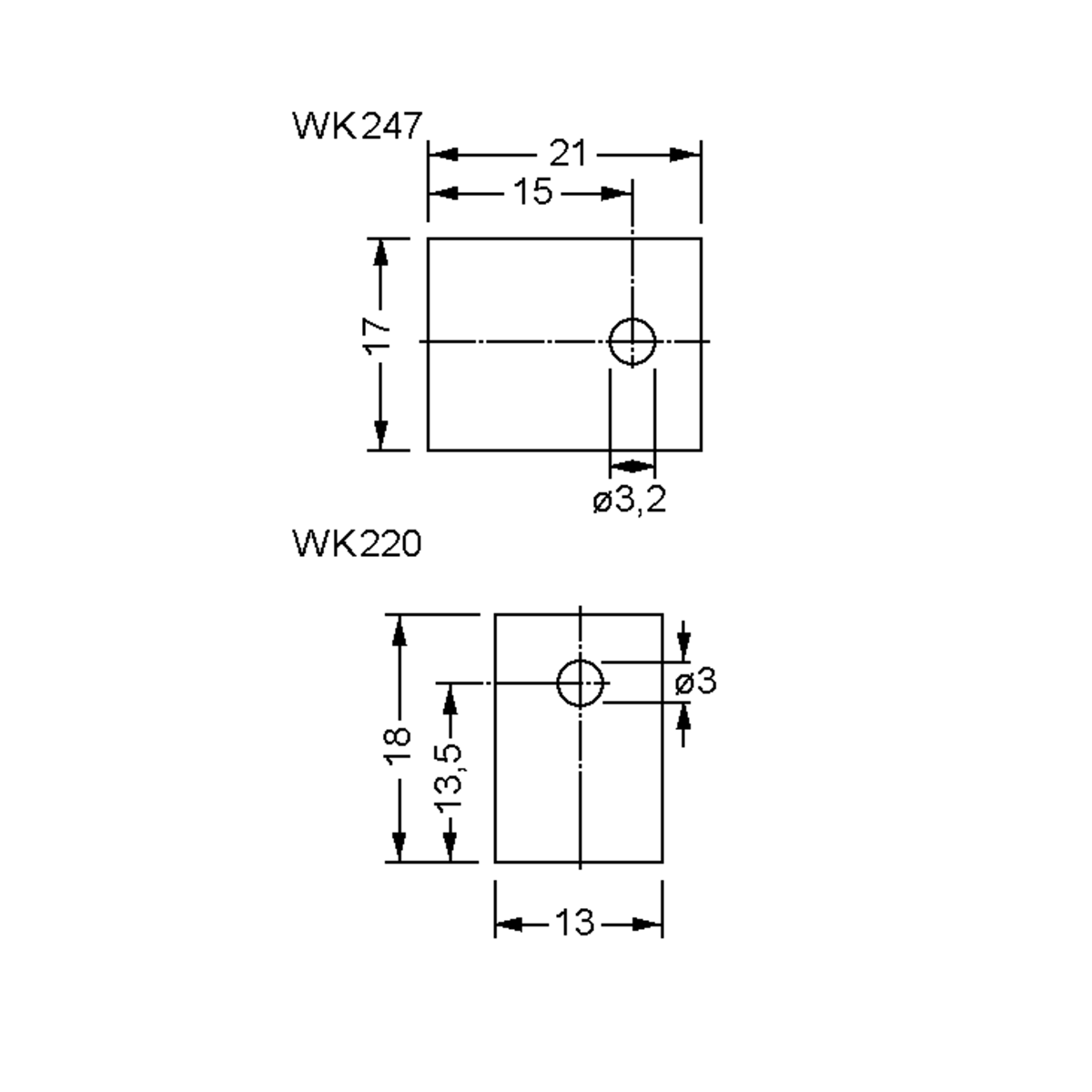

08 | Manufacturers Part No. WK220(WK220) Fischer Elektronik Thermally Conductive Foil WK_ Silicone 200µm 18mm 13mm -40°C 150°C green UL 94 V-0 | Customer Part No. Customer Project No. | 600 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 25 or mul. of 25) | Fischer Elektronik | Thermally Conductive Foil | 18.0 mm | 13.0 mm | -40.0 °C | 150.0 °C | Silicone | 200.0 µm | 0.45 K/W | 5,7 x 10^15 Ohm/cm | 0.9 W/m.K | green | UL 94 V-0 | ||||||
09 | Manufacturers Part No. WK247(WK247) Fischer Elektronik Thermally Conductive Foil WK_ Silicone 200µm 21mm 17mm -40°C 150°C green UL 94 V-0 | Customer Part No. Customer Project No. | 1.025 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 25 or mul. of 25) | Fischer Elektronik | Thermally Conductive Foil | 21.0 mm | 17.0 mm | -40.0 °C | 150.0 °C | Silicone | 200.0 µm | 0.45 K/W | 5,7 x 10^15 Ohm/cm | 0.9 W/m.K | green | UL 94 V-0 | ||||||

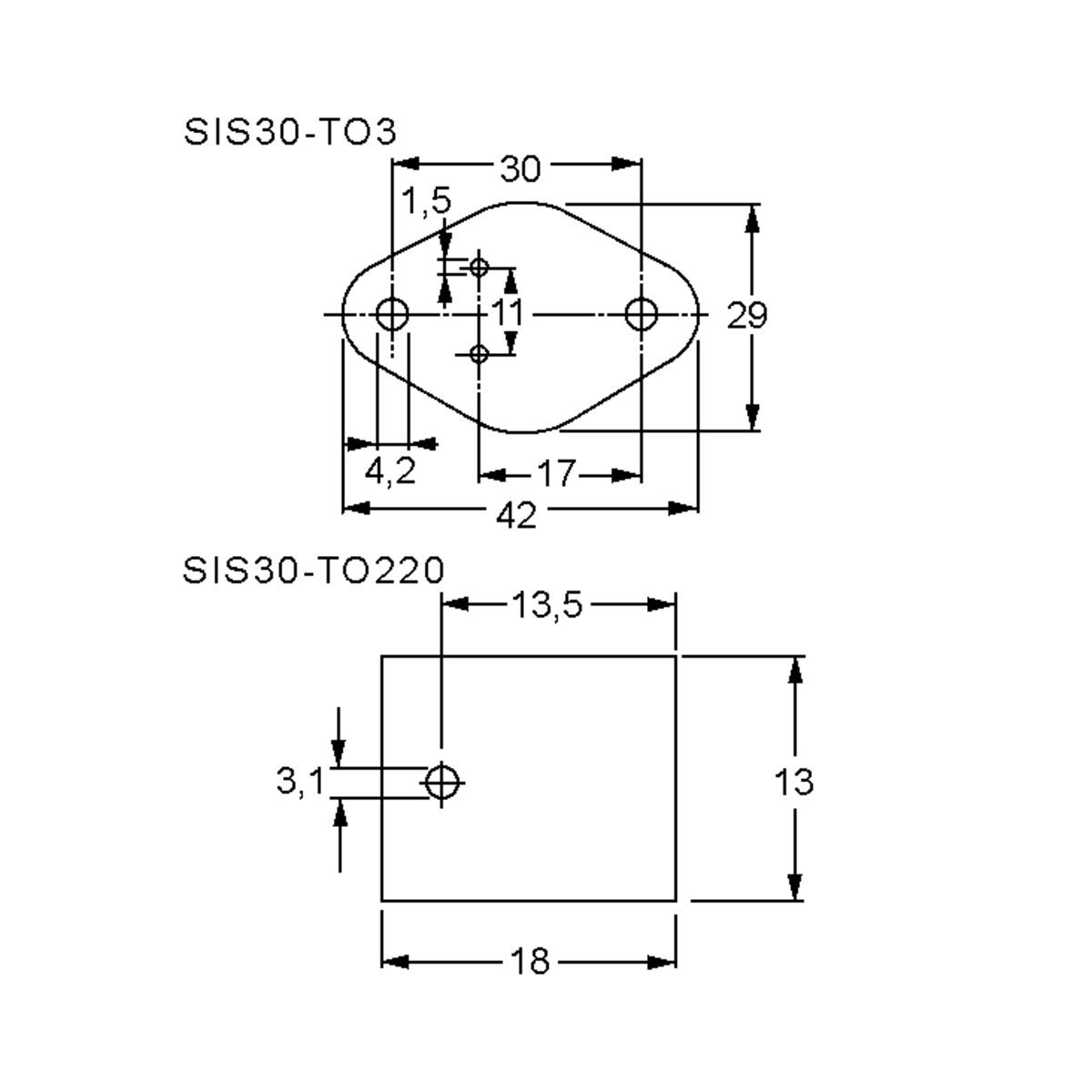

10 | Manufacturers Part No. KU-CG30-0H-ST-6-623-L(SIS30-TO220) Kunze Insulators KU-CG30 Silicone 300µm 18mm 13mm -60°C 200°C pink UL 94 V-0 | Customer Part No. Customer Project No. | 55.900 Pcs. Planned Delivery Time Ø 31 Weeks Available (from stock) | (at least 100 or mul. of 100) | Kunze | Insulators | 18.0 mm | 13.0 mm | -60.0 °C | 200.0 °C | Silicone | 300.0 µm | 0.45 K/W | 2,9 x 10^15 Ohm/cm | 1.9 W/m.K | pink | UL 94 V-0 | ||||||

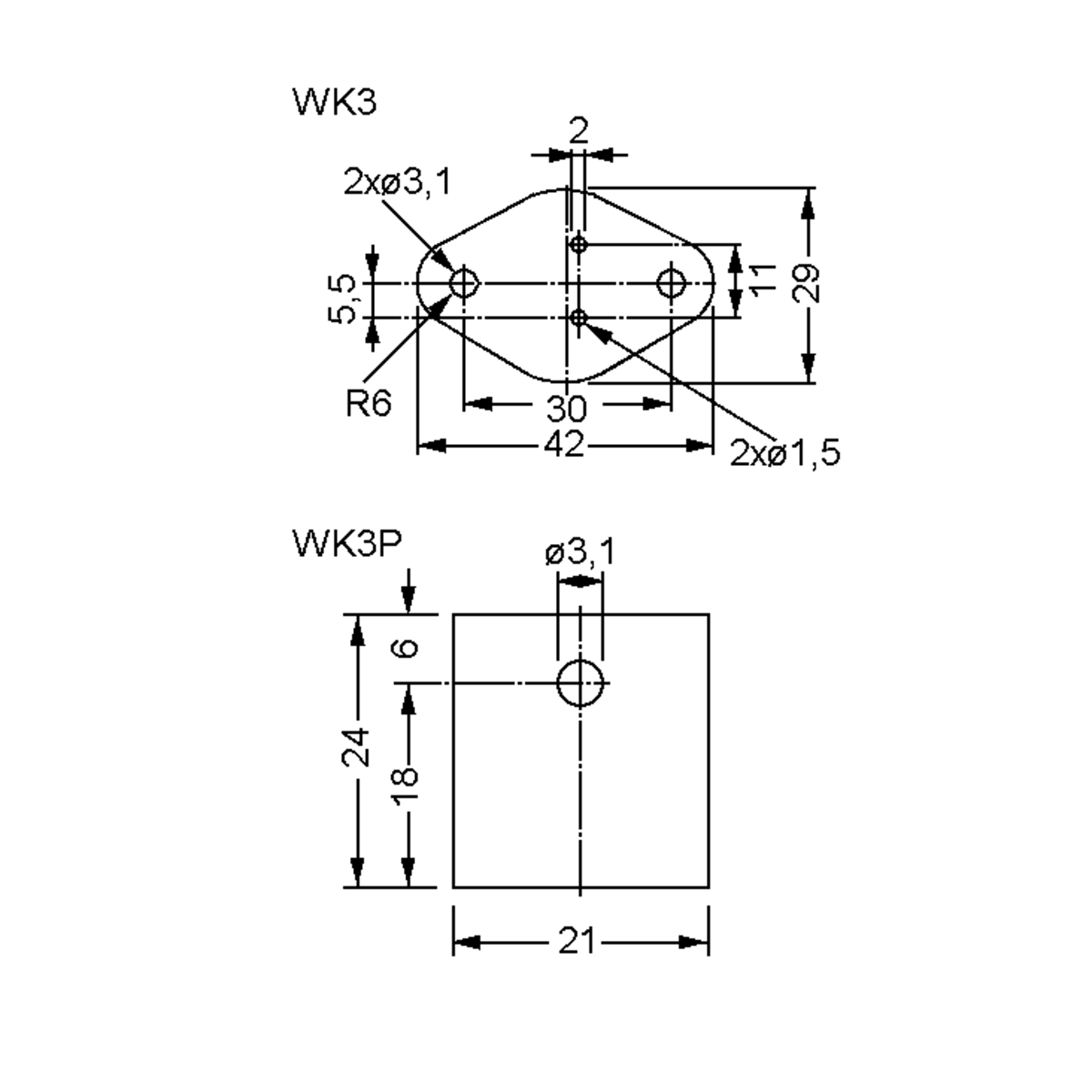

11 | Manufacturers Part No. WK3(WK3) Fischer Elektronik Thermally Conductive Foil WK_ Silicone 200µm 42mm 29mm -40°C 150°C green UL 94 V-0 | Customer Part No. Customer Project No. | 50 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 25 or mul. of 25) | Fischer Elektronik | Thermally Conductive Foil | 42.0 mm | 29.0 mm | -40.0 °C | 150.0 °C | Silicone | 200.0 µm | 0.45 K/W | 5,7 x 10^15 Ohm/cm | 0.9 W/m.K | green | UL 94 V-0 | ||||||
12 | Manufacturers Part No. KU-CG30-0H-ST-6-619-L(SIS30-TO3) Kunze Insulators KU-CG30 Silicone 300µm 42mm 29mm -60°C 200°C pink UL 94 V-0 | Customer Part No. Customer Project No. | 500 Pcs. Planned Delivery Time Ø 31 Weeks Available (from stock) | (at least 100 or mul. of 100) | Kunze | Insulators | 42.0 mm | 29.0 mm | -60.0 °C | 200.0 °C | Silicone | 300.0 µm | 0.45 K/W | 2,9 x 10^15 Ohm/cm | 1.9 W/m.K | pink | UL 94 V-0 | ||||||
13 | Manufacturers Part No. EYGS091203(EYGS091203) Panasonic Pyrolytic graphite sheets EYG Graphite 25µm 90mm 115mm gray | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 99 Weeks Available (from stock) | (at least 1 or mul. of 1) | Panasonic | Pyrolytic graphite sheets | 90.0 mm | 115.0 mm | Graphite | 25.0 µm | 10 x 10^14 Ohm/cm | 1600.0 W/m.K | gray | ||||||||||
14 | Manufacturers Part No. EYGS182304(EYGS182304) Panasonic Pyrolytic graphite sheets EYG Graphite 40µm 180mm 230mm gray | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 13 Weeks Available on order | (at least 10 or mul. of 10) | Panasonic | Pyrolytic graphite sheets | 180.0 mm | 230.0 mm | Graphite | 40.0 µm | 10 x 10^14 Ohm/cm | 1350.0 W/m.K | gray | ||||||||||

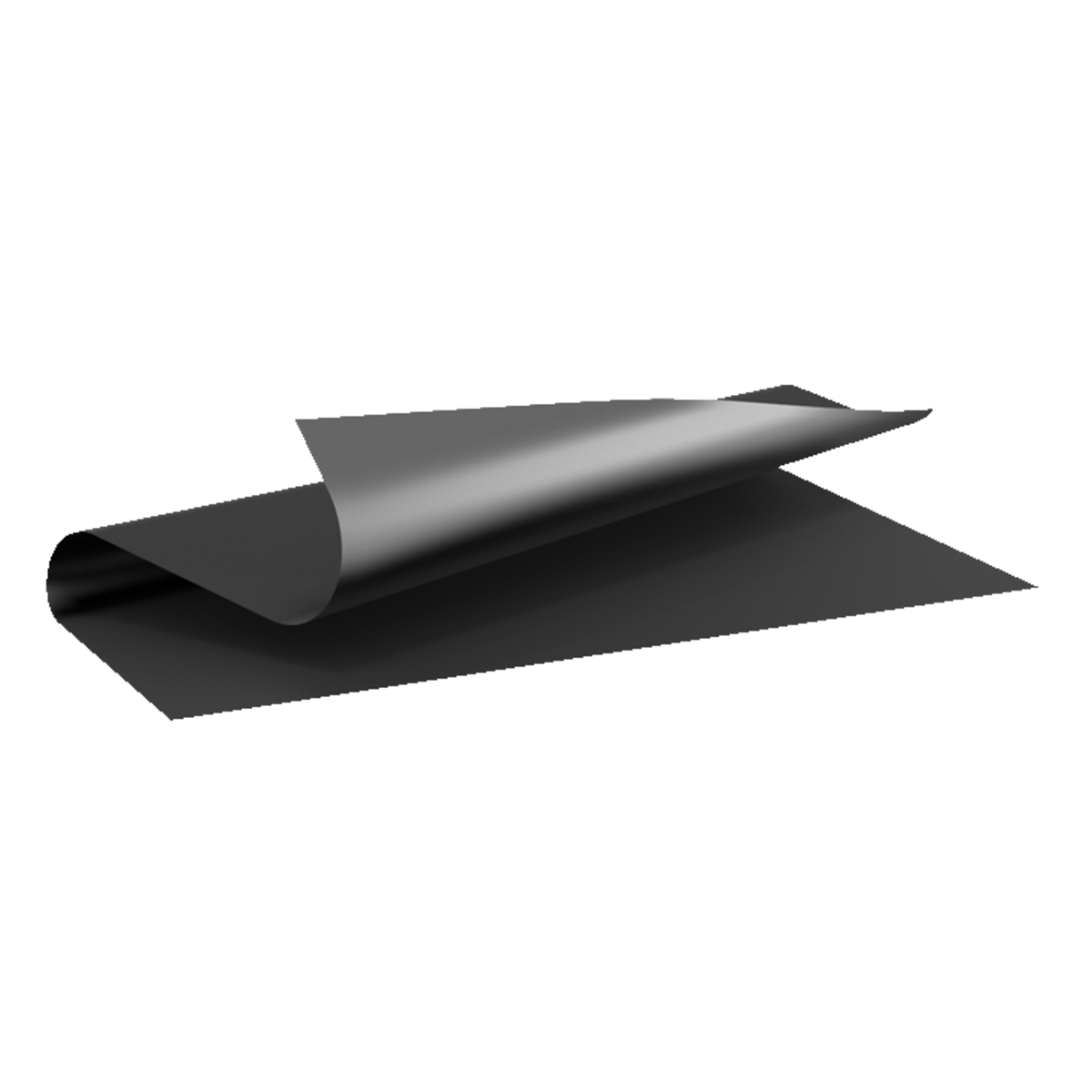

15 | Manufacturers Part No. EYGS0305ZLSM(EYGS0305ZLSM) Panasonic Pyrolytic graphite sheets EYGS Graphite 200µm 27mm 51mm -55°C 400°C gray | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 13 Weeks Available on order | (at least 30 or mul. of 30) | Panasonic | Pyrolytic graphite sheets | 27.0 mm | 51.0 mm | -55.0 °C | 400.0 °C | Graphite | 200.0 µm | 0.2 K/W | 400.0 W/m.K | gray | ||||||||
16 | Manufacturers Part No. EYGS0407ZLAL(EYGS0407ZLAL) Panasonic Pyrolytic graphite sheets EYGS Graphite 200µm 40mm 65,5mm -55°C 400°C gray | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 13 Weeks Available (from stock) | (at least 1 or mul. of 1) | Panasonic | Pyrolytic graphite sheets | 40.0 mm | 65.5 mm | -55.0 °C | 400.0 °C | Graphite | 200.0 µm | 0.2 K/W | 400.0 W/m.K | gray | ||||||||
17 | Manufacturers Part No. EYGS0507ZLML(EYGS0507ZLML) Panasonic Pyrolytic graphite sheets EYGS Graphite 200µm 45,3mm 66mm -55°C 400°C gray | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 13 Weeks Available on order | (at least 30 or mul. of 30) | Panasonic | Pyrolytic graphite sheets | 45.3 mm | 66.0 mm | -55.0 °C | 400.0 °C | Graphite | 200.0 µm | 0.2 K/W | 400.0 W/m.K | gray | ||||||||
18 | Manufacturers Part No. EYGS091207(EYGS091207) Panasonic Pyrolytic graphite sheets EYG Graphite 70µm 90mm 115mm gray | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | Panasonic | Pyrolytic graphite sheets | 90.0 mm | 115.0 mm | Graphite | 70.0 µm | 10 x 10^14 Ohm/cm | 1000.0 W/m.K | gray | ||||||||||
19 | Manufacturers Part No. EYGS121807(EYGS121807) Panasonic Pyrolytic graphite sheets EYG Graphite 70µm 115mm 180mm gray | Customer Part No. Customer Project No. | 20 Pcs. Planned Delivery Time Ø 13 Weeks Available (from stock) | (at least 1 or mul. of 1) | Panasonic | Pyrolytic graphite sheets | 115.0 mm | 180.0 mm | Graphite | 70.0 µm | 10 x 10^14 Ohm/cm | 1000.0 W/m.K | gray | ||||||||||
20 | Manufacturers Part No. EYGS182307(EYGS182307) Panasonic Pyrolytic graphite sheets EYG Graphite 70µm 180mm 230mm gray | Customer Part No. Customer Project No. | 5 Pcs. Planned Delivery Time Ø 13 Weeks Available (from stock) | (at least 1 or mul. of 1) | Panasonic | Pyrolytic graphite sheets | 180.0 mm | 230.0 mm | Graphite | 70.0 µm | 10 x 10^14 Ohm/cm | 1000.0 W/m.K | gray | ||||||||||

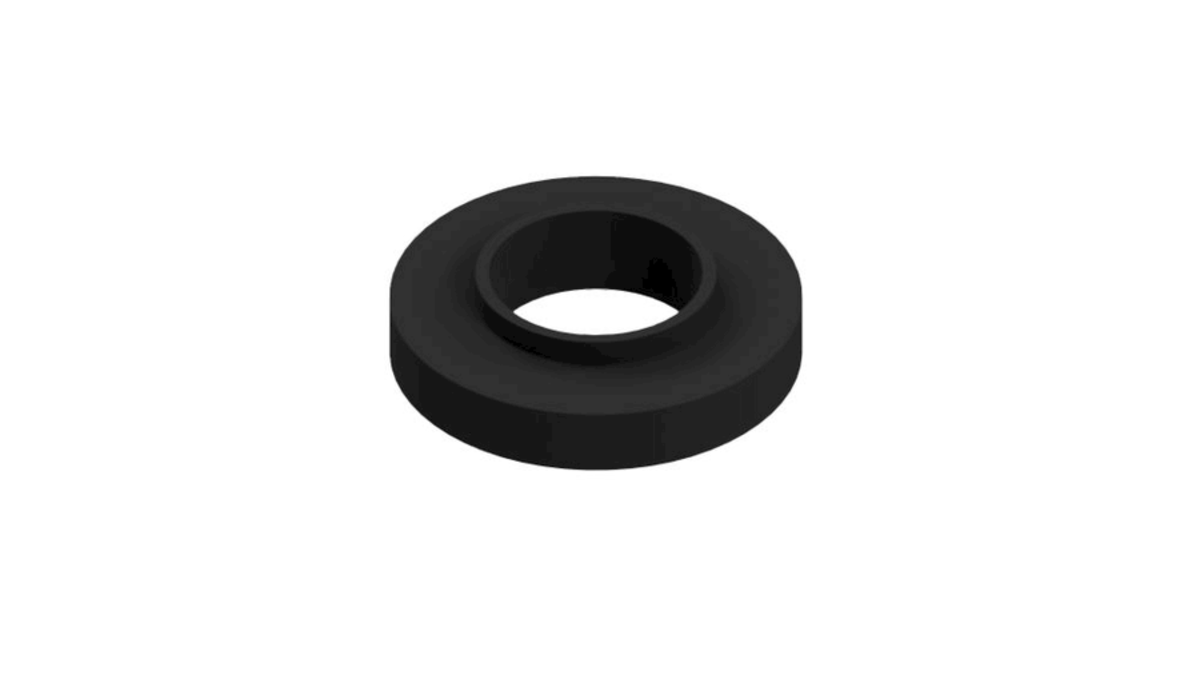

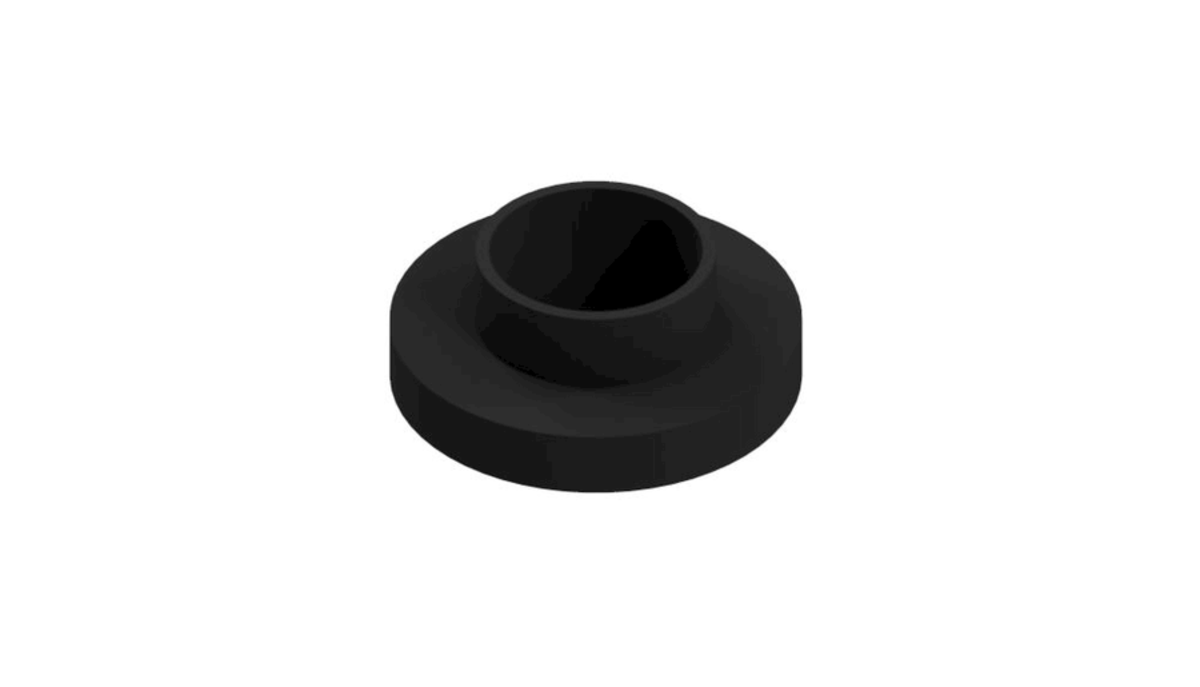

21 | Manufacturers Part No. IB11(IN100SW) Fischer Elektronik Insulating Washers IB_ PA(polyamide) -40°C 200°C black UL 94 V-0 | Customer Part No. Customer Project No. | 800 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 100) | Fischer Elektronik | Insulating Washers | -40.0 °C | 200.0 °C | PA (polyamide) | black | UL 94 V-0 | ||||||||||||
22 | Manufacturers Part No. EYGS0309ZLMF(EYGS0309ZLMF) Panasonic Pyrolytic graphite sheets EYGS Graphite 200µm 32mm 92mm -55°C 400°C gray | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | Panasonic | Pyrolytic graphite sheets | 32.0 mm | 92.0 mm | -55.0 °C | 400.0 °C | Graphite | 200.0 µm | 0.2 K/W | 400.0 W/m.K | gray | ||||||||
23 | Manufacturers Part No. WLFT404 43X43(WLFT40443X43) Fischer Elektronik Thermally Conductive Foil WLFT 404 PA(polyamide) 127µm 43mm 43mm -30°C 125°C beige UL 94 V-0 | Customer Part No. Customer Project No. | 49 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 1 or mul. of 1) | Fischer Elektronik | Thermally Conductive Foil | 43.0 mm | 43.0 mm | -30.0 °C | 125.0 °C | PA (polyamide) | 127.0 µm | 3700.0 K/W | 3 x 10^14 Ohm/cm | 0.4 W/m.K | beige | UL 94 V-0 | ||||||
24 | Manufacturers Part No. EYGS0918ZLX2(EYGS0918ZLX2) Panasonic Pyrolytic graphite sheets EYGS Graphite 200µm 90mm 180mm -55°C 400°C gray | Customer Part No. Customer Project No. | 11 Pcs. Planned Delivery Time Ø 13 Weeks Available (from stock) | (at least 1 or mul. of 1) | Panasonic | Pyrolytic graphite sheets | 90.0 mm | 180.0 mm | -55.0 °C | 400.0 °C | Graphite | 200.0 µm | 0.2 K/W | 400.0 W/m.K | gray | ||||||||
25 | Manufacturers Part No. WLFT404 14X14(WLFT40414X14) Fischer Elektronik Thermally Conductive Foil WLFT 404 PA(polyamide) 127µm 14mm 14mm -30°C 125°C beige UL 94 V-0 | Customer Part No. Customer Project No. | 320 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 1 or mul. of 1) | Fischer Elektronik | Thermally Conductive Foil | 14.0 mm | 14.0 mm | -30.0 °C | 125.0 °C | PA (polyamide) | 127.0 µm | 3700.0 K/W | 3 x 10^14 Ohm/cm | 0.4 W/m.K | beige | UL 94 V-0 |
