Results (46)
RoHS compliant
Datasheet
New
In stock
Sale
Not discontinued
| Show Selected | Image | Part No. | Indiv. Part No. | Manufacturer | Price | Availability | Quantity | Series | Data Sheet | RoHS | Manufacturer | Type | Dimension: Length | Dimension: Width | Operating Temperature Min. | Operating Temperature Max. | Material | Material thickness, max. | Thermal resistance | Insulation resistance | Thermal conductivity | Colour | Class of Inflammability |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

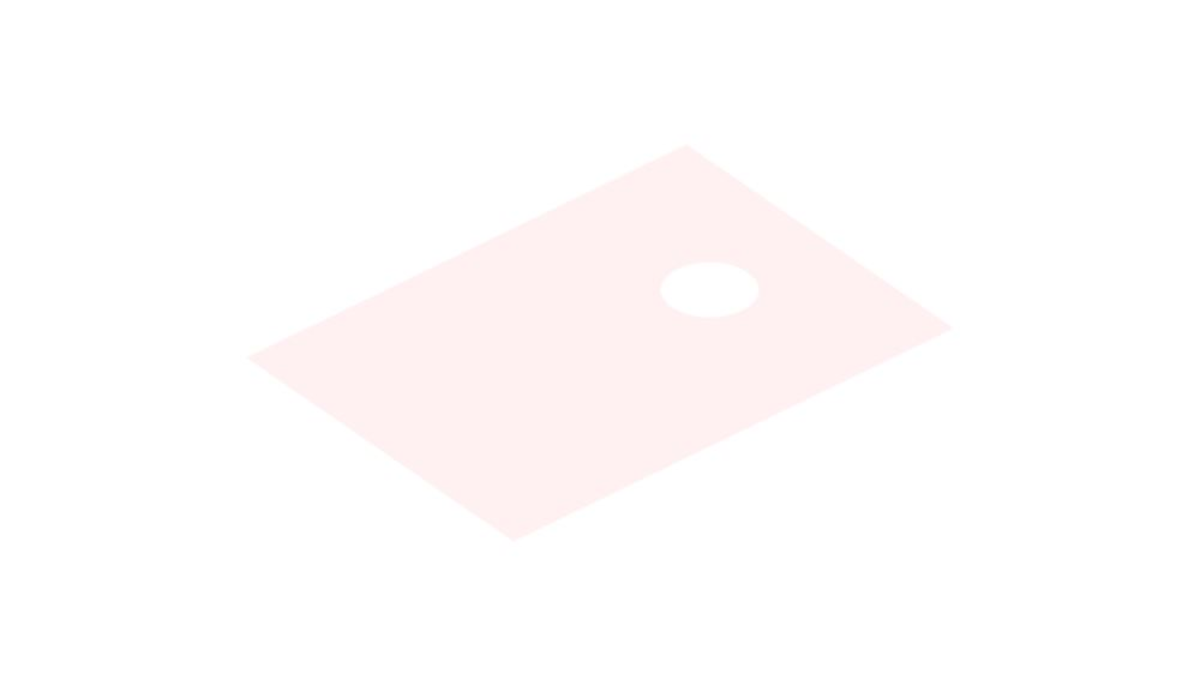

01 |  | Manufacturers Part No. KAP 220 K(KAP220K) Fischer Elektronik Wafers KAP PA(polyamide) 77µm 18mm 13mm -40°C 150°C UL 94 V-0 | Customer Part No. Customer Project No. | 50 Pcs. Planned Delivery Time Ø 3 Weeks Available (from stock) | (at least 50 or mul. of 50) | Fischer Elektronik | Wafers | 18.0 mm | 13.0 mm | -40.0 °C | 150.0 °C | PA (polyamide) | 77.0 µm | 0.15 K/W | 0.45 W/m.K | UL 94 V-0 | |||||||

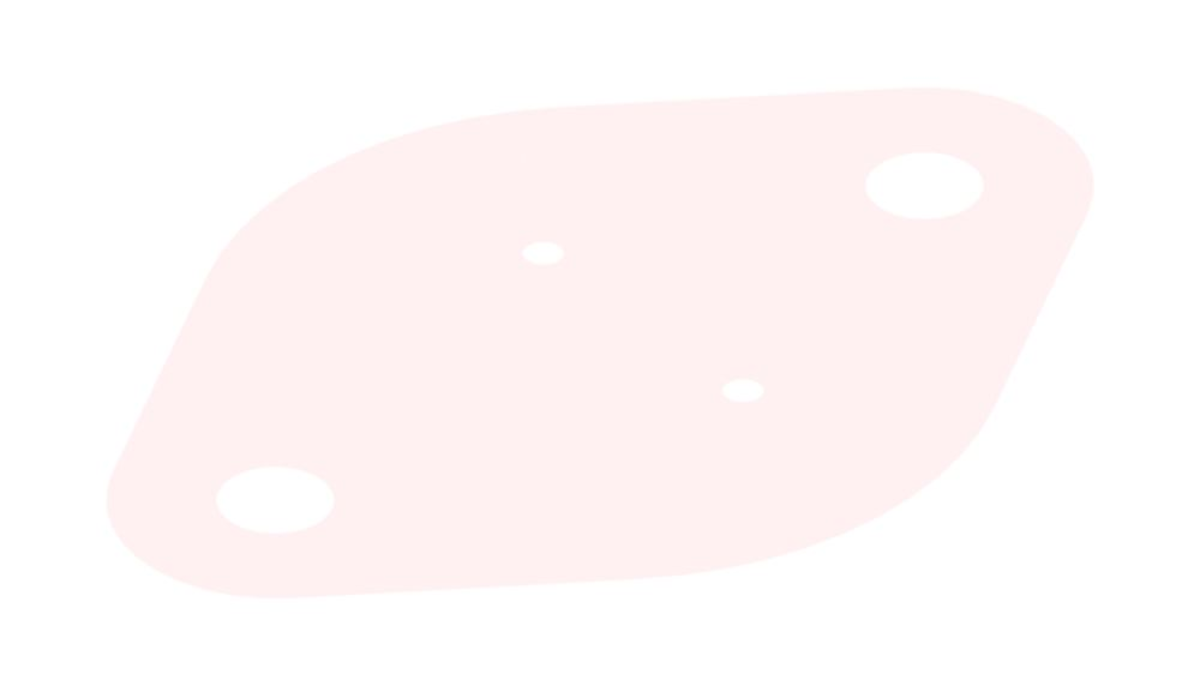

02 | | Manufacturers Part No. KAP 3 K(KAP3K) Fischer Elektronik Wafers KAP PA(polyamide) 77µm 42mm 29mm -40°C 150°C UL 94 V-0 | Customer Part No. Customer Project No. | 15 Pcs. Planned Delivery Time Ø 3 Weeks Available (from stock) | (at least 10 or mul. of 5) | Fischer Elektronik | Wafers | 42.0 mm | 29.0 mm | -40.0 °C | 150.0 °C | PA (polyamide) | 77.0 µm | 0.15 K/W | 0.45 W/m.K | UL 94 V-0 | |||||||
03 | | Manufacturers Part No. WLFT 404 35 X 35(WLFT40435X35) Fischer Elektronik Thermally Conductive Foil WLFT 404 PA(polyamide) 127µm 35mm 35mm -30°C 125°C Beige UL 94 V-0 | Customer Part No. Customer Project No. | 45 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 1 or mul. of 1) | Fischer Elektronik | Thermally Conductive Foil | 35.0 mm | 35.0 mm | -30.0 °C | 125.0 °C | PA (polyamide) | 127.0 µm | 3700.0 K/W | 3 x 10^14 Ohm/cm | 0.4 W/m.K | Beige | UL 94 V-0 | |||||
04 | | Manufacturers Part No. EYGS091203(EYGS091203) Panasonic Pyrolytic graphite sheets EYG Graphite 25µm 90mm 115mm gray | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 99 Weeks Available (from stock) | (at least 1 or mul. of 1) | Panasonic | Pyrolytic graphite sheets | 90.0 mm | 115.0 mm | Graphite | 25.0 µm | 10 x 10^14 Ohm/cm | 1600.0 W/m.K | gray | |||||||||
05 | | Manufacturers Part No. EYGS182304(EYGS182304) Panasonic Pyrolytic graphite sheets EYG Graphite 40µm 180mm 230mm gray | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 13 Weeks Available on order | (at least 10 or mul. of 10) | Panasonic | Pyrolytic graphite sheets | 180.0 mm | 230.0 mm | Graphite | 40.0 µm | 10 x 10^14 Ohm/cm | 1350.0 W/m.K | gray | |||||||||
06 | | Manufacturers Part No. EYGS0305ZLSM(EYGS0305ZLSM) Panasonic Pyrolytic graphite sheets EYGS Graphite 200µm 27mm 51mm -55°C 400°C gray | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 23 Weeks Available on order | (at least 30 or mul. of 30) | Panasonic | Pyrolytic graphite sheets | 27.0 mm | 51.0 mm | -55.0 °C | 400.0 °C | Graphite | 200.0 µm | 0.2 K/W | 400.0 W/m.K | gray | |||||||
07 | | Manufacturers Part No. EYGS0407ZLAL(EYGS0407ZLAL) Panasonic Pyrolytic graphite sheets EYGS Graphite 200µm 40mm 65,5mm -55°C 400°C gray | Customer Part No. Customer Project No. | 30 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | Panasonic | Pyrolytic graphite sheets | 40.0 mm | 65.5 mm | -55.0 °C | 400.0 °C | Graphite | 200.0 µm | 0.2 K/W | 400.0 W/m.K | gray | |||||||
08 | | Manufacturers Part No. EYGS091207(EYGS091207) Panasonic Pyrolytic graphite sheets EYG Graphite 70µm 90mm 115mm gray | Customer Part No. Customer Project No. | 14 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | Panasonic | Pyrolytic graphite sheets | 90.0 mm | 115.0 mm | Graphite | 70.0 µm | 10 x 10^14 Ohm/cm | 1000.0 W/m.K | gray | |||||||||
09 | | Manufacturers Part No. EYGS121807(EYGS121807) Panasonic Pyrolytic graphite sheets EYG Graphite 70µm 115mm 180mm gray | Customer Part No. Customer Project No. | 17 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | Panasonic | Pyrolytic graphite sheets | 115.0 mm | 180.0 mm | Graphite | 70.0 µm | 10 x 10^14 Ohm/cm | 1000.0 W/m.K | gray | |||||||||
10 | | Manufacturers Part No. EYGS182307(EYGS182307) Panasonic Pyrolytic graphite sheets EYG Graphite 70µm 180mm 230mm gray | Customer Part No. Customer Project No. | 27 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | Panasonic | Pyrolytic graphite sheets | 180.0 mm | 230.0 mm | Graphite | 70.0 µm | 10 x 10^14 Ohm/cm | 1000.0 W/m.K | gray | |||||||||
11 | | Manufacturers Part No. EYGS0309ZLMF(EYGS0309ZLMF) Panasonic Pyrolytic graphite sheets EYGS Graphite 200µm 32mm 92mm -55°C 400°C gray | Customer Part No. Customer Project No. | 120 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | Panasonic | Pyrolytic graphite sheets | 32.0 mm | 92.0 mm | -55.0 °C | 400.0 °C | Graphite | 200.0 µm | 0.2 K/W | 400.0 W/m.K | gray | |||||||
12 | | Manufacturers Part No. WLFT 404 43 X 43(WLFT40443X43) Fischer Elektronik Thermally Conductive Foil WLFT 404 PA(polyamide) 127µm 43mm 43mm -30°C 125°C Beige UL 94 V-0 | Customer Part No. Customer Project No. | 87 Pcs. Available (from stock) | (at least 1 or mul. of 1) | Fischer Elektronik | Thermally Conductive Foil | 43.0 mm | 43.0 mm | -30.0 °C | 125.0 °C | PA (polyamide) | 127.0 µm | 3700.0 K/W | 3 x 10^14 Ohm/cm | 0.4 W/m.K | Beige | UL 94 V-0 | |||||
13 | | Manufacturers Part No. EYGS0410ZLSJ(EYGS0410ZLSJ) Panasonic Pyrolytic graphite sheets EYGS Graphite 200µm 43mm 103mm -55°C 400°C gray | Customer Part No. Customer Project No. | 27 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | Panasonic | Pyrolytic graphite sheets | 43.0 mm | 103.0 mm | -55.0 °C | 400.0 °C | Graphite | 200.0 µm | 0.2 K/W | 400.0 W/m.K | gray | |||||||
14 | | Manufacturers Part No. EYGS0204ZLSN(EYGS0204ZLSN) Panasonic Pyrolytic graphite sheets EYGS Graphite 200µm 24mm 36,5mm -55°C 400°C gray | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 23 Weeks Available on order | (at least 30 or mul. of 30) | Panasonic | Pyrolytic graphite sheets | 24.0 mm | 36.5 mm | -55.0 °C | 400.0 °C | Graphite | 200.0 µm | 0.2 K/W | 400.0 W/m.K | gray | |||||||
15 | | Manufacturers Part No. EYGS0409ZLMG(EYGS0409ZLMG) Panasonic Pyrolytic graphite sheets EYGS Graphite 200µm 41mm 88mm -55°C 400°C gray | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 23 Weeks Available on order | (at least 30 or mul. of 30) | Panasonic | Pyrolytic graphite sheets | 41.0 mm | 88.0 mm | -55.0 °C | 400.0 °C | Graphite | 200.0 µm | 0.2 K/W | 400.0 W/m.K | gray | |||||||
16 | | Manufacturers Part No. EYGS0404ZLMP(EYGS0404ZLMP) Panasonic Pyrolytic graphite sheets EYGS Graphite 200µm 36mm 38mm -55°C 400°C gray | Customer Part No. Customer Project No. | 29 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | Panasonic | Pyrolytic graphite sheets | 36.0 mm | 38.0 mm | -55.0 °C | 400.0 °C | Graphite | 200.0 µm | 0.2 K/W | 400.0 W/m.K | gray | |||||||
17 | | Manufacturers Part No. EYGS0506ZLMM(EYGS0506ZLMM) Panasonic Pyrolytic graphite sheets EYGS Graphite 200µm 48mm 55mm -55°C 400°C gray | Customer Part No. Customer Project No. | 0 Pcs. Planned Delivery Time Ø 23 Weeks Available (from stock) | (at least 1 or mul. of 1) | Panasonic | Pyrolytic graphite sheets | 48.0 mm | 55.0 mm | -55.0 °C | 400.0 °C | Graphite | 200.0 µm | 0.2 K/W | 400.0 W/m.K | gray | |||||||

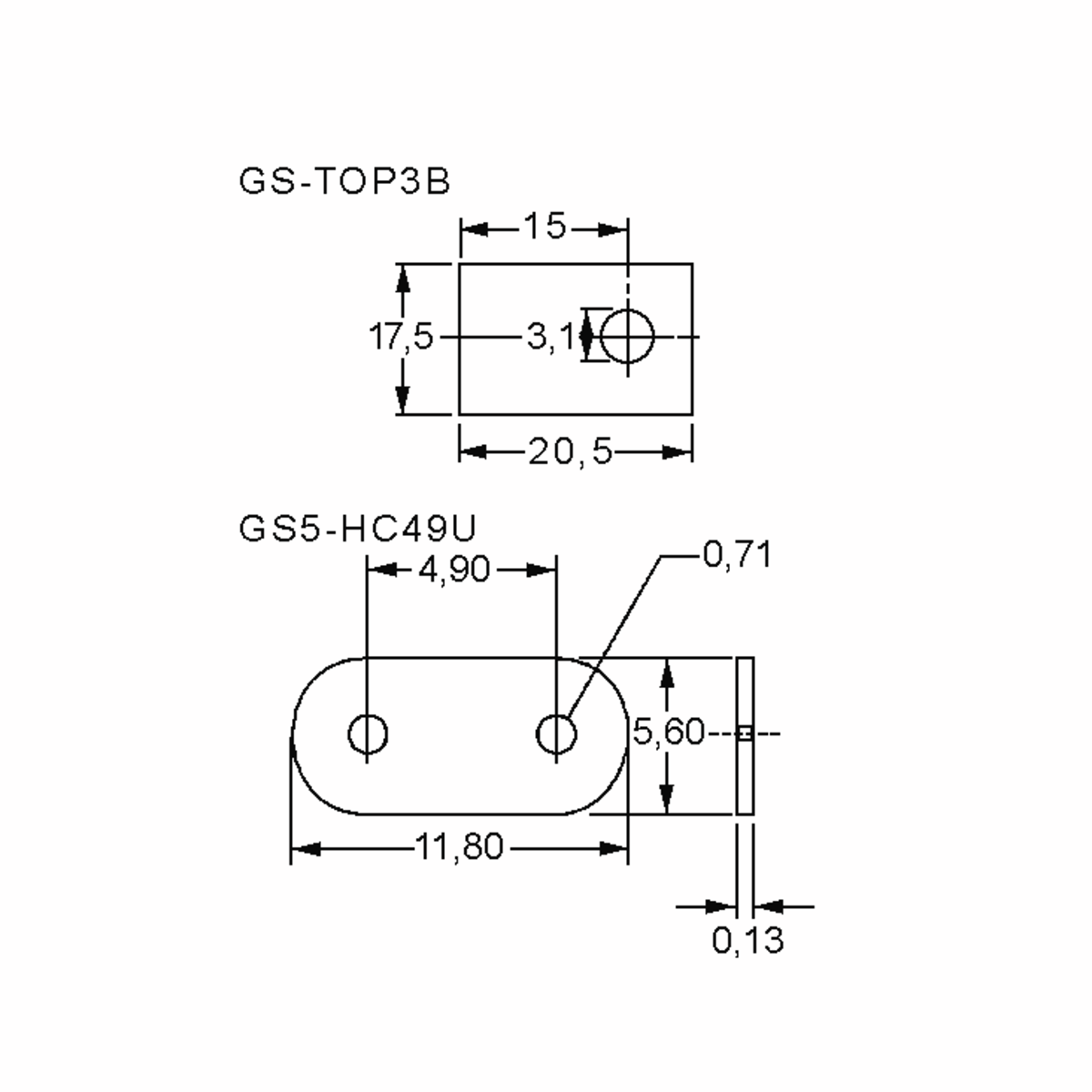

18 | | Manufacturers Part No. ISQ 04(GS5-HC49U) Fischer Elektronik Wafers ISQ4 Mylar 127µm 11,8mm 5,6mm transparent | Customer Part No. Customer Project No. | 1.000 Pcs. Planned Delivery Time Ø 8 Weeks Available (from stock) | (at least 100 or mul. of 100) | Fischer Elektronik | Wafers | 11.8 mm | 5.6 mm | Mylar | 127.0 µm | transparent | |||||||||||

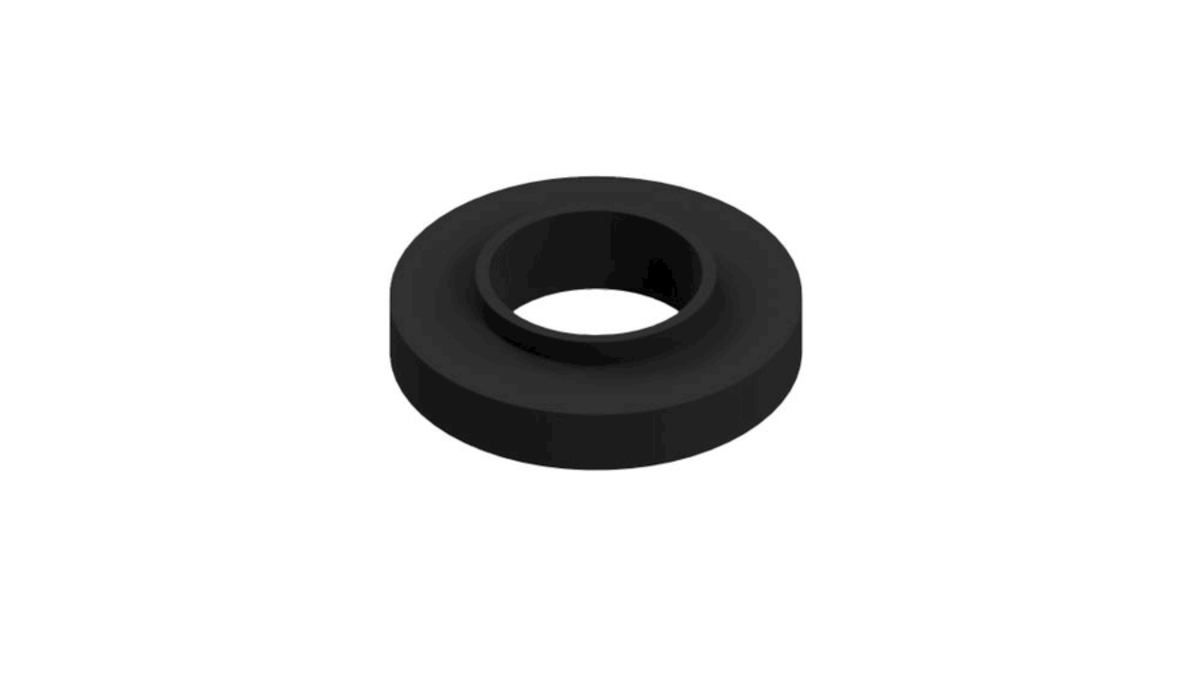

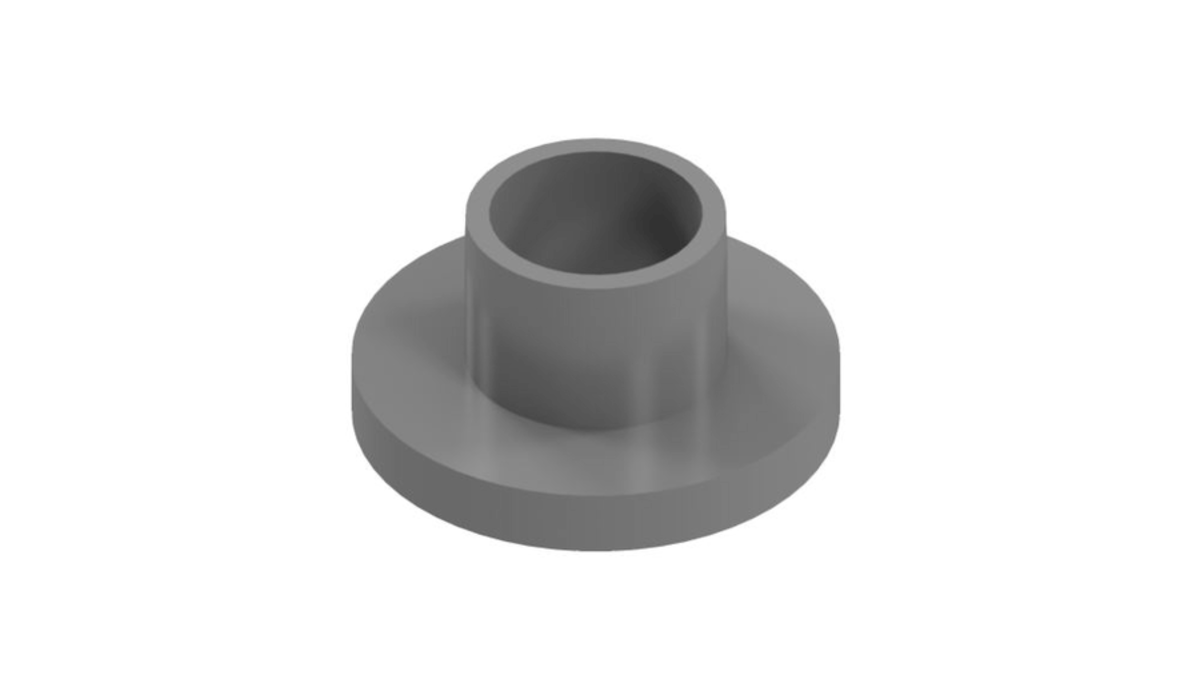

19 | | Manufacturers Part No. IB 18(IB18) Fischer Elektronik Insulating Washers IB_ PA(polyamide) -40°C 250°C black UL 94 V-0 | Customer Part No. Customer Project No. | 1.600 Pcs. Available (from stock) | (at least 100 or mul. of 100) | Fischer Elektronik | Insulating Washers | -40.0 °C | 250.0 °C | PA (polyamide) | black | UL 94 V-0 | |||||||||||

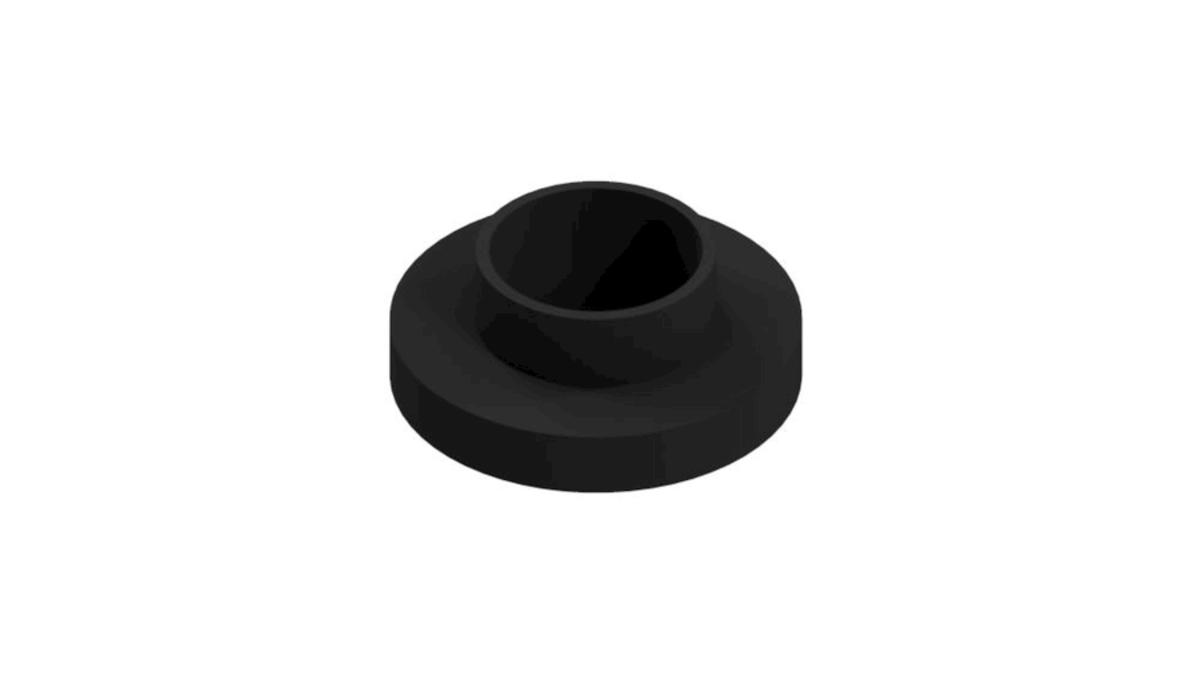

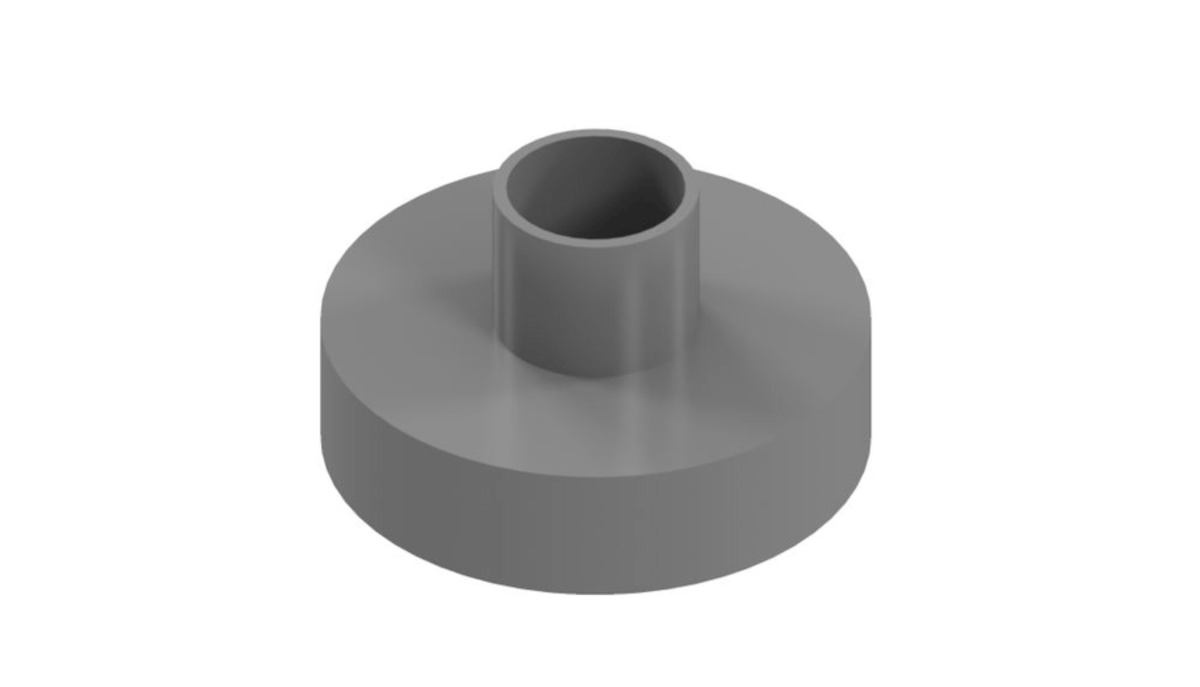

20 | | Manufacturers Part No. IB 6(IN220SW) Fischer Elektronik Insulating Washers IB_ PA(polyamide) -40°C 250°C black UL 94 V-0 | Customer Part No. Customer Project No. | 84.100 Pcs. Available (from stock) | (at least 100 or mul. of 100) | Fischer Elektronik | Insulating Washers | -40.0 °C | 250.0 °C | PA (polyamide) | black | UL 94 V-0 | |||||||||||
21 | | Manufacturers Part No. WLFT 404 23 X 23(WLFT40423X23) Fischer Elektronik Thermally Conductive Foil WLFT 404 PA(polyamide) 127µm 23mm 23mm -30°C 125°C Beige UL 94 V-0 | Customer Part No. Customer Project No. | 314 Pcs. Planned Delivery Time Ø 4 Weeks Available (from stock) | (at least 1 or mul. of 1) | Fischer Elektronik | Thermally Conductive Foil | 23.0 mm | 23.0 mm | -30.0 °C | 125.0 °C | PA (polyamide) | 127.0 µm | 3700.0 K/W | 3 x 10^14 Ohm/cm | 0.4 W/m.K | Beige | UL 94 V-0 | |||||
22 | | Manufacturers Part No. WLFT 404 31 X 34(WLFT40431X34) Fischer Elektronik Thermally Conductive Foil WLFT 404 PA(polyamide) 127µm 31mm 34mm -30°C 125°C Beige UL 94 V-0 | Customer Part No. Customer Project No. | 0 Pcs. Available (from stock) | (at least 1 or mul. of 1) | Fischer Elektronik | Thermally Conductive Foil | 31.0 mm | 34.0 mm | -30.0 °C | 125.0 °C | PA (polyamide) | 127.0 µm | 3700.0 K/W | 3 x 10^14 Ohm/cm | 0.4 W/m.K | Beige | UL 94 V-0 | |||||
23 | | Customer Part No. Customer Project No. | 8.000 Pcs. Planned Delivery Time Ø 2 Weeks Available (from stock) | (at least 100 or mul. of 100) | Assmann WSW | Wafers | 20.5 mm | 17.5 mm | Mica | 50.0 µm | transparent | ||||||||||||
24 | | Customer Part No. Customer Project No. | 13.700 Pcs. Available (from stock) | (at least 100 or mul. of 100) | Assmann WSW | Wafers | 18.0 mm | 12.0 mm | Mica | 50.0 µm | transparent | ||||||||||||

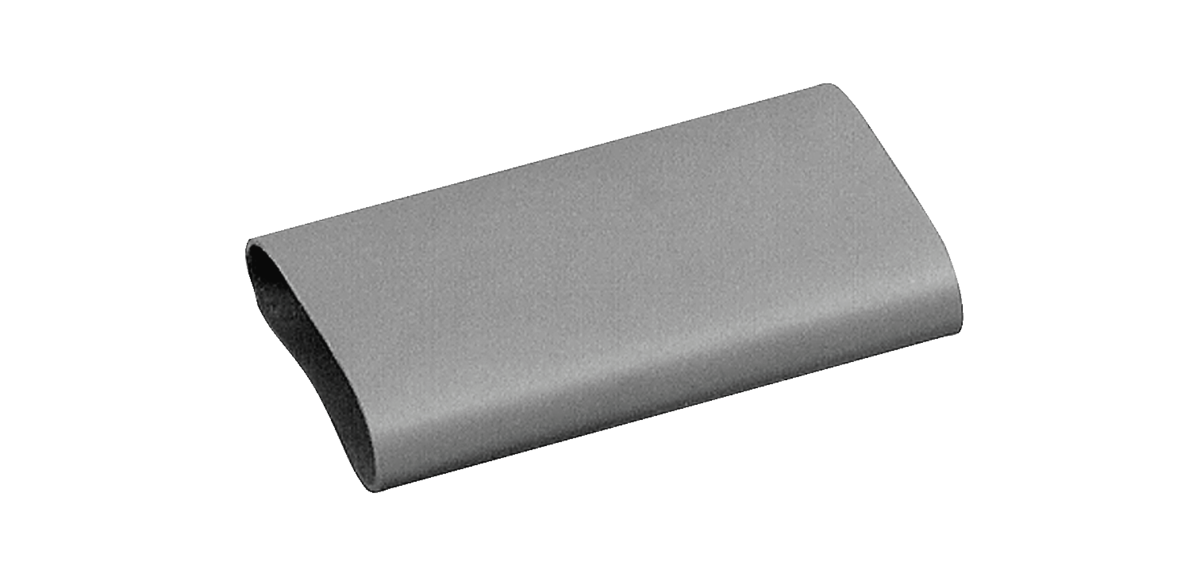

25 | | Manufacturers Part No. WSC-220(WSC220) Fischer Elektronik Insulating tubes WSC Silicone 300µm 25mm -40°C 150°C gray UL 94 V-0 | Customer Part No. Customer Project No. | 3.825 Pcs. Available (from stock) | (at least 25 or mul. of 25) | Fischer Elektronik | Insulating tubes | 25.0 mm | -40.0 °C | 150.0 °C | Silicone | 300.0 µm | 0.4 K/W | 2,9 x 10^15 Ohm/cm | 1.2 W/m.K | gray | UL 94 V-0 |
