2661102002

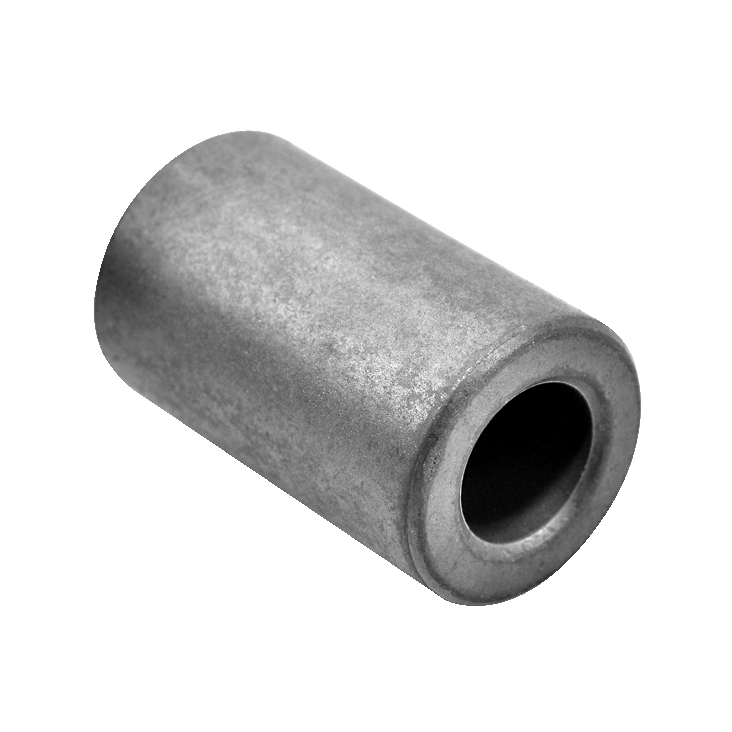

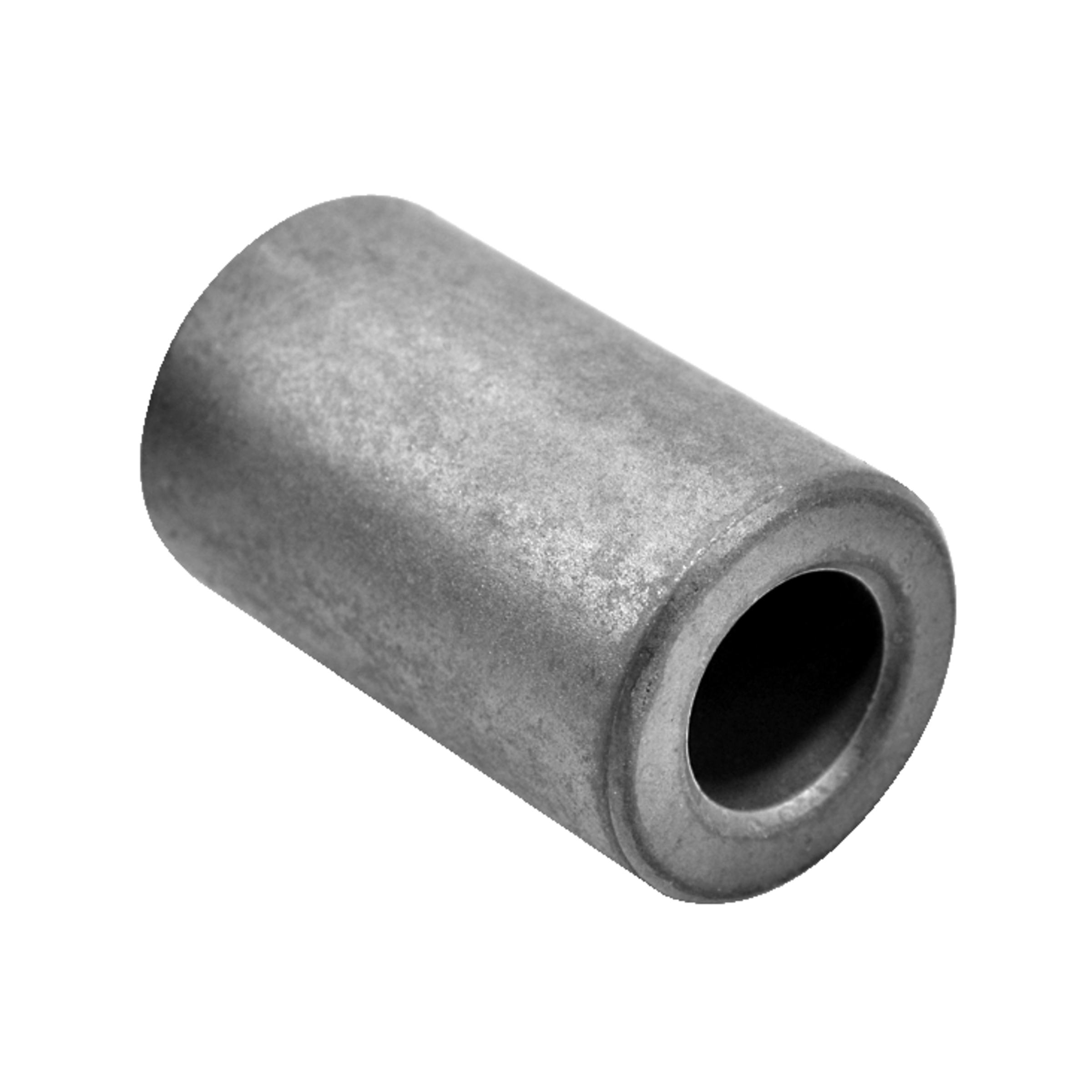

Fair-Rite Ferrite ring FR2661 28,6mm 55g Ø12,8mm 190Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
100 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 264 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 4 or multiple of 4)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- FR2661
- Type
- Ferrite ring
- Features
- Ferrite material 61
- For suppression of conducted interference 200...1000MHz- Dimension: Length
- 28.6 mm
- Weight
- 55 g
- Max. Cable diameter
- 12.8 mm
- RoHS-Conform
Specifications
Open all

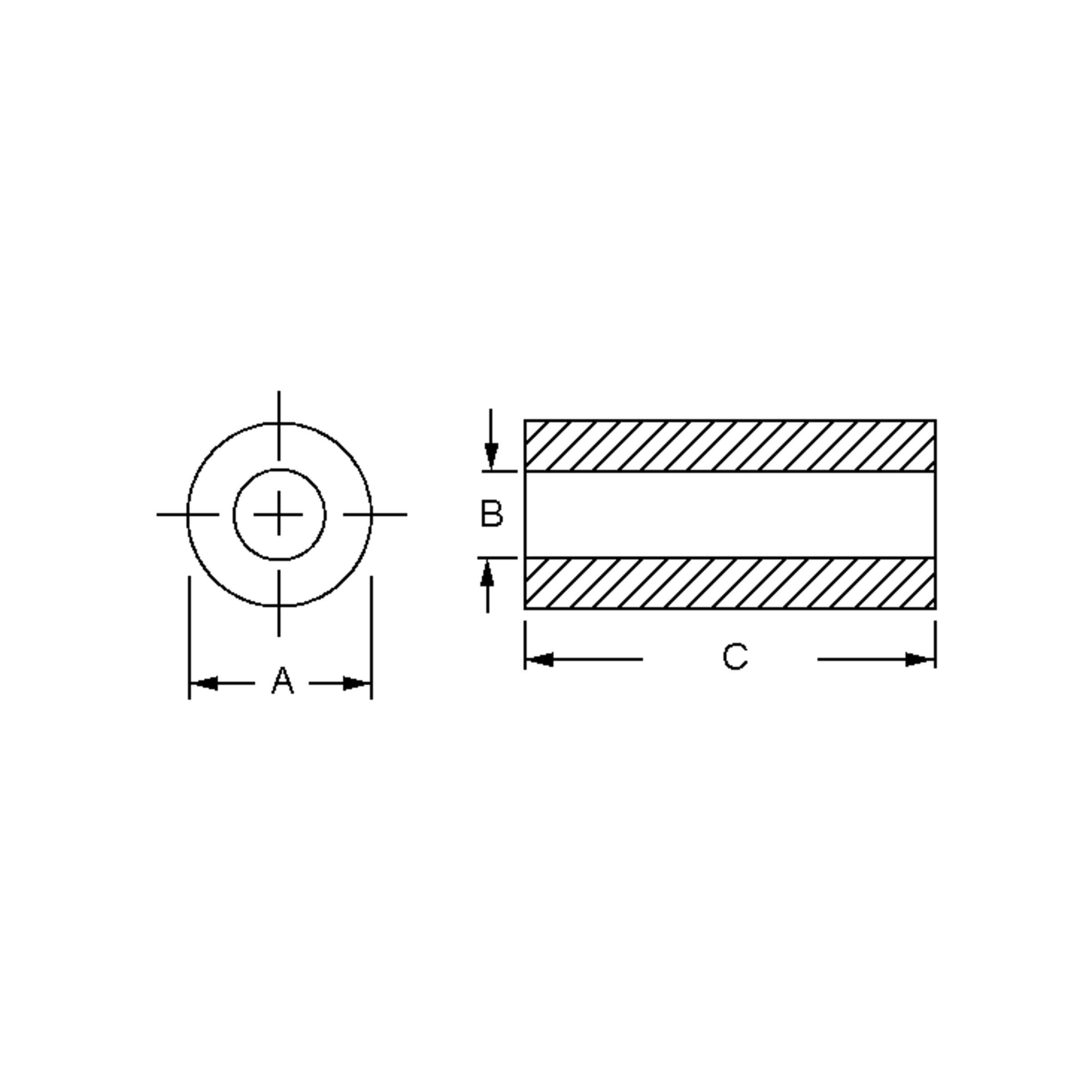

Dimensions and weights
- Dimension: Length
- 28.6 mm
- Outer diameter
- 25.9 mm
- Diameter, inner
- 12.8 mm
- Weight
- 55 g
Technical features
- Max. Cable diameter
- 12.8 mm
- Curie temperature
- 300 °C
- Temperature coefficient
- 0.1 % / °C
- Loss factor
- 30 x 10^-6
- Impedance at 100 MHz
- 190 Ohm
