2643023002

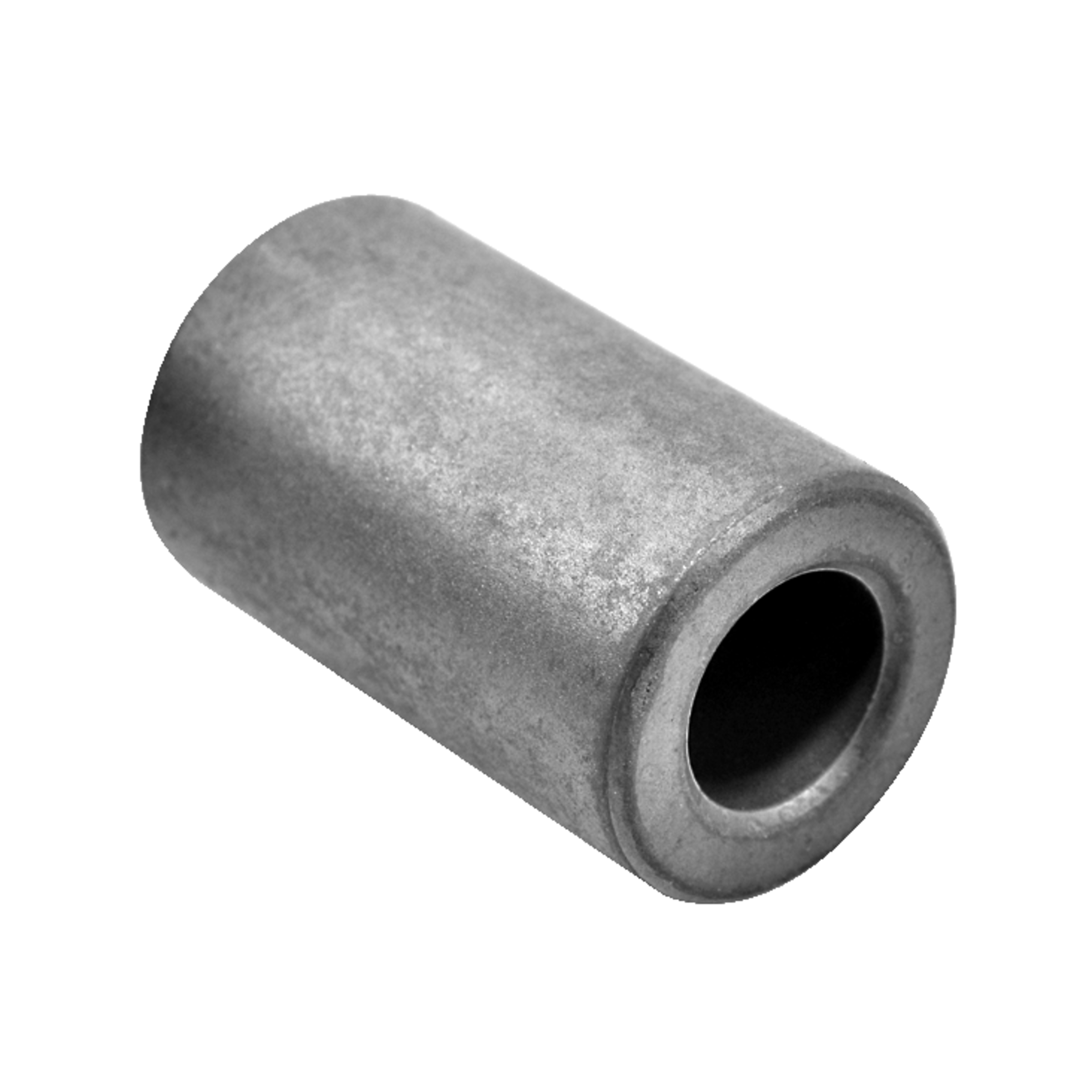

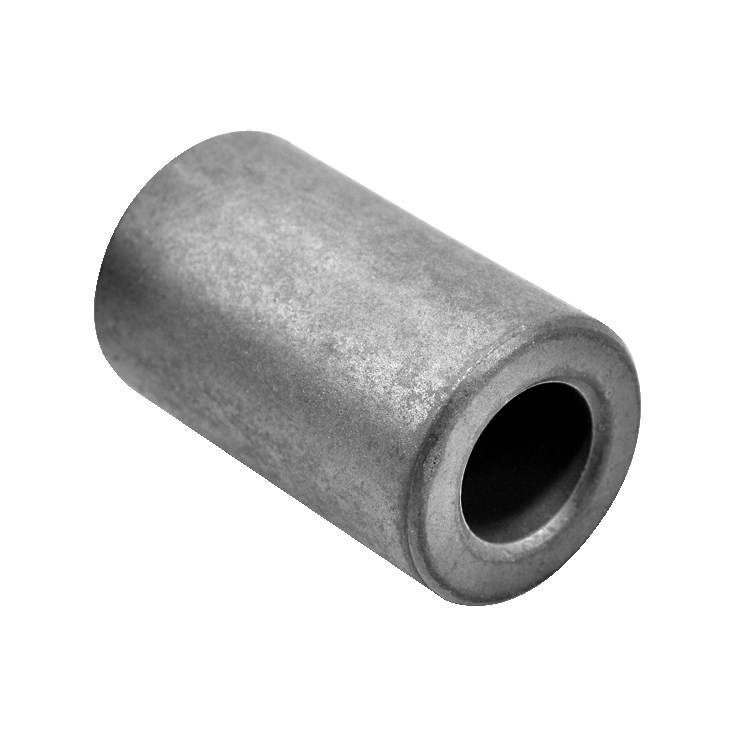

Fair-Rite Ferrite ring FR2643 19,05mm 4,1g Ø4,75mm 145Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
1.082 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 1128 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 47 or multiple of 47)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- FR2643
- Type
- Ferrite ring
- Features
- Ferrite material 43
- For suppression of conducted interference 25...300MHz- Dimension: Length
- 19.05 mm
- Weight
- 4.1 g
- Max. Cable diameter
- 4.75 mm
- RoHS-Conform
Specifications
Open all

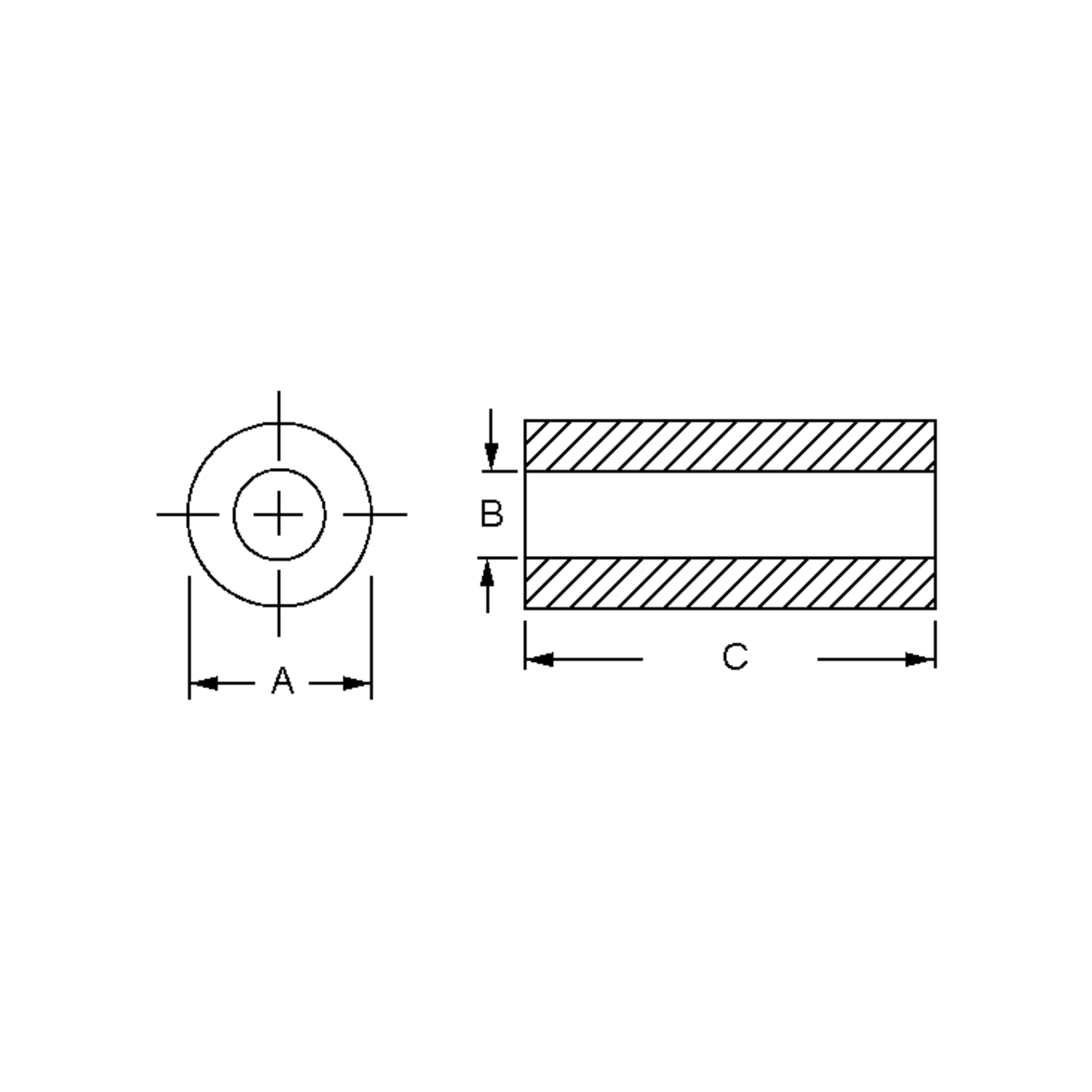

Dimensions and weights
- Dimension: Length
- 19.05 mm
- Outer diameter
- 9.5 mm
- Diameter, inner
- 4.75 mm
- Weight
- 4.1 g
Technical features
- Max. Cable diameter
- 4.75 mm
- Curie temperature
- 130 °C
- Temperature coefficient
- 1.25 % / °C
- Loss factor
- 250 x 10^-6
- Impedance at 25 MHz
- 100 Ohm
- Impedance at 100 MHz
- 145 Ohm
