0443164251

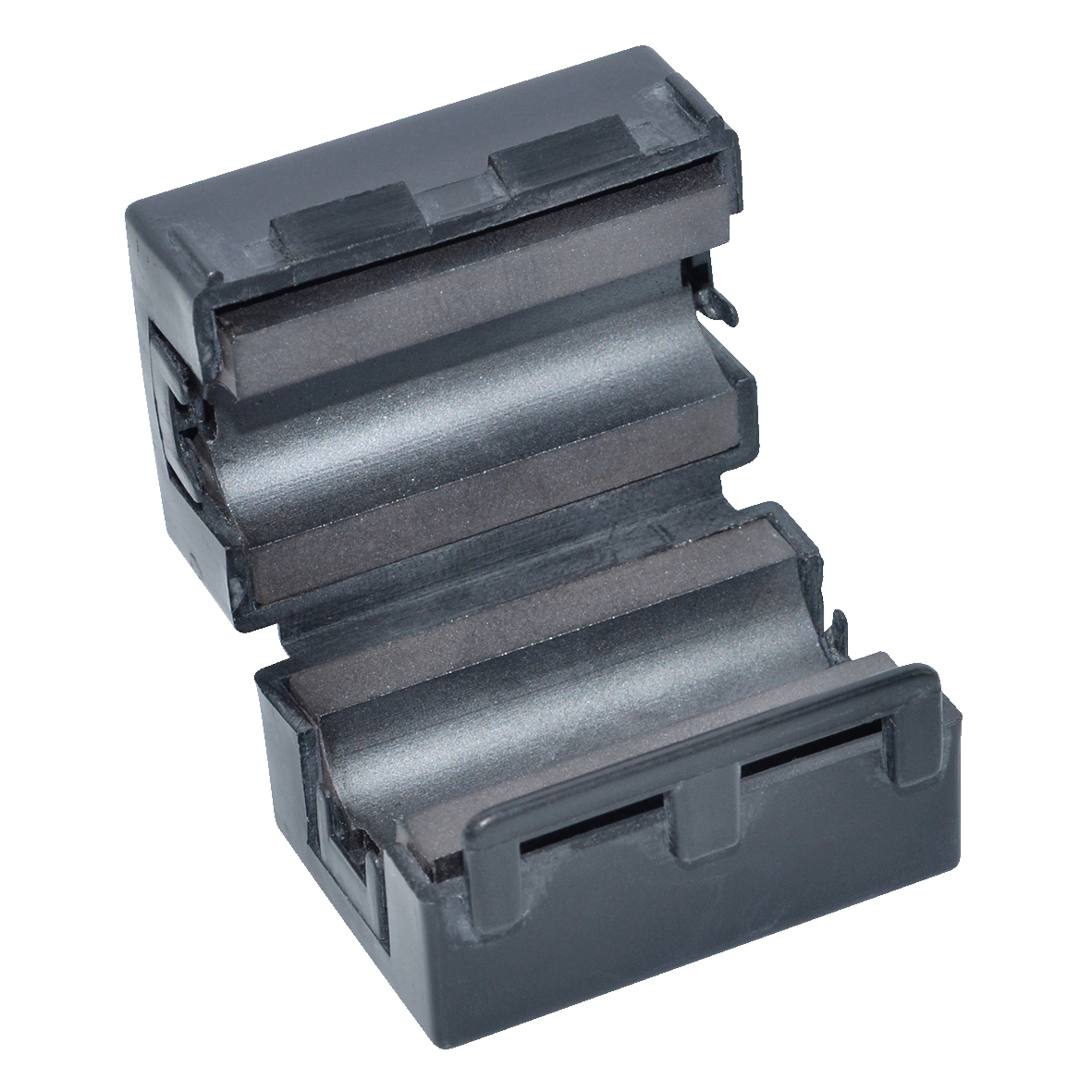

Fair-Rite Folding ferrite FR0443 32,2mm 31g Ø6,6mm 275Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
196 Pcs.
196 Pcs.
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 196 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 196 or multiple of 196)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- FR0443
- Type
- Folding ferrite
- Features
- Ferrite material 43
- Meets UL94V-0
- Snap-It for easy, subsequent mounting
- For suppression of conducted interference 25...300MHz- Dimension: Length
- 32.2 mm
- Weight
- 31 g
- Max. Cable diameter
- 6.6 mm
- RoHS-Conform
Specifications
Open all

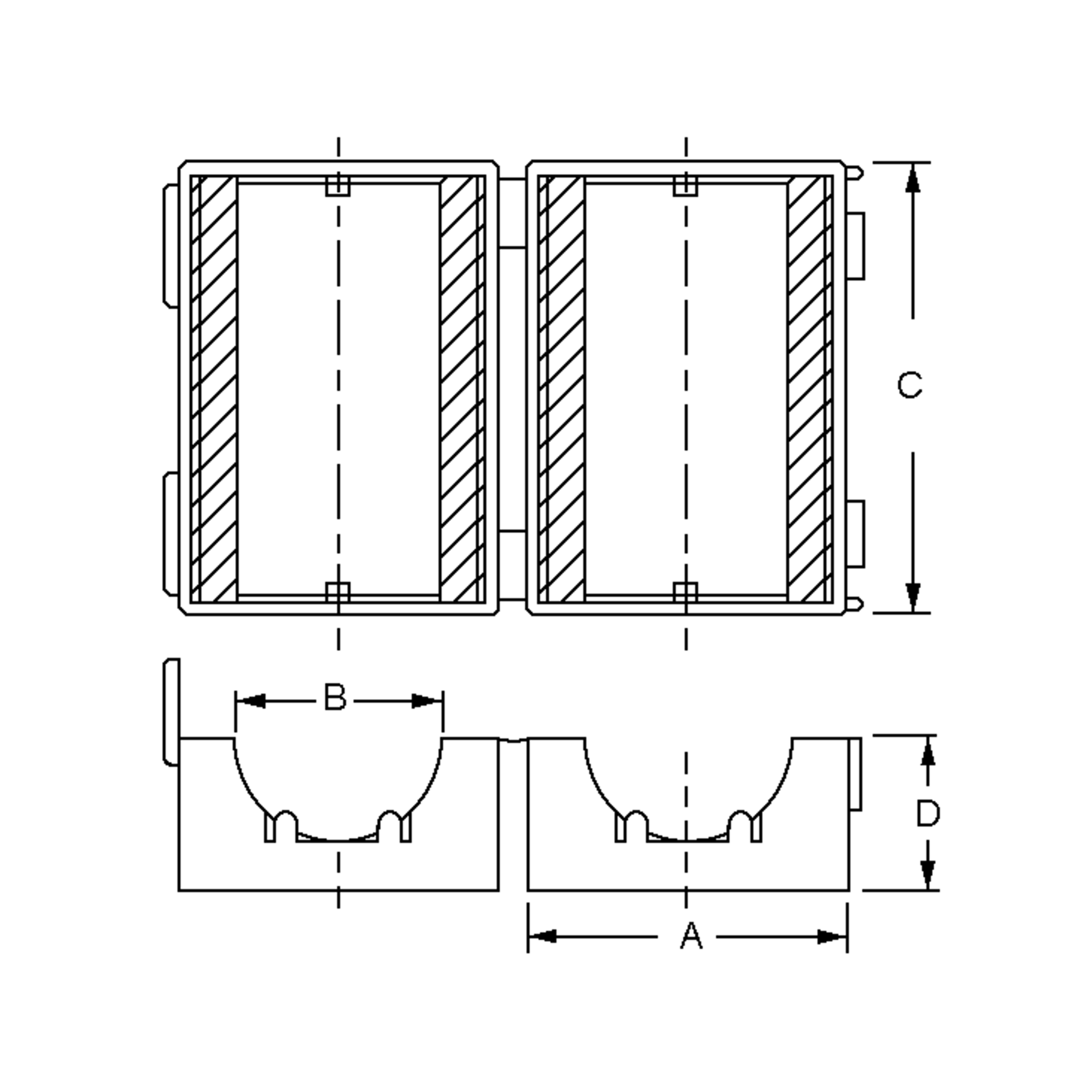

Dimensions and weights
- Dimension: Length
- 32.2 mm
- Outer diameter
- 17.9 mm
- Diameter, inner
- 6.6 mm
- Weight
- 31 g
Technical features
- Max. Cable diameter
- 6.6 mm
- Curie temperature
- 130 °C
- Temperature coefficient
- 1.25 % / °C
- Loss factor
- 250 x 10^-6
- Impedance at 25 MHz
- 163 Ohm
- Impedance at 100 MHz
- 275 Ohm
