0443164151

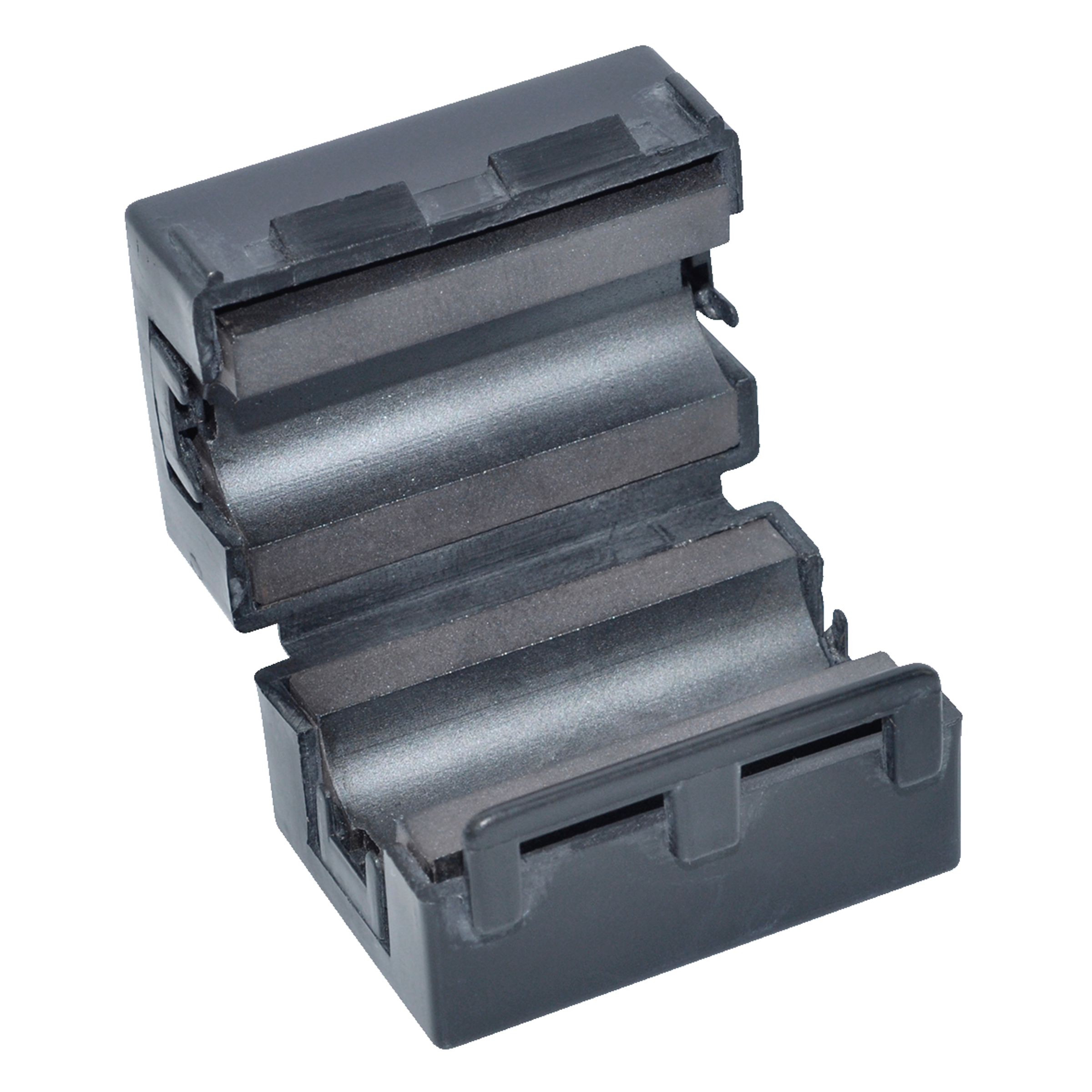

Fair-Rite Folding ferrite FR0443 32,5mm 84g Ø13,05mm 250Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
10 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 110 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 10 or multiple of 10)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- FR0443
- Type
- Folding ferrite
- Features
- Ferrite material 43
- Meets UL94V-0
- Snap-It for easy, subsequent mounting
- For suppression of conducted interference 25...300MHz- Dimension: Length
- 32.5 mm
- Weight
- 84 g
- Max. Cable diameter
- 13.05 mm
- RoHS-Conform
Specifications
Open all

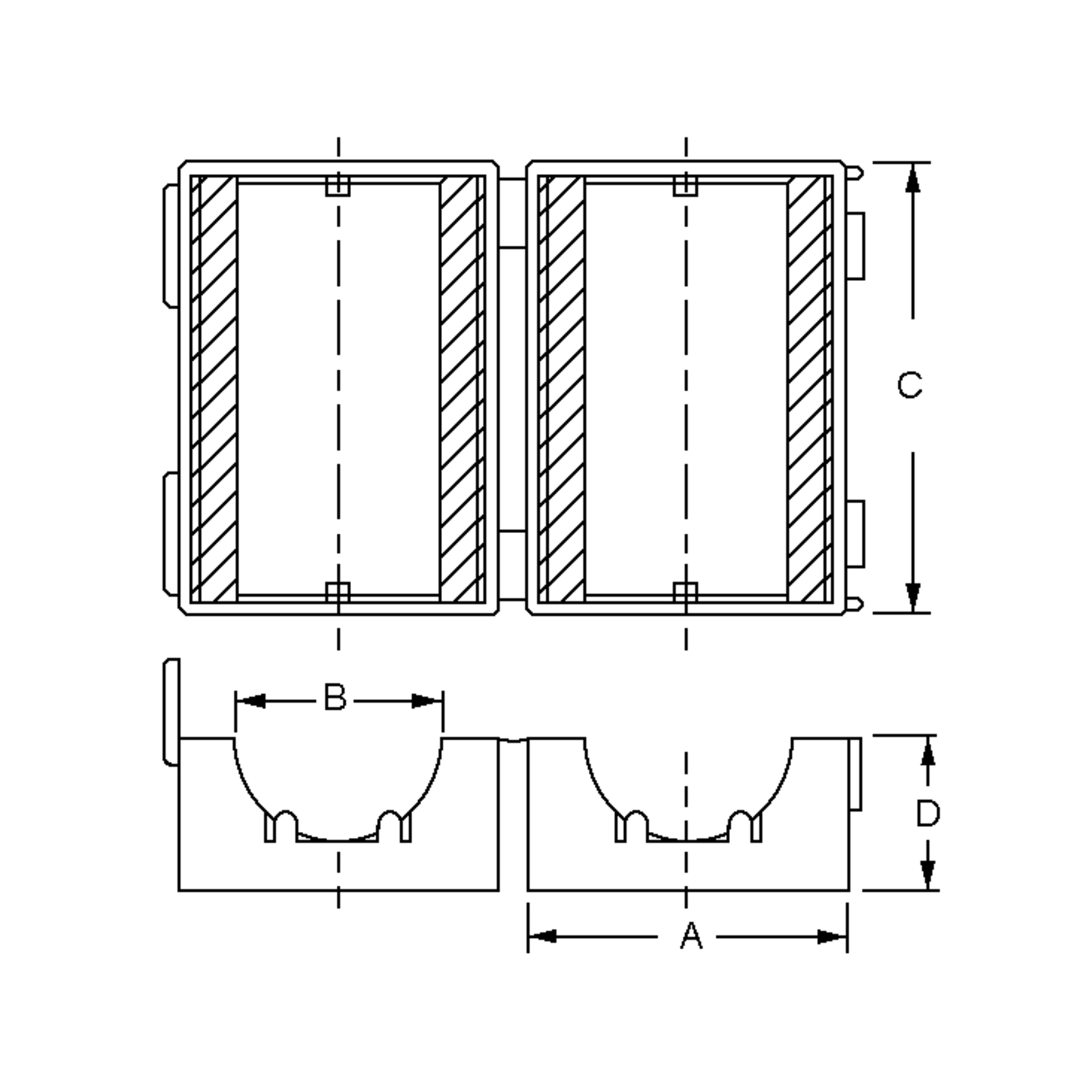

Dimensions and weights
- Dimension: Length
- 32.5 mm
- Outer diameter
- 29 mm
- Diameter, inner
- 13.05 mm
- Weight
- 84 g
Technical features
- Max. Cable diameter
- 13.05 mm
- Curie temperature
- 130 °C
- Temperature coefficient
- 1.25 % / °C
- Loss factor
- 250 x 10^-6
- Impedance at 25 MHz
- 156 Ohm
- Impedance at 100 MHz
- 250 Ohm
