0431178281

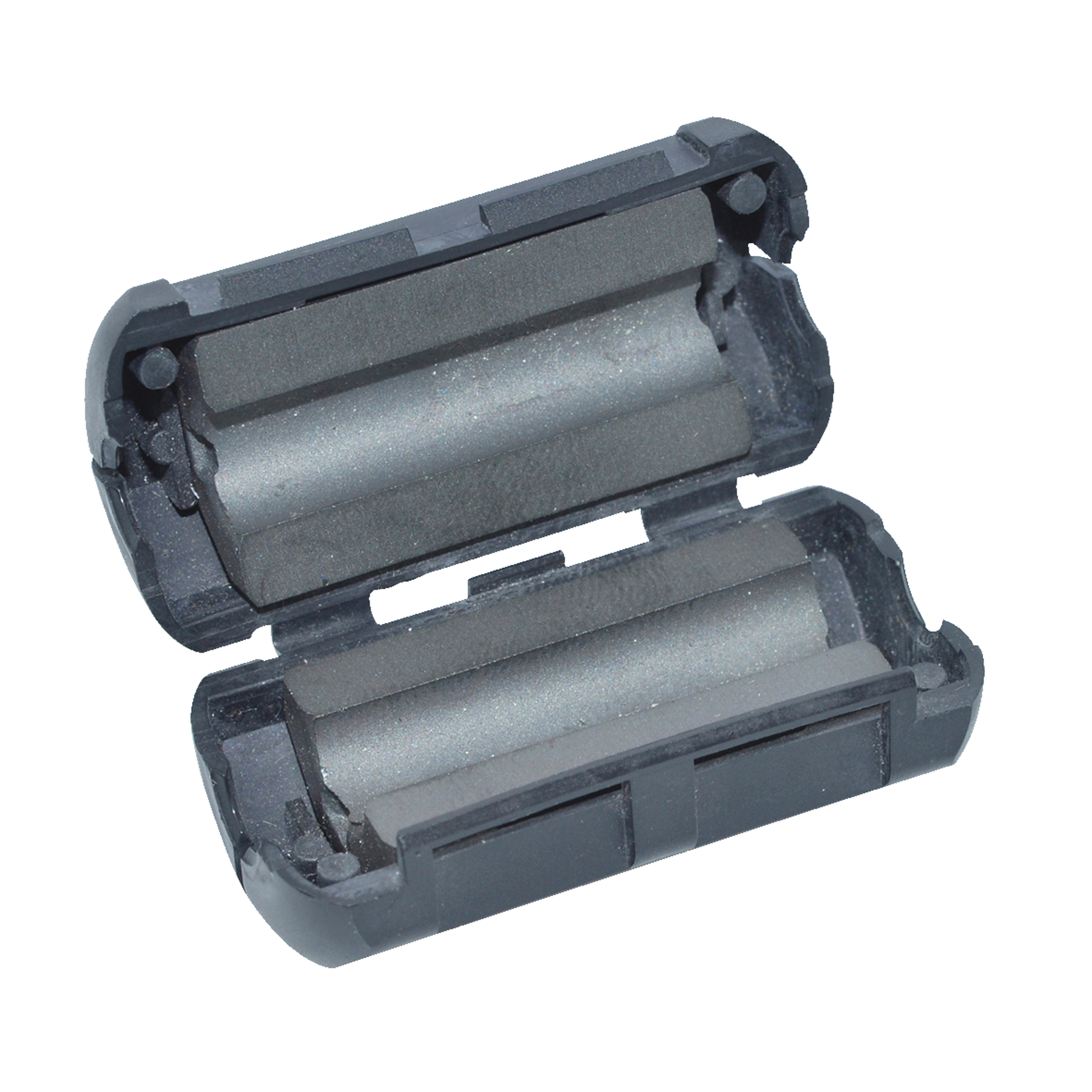

Fair-Rite Folding ferrite FR04311 39,4mm 23g Ø9mm 250Ohm
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
126 Pcs. in stock
Planned delivery time
Ø 16 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available (from stock)
Data Sheet
ECAD Model
Prices
Manufacturer bundle 196 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 7 or multiple of 7)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Series
- FR04311
- Type
- Folding ferrite
- Features
- Ferrite material 31
- Meets UL94V-0
- Snap-It for easy, subsequent mounting
- For suppression of conducted interference 1...300MHz- Dimension: Length
- 39.4 mm
- Weight
- 23 g
- Max. Cable diameter
- 9 mm
- RoHS-Conform
Specifications
Open all
Dimensions and weights
- Dimension: Length
- 39.4 mm
- Outer diameter
- 21.5 mm
- Diameter, inner
- 9 mm
- Weight
- 23 g
Technical features
- Max. Cable diameter
- 9 mm
- Curie temperature
- 130 °C
- Temperature coefficient
- 1.6 % / °C
- Loss factor
- 20 x 10^-6
- Impedance at 25 MHz
- 130 Ohm
- Impedance at 100 MHz
- 250 Ohm
