FB2501L

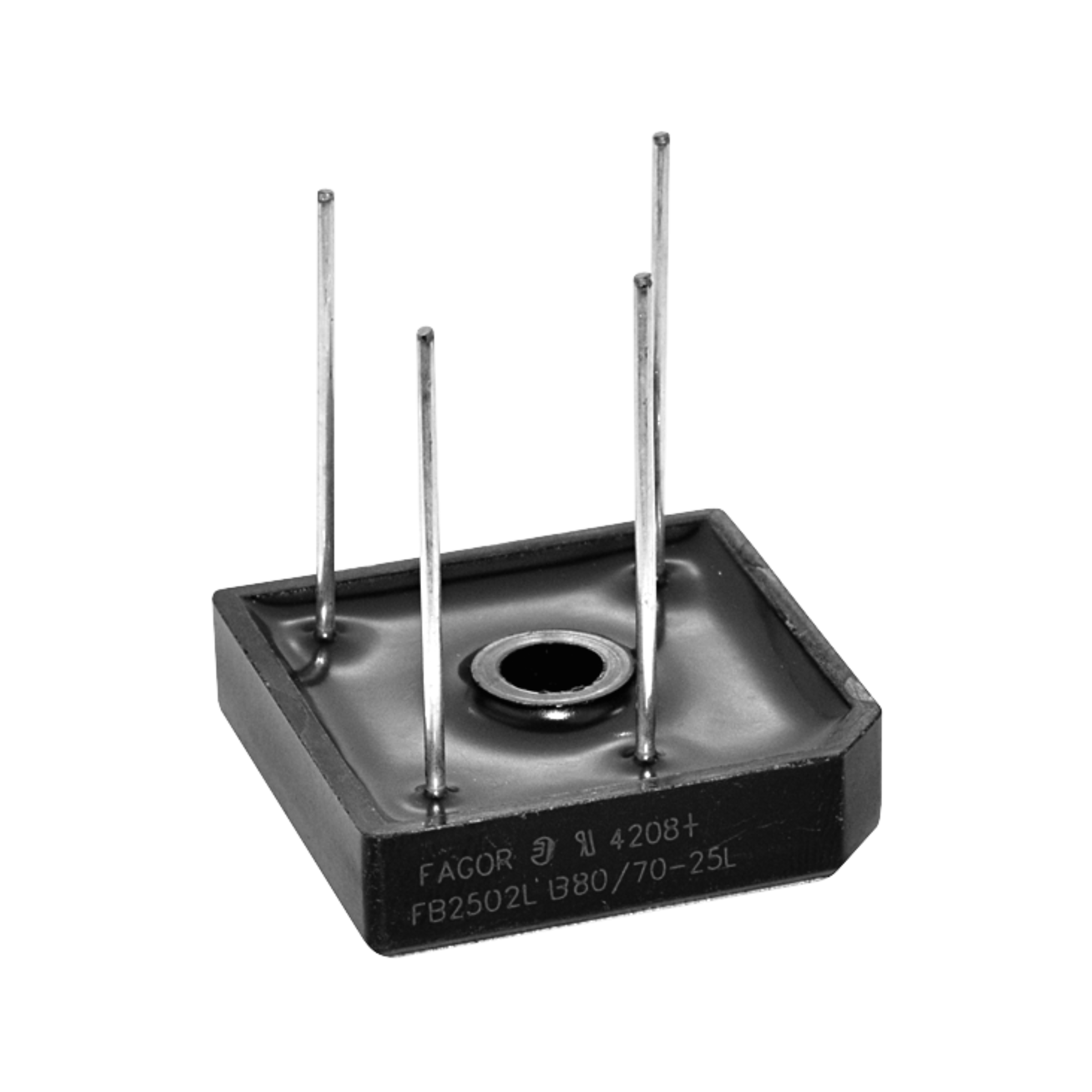

Fagor Electronica THT Power Bridge Rectifier 25A 70V 100V 1,1V Power L
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
500 Pcs.
500 Pcs.
Planned delivery time
Ø 14 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 50 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 500 or multiple of 500)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- (Uf) Forward Voltage
- 1.1 V
- (If) Forward Current
- 25 A
- (Urms) RMS Voltage
- 70 V
- (Urrm) Peak Recurrent Reverse Voltage Max.
- 100 V
- Manufacturer Package
- Power L
- RoHS-Conform
Specifications
Open all
Operating conditions
- Operating Temperature Min.
- -55 °C
- Operating Temperature Max.
- 150 °C
- Storage Temperature Min.
- -55 °C
- Storage Temperature Max.
- 150 °C
Electrical properties
- (Uf) Forward Voltage
- 1.1 V
- (Urms) RMS Voltage
- 70 V
- (If) Forward Current
- 25 A
- (Urrm) Peak Recurrent Reverse Voltage Max.
- 100 V
- (Ir) Reverse Current
- 5 µA
Safety/Certifications
- Approvals
- UL
