LFB47110025036

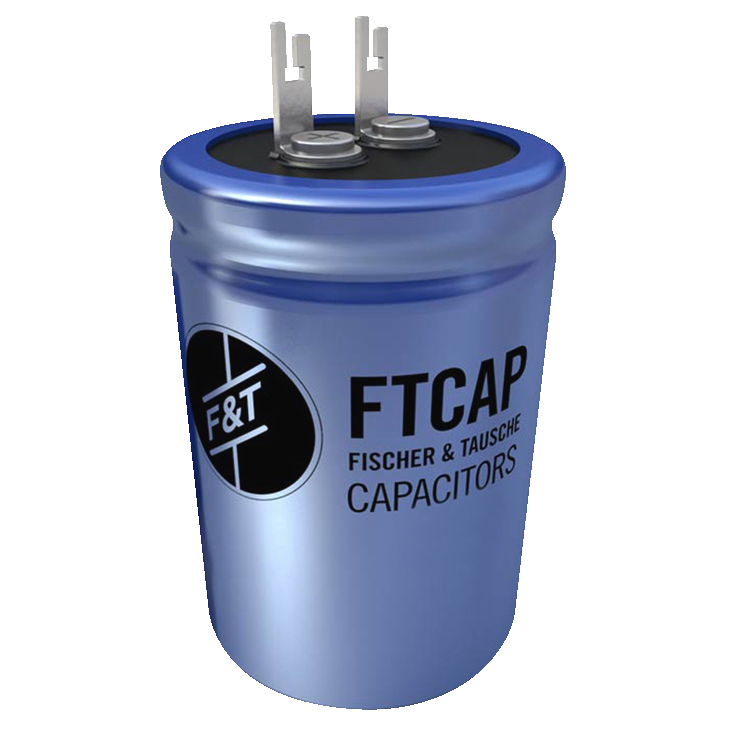

FTCAP Aluminum electrolytic capacitor Solder lugs and bolt fastening radial 470µF 100V 20% RM10mm -40°C - 85°C
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Back Order
300 Pcs.
300 Pcs.
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 300 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 300 or multiple of 300)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Aluminum electrolytic capacitor
- Capacity
- 470 µF
- Capacity tolerance
- 20 %
- Rated voltage DC
- 100 V
- Assembly Type
- Solder lugs and bolt fastening
- Housing
- radial
- Pitch
- 10 mm
- RoHS-Conform
Specifications
Open all

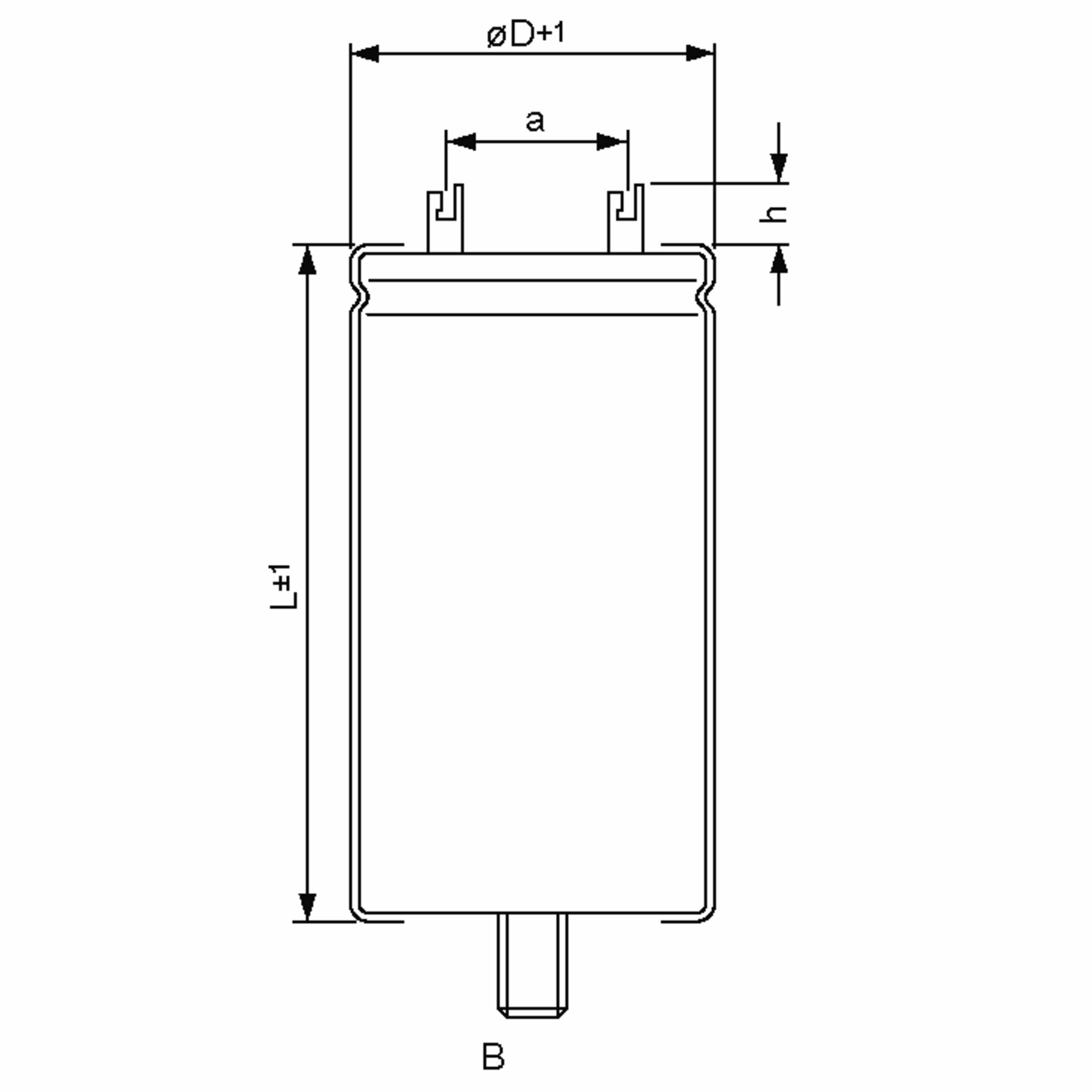

Dimensions and weights
- Diameter
- 25 mm
- Dimension: Height
- 36 mm
- Fixing bolt thread
- M8 x 12
- Pitch
- 10 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- Climate category IEC
- 40/85/56
Technical features
- Capacity
- 470 µF
- Capacity
- 470
- Capacity unit
- µF
- Capacity tolerance
- 20 %
- Loss factor tan δ
- 0,08
- Equivalent series resistance (ESR)
- 217 mOhm
- Rated voltage DC
- 100 V
- Service life
- 5.000 h
Safety/Certifications
- Standards
- IEC 60384-4
