LFA10310050095

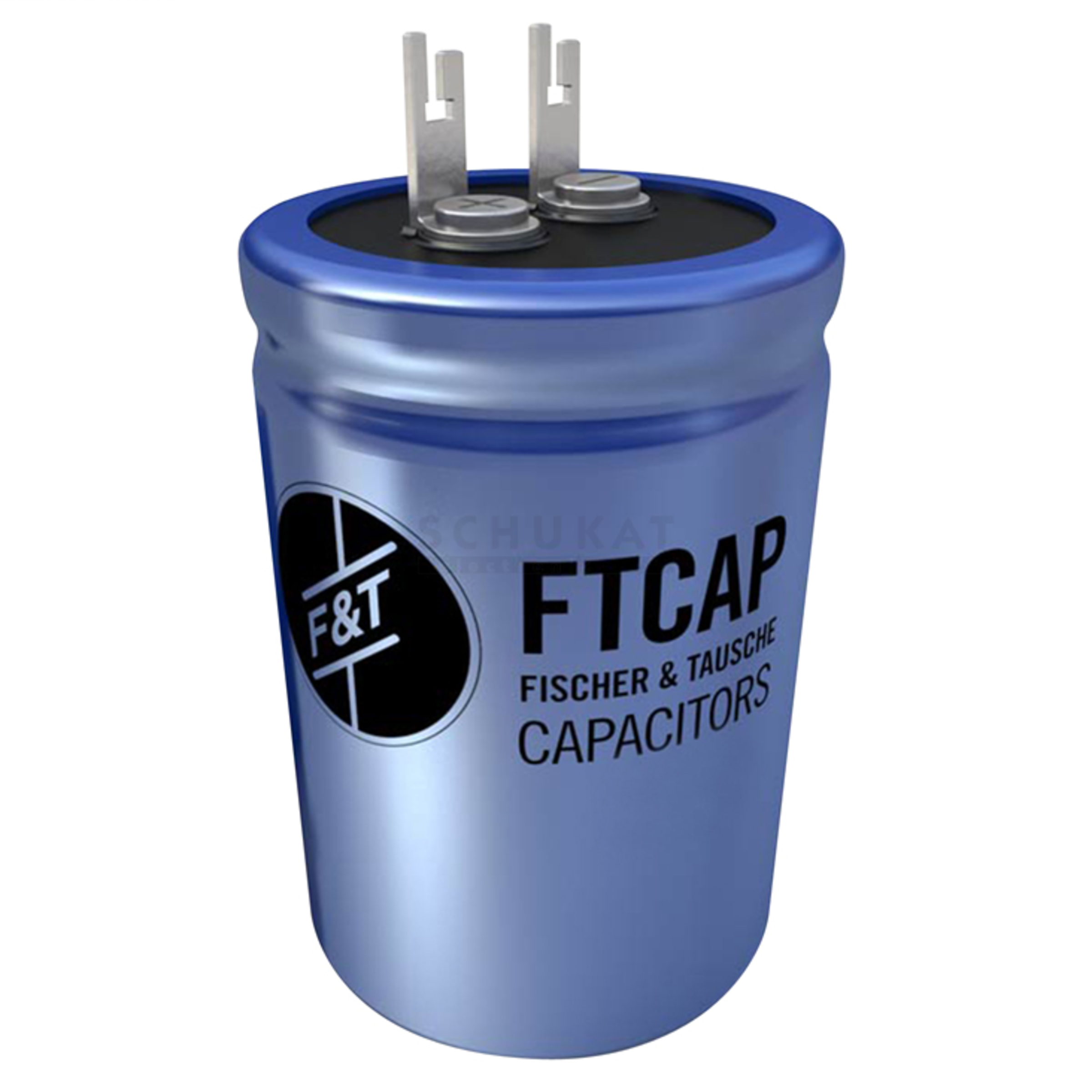

FTCAP Aluminum electrolytic capacitor LF Solder lugs and clamp mounting radial 100V 10000µF P20mm -40°C...85°C
Enter your company's part number here. Your part number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
Enter your personal project number here to assign the item to a project. Your part project number will be referenced on your receipts, such as the order confirmation, invoice or delivery note.
0 Pcs. in stock
Planned delivery time
Ø 12 Weeks
Life Cycle Status
The life cycle indicates which market phase the item is in. We distinguish between:
• Active (green)
• NRND = Not Recommended for New Designs (yellow)
• LTB = Last Time Buy (yellow)
• EOL = End of Life (red)
Active
Available on order
Data Sheet
ECAD Model
Prices
Manufacturer bundle 100 Pcs.
Manufacturer's packaging unit (Mfr. PU) means the smallest original packaging unit of the manufacturer.
Price per 1 Pcs.
Quantity and Options
(at least 1 or multiple of 1)
All prices net plus VAT. We do not deliver to private customers.
Fact Sheet
- Type
- Aluminum electrolytic capacitor
- Capacity
- 10.000 µF
- Capacity Tolerance
- ±20%
- Rated voltage DC
- 100 V
- Assembly Type
- Solder lugs and clamp mounting
- Housing
- radial
- Pitch
- 20 mm
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- RoHS-Conform
Specifications
Open all

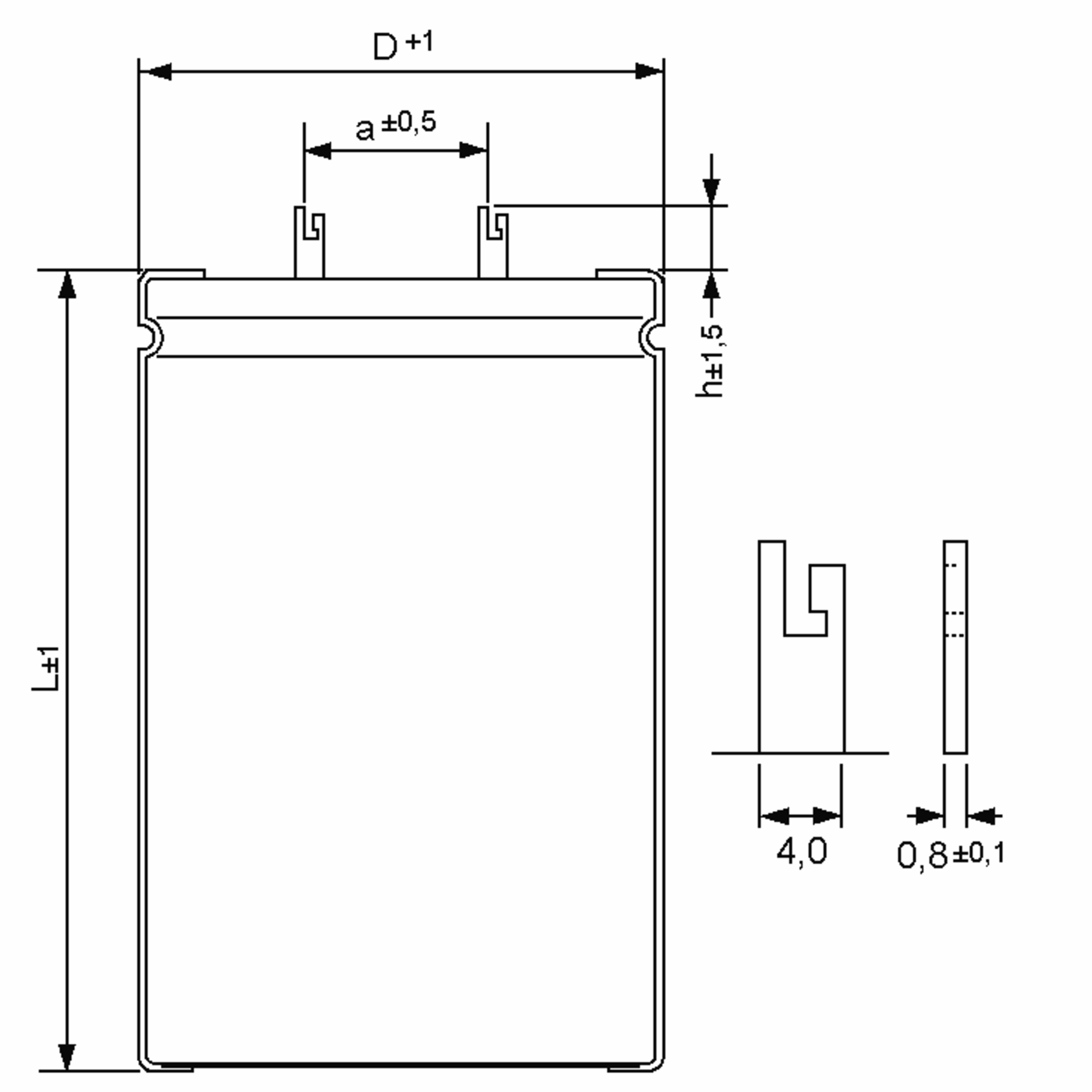

Dimensions and Weights
- Diameter
- 50 mm
- Dimension: Height
- 95 mm
- Fixing bolt thread
- M12 16
- Pitch
- 20 mm
Operating conditions
- Operating Temperature Min.
- -40 °C
- Operating Temperature Max.
- 85 °C
- Climate category IEC
- 40/85/56
Technical Features
- Capacity
- 10.000 µF
- Capacity
- 10,000
- Capacity unit
- µF
- Capacity Tolerance
- ±20%
- Loss factor tan δ
- 0,15
- Ripple Current
- 5,5 A
- Equivalent series resistance (ESR)
- 24 mOhm
- Rated voltage DC
- 100 V
- Service life
- 5.000 h
Safety/Certifications
- Standards
- IEC 60384-4
